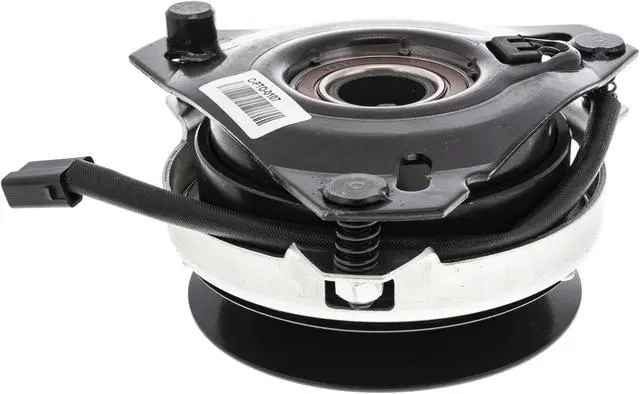

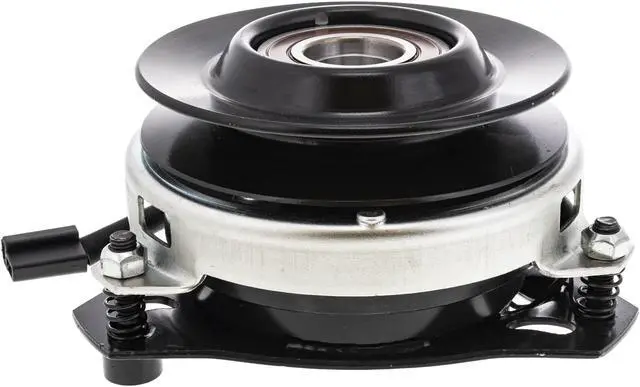

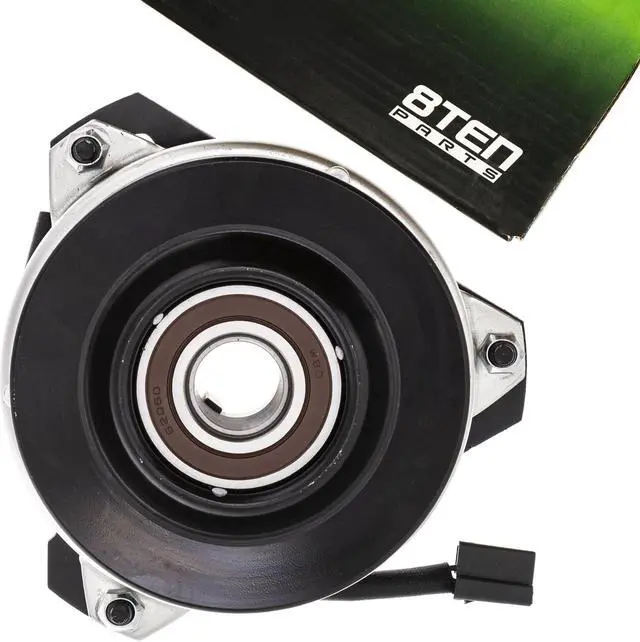

8TEN Gen 3 Electric PTO Clutch for John Deere Warner F510 F525 AM126710 AM116654 AM125082 5215-117 X0454

Be the first to review this product...
  • Replaces OEM Part Numbers: John Deere AM116654, AM125082, AM126710, Warner 5215-117, Xtreme X0454
  • Compatible with John Deere F510 Front Mower - PC2262, F525 Front Mower - PC2262 with 38-Inch Mower Decks, F510 Front Mower - PC2262, F525 Front Mower - PC2262 with 48-Inch Mower Decks
  • High-Performance Gen 3 8TEN PTO Clutch; 370 Degrees Auto Thermal Cutoff Preventing Clutch Damage
  • Enhanced Stopping Time with Superior Brake System
  • Shaft Diameter: 1-1/8 Inch; Pulley Outer Diameter: 5.35 Inch; Anti High & Low Temperature bearing and encapsulated coils (-40 Degrees F to 370 Degrees F) for Consistent Performance
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
image for this item

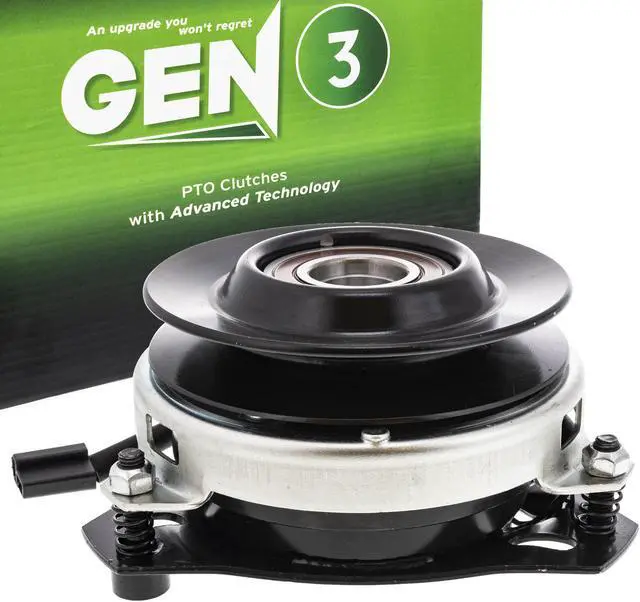

8TEN GEN 3 PTO Clutch
image for this item
Performance
  • Life: B10 life of 25,000 cycles at 2000 hours
  • Environment: Ambient -40°F to +200°F
  • Performance Enhancement: Friction Ring
image for this item
Temperature
  • Bearing Operating Temperatures (-40°F to +350°F)
  • Coil Operating Temperatures (-40°F to +350°F)
  • Temperature Fuse Melting Point of Coil 365°F
image for this item
Speed
  • Operating Speed: Input speeds up to 3600 rpm
  • Stop Time: 4 seconds
  • Voltage Insulation: 1000V
About 8TEN

8TEN Parts specializes in the highest quality lawn & garden replacement parts. Let 8TEN Parts fix your machine today!

image for this item
image for this item

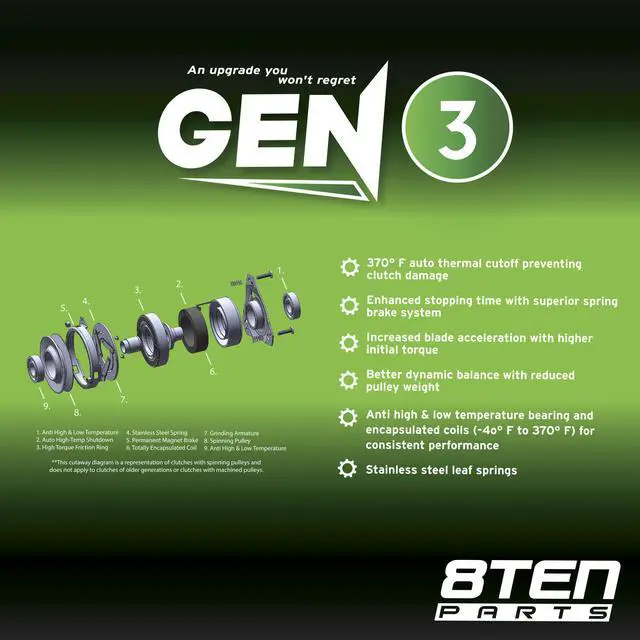

The GEN 3 Difference
  • Stainless steel leaf springs
  • Better dynamic balance with reduced pulley weight
  • 370°F auto thermal cutoff preventing clutch damage
  • Increased blade acceleration with higher initial torque
  • Enhanced stopping time with superior spring brake system
  • Anti high & low temperature bearing and encapsulated coils (-40°F to 370°F) for consistent performance
A brand new 8TEN GEN 3 PTO Clutch. The Power Take Off Clutch is a vital part of your machines performance and engages/disengages your mower deck blades. By purchasing a PTO clutch, you can keep your equipment running smoothly and the blades rotating without any major machine repairs. Quality and performance guaranteed!



PTO Specifications


Life: B10 life of 25,000 cycles at 2000 hours

Environment: Ambient -40F to +200F

Bearing Operating Temperatures: -40F to +350F

Coil Operating temperatures: -40F to +350F

Operating Speed: Input speeds up to 3600 rpm

Stop Time: 4 seconds

Working Noise: Low

Voltage Insulation: 1000V

Performance Enhancement: Friction Ring

Temperature Fuse Melting Point of Coil: 365F



Unique Specs:


Torque: 150Nm (110ft-lb)

Resistance at 70F: 2.52+-0.1 (Ohms)

Current: 4.76 (Amps)


Clutch Rotation: CW,CCW

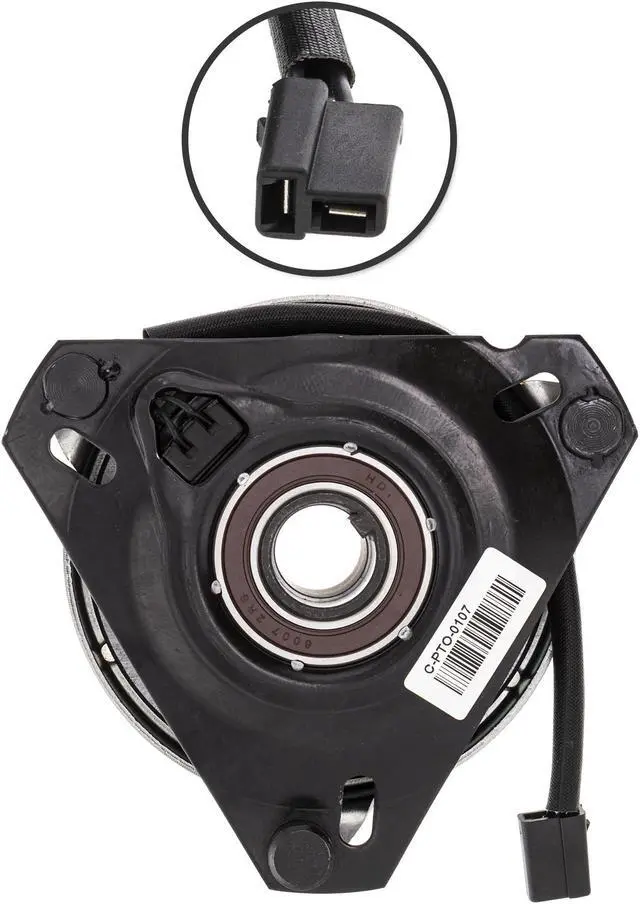

Connection: Lead Wire
