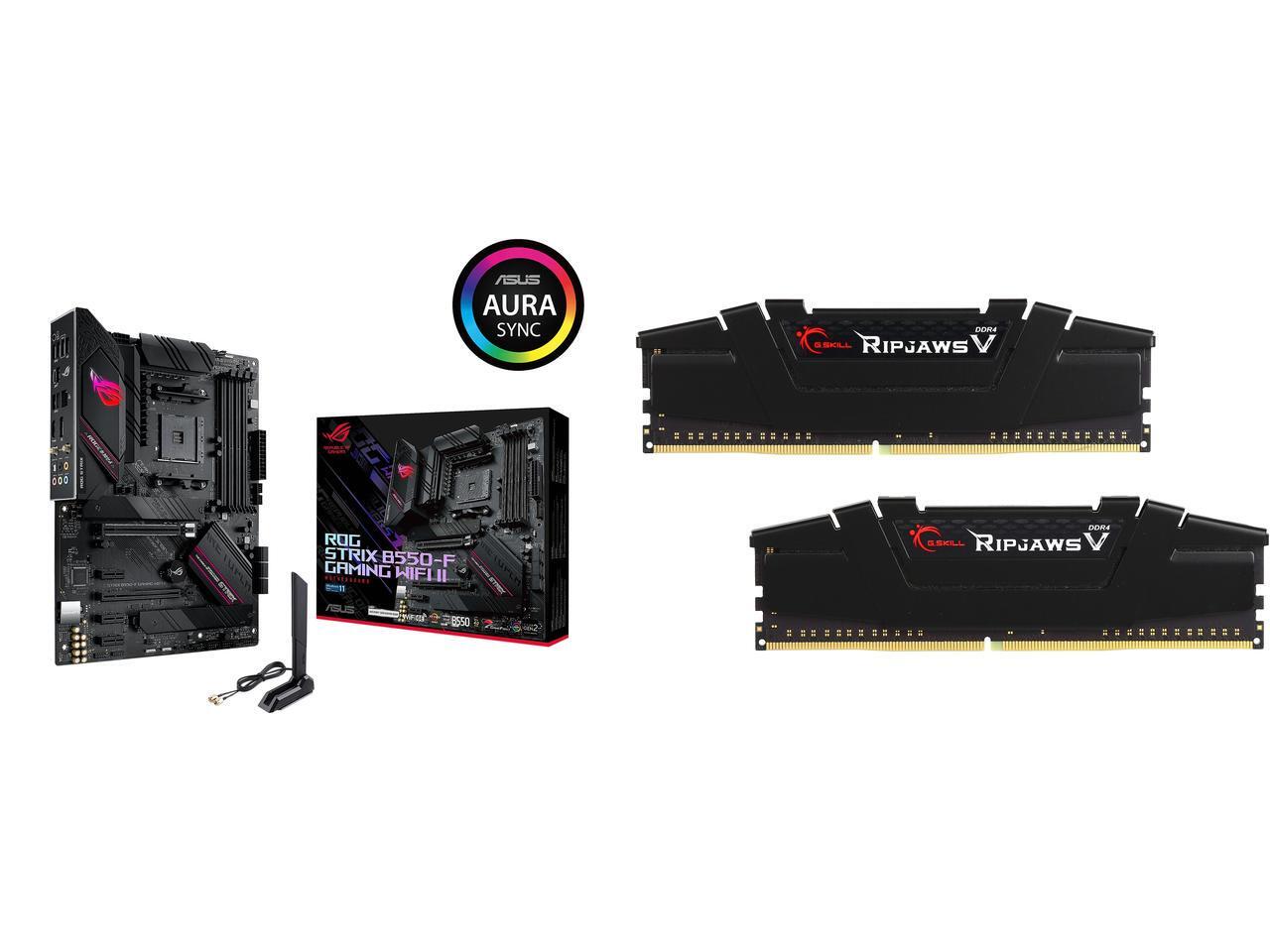

This Combo Includes 2 Items
Feel the Rush of Ripjaws V
As the latest addition to the classic RipJaws family, RipJaws V series DDR4 memory is designed for sleek aesthetics and performance. Ripjaws V is the ideal choice for building a new performance system or for DRAM memory upgrade.
Blazing Fast Transfer Speed
Available in a wide range of frequency options, Ripjaws V lets you enjoy a faster computing experience for gaming, video & image editing, rendering, and data processing.
Rigorously Tested for Compatibility and Reliability
Each and every Ripjaws V DDR4 memory kit is tested with G.SKILL’s rigorous validation process on all major performance motherboard brands to ensure the best-in-class reliability and compatibility across the widest selection of motherboards.
42mm Module Height
Continuing the tradition of aftermarket CPU cooler compatibility, Ripjaws V is designed with a 42mm module height suitable for most oversized CPU heatsinks.
Ultra High Kit Capacity Options
Ripjaws V offers variety DRAM capacity configurations, ranging from 4GB module capacity up to ultra-high 32GB module capacity, for up to total of 256GB (32GBx8). The possibilities are endless!
XMP 2.0 Support
Just set and go. Program med with the latest Intel XM P 2.0 profiles, the only thing between you and overclocked performance is simple BIOS setting.
* The memory kit will boot at the SPD speed when BIOS settings are at default.
* For XMP enabled memory kits, enable XMP/DOCP/A-XMP in the BIOS to reach up to the rated XMP overclock speed, and system stability with overclocked memory kits may depend on the capability of the motherboard & CPU.
Limited Lifetime Warranty
All G.SKILL memo products come with limited lifetime warranty and the G.SKILL technical team is always ready to provide consumers with complete technical support via online forum, telephone, and email.
Learn more about the ASUS STRIX B550-F GAMING WIFI II
Model| Brand | ASUS |
|---|
| Series | ROG |
|---|
| Model | STRIX B550-F GAMING WIFI II |
|---|
Supported CPU| CPU Socket Type | AM4 |
|---|
| CPU Type | Supports AMD Ryzen 5000 / 3000 Series Processors* Supports AMD Ryzen 5000 / 4000 G-Series Processors*
* Refer to www.asus.com for CPU support list. |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR4) |
|---|
| Memory Standard | DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) *
DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) *
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|---|
| Maximum Memory Supported | 128GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
|---|
| Buffer Supported | Un-buffered |
|---|
Expansion Slots| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16*
* Supports x4 mode. * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3. |
|---|
| PCI Express x1 | 3 x PCIe 3.0 x1 |
|---|
Storage Devices| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled. |
|---|
| SATA RAID | 0/1/10 |
|---|
Onboard Video| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
Onboard Audio| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| LAN Chipset | Intel I225-V |
|---|
| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 6E 802.11a/b/g/n/ac/ax |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports 1 x Wi-Fi Module 1 x DisplayPort 1 x HDMI port 1 x Intel I225-V 2.5G Ethernet 1 x Optical S/PDIF out 5 x Audio jacks 1 x BIOS FlashBack button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|---|
| Other Connectors | Fan and cooling related 1 x 4-Pin AIO_Pump header 1 x 4-Pin CPU fan header 1 x 4-Pin CPU_OPT fan header 3 x 4-Pin Chassis fan headers Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front panel audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt header |
|---|
Physical Spec| Form Factor | ATX |
|---|
| LED Lighting | RGB |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
|---|
Software Feature| Windows 11 | Supported |
|---|
Features| Features | Special Features: ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - M.2 heatsink AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot
Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3: - Performance And Power Saving Utility EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR DAEMON Tools Norton Anti-virus software (Free Trial version) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows 10 64-bit, Windows 11 64-bit |
|---|
Packaging| Package Contents | Cables 1 x Addressable RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
|---|
Additional Information| First Listed on Newegg | December 17, 2021 |
|---|
