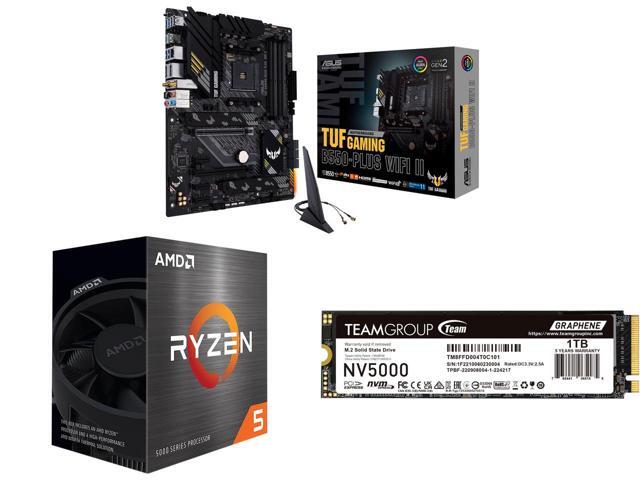

This Combo Includes 3 Items
Learn more about the ASUS TUF GAMING B550-PLUS WIFI II
Model| Brand | ASUS |
|---|
| Model | TUF GAMING B550-PLUS WIFI II |
|---|
Supported CPU| CPU Socket Type | AM4 |
|---|
| CPU Type | Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors *
* Refer to www.asus.com for CPU support list. |
|---|
Memory| Number of Memory Slots | 4x288pin (DDR4) |
|---|
| Memory Standard | DDR4 4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
|---|
| Maximum Memory Supported | 128GB |
|---|
| Channel Supported | Dual Channel |
|---|
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
|---|
| Buffer Supported | Un-buffered |
|---|
Expansion Slots| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16*
* Actual support may vary by CPU.. |
|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16*
* Supports x4 mode. |
|---|
| PCI Express x1 | 3 x PCIe 3.0 x1 *
* PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied. |
|---|
Storage Devices| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|
| M.2 | AMD Ryzen 5000 Series / 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen 5000 G-Series / 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
* M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled. |
|---|
| SATA RAID | 0/1/10 |
|---|
Onboard Video| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
Onboard Audio| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| LAN Chipset | Realtek 2.5Gb Ethernet |
|---|
| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | Wi-Fi 6 802.11a/b/g/n/ac/ax |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
Rear Panel Ports| Back I/O Ports | 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|---|
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt header |
|---|
Physical Spec| Form Factor | ATX |
|---|
| LED Lighting | RGB |
|---|
| Dimensions (W x L) | 12.0" x 9.6" |
|---|
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector |
|---|
Software Feature| Windows 11 | Ready |
|---|
Features| Features | Special Features: ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s)
Software Features: ASUS Exclusive Software Armoury Crate - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 PC Cleaner - EZ update - System Information Aura Creator TUF GAMING CPU-Z DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows 10 64-bit, Windows 11 64-bit |
|---|
Packaging| Package Contents | Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x TUF Gaming sticker 1 x ASUS 2x2 dual-band Wi-Fi moving antennas Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual |
|---|
Additional Information| First Listed on Newegg | December 03, 2021 |
|---|
