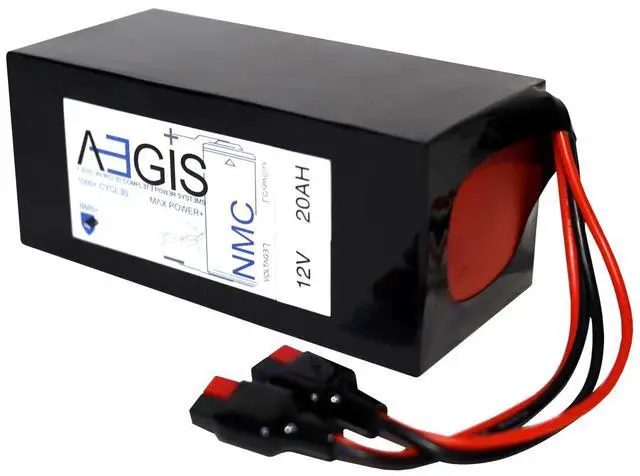

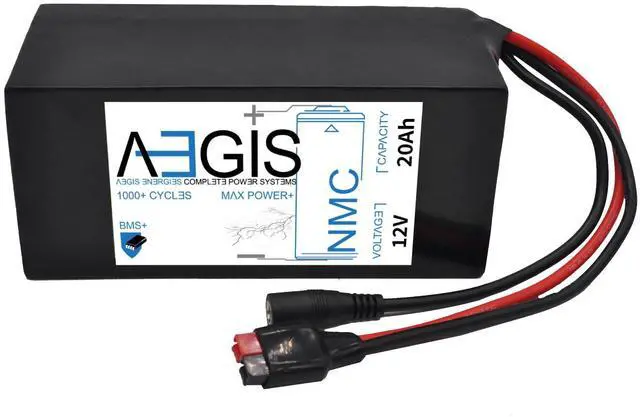

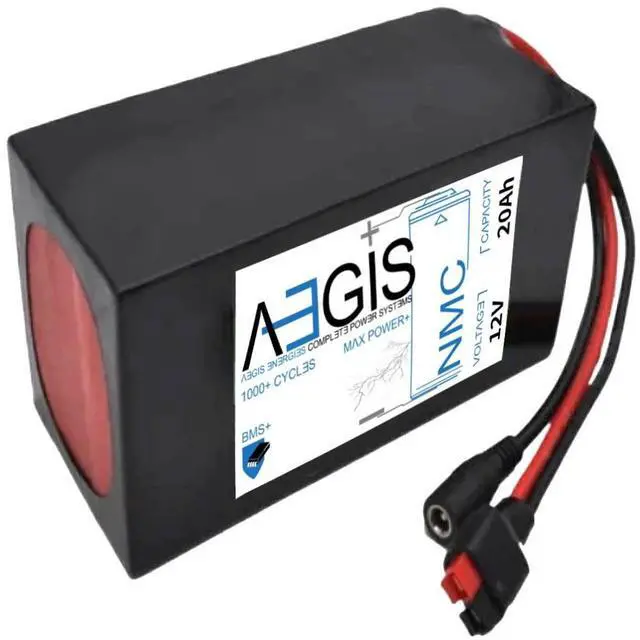

12V 20Ah Li-ion NMC Battery (with BMS) - OEM
- Model: ABL-01220P
- Battery Case: PVC Pack
- Battery Chemistry: NMC (Nickel Manganese Cobalt) Lithium
- Cell Type/Assembly Method: 18650 Cylindrical cells / welded
- Voltage (V): 12V
- Capacity (Ah): 20Ah
- Energy Stored (Wh): 240 Watt-Hours
- Weight: 3.1 lbs. (1.4 kg)
- Dimension (L x W x H): 6.4 in. x 2.9 in. x 3.0 in. (+/-0.1in)
- Discharge Connector: Anderson PP45
- Charge Connector: Anderson PP45
- Cycle Life: 1000+ cycles
- Normal Charged Voltage: 12.6V
- Normal Charge Current: 5.0 Amps
- Nominal Continuous Discharge Current: 10.0 Amps
- Maximum Continuous Discharge Current: 20.0 Amps
- Maximum Peak Discharge Current: 40.0 Amps
- Charge Temperature: 0°C to 45°C
- Discharge Temperature: -20°C to 60°C
- Operating Humidity: 60±25%R.H
- Storage Humidity: 60±25%R.H
- Automatic Battery Protection Module/System: Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Reverse Polarity Protection, Cell Balancing.
- Specifications may slightly differ depending on date of manufacture. Please check with us for exact measurements.

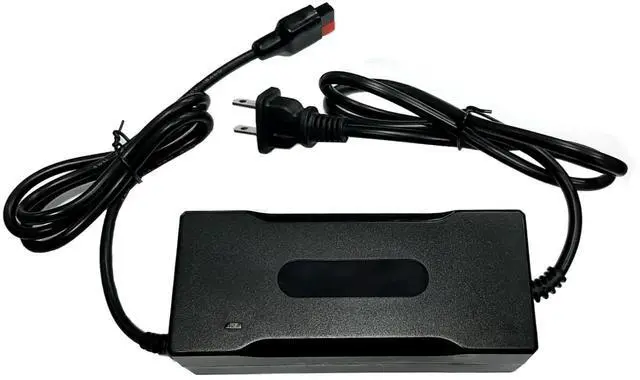

- Compatible AC-to-DC Charger Specifications:
- Input Voltage: AC110V-240V, 50/60HZ
- Output Voltage: 12.6VDC
- Current: 5A
- Compatible Charger Model Number: CRG-1205P
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Aegis Battery 12V 20Ah Lithium ion battery powers your most high demanding electronics. This state-of-the-art rechargeable 12V lithium battery pack is expertly constructed with high quality 18650 NMC cells, delivering a lightweight, reliable and long-lasting power source.
Key Features & Benefits:
- Advanced NMC Chemistry: Utilizes high-specific energy Nickel Manganese Cobalt (NMC) cells, offering a superior power-to-weight ratio (150-220Wh/kg) compared to traditional lithium-ion battery types.
- Intelligent BMS Protection: The built-in Battery Management System ensures peak performance and extends lifespan by protecting against over-charge, over-discharge, short-circuits, and thermal overload.
- Long Cycle Life: Delivers over 1000+ reliable charge and discharge cycles, providing a durable and cost-effective power solution.
- True 100% Depth of Discharge: Access the full capacity on every use without degrading battery health, giving you significantly more usable energy than lead-acid equivalents.
- Ready to Use: Comes pre-assembled with a versatile PP45 Anderson Power Pole connector for secure, plug-and-play compatibility.
Ideal Applications: This versatile 12V lithium battery is the perfect upgrade for a wide range of projects, including:
- Custom Robotics and DIY Electronics
- Industrial AGV and Forklift Batteries
- High-Powered RC Toys and Drones
- E-Bikes and Mobility Scooters
- Marine and Portable Radio Devices
- Safety and Emergency Lighting
