3-step installation guide for Single Stud
1. Do not mount on drywall alone.
2. No Anchors are needed for wood stud.
3. Dry 2 pilot holes using a 5/32" (4 mm) diamter drill bit. Make sure the hole depth is not less than 2 1/2" (64 mm)
1. Establish the correct fit by inserting the appropriate M4 or M6.
1. Mount the TV to the mounting bracket.
2. Fully tighten the 2 bolts at the lower back of the mount.

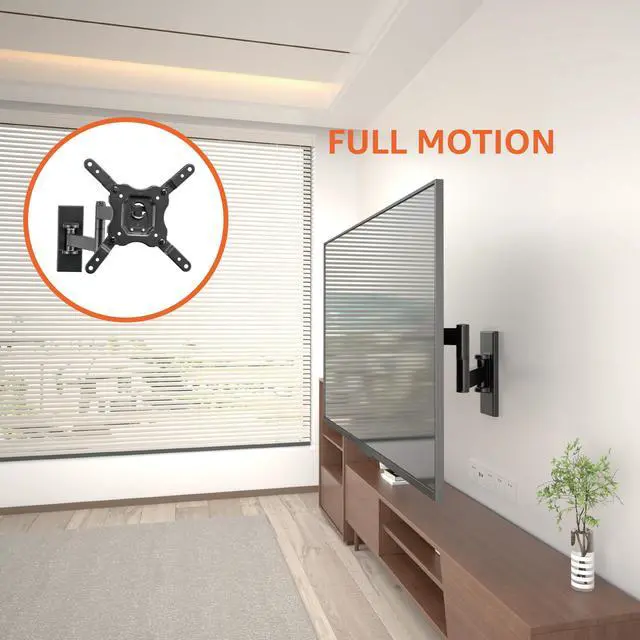

 Basics Full Motion TV Wall Mount fits 12-Inch to 40-Inch TVs |  Basics Full Motion TV Wall Mount fits most 26-inch to 55-inch TVs |  Basics Full Motion TV Wall Mount fits 32-Inch to 86-Inch TVs |  Basics Dual Arm Full Motion TV Mount, 37-Inch to 80-Inch |  Basics Longer Extension Dual Arm Full Motion TV Mount 37-Inch to 80-Inch | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |

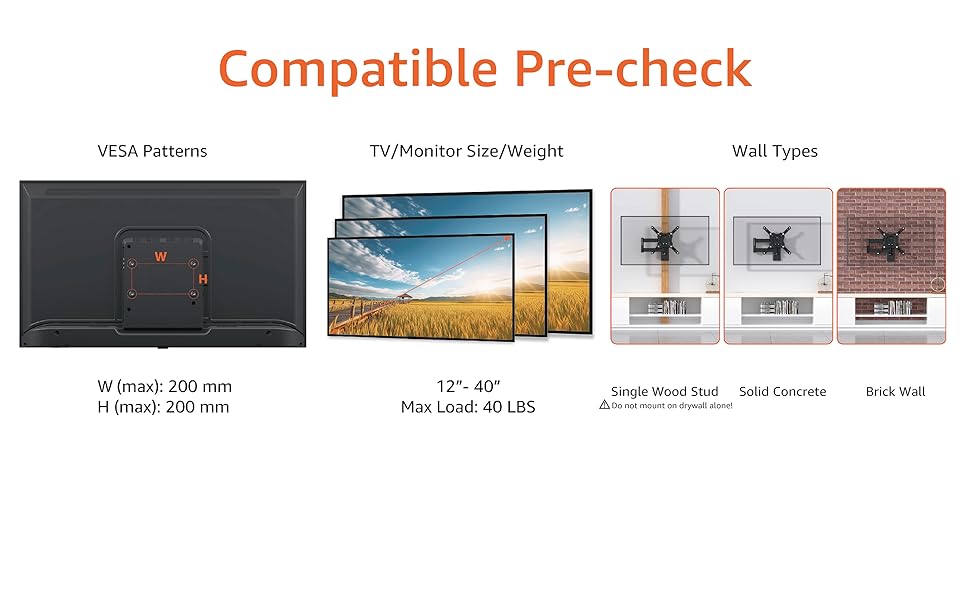

| Compatible TV sizes | 12-40“ | 26-55“ | 32-86" | 37-80" | 37-80" |
| VESA pattern (Max) | 200 x 200 mm | 400 x 400 mm | 600 x 400 mm | 600 x 400 mm | 600 x 400 mm |
| Max load | to 40 lbs | to 80 lbs | to 130 lbs | to 132 lbs | to 132 lbs |

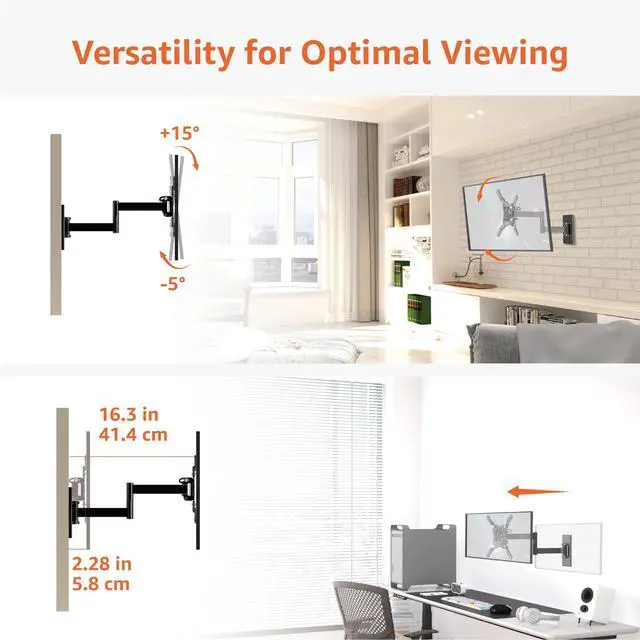

| Distance to Wall | 16.3 inch (41.4 cm) | 16.3 inch (41.4 cm) | 19.9 inch (50.5 cm) | 16 inch (40.7 cm) | 26 inch (66.2 cm) |

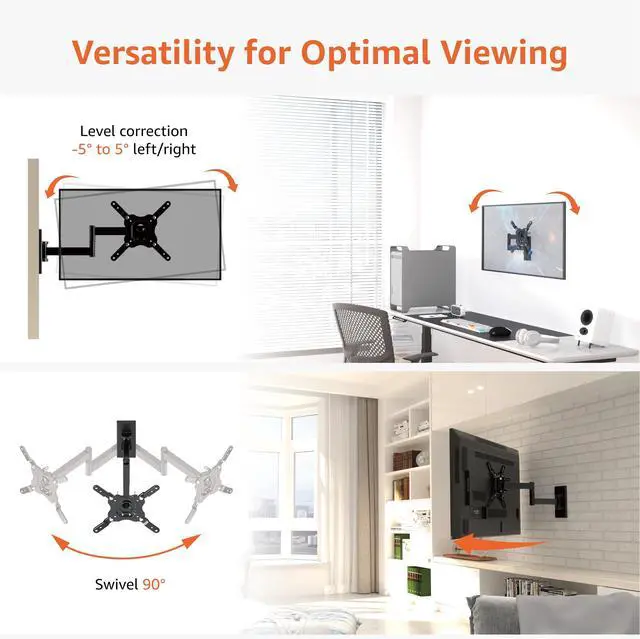

| Tilt angle | 5° up/15° down | 5° up/10° down | 5° up/10° down | 6° up/10° down | 6° up/10° down |
| Wall Type | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick |
| Fits Studs Spacing | Single Stud | Single Stud | up to 16 inch | up to 16 inch | up to 16 inch |
3-step installation guide for Single Stud
1. Do not mount on drywall alone.
2. No Anchors are needed for wood stud.
3. Dry 2 pilot holes using a 5/32" (4 mm) diamter drill bit. Make sure the hole depth is not less than 2 1/2" (64 mm)
1. Establish the correct fit by inserting the appropriate M4 or M6.
1. Mount the TV to the mounting bracket.
2. Fully tighten the 2 bolts at the lower back of the mount.
 Basics Full Motion TV Wall Mount fits 12-Inch to 40-Inch TVs | Basics Full Motion TV Wall Mount fits most 26-inch to 55-inch TVs | Basics Full Motion TV Wall Mount fits 32-Inch to 86-Inch TVs | Basics Dual Arm Full Motion TV Mount, 37-Inch to 80-Inch | Basics Longer Extension Dual Arm Full Motion TV Mount 37-Inch to 80-Inch | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Compatible TV sizes | 12-40“ | 26-55“ | 32-86" | 37-80" | 37-80" |
| VESA pattern (Max) | 200 x 200 mm | 400 x 400 mm | 600 x 400 mm | 600 x 400 mm | 600 x 400 mm |
| Max load | to 40 lbs | to 80 lbs | to 130 lbs | to 132 lbs | to 132 lbs |
| Distance to Wall | 16.3 inch (41.4 cm) | 16.3 inch (41.4 cm) | 19.9 inch (50.5 cm) | 16 inch (40.7 cm) | 26 inch (66.2 cm) |
| Tilt angle | 5° up/15° down | 5° up/10° down | 5° up/10° down | 6° up/10° down | 6° up/10° down |
| Wall Type | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick |
| Fits Studs Spacing | Single Stud | Single Stud | up to 16 inch | up to 16 inch | up to 16 inch |
