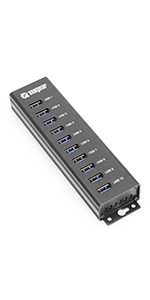

USB 3.0 10-Port Hub that mountable to any flat stable surface. The hub’s 5Gbps data transfer rates are standard for USB 3.0 SuperSpeed for streaming information or other data. The USB 3.0 hub is easily transported with its small form factor design or can be placed in a stationary position by wall or table top mounting.
The USB 3.0 10-Port hub is housed in a heavy duty extruded aluminum chassis holding 10 USB ports with mounting flanges on either end for stationary uses. The hub follows Battery Charging specifications 1.2 distributing 900mA to each port for normal charging, it is designed for excellent heat distribution while in operation in various environments transferring data at USB 3.0 speeds.
It is also backward compatible with specifications of USB 2.0 High Speed or, USB 1.1 Low Speed. Suggested USB 3.0 hub applications may include: Industrial, Medical, Education, Business, Laboratory, and Gaming
- Includes a charging function to power each port up to 900mA, enough for normal charging.
- Compliant with Fast Charging for international battery charging 1.2 Standard Protocol and Smart Control.
- Supports SuperSpeed USB 3.2 Gen 1 over each port with transfer rates up to 5Gbps.
- Backward compatible with USB 2.0/1.1
- Support included for Plug-and-Play and hot swapping. No driver installation needed.
- Bus powered with limit current protection.
- OS Support: Windows 11, 10, 8, 7, Linux, & macOS
- Product Dimensions: 6.77 × 1.69 × .96 inches (L x W x H)
- Item Weight: 0.31 pounds
- Rigid Surface-Mountable Metal Case

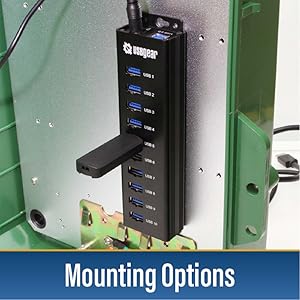

Integrated metal mounting flanges allow you to surface or wall mount the hub where you need it.
Mount for your Industrial, Medical, Education, Business, Laboratory, and Gaming installs.
Power Details:
- Provides up to 900mA per port (5V)
- Total device output limited to 20W
- Ideal for low-to-moderate power USB devices
- Actual output per port may vary depending on connected load
- Includes a charging function to power each port up to 900mA, enough for normal charging.
- Compliant with Fast Charging for international battery charging 1.2 Standard Protocol and Smart Control.
- Support included for Plug-and-Play and hot swapping. No driver installation needed.
- Bus-Powered with Limit current protection.

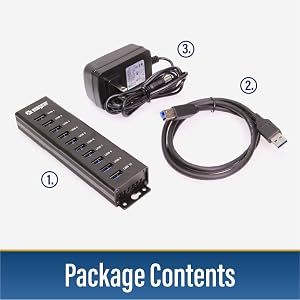

1. 10-Port USB 3.2 Gen 1 Compact Hub
2. 3ft USB 3.2 Gen 1 Type-A to Type-B Cable
3. Power Adapter 5V/4A Output, 100-240V, 50/60Hz 0.40A
 USBGear 4-Port USB 3.2 Gen 1 Mountable Charging and Data Hub |  USBGear 7-Port USB 3.2 Gen 1 Mountable Charging and Data Hub |  USBGear 10-Port USB 3.2 Gen 1 Mountable Charging and Data Hub |  USBGear 7-Port USB 3.2 Gen 2 Mountable Charging & Data Hub w/ USB Power Switches | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| USB Type | 3.2 Gen 1 | 3.2 Gen 1 | 3.2 Gen 1 | 3.2 Gen 2 |
| Downstream USB Ports | 4 USB Type-A | 7 USB Type-A | 10 USB Type-A | 7 USB Type-A |
| Upstream USB Port | 1 USB Type-B | 1 USB Type-B | 1 USB Type-B | 1 USB Type-B |
| Charging Power Per Port | 900mA | 900mA | 900mA | 900mA |
| Input Voltage | 5V DC | 5V DC | 5V DC | 12V DC |
| Power Source Port | DC Barrel Jack | DC Barrel Jack | DC Barrel Jack | DC Barrel Jack |
| Coolgear Part No. | USBG-BREC304 | USBG-BREC307 | USBG-BREC3010 | USBG-BREC307PWS |
| Dimensions | 3.265in(L) x 1.691in(W) x .964in(H) with ears 3.871in(L) | 4.625in (L) x 1.691in(W) x .974in(H) with ears 5.241in(L) | 6.161in(L) x 1.691in(W) x .959in(H) with ears 6.771in(L) | 4.625in (L) x 1.691in(W) x .974in(H) with ears 5.241in(L) |
| Individual USB Port On/Off Switches | x | x | x | ? |
| Data Transfer Rate Speed | 5Gbps | 5Gbps | 5Gbps | 10Gbps |
USB 3.0 10-Port Hub that mountable to any flat stable surface. The hub’s 5Gbps data transfer rates are standard for USB 3.0 SuperSpeed for streaming information or other data. The USB 3.0 hub is easily transported with its small form factor design or can be placed in a stationary position by wall or table top mounting.
The USB 3.0 10-Port hub is housed in a heavy duty extruded aluminum chassis holding 10 USB ports with mounting flanges on either end for stationary uses. The hub follows Battery Charging specifications 1.2 distributing 900mA to each port for normal charging, it is designed for excellent heat distribution while in operation in various environments transferring data at USB 3.0 speeds.
It is also backward compatible with specifications of USB 2.0 High Speed or, USB 1.1 Low Speed. Suggested USB 3.0 hub applications may include: Industrial, Medical, Education, Business, Laboratory, and Gaming
- Includes a charging function to power each port up to 900mA, enough for normal charging.
- Compliant with Fast Charging for international battery charging 1.2 Standard Protocol and Smart Control.
- Supports SuperSpeed USB 3.2 Gen 1 over each port with transfer rates up to 5Gbps.
- Backward compatible with USB 2.0/1.1
- Support included for Plug-and-Play and hot swapping. No driver installation needed.
- Bus powered with limit current protection.
- OS Support: Windows 11, 10, 8, 7, Linux, & macOS
- Product Dimensions: 6.77 × 1.69 × .96 inches (L x W x H)
- Item Weight: 0.31 pounds
- Rigid Surface-Mountable Metal Case
Integrated metal mounting flanges allow you to surface or wall mount the hub where you need it.
Mount for your Industrial, Medical, Education, Business, Laboratory, and Gaming installs.
Power Details:
- Provides up to 900mA per port (5V)
- Total device output limited to 20W
- Ideal for low-to-moderate power USB devices
- Actual output per port may vary depending on connected load
- Includes a charging function to power each port up to 900mA, enough for normal charging.
- Compliant with Fast Charging for international battery charging 1.2 Standard Protocol and Smart Control.
- Support included for Plug-and-Play and hot swapping. No driver installation needed.
- Bus-Powered with Limit current protection.
1. 10-Port USB 3.2 Gen 1 Compact Hub
2. 3ft USB 3.2 Gen 1 Type-A to Type-B Cable
3. Power Adapter 5V/4A Output, 100-240V, 50/60Hz 0.40A

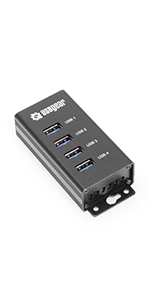

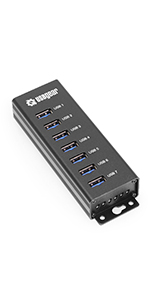

USBGear 4-Port USB 3.2 Gen 1 Mountable Charging and Data Hub | USBGear 7-Port USB 3.2 Gen 1 Mountable Charging and Data Hub | USBGear 10-Port USB 3.2 Gen 1 Mountable Charging and Data Hub | USBGear 7-Port USB 3.2 Gen 2 Mountable Charging & Data Hub w/ USB Power Switches | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| USB Type | 3.2 Gen 1 | 3.2 Gen 1 | 3.2 Gen 1 | 3.2 Gen 2 |
| Downstream USB Ports | 4 USB Type-A | 7 USB Type-A | 10 USB Type-A | 7 USB Type-A |
| Upstream USB Port | 1 USB Type-B | 1 USB Type-B | 1 USB Type-B | 1 USB Type-B |
| Charging Power Per Port | 900mA | 900mA | 900mA | 900mA |
| Input Voltage | 5V DC | 5V DC | 5V DC | 12V DC |
| Power Source Port | DC Barrel Jack | DC Barrel Jack | DC Barrel Jack | DC Barrel Jack |
| Coolgear Part No. | USBG-BREC304 | USBG-BREC307 | USBG-BREC3010 | USBG-BREC307PWS |
| Dimensions | 3.265in(L) x 1.691in(W) x .964in(H) with ears 3.871in(L) | 4.625in (L) x 1.691in(W) x .974in(H) with ears 5.241in(L) | 6.161in(L) x 1.691in(W) x .959in(H) with ears 6.771in(L) | 4.625in (L) x 1.691in(W) x .974in(H) with ears 5.241in(L) |
| Individual USB Port On/Off Switches | x | x | x | ? |
| Data Transfer Rate Speed | 5Gbps | 5Gbps | 5Gbps | 10Gbps |
