- This Aowel Non-Programmable Thermostat is the perfect solution for those seeking a reliable and easy-to-use thermostat for their home heating and cooling system.
- Designed for conventional single-stage 1 heat 1 cool systems, this thermostat is compatible with central gas, oil, or electric furnaces conventional single-stage systems.
(TIP: does not work multistage systems and with Aux Heat Pump Systems), (does not work 120/240V Electric Baseboard Heat / Line Volt)
- It requires only 2 AAA batteries and does not require a C-wire for installation, making it a convenient option for homeowners.
- Featuring a 5.0 sq. in. blue backlight display, this digital thermostat offers clear temperature readings and a heating and cooling swing function.
- The low battery indicator and temperature calibration adjustment make monitoring and adjusting your home's temperature a breeze.

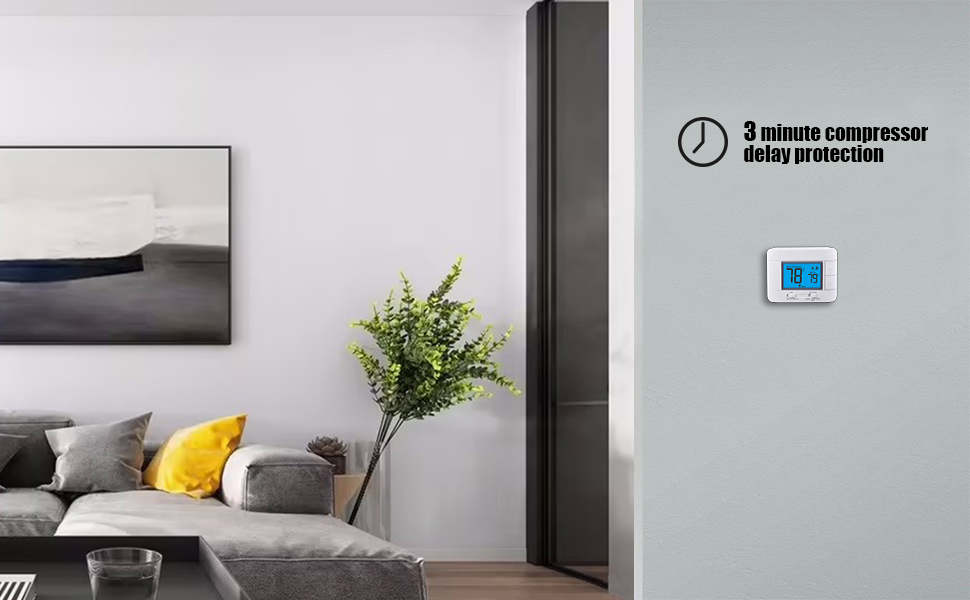

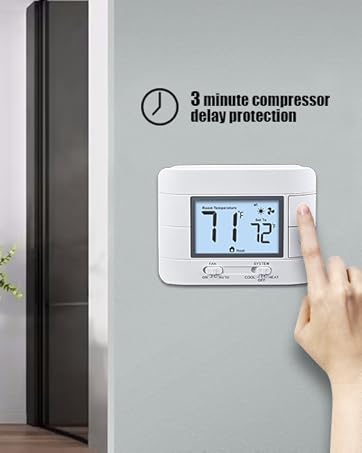

- Additionally, the 3-minute compressor delay helps to protect your HVAC system from damage.
- Whether you're looking for a new furnace thermostat or a replacement for an outdated one, this non programmable thermostat is an excellent choice. With its easy installation, user-friendly interface.
- Investing in a high-quality thermostat is crucial for maintaining a comfortable and energy-efficient home. Choose the Aowel Non-Programmable Thermostat for a reliable and convenient solution for your home heating and cooling needs.
The display range of temperature.........32°F to 99°F(0°C to 50°C)
Setpoint Temperature Range...................44°F to 90°F(7°C to 32°C)
Display accuracy of temperature .............±1°F

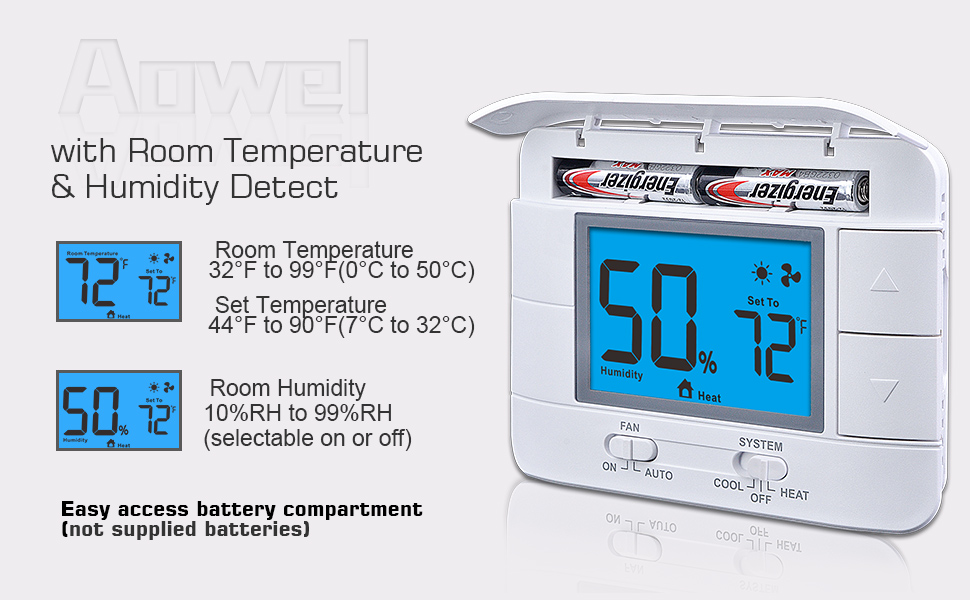

The display range of humidity..................10%RH to 99%RH
Display accuracy of humidity ....................±5%RH(30%~80%RH), other ±8%RH
Operating ambient ......................................32°F to +105°F (0°C to +41°C)
Operating humidity ......................................90% (non-condensing)

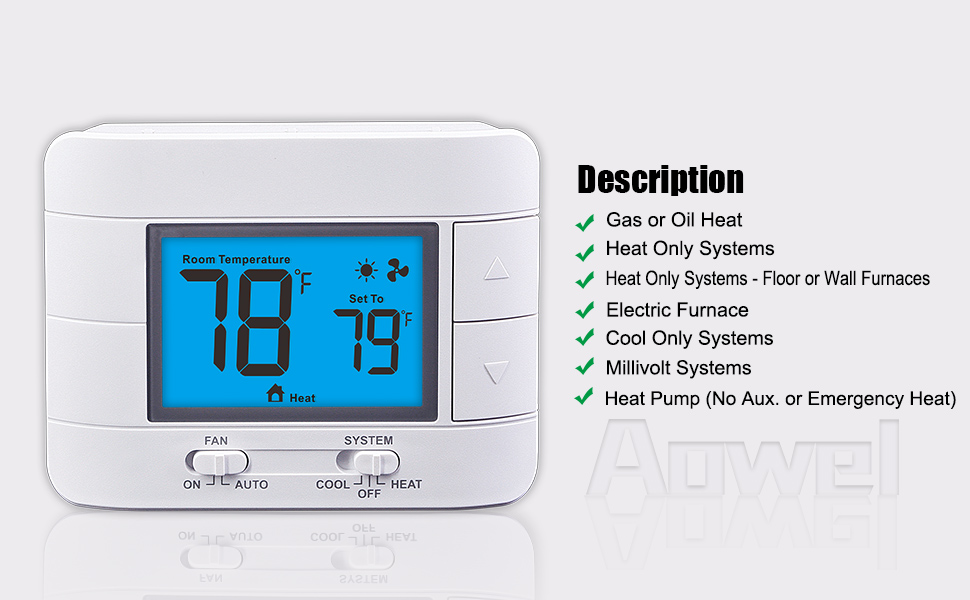

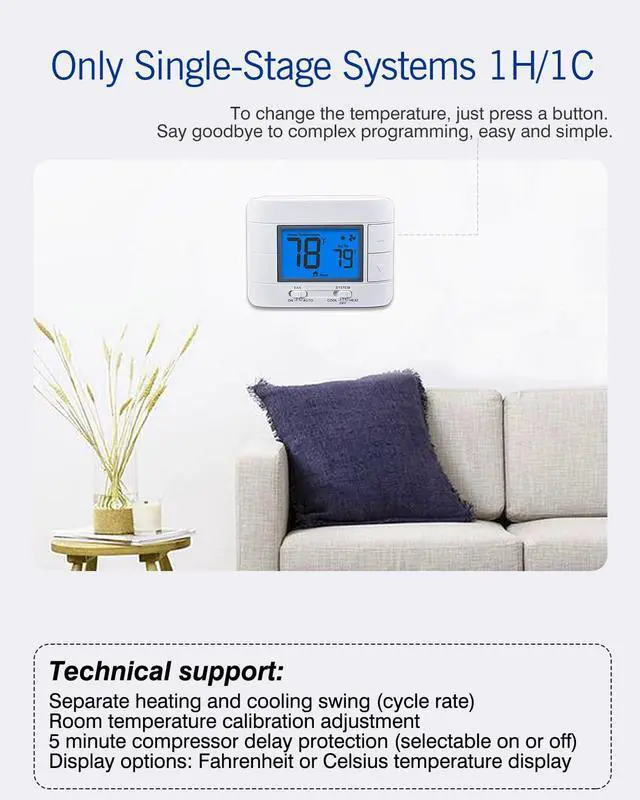

Compatible with conventional single-stage systems

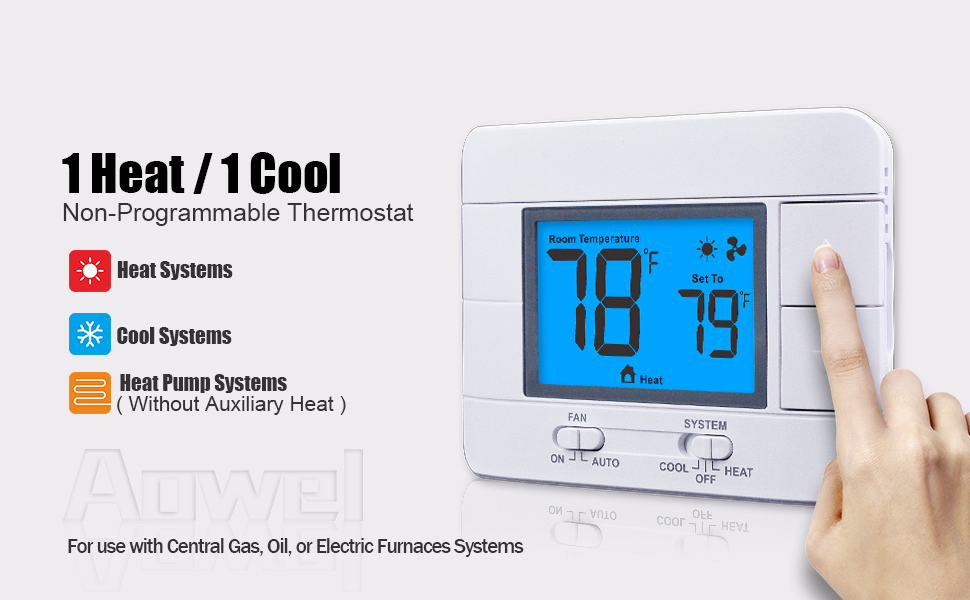

For use with Central Gas, Oil, or Electric Furnaces Single-Stage Systems, up to 1 Heat and 1 Cool
- Does Not Work with Multi-Stage Systems
- Does Not Work with Aux Heat Pump Systems
- Does Not Work RV Systems
- Does Not Work 120/240V Electric Baseboard Heat / Line Volt
Features

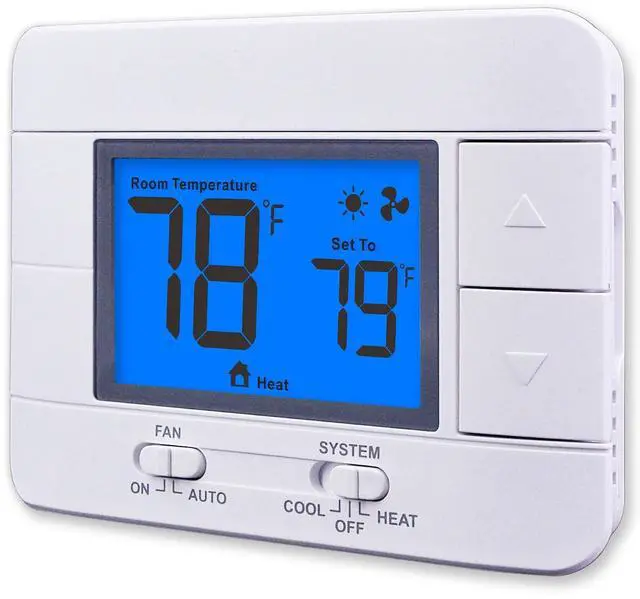

- Large display and characters are easy to read
- Simple menu and big buttons for easy operation
- Fan switch with ON and AUTO functions

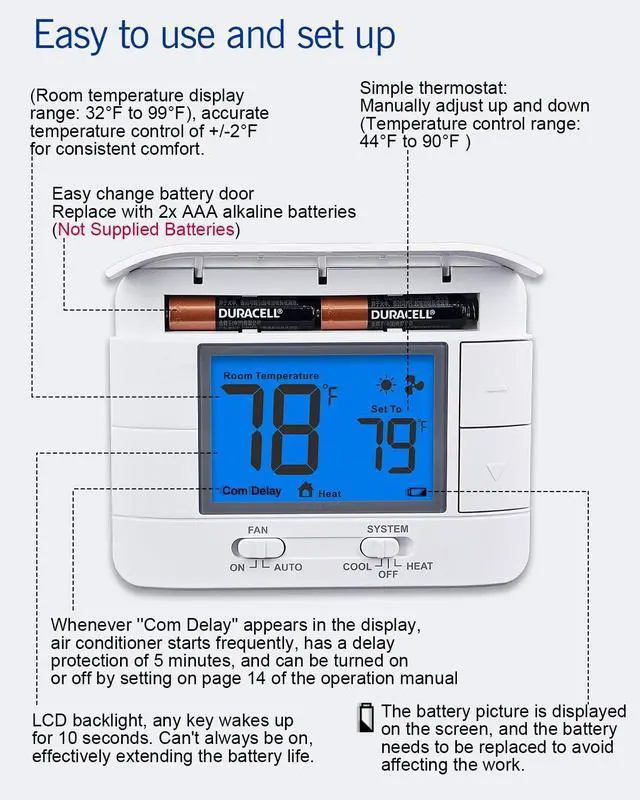

- Easy access battery compartment
- Low battery indication
- Easy wire coded terminal blocks
- Separate heating and cooling swing (cycle rate) adjustments
- Separate B & O terminals
- Terminal Designations: RH, RC, G, Y, C, O, B, W
- Universal sub-base, mounts on wall or junction box

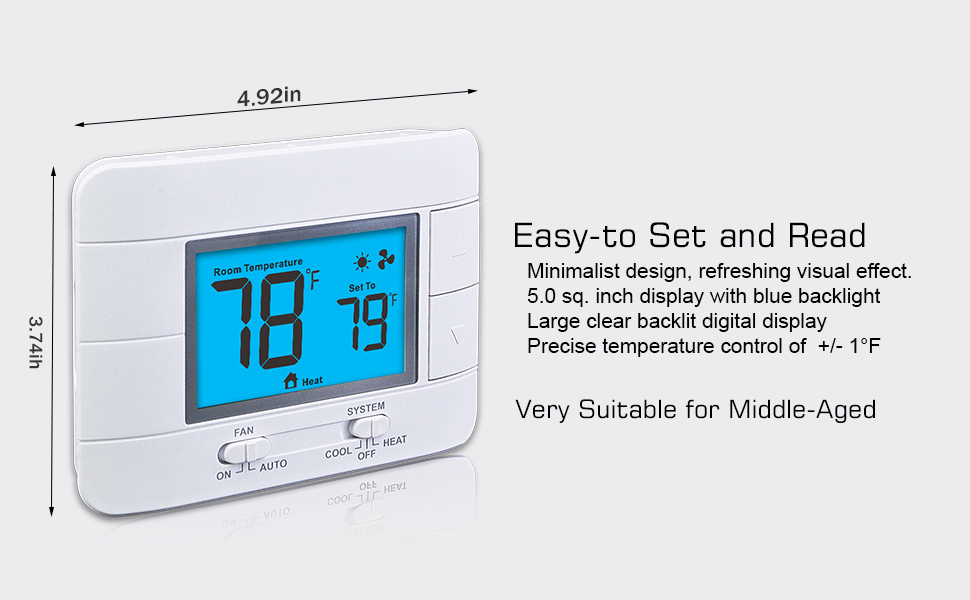

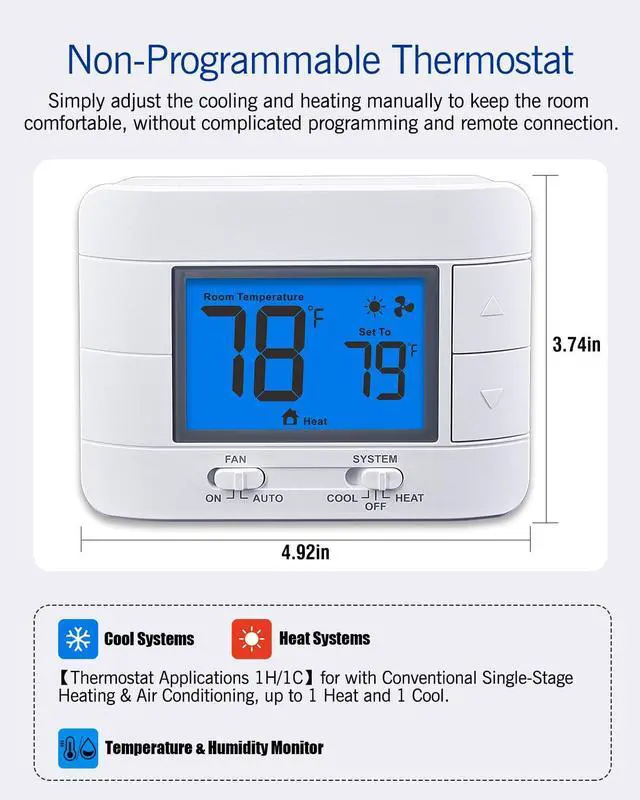

- Dimensions of thermostat: 4.92 x 3.74 x 0.98 in (W * H * D)

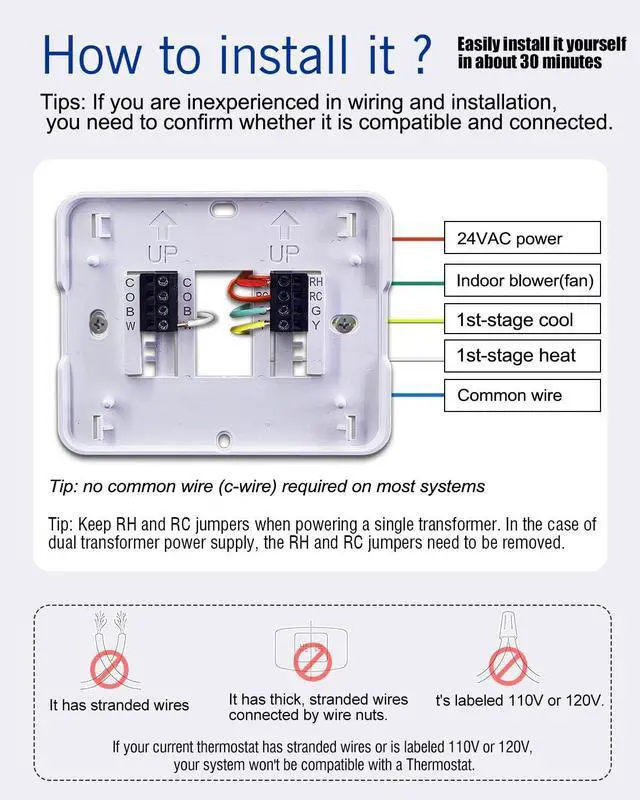

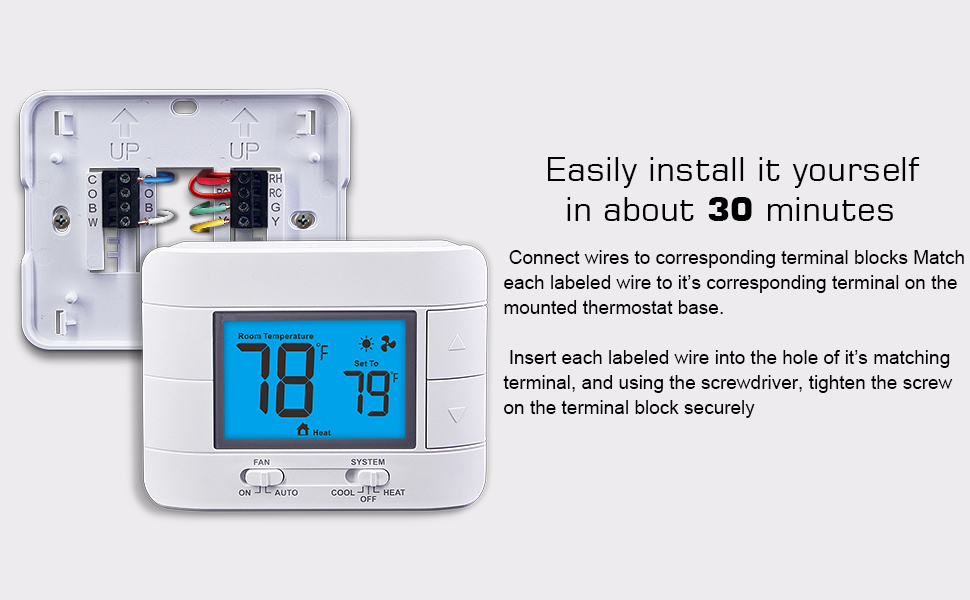

Terminal labeling reference
RH, (or R, R5, 5 ) ---------------- 24V Power (Heating)
RC -------------------------------- 24V Power (Cooling)
W, ( or W1, 4 ) ------------------- Heating Relay
Y, ( or Y1 ) ----------------------- Cooling Relay
G --------------------------------- Fan Relay
O --- Reversing Valve (for heat pump applications energized in Cool mode)
B ---- Reversing Valve (for heat pumpapplications energized in Heat mode)
C --------------------------------- Common Wire
The C terminal does not have to be connected when the thermostat is powered by batteries.
TECHNICIAN SETUP

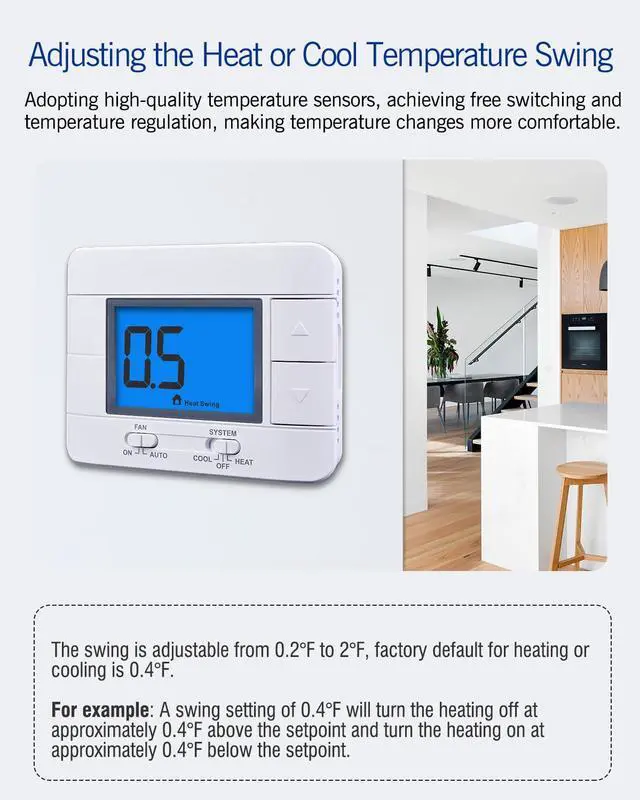

- Heating Swing (cycle rate or differential): is adjustable from 0.2°F to 2.0°F
- Cooling Swing (cycle rate or differential): is adjustable from 0.2°F to 2.0°F
- Temperature Calibration --- (is adjustable from -4°F to +4°F)
- Fahrenheit/Celsius Display --- (selectable °F or °C)
- 3 Minutes Compressor Delay --- (selectable on or off)
- Display Humidity --- (selectable on or off)

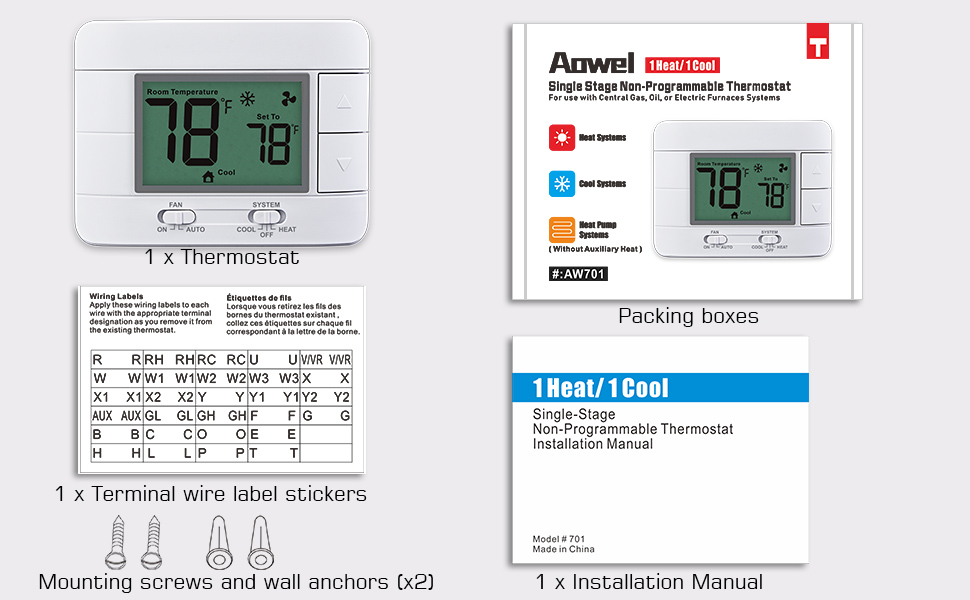

Package Contents
1 x Digital Thermostat
2 x Screws & Anchors
1 x Installation Manual
1 x Cable Label
About Aowel
We specialize in the development of digital thermostats. All of our existing thermostats have a simple and atmospheric appearance, easy to use, making them very suitable for most people. Changing the cumbersome programming has made it simpler.
10 years of experience in thermostat design and an excellent team of hardware and software development engineers.
If you have any questions, please feel free to find us online.
A701 Thermostat up to 1H/1C
A711 Thermostat up tp 2H/2C
Separate heating and cooling swing (Cycle Rate) , 3 minute compressor delay protection (selectable on or off)
