ASRock H410M-ITX/AC LGA 1200 Intel H410 SATA 6Gb/s Mini ITX Intel Motherboard

Model Brand ASRock Model H410M-ITX/AC Supported CPU CPU Socket Type LGA 1200 CPU Type Supports 10th Gen Intel Core Processors (Socket 1200) Supported CPU Technologies Turbo Boost Technology 3.0 Chipsets Chipset Intel H410 Onboard Video Onboard Video Chipset
Hardware Accelerated Codecs: AVC/H. 264, HEVC/H. 265 8bit, HEVC/H. 265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** Graphics,
Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display &
Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** VP9 10-bit and VC-1 are for decode only. ** VP8 and VP9 encode are not supported by Windows OS. Memory Number of Memory Slots 2×288pin Memory Standard Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock's website for more information. * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to
2666. Maximum Memory Supported 64GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 1 x PCI Express 3.0 x16

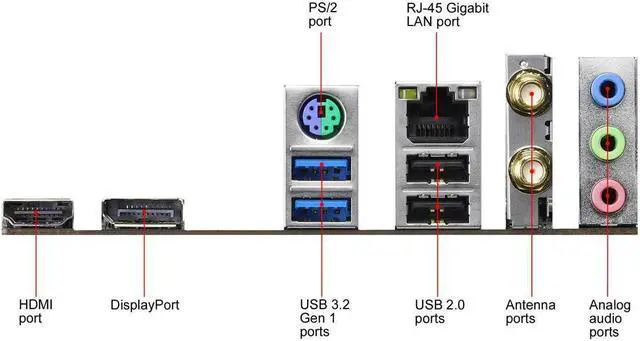

Slot (PCIE1: x16 mode)* * Supports NVMe SSD as boot disks Other Slots 1 x Vertical M. 2 Socket (Key E) with the bundled WiFi- 802.11 ac module (on the rear I/O) Storage Devices SATA 6Gb/s 4 x SATA3 6.0G b/s Connectors, support NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M. 2 device, SATA3_0 will be disabled. M. 2 1 x Ultra M. 2 Socket (M2_1), supports M Key type 2280 M. 2 SATA3 6.0G b/s module and M. 2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports NVMe SSD as boot disks ** Supports ASRock U. 2 Kit Onboard Audio Audio Chipset Realtek ALC887 Audio Channels 7.1 Channels Onboard LAN LAN Chipset Intel I219-V Max LAN Speed 10/100/1000Mbps Wireless LAN Intel 802.11 ac WiFi Module Supports IEEE 802.11 a/b/g/n/ac Supports Dual-Band ( 2.4 /5 GHz) Supports high speed wireless connections up to 433Mbps Bluetooth Supports Bluetooth 4.2 / 3.0 + High speed class II Rear Panel Ports Back I/O Ports 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ
