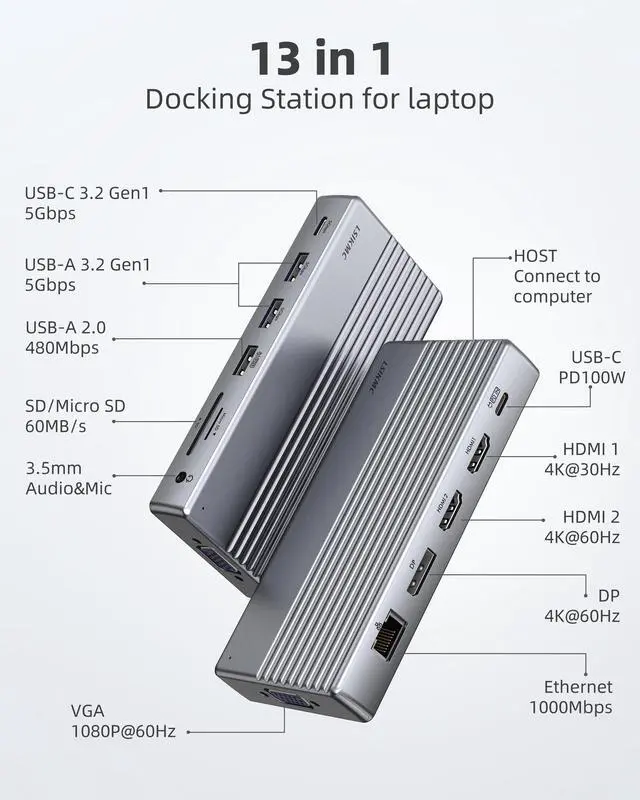

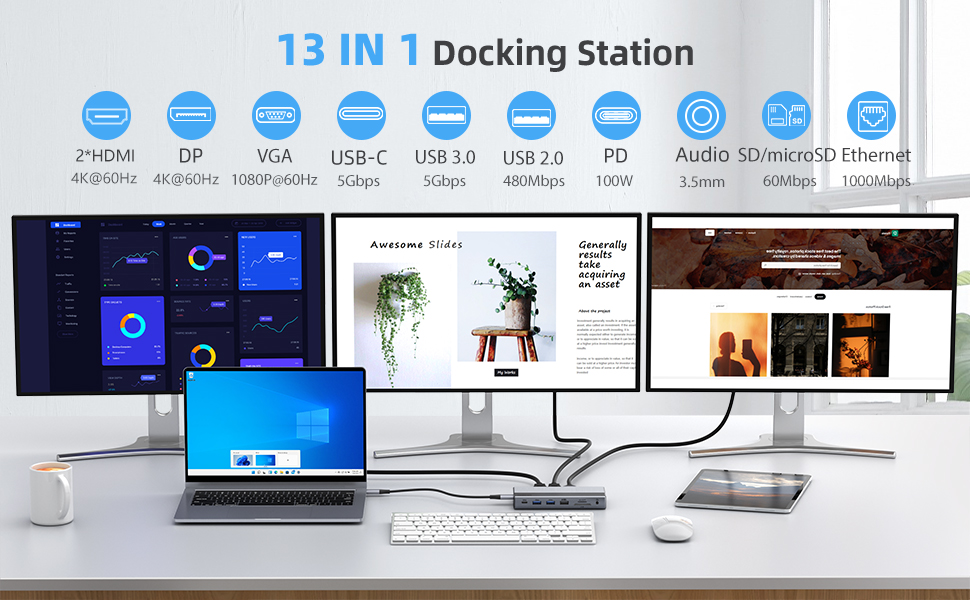

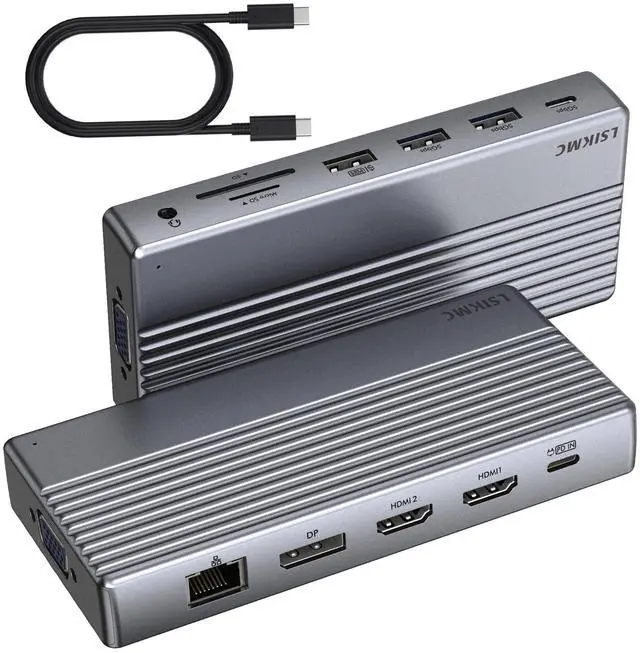

13-in-1 Laptop Docking Station Port Parameters and Maximum Values
- Video Port: HDMI 1 (4K@30Hz), HDMI 2 (4K@60Hz), DP (4K@60Hz), VGA (1080P@60Hz)

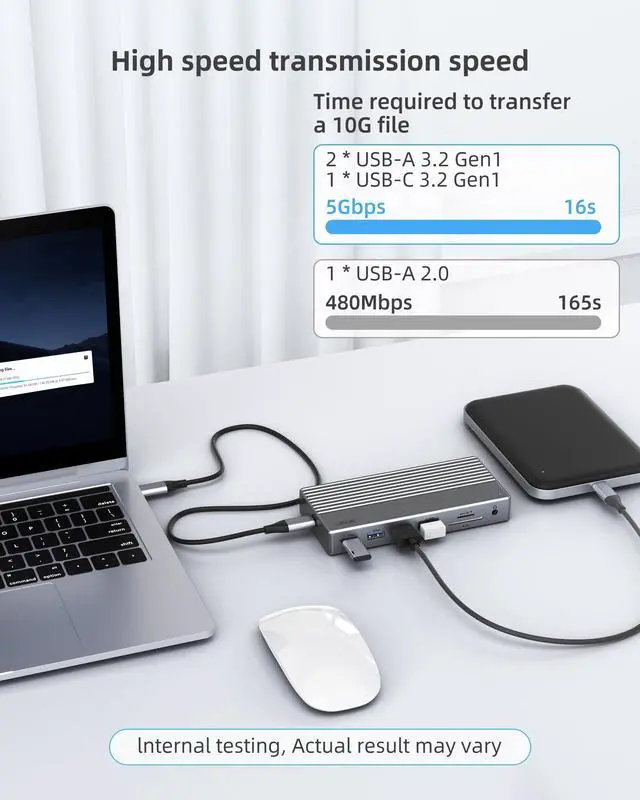

- Data Port: 1*USB-C (5Gbps), 2*USB-A 3.0 (5Gbps), 1*USB-A 2.0 (480Mbps)
- Network Port: Gigabit Ethernet (1000Mbps)
- Power Supply Port: USB C PD 3.0 (100W)

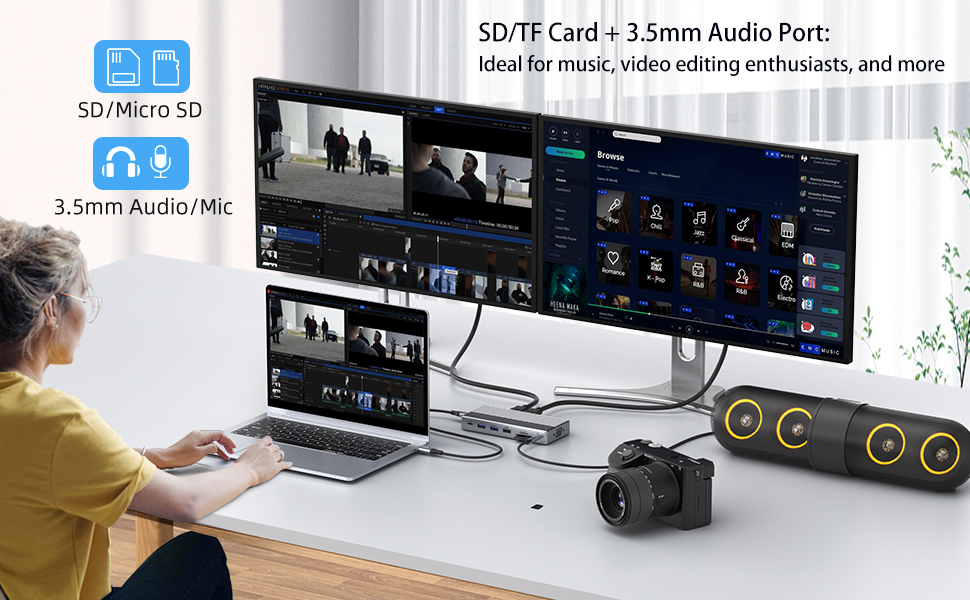

- Card Reader Port: SD/TF (104Mb/s)
- Audio Port: 3.5mm Audio

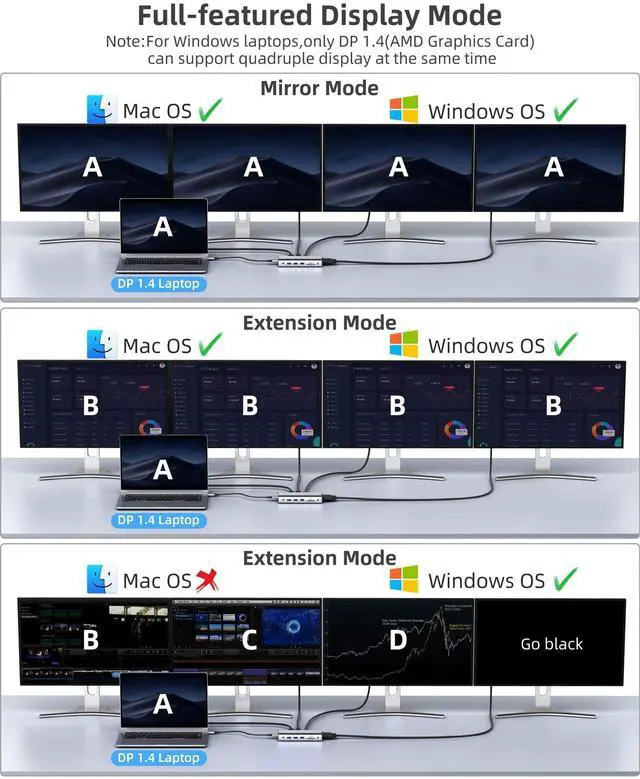

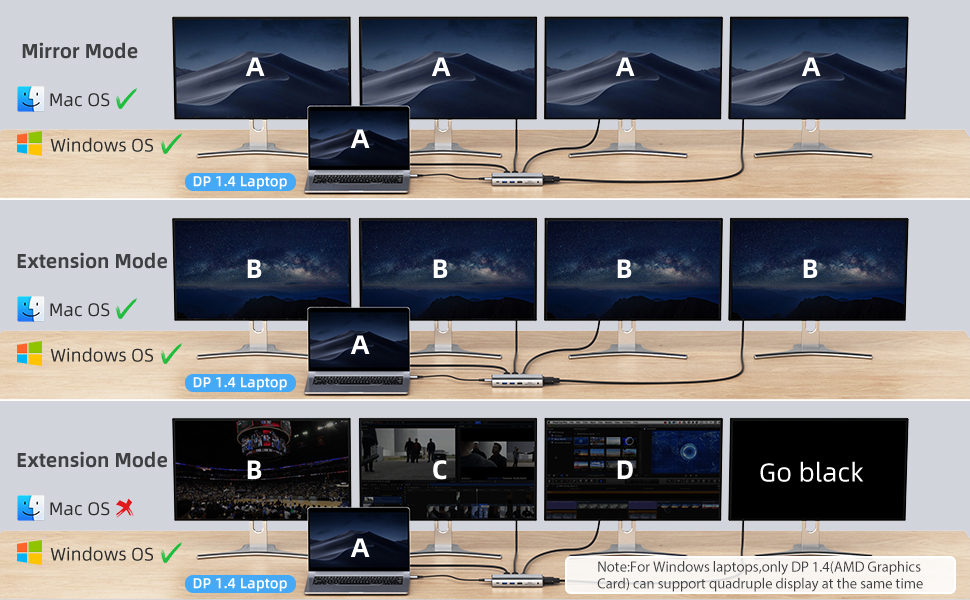

Display Modes for Mac OS and Windows OS Video Output Resolution Explanation

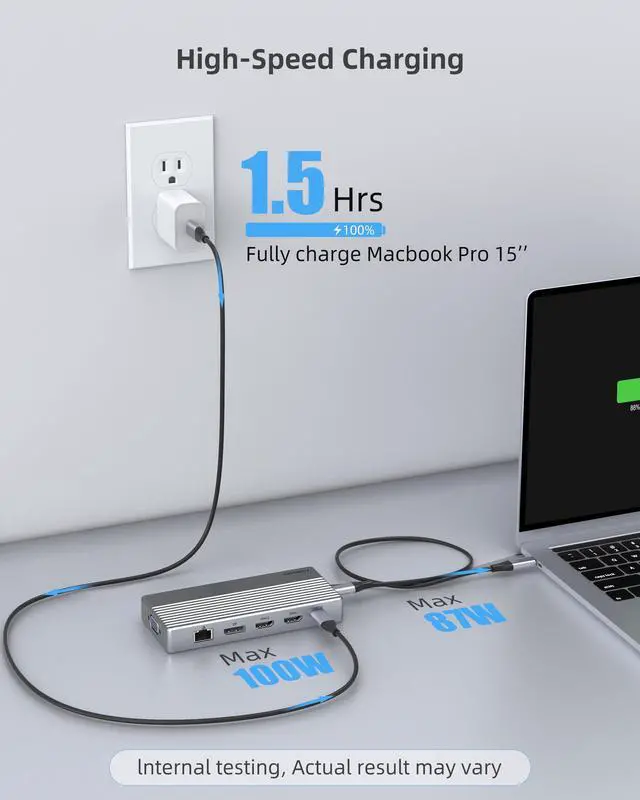

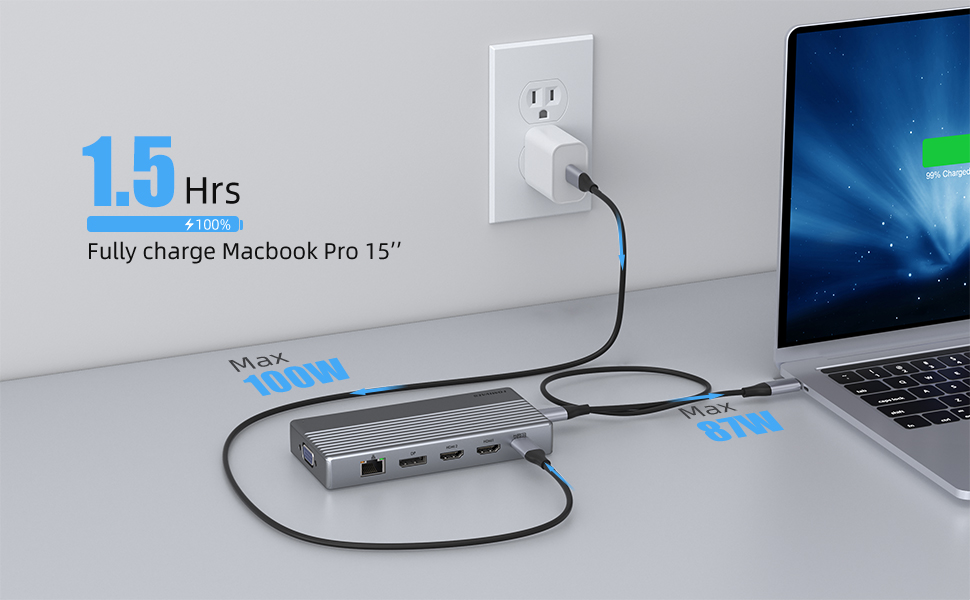

Practical Power Delivery Feature
The USB-C 100W DP power charging port is designed to connect to a 45-100W charging adapter (not included) to provide fast power delivery to your laptop. Additionally, the USB-A ports on the docking station can also supply power to devices such as smartphones, smartwatches, Bluetooth headphones, and more.

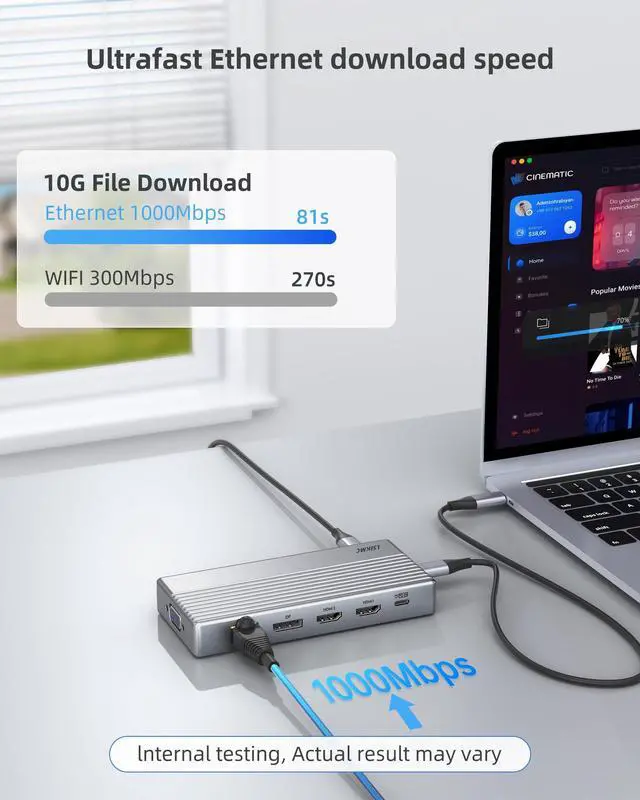

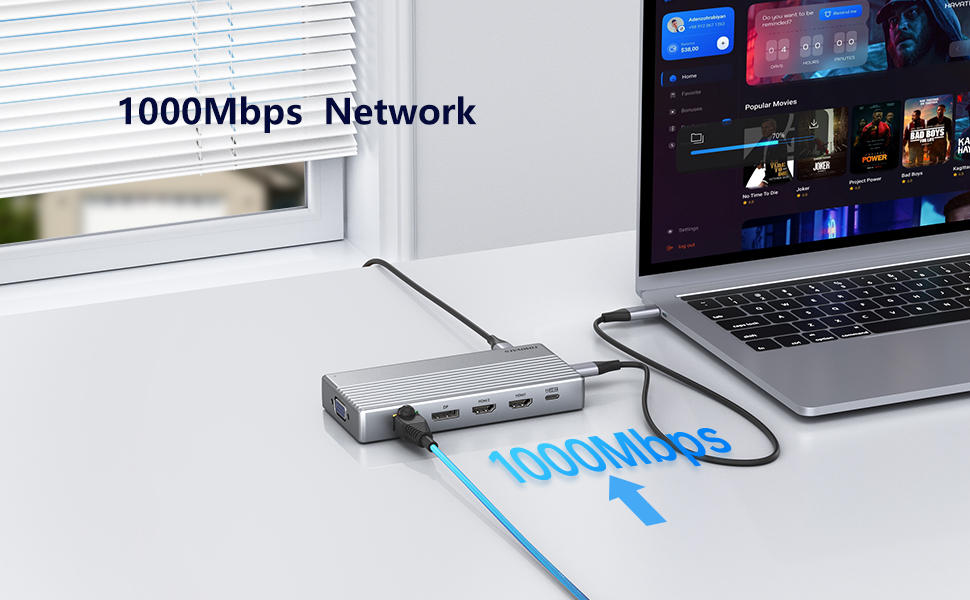

Stable Ethernet Connection
Gigabit Ethernet: Maximum Ethernet speed of 1000Mbps, supporting 10/100/1000Mbps local networks. The super-fast Gigabit Ethernet speed and the reliability of a wired connection can make your work more efficient.

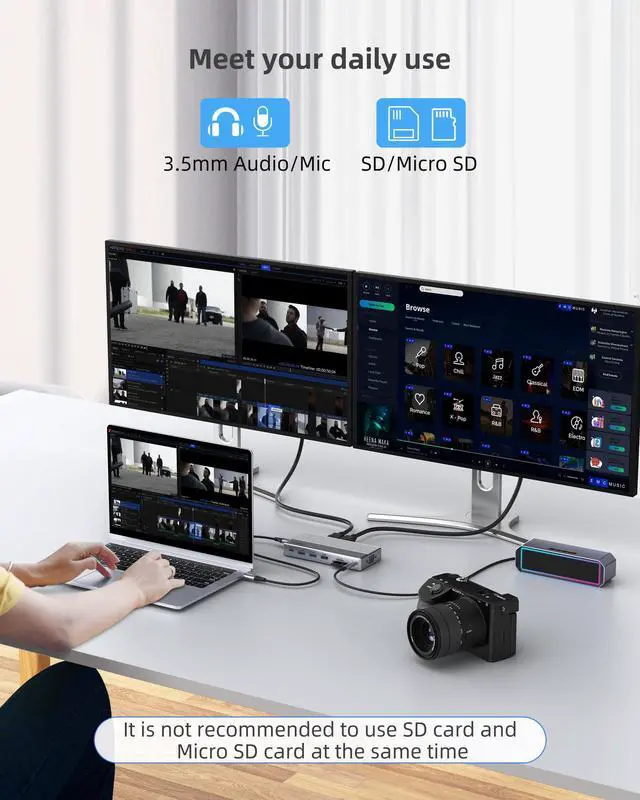

Meet your daily use
Troubleshooting Guide (Partially)
FAQ
Is this USB C docking station compatible with my laptop?
For full functionality of this USB C docking station, your laptop's USB-C port must support charging, data transfer, and video output simultaneously. Compatible standards include USB4, Thunderbolt 3/4, Type C 3.1/3.2 Gen 2, with support for power delivery and DisplayPort features.
Why is there no video output, or an unstable connection and intermittent display on the monitor? How to fix it?
- Compatibility: Check if your USB - C device supports video output.Re - plug cables to ensure a secure connection. Use standard HDMI or DP cables. Select the correct input source on your monitor.
- Refresh rate: If the display is intermittent, lower the monitor's refresh rate if it exceeds the port limit.
- Power supply: When using a docking station with many devices, connect its USB - C PD port to a 60 - watt or 100 - watt PD charger to avoid power shortage.
- Graphics driver: Update the computer's graphics driver if it's outdated.
Why can't the Mac operating system extend multiple display screens?
Due to limitations imposed by the Apple system (only supporting single-stream video output, not multiple streams), the USB-C docking station currently only supports a single display screen (mirror mode) and does not support multiple display screens (extended mode).
Why hasn't the resolution reached the level advertised in the ad?
The actual resolution depends on the hardware of the connected devices. If the connected devices (laptop, HDMI cable, monitor) cannot achieve the resolution advertised by the product, then it is not possible to project at the highest resolution as advertised.
Why is my docking station unable to charge or fast charge my laptop?
1.Please check if your laptop has multiple USB-C ports and confirm the port that supports PD charging.2.Ensure that external power input is done through the PD charging port on the docking station. It is recommended to connect to power during usage, with a power input of 100W+ for optimal fast charging performance.
LSIKMC Docking station Compatibility with Device Models (Non-Exhaustive List)

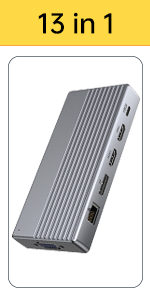

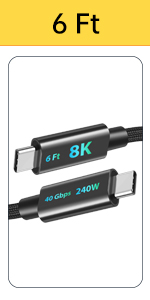

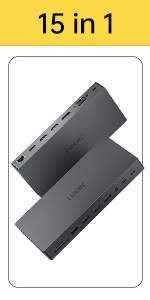

 2*HDMI+1*DP+1*VGA |  2*HDMI+1*DP |  2*DPI+1*HDMI+1*VGA |  2*HDMI+1*DP+1*VGA |  USB 4 Cable |  | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — no data | — no data | — no data |
| Display Ports | 4 | 3 | 4 | 4 | 1 | 1 |
| Resolution (Max) | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 8K@30Hz | 4K@30Hz |
| USB-C Power Deliver | 100W | 100W | 100W | 100W | 240W | 100W |
| USB-A Data Port | 3 | 3 | 5 | 5 | -- | 3 |
| USB-A Transfer Speed (Max) | 5Gbps | C | 10Gbps | 10Gbps | -- | 5Gbps |
| USB-C Data Port | 1 | 1 | 1 | 1 | 1 | -- |
| USB-C Transfer Speed (Max) | 5Gbps | 5Gbps | 10Gbps | 10Gbps | 40Gbps | -- |
| SD/TF Card Reader | 2 | 2 | 2 | 2 | - no data | 2 |
| Enthernet | 1000Mbps | 1000Mbps | 1000Mbps | 1000Mbps | - no data | -- |
| Audio | 1 | - no data | 1 | 1 | - no data | -- |
13-in-1 Laptop Docking Station Port Parameters and Maximum Values
- Video Port: HDMI 1 (4K@30Hz), HDMI 2 (4K@60Hz), DP (4K@60Hz), VGA (1080P@60Hz)
- Data Port: 1*USB-C (5Gbps), 2*USB-A 3.0 (5Gbps), 1*USB-A 2.0 (480Mbps)
- Network Port: Gigabit Ethernet (1000Mbps)
- Power Supply Port: USB C PD 3.0 (100W)
- Card Reader Port: SD/TF (104Mb/s)
- Audio Port: 3.5mm Audio
Display Modes for Mac OS and Windows OS Video Output Resolution Explanation
Practical Power Delivery Feature
The USB-C 100W DP power charging port is designed to connect to a 45-100W charging adapter (not included) to provide fast power delivery to your laptop. Additionally, the USB-A ports on the docking station can also supply power to devices such as smartphones, smartwatches, Bluetooth headphones, and more.
Stable Ethernet Connection
Gigabit Ethernet: Maximum Ethernet speed of 1000Mbps, supporting 10/100/1000Mbps local networks. The super-fast Gigabit Ethernet speed and the reliability of a wired connection can make your work more efficient.
Meet your daily use
Troubleshooting Guide (Partially)
FAQ
Is this USB C docking station compatible with my laptop?
For full functionality of this USB C docking station, your laptop's USB-C port must support charging, data transfer, and video output simultaneously. Compatible standards include USB4, Thunderbolt 3/4, Type C 3.1/3.2 Gen 2, with support for power delivery and DisplayPort features.
Why is there no video output, or an unstable connection and intermittent display on the monitor? How to fix it?
- Compatibility: Check if your USB - C device supports video output.Re - plug cables to ensure a secure connection. Use standard HDMI or DP cables. Select the correct input source on your monitor.
- Refresh rate: If the display is intermittent, lower the monitor's refresh rate if it exceeds the port limit.
- Power supply: When using a docking station with many devices, connect its USB - C PD port to a 60 - watt or 100 - watt PD charger to avoid power shortage.
- Graphics driver: Update the computer's graphics driver if it's outdated.
Why can't the Mac operating system extend multiple display screens?
Due to limitations imposed by the Apple system (only supporting single-stream video output, not multiple streams), the USB-C docking station currently only supports a single display screen (mirror mode) and does not support multiple display screens (extended mode).
Why hasn't the resolution reached the level advertised in the ad?
The actual resolution depends on the hardware of the connected devices. If the connected devices (laptop, HDMI cable, monitor) cannot achieve the resolution advertised by the product, then it is not possible to project at the highest resolution as advertised.
Why is my docking station unable to charge or fast charge my laptop?
1.Please check if your laptop has multiple USB-C ports and confirm the port that supports PD charging.2.Ensure that external power input is done through the PD charging port on the docking station. It is recommended to connect to power during usage, with a power input of 100W+ for optimal fast charging performance.
LSIKMC Docking station Compatibility with Device Models (Non-Exhaustive List)
| For Dell Laptops | Dell Precision 3571/3580/3581/5470/3480/3570/5480/5570/5680/7780/7770/7680/7670/7750/7730/3551;Dell Vostro 5620/5410; XPS 9380/13/15/17;Dell G15-5530/G16-7630;Dell Inspiron 7420/7425/7430/7435/7506 /7610/7620/7630/7635/7791/3420/5420/5425/5430/5620/5625/5630/5635;Dell Latitute /3420/3440/3445/3510 /3520 /3540/9420/9430/9440/7230/7280/7300/7330/7320/7340/7400/7410/7420/7430/7440/7480/7490/7530/7640/5310 /5340 /5411/5420 /5421 /5430 /5400 /5440 /5491/5510/5520/5540/5530/5580; |
| For Dell Laptops | Precision Workstation Model 3590/3490/5570/3591/3581/3580/5680/5690/5490/7780/7680/5480;Inspiron 16 2-in-1 Laptop 7630/7635 2-IN-1; Inspiron 14 2-in-1 Laptop Model 7435;Inspiron 16 Plus 7630/7640;Inspiron 16 5630; Inspiron 14 Model5430/3420;x16/x16 R2 Gaming/ x17 R2 Gaming Laptop;Alienware m16/m16 R2/m18/m18 R2 Gaming Laptop;Alienware x15 R2 Gaming Laptop/ x15 R7 Gaming Laptop/ x14 R2 Gaming Laptop;Gaming Laptop G16 Model7630/G15 Model 5530 5535; |
| For Hp Laptops | HP ProBook 450 G5 G6 G7/440 G9/450 G9/455 G8/470 G5/455 15.6 inch G10/450 G10 15.6 inch/440 G10 14 inch;Pavilion 2-IN-1 X360 14 in Laptop 14-EK1040TU/14-EK1025TU/14-EK1026TU/14-EK1027TU; Omen 16.1 in Laptop 16-wf0015TX/wf0014TX/WF0013TX; Victus 15.6 in Laptop 15-fa0023TX/FA1035TX, HP Elite×2 1012/Elitebook Folio G1;Envy x360 13-bd0080ng/X360 2-IN-1 Laptop 15-EW0007TX/ 360 convertible 15/Laptop 16-h1047nr/Envy 2-IN-1 X360 15.6 in Laptop 15-FE0001TU /FE0000TX/Envy 16 in Laptop 16-H1003TX; |
| For HP Laptops | HP Elitebook 650 G9/830 G9 Pro/830 G9 13.3in/830 G10 13.3 in/830 G8/840 G7/840 G8/840 G9 14 in/840 G10 14 in/850 G5/855 G8/860 G10 16 inch/860 G9 16inch/1040 G9 14inch/1040 G10 14 in;ZBook 17 G4/ 15 G3/FURY 16 in G10/Fury 15.6 in G10/ STUDIO 16 in G10/FIREFLY 16 inch G10/Power 15.6 inch G10/ Firefly 14 inch G10/Firefly 14 g7/Firefly g8 Laptop;HP Spectre x360/Spectre x2/Spectre x360 13t/Spectre Laptop 13-af001TU/Spectre folio (13t-ak000cto); |
| For Lenovo Laptops | ThinkBook 14 Gen 4/6 (14? AMD) Laptop;ThinkBook Plus Gen 4 (13” Intel);Thinkbook 13x/13s Gen 4 (13? Intel) Laptop;ThinkPad P50/P70;ThinkPad E14 Gen 5 (14? Intel) Laptop;ThinkBook 14s Yoga (14”) 2-in-1 Laptop;ThinkBook 14s Yoga Gen 3 (14” Intel) 2 in 1 Laptop;ThinkBook 16 Gen 6 (16? Intel/AMD) Laptop;ThinkPad L390/ L13 /X390/X380 Yoga(13") Laptop;ThinkPad P1 Gen 5/6 (16? Intel);ThinkPad P14s Gen 4 (14? Intel); |
| For Lenovo Laptops | Lenovo Yoga 900/920/720/730;Lenovo Yoga 9;ThinkPad t490;ThinkPad L13/L390/X380/X390 Yoga (13")Laptop;ThinkBook 16p Gen 4 (16? Intel) Laptop;E15 Gen 4 (15” Intel) Laptop;Yoga C740/C940 (14"/15");Yoga C730 (13"/15") ;ThinkPad t15/t16 Gen 1;T16 (16” Intel);ThinkPad T14/T14s Gen 4 /3 (14? Intel) ;ThinkPad P16/s Gen 2 (16? Intel) ;ThinkBook 14 Gen 6/4 (14? Intel) Laptop; |
| For Apple Laptops | MacBook Pro(2024.2023,2022,2021,2020,2019,2018,2017);MacBook Air 2018-2023;Mac mini 2018-2023 ;iPad Pro 2018;iPhone 15 Series NOTE:Mac OS only supports a single display (Mirror Mode) and does not support multiple displays (Extended Mode). |
| For Surface Laptops | Surface Pro X/7/8/9/10;Microsoft Surface Book 2;Surface Go 4/Go 3;Surface Laptop Studio2/2+;Surface Laptop 3/4/5; |
| Incompatible Devices | Incompatible Compatible Device's Models (not full list),If your device is not listed here, please verify with us. |
| Incompatible Dell Devices | Dell inspiron 3525 /7706 2n1,Dell Inspiron 15-5000 series/14-5410 15-3000/15-3583;Dell Latitude 3390;Dell Inspiron 15 Laptop Model 3525/3520/3511/7000/3000;Vostro 14 Laptop Model3430;Vostro 15 Laptop Model 3530 3535; Vostro 3420Laptop;Inspiron 11 3000 2-in-1, Inspiron 17 3000; |
| Incompatible HP Devices | HP Laptop FD0062TU/FD0068TU/15S-FQ5057TU/FD0064TU/FD0060TU/14-EP0049TU/EP0048TU/17-CN3000TX/FC0087AU/FC0084AU;Pavilion Power 15-cb,HP bs049dx;ProBook 6550b/650 G2/430 G5;Elitebook x360 1030 G2/745 G3/820 G3;Pavillion 15 ck009/cs3000/cs1014-ng/cw1003ng/15t-eg200/All-in-one 24-k0xxx;HP Elitebook 840 G3/745 G4/820 G3/HP 15-dw3205ng/ef2xxx/dy2176nr/dw3xxx/dw 3033 dx; |
| Incompatible Lenovo Devices | Lenovo Yoga Flex 5,Lenovo Tab 4;IdeaPad 1-15IJL7;IdeaPad 720 Miix;IdeaPad C340-14API;T14 Gen 2,T15 Gen 2,P14s Gen 2 P15s Gen 2 AMD ;legion y540;IdeaPad 5 15ial7/pro14acn6 82l700bpus;Chromebook Duet 3 (11”)/Duet 5 13”;IdeaPad 3 15ITL6/3i (15”, Intel) ; |
| Incompatible Acer Devices | New Acer Switch Alpha 12,Acer Aspire A515-44-R1DM,Acer Aspire E15, Acer chromebook model CB515-1HT-C2AE; Acer Spin 7, AcerAcer Nitro 5 AN515-45 AN517-41 AN517-54;Acer Aspire A717-72G, Acer predator helios neo;Acer F5-573G;Acer Chromebook R13;Acer Aspire V Nitro 15; |
| Incompatible ASUS Devices | Zenbook Flip UX370U; ASUS Zenbook UX330UA;VivoBook Laptop X1704ZA - i7 1700MHz 10 Cœurs 12 processeurs. Bios IEFI 3.5 - WINDOWS 11;VivoBook 15 X1500EA;VivoBook 17 - X705UA-GC340T;VivoBook flip 14;Zenbook UX425EA3-UX390;Asus ZenBook Pro UX550VE/15UX580GD/UX580GE/UX581/UX391; |
| Incompatible Samsung Devices | Samgung Galaxy a7/a8/a10 e/a20/a50/j7 Prime/Samsung galaxy tab s6 tablet/ Samsung Galaxy Tab S3/4/Samsung Galaxy Tab E/ Samsung Galaxy s5/s6/s7/ Samsung S23 FE phones . |
| Not Compatible List | Power Laptop 15-cb, 15 ck009,15-cs3000,Microsoft: Surface Pro 4/ Surface Pro 3/ book 3 /laptop1/2;Motorola G7/G6/G5/Zplay/Z3;Max/zxon 7;Blu vivo xl,blu vivo 5r;Samsung S23 FE phones;Google Pixel, Pixel2,Pixel xl,Pixel C;ZTE/ZTE max pro/ZTE Blade X;Honor view 10;Lenovo Tab 4;ASUS zenpad z10;Google pixel book 2;Acer Aspire E15; ASUS 202C Chromebook/nitro 5 /Aspire E15,LG G6/K8/K20/K30/Stylo 5/4/G7 thin Q; |
2*HDMI+1*DP+1*VGA | 2*HDMI+1*DP | 2*DPI+1*HDMI+1*VGA | 2*HDMI+1*DP+1*VGA | USB 4 Cable | | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — no data | — no data | — no data |
| Display Ports | 4 | 3 | 4 | 4 | 1 | 1 |
| Resolution (Max) | 4K@60Hz | 4K@60Hz | 4K@60Hz | 4K@60Hz | 8K@30Hz | 4K@30Hz |
| USB-C Power Deliver | 100W | 100W | 100W | 100W | 240W | 100W |
| USB-A Data Port | 3 | 3 | 5 | 5 | -- | 3 |
| USB-A Transfer Speed (Max) | 5Gbps | C | 10Gbps | 10Gbps | -- | 5Gbps |
| USB-C Data Port | 1 | 1 | 1 | 1 | 1 | -- |
| USB-C Transfer Speed (Max) | 5Gbps | 5Gbps | 10Gbps | 10Gbps | 40Gbps | -- |
| SD/TF Card Reader | 2 | 2 | 2 | 2 | - no data | 2 |
| Enthernet | 1000Mbps | 1000Mbps | 1000Mbps | 1000Mbps | - no data | -- |
| Audio | 1 | - no data | 1 | 1 | - no data | -- |
