DisplayPort Splitter for Dual Monitors, 4K@60Hz USB-C to DisplayPort Adapter, Type-C Docking Station for Dell/HP/Mac, Display Port MST Hub with USB3.0/PD, Display Port Splitter for Dual Monitors

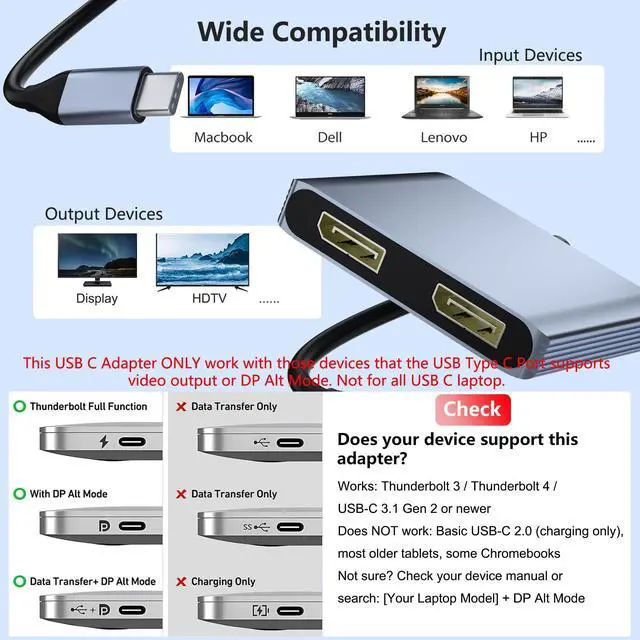

Compatibility Note:

Not all USB-C laptops are supported. Please verify that your laptop's USB-C port supports video output. Typically, Thunderbolt 3, Thunderbolt 4, and USB-C 3.1 Gen 2 (or higher) support this function.

Does your device support this adapter?

Works: Thunderbolt 3 / Thunderbolt 4 / USB-C 3.1 Gen 2 or newer

Does NOT work: Basic USB-C 2.0 (charging only), most older tablets, some Chromebooks

Not sure? Check your device manual or search: [Your Laptop Model] + DP Alt Mode

Important for Mac Users

This adapter does NOT support two different screens on Mac.

Both external monitors will show the same content (mirror mode only).

Quick Setup

First insert the USB-C port into the computer, then connect the monitor power.

If there is no display:

? Unplug USB-C ? Restart computer ? Reinsert

USB-C to Dual DisplayPort Adapter

This 4-in-1 dual monitor adapter lets you connect your laptop to two DisplayPort monitors. It supports dual 4K@60Hz output for a smooth viewing experience.

The USB-C (PD) port can charge your laptop, and the USB 3.0 port can connect peripherals like keyboards, mice, and more.

Dual 4K@60Hz Display

This adapter supports resolutions up to 4K@60Hz via DisplayPort MST technology, including 1440p and 1080p at 60Hz.

For Windows:

This adapter supports mirror mode (duplicate display) and extended mode (multi-screen workspace).

How to set up Extended Mode in Windows:

Right-click the desktop ? Select Display settings (or Intel/NVIDIA/AMD graphics control panel).

Configure multiple displays ? Choose Extend these displays.

For macOS:

Supports mirror mode and extended mode (single extended display only).

How to set up Extended Mode in macOS:

Go to System Settings ? Displays.

Uncheck Mirror Displays ? Arrange screens as needed.

100W Power Delivery

The USB-C port delivers up to 100W PD charging, keeping your laptop powered during use.

5Gbps High-Speed Data Transfer

The USB 3.0 port provides fast and stable data transfer for connected devices.

Premium Aluminum Alloy Design

Built with high-quality aluminum alloy, this dual-monitor docking station ensures efficient heat dissipation and a sleek, modern look.

Please Note

To achieve the best 4K@60Hz resolution, please use a 4K monitor and an HDMI 2.1 cable.

It is normal for the dual-display DP adapter to generate heat after extended use, the outer casing dissipates heat to protect the internal circuit board.

On MacOS, only SST is supported, so it cannot extend to two different screens.

On Windows, it supports up to 4K resolution when one DP port outputs, and it supports 1080P when two ports output at the same time.
