    Blackmagic Design Teranex Mini SDI to Analog 12G CONVNTRM/BA/SDIAN

    Be the first to review this product...
    • SDI to Analog
    • SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
    • SDI Video Rates SDI video connections are switchable between standard definiti
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Blackmagic Design Pty. Ltd. CONVNTRM/BA/SDIAN

    Model
    Brand Blackmagic Design
    Series Teranex Mini
    Model CONVNTRM/BA/SDIAN
    Converter Type SDI to Analog
    Performance
    Format SD Format Support
    525/29.97 NTSC, 625/25 PAL.

    HD Format Support
    1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.

    2K Format Support
    2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.

    4K Format Support
    3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60.

    Analog Format Support
    525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
    SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
    Video Bit Rate/Bandwidth SDI Video Rates
    SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
    Video Sampling SDI Video Sampling
    4:2:2 and 4:4:4
    Audio Sampling SDI Audio Sampling
    Television standard sample rate of 48 kHz and 24-bit.
    Color SDI Color Precision
    4:2:2 and 4:4:4

    SDI Color Space
    YUV

    Analog Color Space
    REC 601, REC 709

    Analog Color Precision
    YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

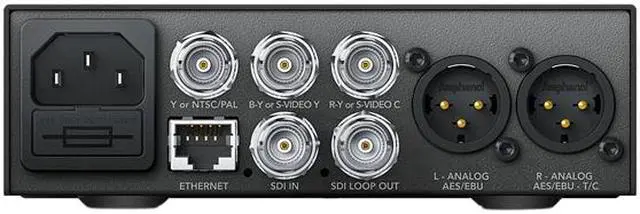

    Connection
    SDI SDI Video Input
    1 x 12G-SDI SD/HD/2K/4K auto switching.

    SDI Video Output
    1 x 12G-SDI loop output.
    Analog Aduio Analog Audio Output
    2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
    Other Connector AES/EBU Audio Output
    4 channels professional 110O balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.

    Multi Rate Support
    Automatic switching between SD/HD/2K and 4K.

    Updates and Configuration
    USB or Ethernet.

    Re-Clocking
    Yes
    Software
    Software Software Control
    Mac OS X and Windows software upgrade via USB or Ethernet.

    Internal Software Upgrade
    Via included updater application.
    Power
    Power Consumption 15 Watts
    Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
    Specification
    Specification Standards
    SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.

    Format Conversion
    HD down conversion

    Setting Control
    Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
    Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.

    Power Requirements
    Power Over Ethernet: Can be powered via 48V DC using PoE (power over ethernet).
    Operational Voltage Range: 90 - 240V AC

    Environmental Specifications
    Operating Temperature: 0°to 40°C (32° to 104°F)
    Storage Temperature: -20°to 60°C (-4° to 140°F)
    Relative Humidity: 0% to 90% non-condensing
    Feature
    Feature Convert from 12G-SDI to Analog. Use SD, HD, 6G and 12G-SDI rates and convert to analog video output. Built in down converter lets you connect Ultra HD sources to component video equipment in SD or HD. Allows you to connect analog equipment including Betacam SP, VHS, and video monitors.
    Dimensions & Weight
    Dimensions 1.75" x 5.51" x 6.69"
    Weight 1.46 lbs.
    Package Contents
    Package Content Teranex Mini - SDI to HDMI 12G
    Software SD Card
