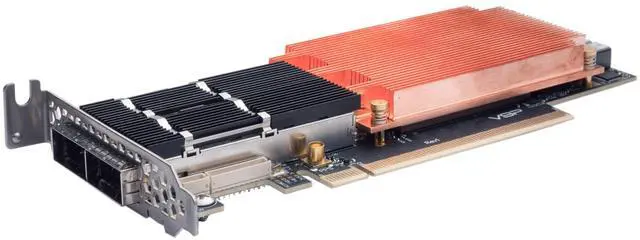

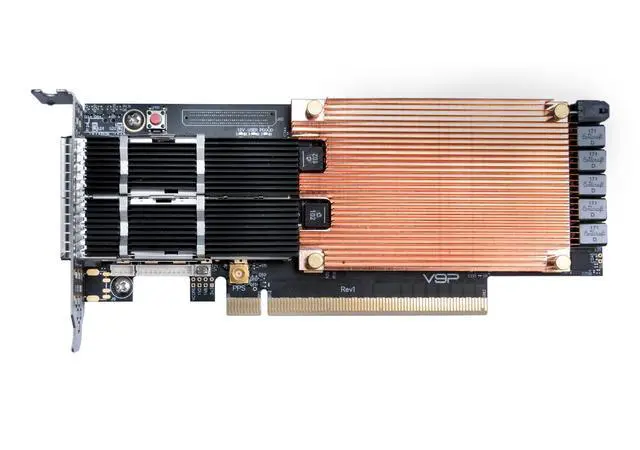

Cisco Nexus NXN-V9P-16X-9GB, V9P FPGA Application SmartNIC with 9GB DDR4, 2X QSFP-DD, 1-Year Warranty (NXN-V9P-16X-9GB)

The Cisco Nexus NXN-V9P-16X-9GB, V9P FPGA Application SmartNIC is an FPGA-based network application card, optimized for low latency and high density. The Cisco Nexus V9P FPGA Application SmartNIC adapters are equipped with a powerful 16nm Xilinx Virtex UltraScale Plus (VU9P) FPGA with 2.5M logic cells, into a compact, half-height, half-length, PCIe 16x form factor. With an extensive memory hierarchy for complex, memory-intensive applications, the Xilinx VU9P FPGA features 75Mbit of block RAM and 270Mbit of UltraRAM on chip. The Cisco Nexus V9P FPGA Application SmartNIC adapters are also equipped with an additional 9GB of DDR4 DRAM onboard for high throughput access. The DRAM is accessible through a 72-bit-wide bus for maximum performance. Dual QSFP-DD ports provide up to 400Gbps of full duplex connectivity. The dual QSFP-DD ports offer high-speed 4x40GbE or 2x200GbE connectivity. Using QSFP-DD breakout cables expands the connectivity to 16x10GbE/25GbE4 connections. This high-density connectivity enables a range of high-performance, directly connected network applications, bypassing the need for traditional switching and multiplexing requirements. Cisco is a specialist in low-latency, high-performance FPGA IP cores. We provide you the same high-speed, low-latency IP blocks used in our market leading products, including: 10GbE PCS/MAC with ultra-low-latency performance Low-latency, high-throughput PCIe DMA engine Timing, signaling, and register interfaces, including I2C Packet field extractor and frame multiplexer (with source code) Asynchronous FIFO and CDC modules (with source code) A standard Linux driver as well as transparent TCP and UDP acceleration and low-level packet access. The Cisco Nexus V9P FPGA Application SmartNIC adapters function out of the box as high-performance network adapters. The entire Cisco Nexus SmartNIC software library is available, including the ExaSOCK sockets application acceleration system and the libexanic direct user-space access API. Libexanic provides easy support for low-latency packet TX/RX, managing the FPGA state (through register access), and low-latency TCP/UDP delegated sending of operations for hybrid hardware/software applications. The Cisco Nexus V9P FPGA Application SmartNIC adapters also support fast and easy firmware updates (without requiring reboots) and vital statistics monitoring (temperatures, light levels, etc.).

Product information
