Arducam B0033 Camera Module for Raspberry Pi is fully compatible with the official ones. It’s our 6-year experience in cameras for RPi that makes Arducam outstanding.
Application:
- Cellular phones, PDAs, Toys
- Other battery-powered products
- Can be used in all Raspberry Pi platforms
Features:

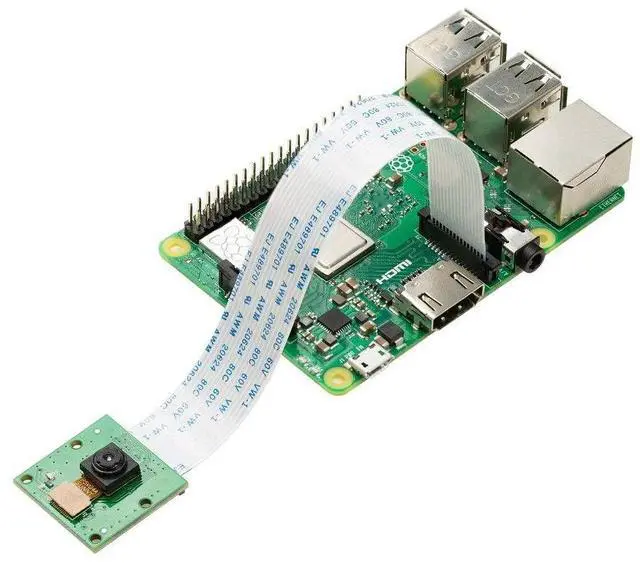

- High-Definition video camera for Raspberry Pi 5, 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
- Angle of View: 54 x 41 degrees
- Field of View: 2.0 x 1.33 m at 2 m
- Full-frame SLR lens equivalent: 35 mm
- Fixed Focus: 1 m to infinity
- Max frame rate: 30fps
- 15 cm flat ribbon cables to 15-pin MIPI Camera Serial Interface (CSI) connector
- Peak Current: 300mA
Package including: 1pcs 5MP Mini Camera OV5647 1pcs 15cm 15-15 pin FPC cable 1pcs 15cm 15-22 pin FPC cable(Raspberry Pi Type B Development Board is not included)
Note: We recommend you use M1.8 screws to fix the camera board to the case (Please search ASIN: b09tng4v55 to get the camera case). Please do not use M2 screws to avoid touching the capacitive resistance at the back of the camera board.
B0033 can work with the latest Raspberry Pi 5

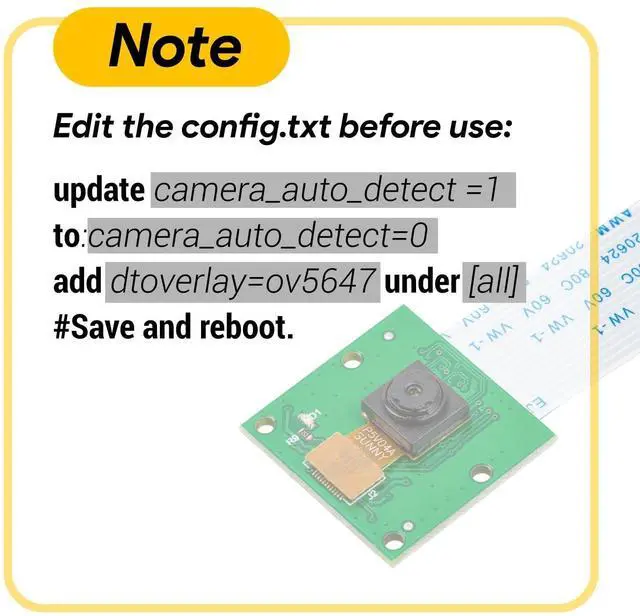

Edit the config.txt before accessing the camera
update camera_auto_detect=1to:camera_auto_detect=0
add dtoverlay=ov5647(If you want to enable the camera kit on the cam0 port of Pi5, please add dtoverlay=ov5647,cam0) under [all]
#Save and reboot.
 Raspberry Pi camera module 3 |  RPi Wide Angle Camera Module 3 |  RPi Camera with CS-Mount Lens |  RPi Camera with M12 Lens |  RPi Fisheye Camera |  RPi Mini Camera | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Sensor | IMX708 | IMX708 | OV5647 | OV5647 | OV5647 | OV5647 |
| Lens | Autofocus | Autofocus | CS-Mount Lens | M12 Lens | M12 Lens | Fixed Focus Lens |
| FoV | 75°(D)x66°(H)x41°(V) | 120°(D)x102°(H)x67°(V) | 101°(H) | 130° (D) × 100° (H) | 220°(H) | 2×1.33m at 2 m |
| Frame Rate | 1080p50, 720p100, 480p120 | 1080p50, 720p100, 480p120 | 30fps@1080p | 30 fps@1080p , 60fps@720p , 90fps@480p | 1080p@30fps, 720p@60fps, 480p@90fps | 30fps |
| Resolution | 12MP | 12MP | 5MP | 5MP | 5MP | 5MP |
| Main Features | With Camera Case | Wide Angle | Visible Light/interchangeable lens | Built-in Motorized IR Cut filter | Fisheye/Integral IR filter | Mini-sized with Flex Cable |
Arducam B0033 Camera Module for Raspberry Pi is fully compatible with the official ones. It’s our 6-year experience in cameras for RPi that makes Arducam outstanding.
Application:
- Cellular phones, PDAs, Toys
- Other battery-powered products
- Can be used in all Raspberry Pi platforms
Features:
- High-Definition video camera for Raspberry Pi 5, 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+
- Angle of View: 54 x 41 degrees
- Field of View: 2.0 x 1.33 m at 2 m
- Full-frame SLR lens equivalent: 35 mm
- Fixed Focus: 1 m to infinity
- Max frame rate: 30fps
- 15 cm flat ribbon cables to 15-pin MIPI Camera Serial Interface (CSI) connector
- Peak Current: 300mA
Package including: 1pcs 5MP Mini Camera OV5647 1pcs 15cm 15-15 pin FPC cable 1pcs 15cm 15-22 pin FPC cable(Raspberry Pi Type B Development Board is not included)
Note: We recommend you use M1.8 screws to fix the camera board to the case (Please search ASIN: b09tng4v55 to get the camera case). Please do not use M2 screws to avoid touching the capacitive resistance at the back of the camera board.
B0033 can work with the latest Raspberry Pi 5
Edit the config.txt before accessing the camera
update camera_auto_detect=1to:camera_auto_detect=0
add dtoverlay=ov5647(If you want to enable the camera kit on the cam0 port of Pi5, please add dtoverlay=ov5647,cam0) under [all]
#Save and reboot.
Raspberry Pi camera module 3 | RPi Wide Angle Camera Module 3 | RPi Camera with CS-Mount Lens | RPi Camera with M12 Lens | RPi Fisheye Camera | RPi Mini Camera | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Sensor | IMX708 | IMX708 | OV5647 | OV5647 | OV5647 | OV5647 |
| Lens | Autofocus | Autofocus | CS-Mount Lens | M12 Lens | M12 Lens | Fixed Focus Lens |
| FoV | 75°(D)x66°(H)x41°(V) | 120°(D)x102°(H)x67°(V) | 101°(H) | 130° (D) × 100° (H) | 220°(H) | 2×1.33m at 2 m |
| Frame Rate | 1080p50, 720p100, 480p120 | 1080p50, 720p100, 480p120 | 30fps@1080p | 30 fps@1080p , 60fps@720p , 90fps@480p | 1080p@30fps, 720p@60fps, 480p@90fps | 30fps |
| Resolution | 12MP | 12MP | 5MP | 5MP | 5MP | 5MP |
| Main Features | With Camera Case | Wide Angle | Visible Light/interchangeable lens | Built-in Motorized IR Cut filter | Fisheye/Integral IR filter | Mini-sized with Flex Cable |
