12V 1A Power Supply DC 12 Volt Power Adapter 12V 1000mA 600mA 800mA 12W AC/DC Adapter 100V~240V AC to DC 12V Power Cord with 5.5x2.5mm Tip for Router LED Strip Security Camera System, White

Important Note: 1. Before placing the order, please check whether the working voltage of your device is 12V and the current is not greater than 1A; 2. Check whether the DC connector is the same size as the product (5.5mm*2.1mm, please see the picture for details)
12V 1A Power Adapter Input: 100V-240V 50/60Hz; Output: DC 12V, 1A 12W Max; The DC Plug Connector size is 5.5mm x 2.5mm,compatible with 5.5mm x 2.1mm. Connector polarity is internal positive "+", outside negative"-".
Broad Compatibility Works well with 12V devices that less than 1A(1000mA) 12W, such as 200mA 400mA 500mA 800mA 1000mA . If you use it to power device more than 1A 12W,it will not work. NEVER OVERLOAD!
Safety Features Built-in multiple safeguards mechanism, automatic overload protection, over-voltage protection, over-current protection, over-temperature protection, short circuit protection.
Expanded Application We especially add a female terminal connector in the package. You can screw wires onto it to power the devices that have no female DC socket. This will greatly expand its applied range.
Premium Material and Quality Made of high-quality materials, robust casing keeps internal components safe. Pure copper wire provide you a safe and reliable cable with better conductivity. We suggest the max use of power should be no more than 80% of the full loads.

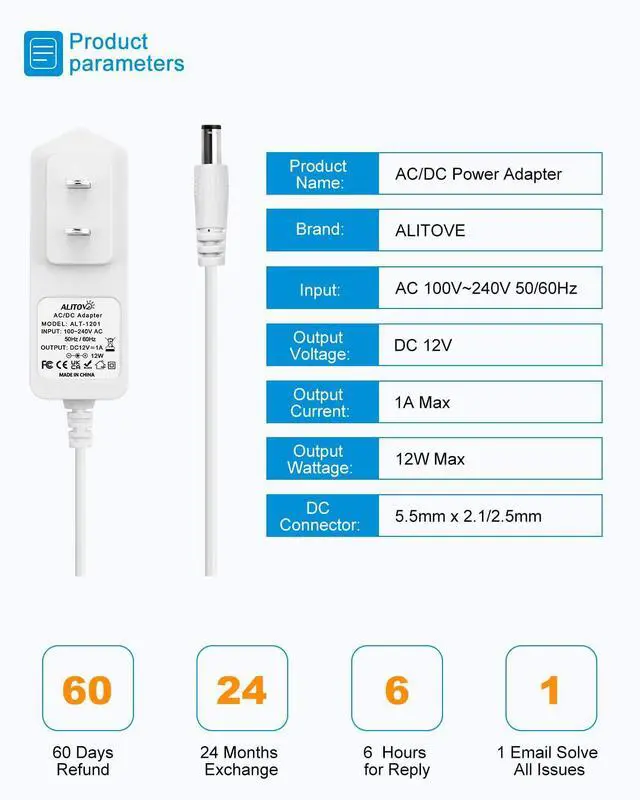

Product Specification:

Parameter

Input: 100~240V AC, 50/60Hz
Output voltage: 12V DC
Output current: 1A max
Output wattage: 12W max

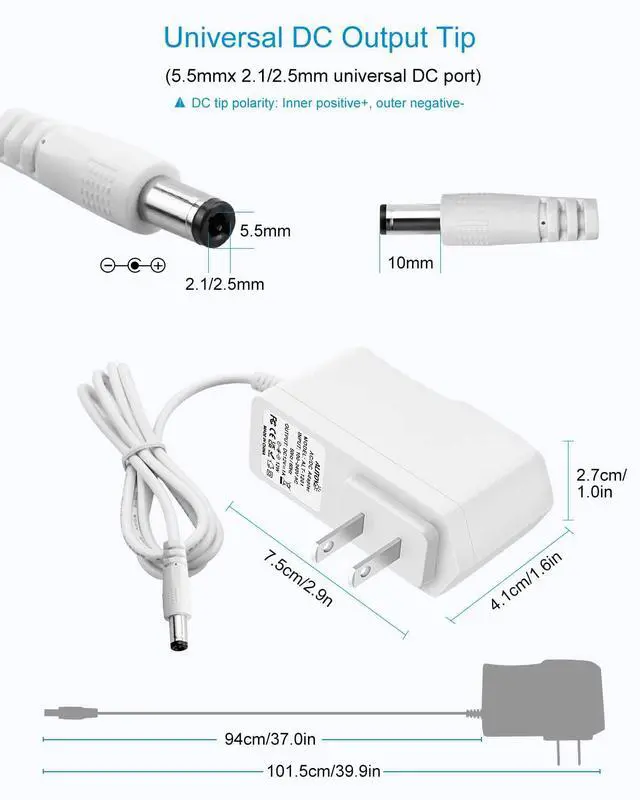

DC plug connector size: 5.5mmx2.5mm; 5.5mmx2.1mm compatible
Polarity: internal "+", outside"-"
Dimensions: Please refer to the picture.
Working Temperature: -20~60?
Ambient Humidity: 0~95% Non-Condensation
Dimensions: Please refer to the picture.
Weight: 0.22 lb / 100g

Package List:

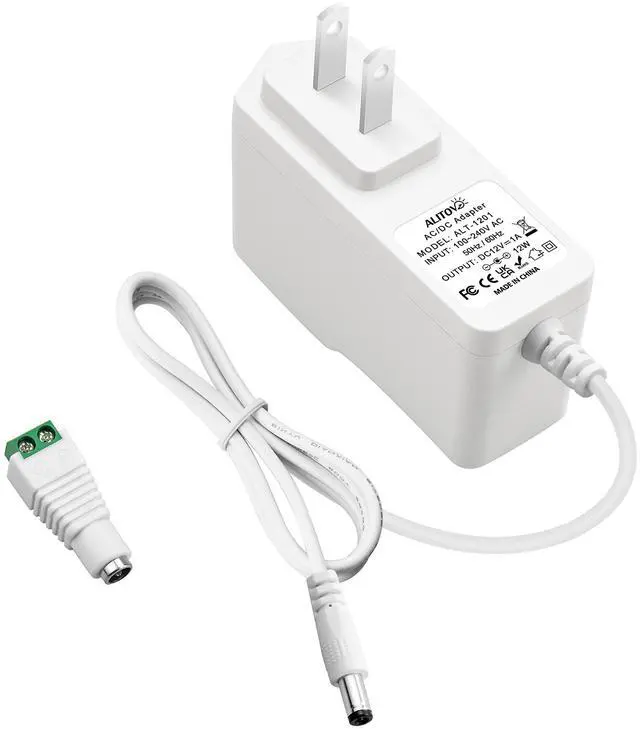

1x 12V 1A power supply adapter & 1x DC female connector

Product Highlights

Superior Safety

Flame-retardant exterior shell and built-in safeguards to protect against overheat, overload, over-charging, short-circuit provide ultimate protection for you and your devices.

5 1

Stable Output

Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference, ensure stable voltage output.

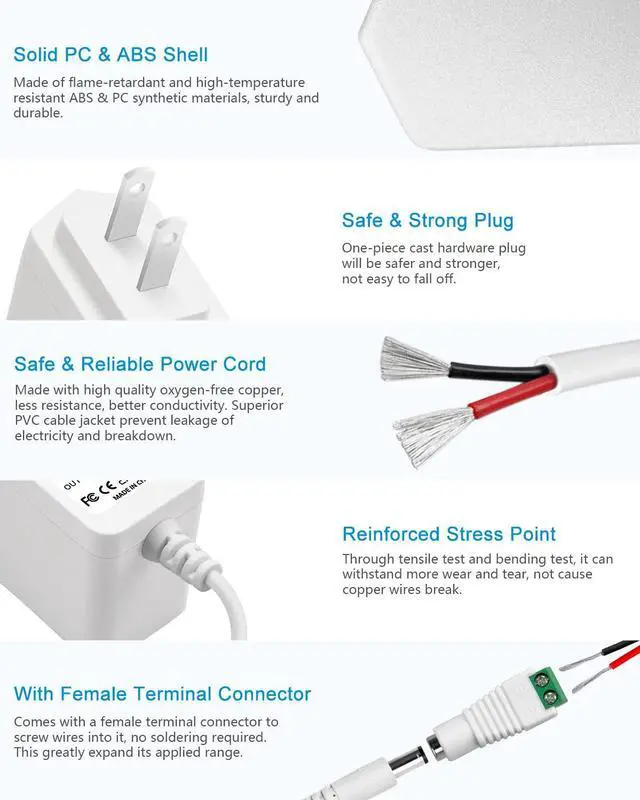

High-quality Cable

2x 0.5 mm²(20AWG) copper conductors, individual wire insulation and flexible flame -retardant PVC jacket provide you a safe and reliable cable with better conductivity.

Durable Design

Robust casing protects against scratches,bumps, drops, withstands pressure and keeps internal components safe during emergencies enhanced longevity.

Broad Compatibility

Max 1A ouput means it can only supply with amperage less than 1A. ---such as 0.1A, 0.5A, 0.8A. If your device draws 0.5A, 0.5A will be supplied. But if draws more than 1A, only 1A will be supplied.

Expanded Application

We especially add a female terminal connector in the package. You can screw wires onto it to power the devices that have no female DC socket. This will greatly expand its applied range.

professtional

Professional Advice

We suggest the max use of power should be no more than 80% of the full loads, otherwise,the power supply's spanlife will be shortened. We recommend to use 12W PS to power devices less than 9.6W.

	12V 1.5A 18W AC DC Adapter	12V 2A 24W AC DC Adapter	12V 3A 36W AC DC Adapter	12V 4A 48W AC DC Adapter	12V 5A 60W Adapter for CCTV Cameras	12V 2.5A 30W AC DC Adapter

Customer Reviews	—	—	—	—	—	—
Price	—	— no data	—	—	—	—
Output Amps	1.5A	2A	3A	4A	5A	2.5A
Output Volts	12V DC	12V DC	12V DC	12V DC	12V DC	12V DC
Output Watts	18W	24W	36W	48W	60W	30W
Input Volts	100~240V AC	100~240V AC	100~240V AC	100~240V AC	100~240V AC	100~240V AC
Output Port	DC Jack	DC Jack	DC Jack	DC Jack	DC Jack	DC Jack
Output Channel	1	1	1	1	8	1
With Power Cord	?	?	?	?	?	?
