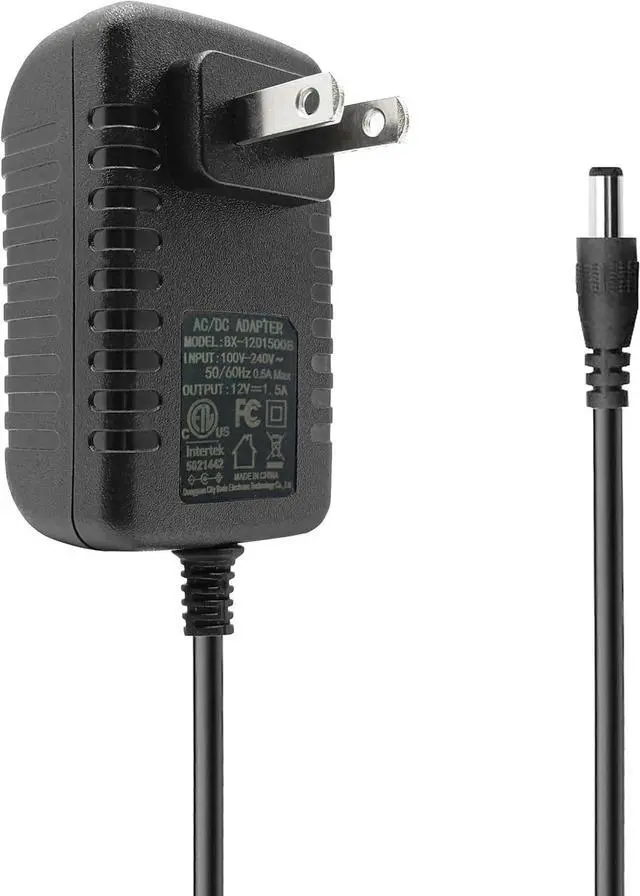

12V 1500mA Power supply

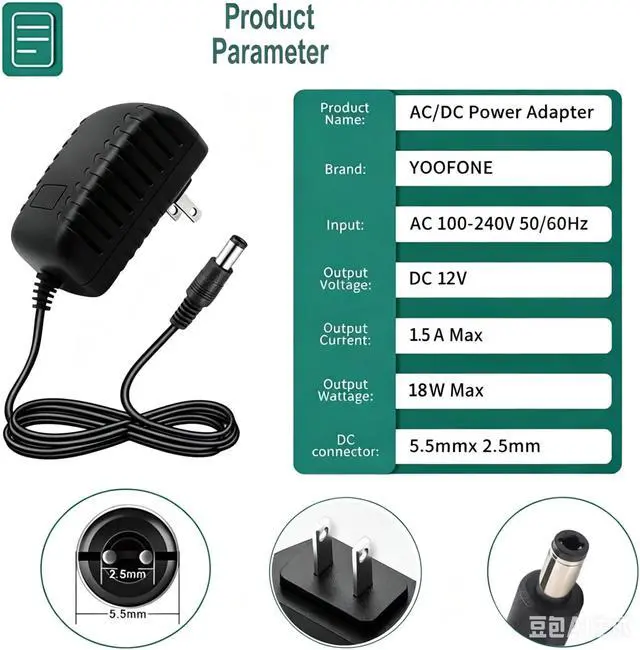

Parameter
12V 1500mA Power supply
Input voltage: 100-240V AC 50/60 Hz
Output current: 1.5A (1500 mA)
Output voltage: DC 12V
Output wattage: 18W max

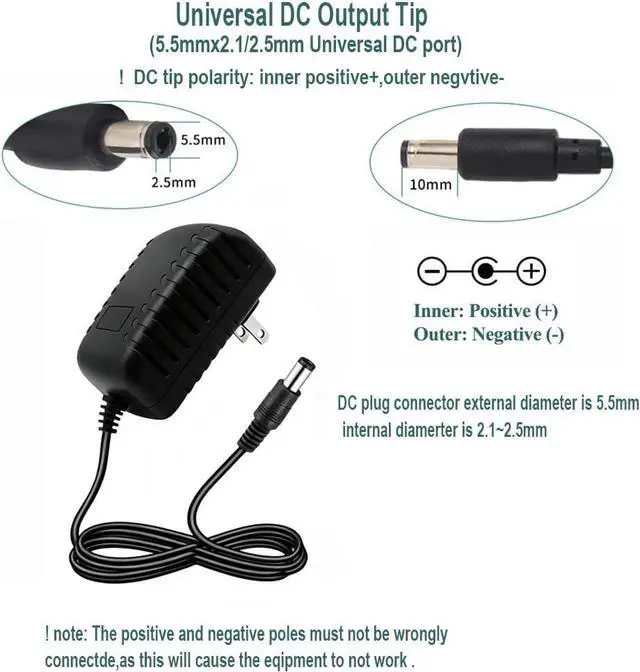

Power Polarity: Inside diameter is positive +,outer diameter is negative - ;(Please note: The positive and negative poles must not be wrongly connected, as this will cause the equipment to not work .)

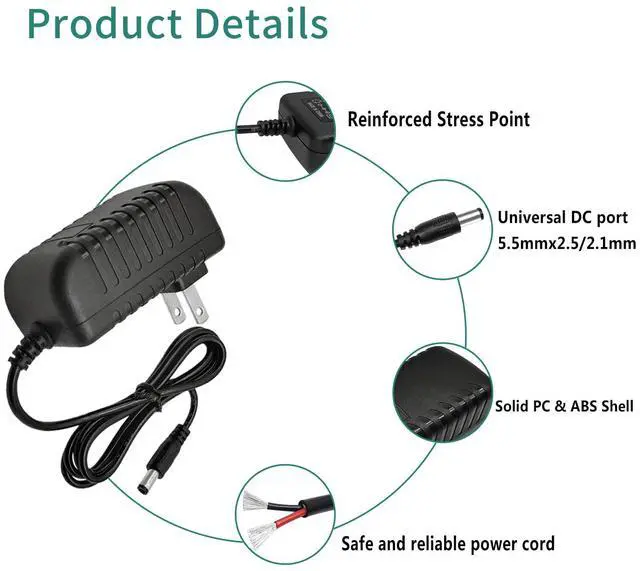

DC plug connector size: 5.5mmx2.5mm/2.1mm ;
package included :1pcs 12V 1.5A power adapter
Product specification
Check the Voltage
Please check the voltage of your device. This power supply can only be used for devices that requires 12 DC.
Check the Current
Please check the max current that your device needs. This power supply can only support current equal to or less than 1.5A, such as 1.5A, 1A, 850mA, 650mA etc
Check the Port
Please check the input port of your device. Its outer diameter should be 5.5mm and inner diameter should be 2.5mm - 2.1mm. In addition, inner core polarity should be positive “+” and outer polarity shoud be negative “-”.
Check the device
Please check the input port of your device. Its outer diameter should be 5.5mm and inner diameter should be 2.5mm or 2.1mm. In addition, inner core polarity should be positive "+“ and outer polarity shoud be negative "-"
Universal power adapter, switching power supply transformer
Applicable to LED Lights wireless audio and video equipment, Compatible with CCTV wireless camera charging equipment, MP3/MP4, small table lamps, routers, switches, game consoles, telephones, lights, cameras, monitoring equipment, control Various home / portable devices. AC to DC adapters are also available for many common electronic components.
Kindly note
(1)Please find the spec label of your device and check the working voltage. It should be 12V DC, not be AC 12V or lower/higher than 12V DC. Otherwise, your device will not work or be damaged.
(2) Check the max current your device will draw. It should be equal to or less than 1.5A,such as 450mA,600mA,0.8A,1A,1.2A ,1.5A. Otherwise, your device won’t work well and the power supply will be damaged very soon.
(3)Check the power input port of your device. Its outer diameter should be 5.5mm; inner core diameter should be 2.1mm. Inner core polarity should be"+", exterior polarity should be" - ".
(4)If you have a power supply for reference, their output voltage, plug size, polarity should be the same .If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
(5)Please don't use it outdoor. It is not waterproof.
 5V 1A Adapter |  12V 1A Adapter |  9V 2A Adapter |  24V 0.5AAdapter |  12V 0.5A Adapter |  24V 1A Adapter | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — | — |
| Output Voltage | 12V | 5V | 9V | 24V | 12 | 24V |
| Output Current | 1A | 1A | 2A | 0.5A | 0.5A | 1A |
| Output Port | 5.5x2.5mm | 5.5x2.5mm | 5.5x2.5mm | 5.5x2.5mm | 5.5x2.5mm | 5.5x2.5mm |
| DC Connector | ? | no data | no data | no data | no data | ? |
12V 1500mA Power supply
Parameter
12V 1500mA Power supply
Input voltage: 100-240V AC 50/60 Hz
Output current: 1.5A (1500 mA)
Output voltage: DC 12V
Output wattage: 18W max
Power Polarity: Inside diameter is positive +,outer diameter is negative - ;(Please note: The positive and negative poles must not be wrongly connected, as this will cause the equipment to not work .)
DC plug connector size: 5.5mmx2.5mm/2.1mm ;
package included :1pcs 12V 1.5A power adapter
Product specification
| Input | 100~240V AC, 50/60Hz |
| Output Voltage | 12V DC |
| Output Current | 1.5A MAX |
| Working temperature | 0~40? |
| Storage Temperature | -20~60? |

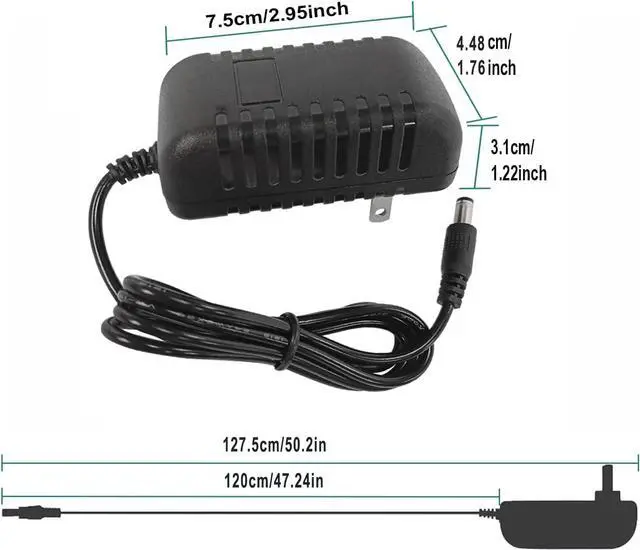

| Body Size | 2.95x 1.65x 1.18in (7.5x 4.2x 3cm) |
Check the Voltage
Please check the voltage of your device. This power supply can only be used for devices that requires 12 DC.
Check the Current
Please check the max current that your device needs. This power supply can only support current equal to or less than 1.5A, such as 1.5A, 1A, 850mA, 650mA etc
Check the Port
Please check the input port of your device. Its outer diameter should be 5.5mm and inner diameter should be 2.5mm - 2.1mm. In addition, inner core polarity should be positive “+” and outer polarity shoud be negative “-”.
Check the device
Please check the input port of your device. Its outer diameter should be 5.5mm and inner diameter should be 2.5mm or 2.1mm. In addition, inner core polarity should be positive "+“ and outer polarity shoud be negative "-"
Universal power adapter, switching power supply transformer
Applicable to LED Lights wireless audio and video equipment, Compatible with CCTV wireless camera charging equipment, MP3/MP4, small table lamps, routers, switches, game consoles, telephones, lights, cameras, monitoring equipment, control Various home / portable devices. AC to DC adapters are also available for many common electronic components.
Kindly note
(1)Please find the spec label of your device and check the working voltage. It should be 12V DC, not be AC 12V or lower/higher than 12V DC. Otherwise, your device will not work or be damaged.
(2) Check the max current your device will draw. It should be equal to or less than 1.5A,such as 450mA,600mA,0.8A,1A,1.2A ,1.5A. Otherwise, your device won’t work well and the power supply will be damaged very soon.
(3)Check the power input port of your device. Its outer diameter should be 5.5mm; inner core diameter should be 2.1mm. Inner core polarity should be"+", exterior polarity should be" - ".
(4)If you have a power supply for reference, their output voltage, plug size, polarity should be the same .If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
(5)Please don't use it outdoor. It is not waterproof.

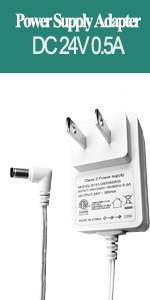

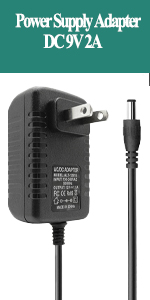

5V 1A Adapter | 12V 1A Adapter | 9V 2A Adapter | 24V 0.5AAdapter | 12V 0.5A Adapter | 24V 1A Adapter | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — no data | — | — | — |
| Output Voltage | 12V | 5V | 9V | 24V | 12 | 24V |
| Output Current | 1A | 1A | 2A | 0.5A | 0.5A | 1A |
| Output Port | 5.5x2.5mm | 5.5x2.5mm | 5.5x2.5mm | 5.5x2.5mm | 5.5x2.5mm | 5.5x2.5mm |
| DC Connector | ? | no data | no data | no data | no data | ? |
