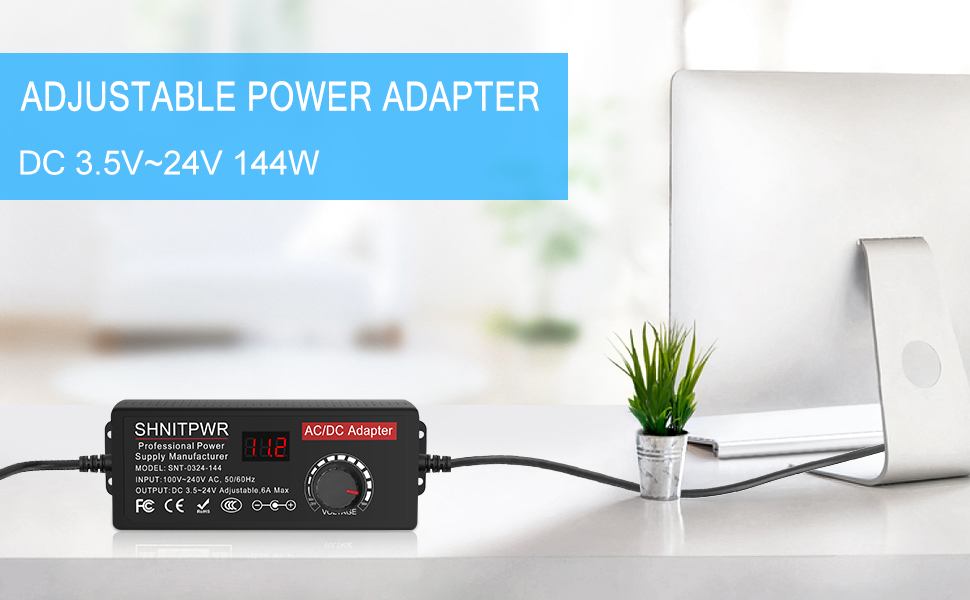

Parameter
- Input: AC 100V~240V 50/60Hz
- Output Voltage: DC 4V~24V Adjustable
- Output Current: Max 6A
- Output Wattage: Max 144W
- Output DC connector: 5.5mm x 2.5mm (inside"+", outside"-")
- 14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
- Reverse polarity converter: 5.5mm x 2.1mm
- Power cable length: 6.89ft / 215cm
- Safety Compliance: FCC / CE/ RoHS
- Working Temperature: 0~40?
- Weight: 0.88 lb / 402g
Package include
- 1x 144W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse polarity converter cable
Attention:
- The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 4V~24V. Only in this way can your device really get 3.5V~24V voltage. This is the reason why we advertise the power supply's voltage range is 4V~24V, not 3.5V~24.5V.
Caution:
- The 10.5cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.
Is this 3.5~24V 144W universal power supply (PS) compatible with your device?
1. Check Voltage
Please find the spec label of your device and check the working voltage. It should be among 4V~24V DC, not lower than 4V or higher than 24V DC. Otherwise, your device will not work or be damaged.
2. Check Current
Check the max current your device will draw. It should be equal to or less than 6A, such as 1A, 2A,3A,4A, 5A, 6A. Otherwise, your device won’t work well and the PS will be damaged very soon.
3. Check Plugs
Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.
4. Check Original PS
If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
 DC 4V~24V 6A 144W |  DC 4V~24V 6A 144W |  DC 4V~24V 6A 144W |  DC 4V~12V 12A 144W |  DC 9V~36V 4A 144W |  DC 4V~24V 5A 120W | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Max Output Amps | 6A | 6A | 6A | 12A | 4A | 5A |
| Output Volts | DC 4V~24V | DC 4V~24V | DC 4V~24V | DC 4V~12V | DC 9V~36V | DC 4V~24V |
| Output Tip | 16 Tips + 4-Way Power Cable | 16 Tips + DC Pigtail Cable | 14 Tips + 100W PD Fast Charger | 14 Tips | 14 Tips | 14 Tips |
| Input Volts | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V |
| Max Power | 144W | 144W | 144W | 144W | 144W | 120W |
