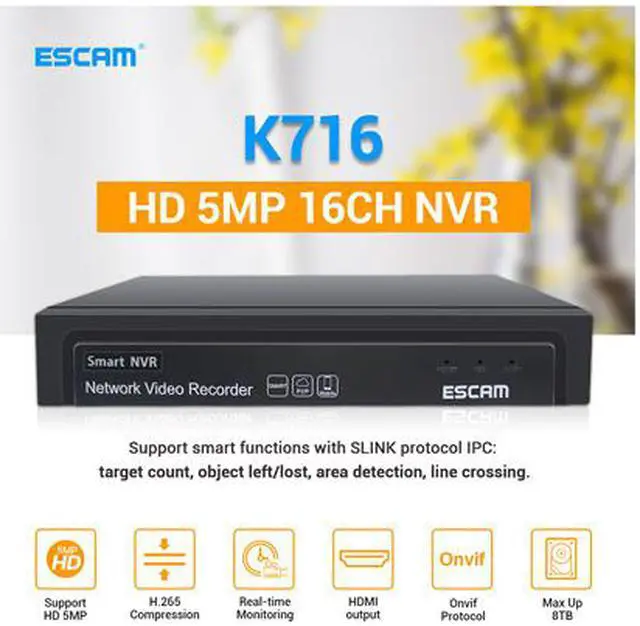

ESCAM K716 H.265 Video Surveillance NVR Recorder 8CH 16CH 5MP 4MP 2MP Output Motion Detect ONVIF Recorder for IP Camera Metal Case

Model Number K716
Operating System Embedded LINUX operating system

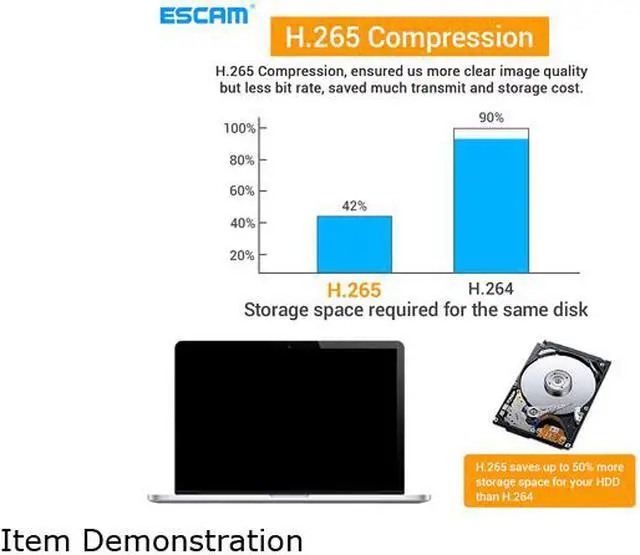

Video Standard H.265+/ H.265/H.264
Smart Analysis With Smart IPC,suppoat Target Count, Object Left /Lost, Area Detection, Line Crossing
Video & Audio Input Video Input 16CH 5MP IP Network Cameras
Audio Input IPC composite stream network audio input
Video & Audio Output HDMI Output 1CH, HDMI can output audio at the same time
VGA Output 1CH
Preview Split 1/4/9 screen
Video & Audio Codec Video Resolution 5MP and below resolution
Synchronized Playback Support adaptive stream preview and playback:9 screens D1, 4 screens 1280*720, single screen 2560*1920
External
Ports Internet 1 x RJ45 10M/100M/1000M adaptive Ethernet port
USB 2 x USB2.0 rear
HDD HDD Port 1 x SATA HDD Port
MAX Capacity up to 8TB
POE interface /
Support Standard /
Network Management Network Protocol UPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address)
P2P
Remote Monitoring AEeye Supports iPhones, iPads, Android Smart phone
Supports Windows 7 and above computer client, supports Apple MAC computer client
Power Supply 12V 2A
Working Temperature -10?--+55?
Working Humidity 10%-90%
Power Consumption NVR motherboard function=25W(Without HDD)

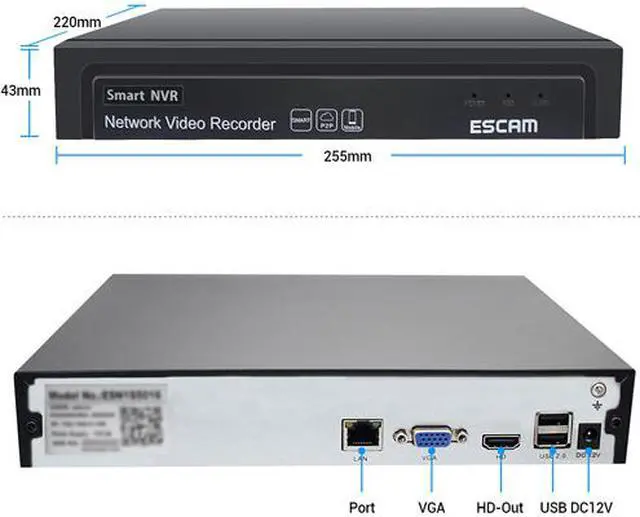

Dimensions Device:255mm×220mm×43mm
Packing:355mm×260mm×87mm
Weight (Without HDD) N.W.: 0.63Kg; Packing:1.1Kg
Outside Carton 10 pcs/carton.Dimension:462mm×365mm×530mm; Weight:12Kg
Installation Method Desktop installation
