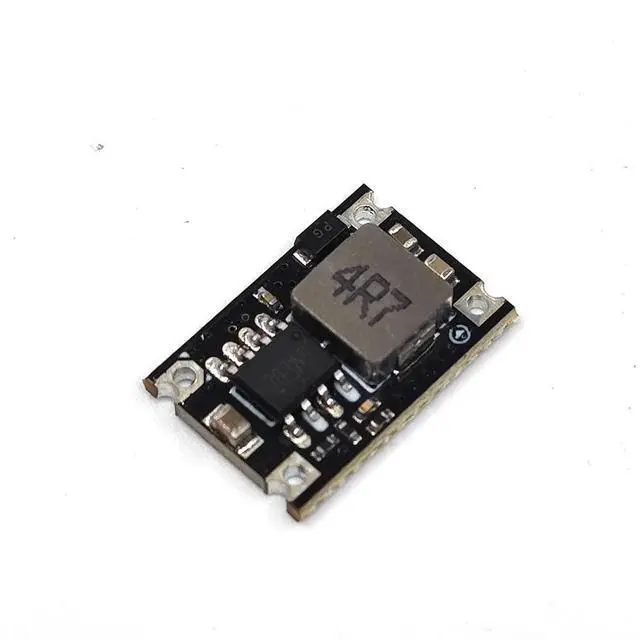

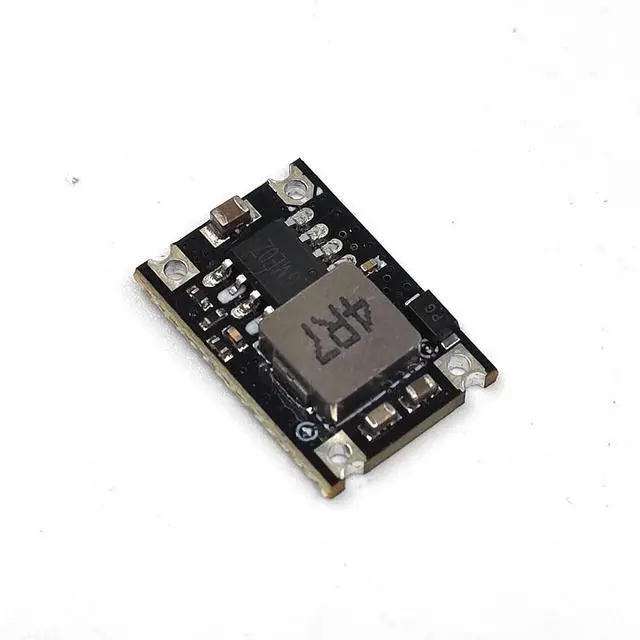

MP1584EN 5pcs Mini 5V Buck Converter Board - 5-30V to 5V, 1.8A Output, Small Size, Black

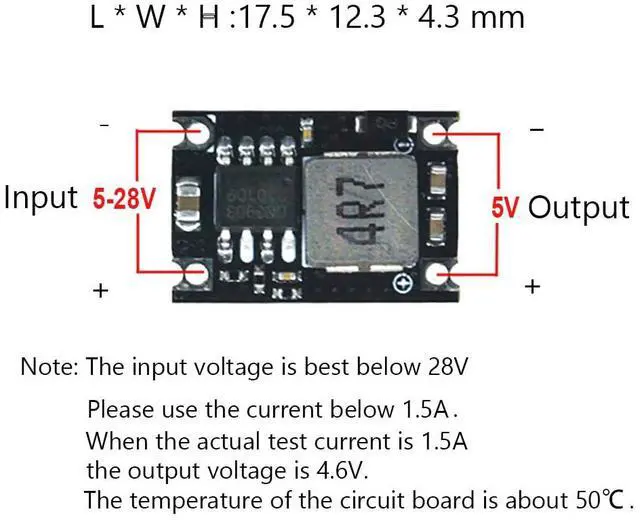

- Very small size, length, width and height are 17.5*12.3*4.3mm,Input: 5V-28V,Output: 5V
- The maximum output current can reach 1.8A, when the output current is 1.5A, the output voltage is 4.6V
- Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (highest), typically 1 MHz
- When using this module with an inductive load, please pay attention to the protection of the current in the rear stage. For example, when using a steering gear or a motor, a large ripple may be generated, which may affect the chips in the rear stage circuit. You can add Zener and capacitor for protection

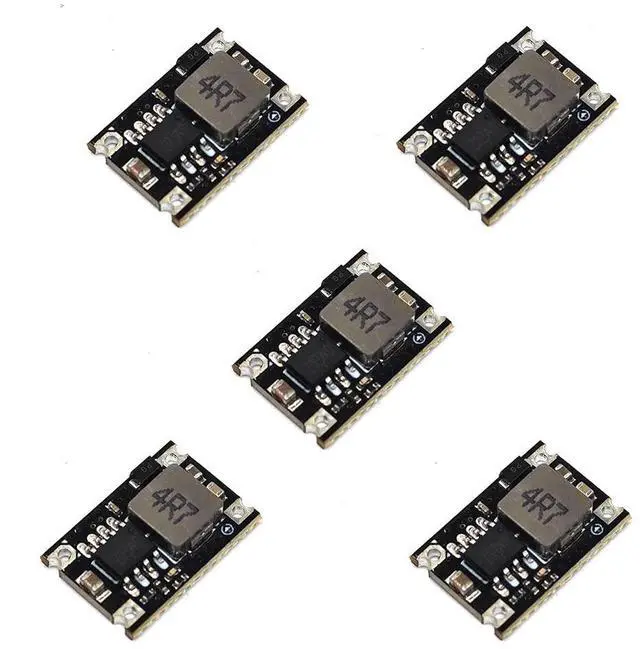

- Package: 5PCS 5V Buck Module
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

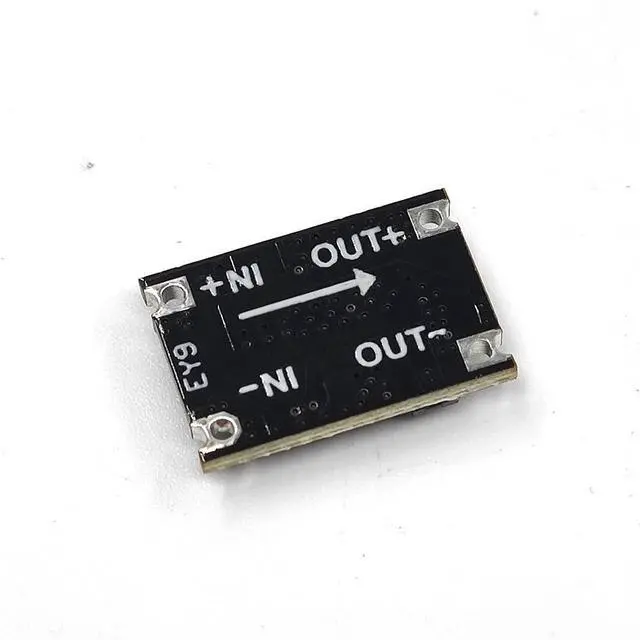

The volume is very small, the input voltage is 5V-30V, and it is best to use within 28V The maximum output current is 1.8A, preferably within 1.5A Please pay attention to the positive and negative poles when using this module, the positive and negative pole marks are on the back of the circuit board If you use high current for a long time, please do a good job of heat dissipation, the working temperature is -40-85 Package: 5pcs buck module
