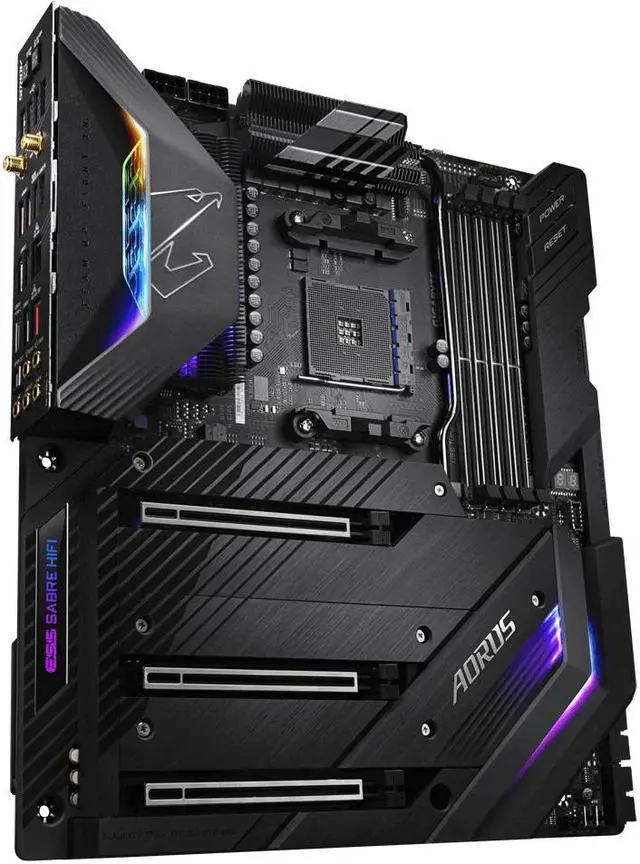

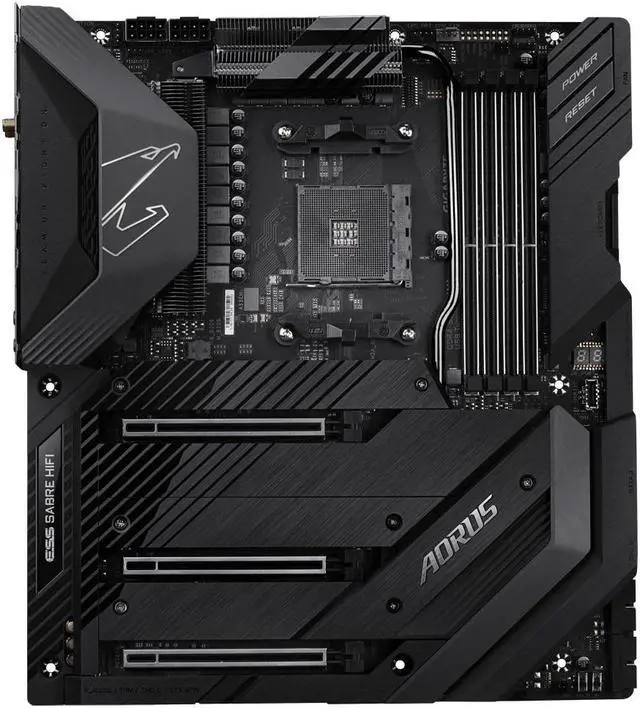

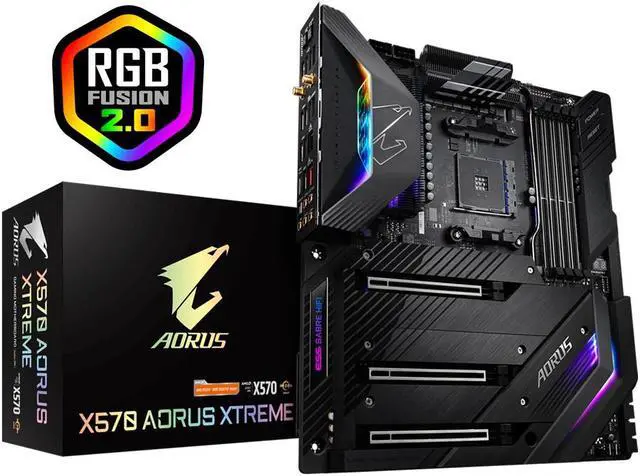

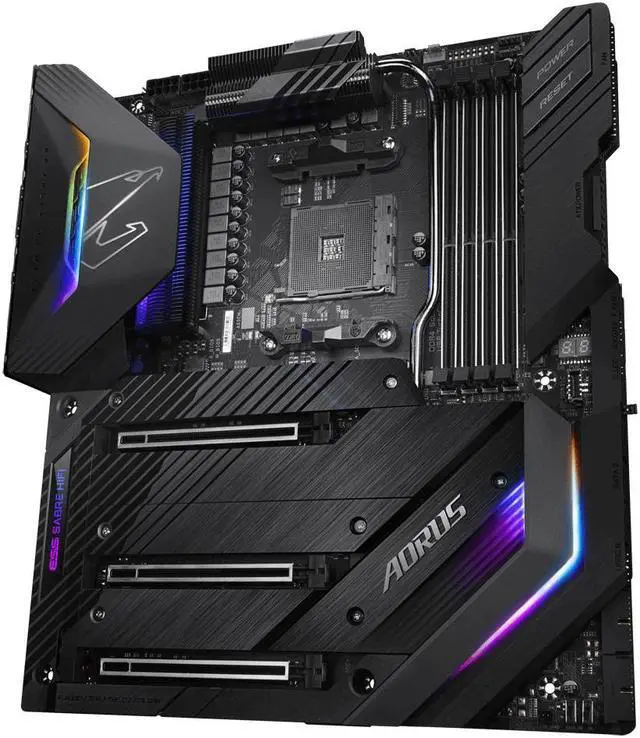

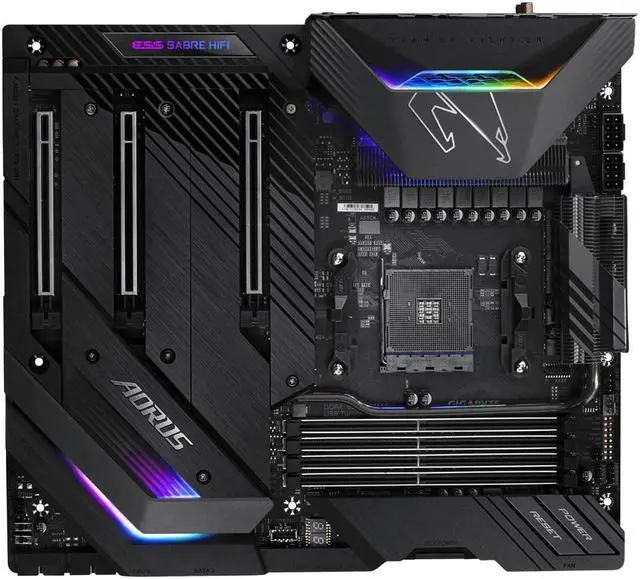

Gigabyte X570 AORUS XTREME Motherboard CPU AM4 AMD Ryzen DDR4 WiFi 10GbE LAN RGB

CPU

AMD Socket AM4,
support for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors

(Please refer "CPU Support List" for more information. )

Chipset

AMD X570

Memory

3rd Generation AMD Ryzen processors:

Support for DDR4 4400(O. C. ) / 4300(O. C. ) / 4266(O. C. ) / 4133(O. C. ) / 4000(O. C. ) / 3866(O. C. ) / 3800(O. C. ) / 3733(O. C. ) / 3600(O. C. ) / 3466(O. C. ) / 3400(O. C. ) / 3333(O. C. ) / 3300(O. C. ) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

2nd Generation AMD Ryzen processors/2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with
Radeon Vega Graphics processors:

Support for DDR4 3600(O. C. ) / 3400(O. C. ) / 3333(O. C. ) / 3200(O. C. ) / 2933 / 2667 / 2400 / 2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

* ECC is only supported with AMD Ryzen PRO-series CPU.

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information. )

Audio

Realtek® ALC1220-VB codec

* The front panel line out jack supports DSD audio.

ESS SABRE9218 DAC chip

High Definition Audio

2/4/ 5.1 / 7.1 -channel

Support for S/PDIF Out

LAN

1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/ 2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)

1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)

Wireless Communication module

Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4 /5 GHz Dual-Band

BLUETOOTH 5.0

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots

Integrated in the CPU (PCIEX16/PCIEX8):

3rd Generation AMD Ryzen processors:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)

2nd Generation AMD Ryzen processors:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors, the PCIEX16 slot operates at up to x8 mode.

2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with
Radeon Vega Graphics processors:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

Integrated in the Chipset (PCIEX4):

1 x PCI Express x16 slot, supporting PCIe 4.0 */ 3.0 and running at x4

* For 3rd Generation AMD Ryzen processors only.

Multi-Graphics Technology

Support for NVIDIA® Quad-GPU SLI and 2-Way NVIDIA® SLI technologies

Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

* For 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors only.

Storage Interface

Integrated in the CPU (M2A_SOCKET):

3rd Generation AMD Ryzen processors:

1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

2nd Generation AMD Ryzen processors/2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with
Radeon Vega Graphics processors:

1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):

1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 */ 3.0 x4/x2 SSD support) (M2B_SOCKET)

* For 3rd Generation AMD Ryzen processors only.

1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 */ 3.0 x4/x2 SSD support) (M2C_SOCKET)

* For 3rd Generation AMD Ryzen processors only.

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

* Refer to "1-9 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors.

USB

Integrated in the CPU:

2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel

* For 3rd Generation AMD Ryzen processors only.

2 x USB 3.2 Gen 1 ports on the back panel

Integrated in the Chipset:

1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

3 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

2 x USB 3.2 Gen 1 ports available through the internal USB header

2 x USB 2.0 / 1.1 ports available through the internal USB header

Chipset+USB 2.0 Hub:

4 x USB 2.0 / 1.1 ports on the back panel

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x OC PEG power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M. 2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 1 headers

1 x USB 2.0 / 1.1 header

1 x noise detection header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM 2.0 _S module only)

2 x temperature sensor headers

1 x power button

1 x reset button

2 x BIOS switches

Voltage Measurement Points

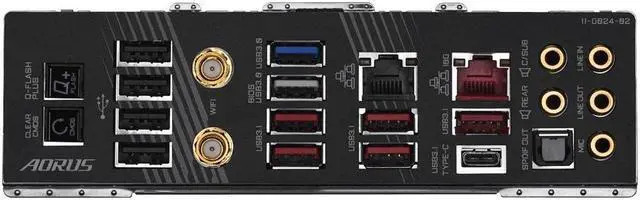

Back Panel Connectors

1 x Q-Flash Plus button

1 x Clear CMOS button

2 x SMA antenna connectors (2T2R)

1 x USB Type-C port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)

* For 3rd Generation AMD Ryzen processors only.

3 x USB 3.2 Gen 2 Type-A ports (red)

2 x USB 3.2 Gen 1 ports

4 x USB 2.0 / 1.1 ports

2 x RJ-45 ports

1 x optical S/PDIF Out connector

5 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS

PnP 1.0 a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

AutoGreen

Cloud Station

EasyTune

Fast Boot

Game Boost

RGB Fusion

Smart Backup

Smart Keyboard

Smart Survey

System Information Viewer

USB Blocker

USB TurboCharger

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)

cFosSpeed

XSplit Gamecaster + Broadcaster (12 months license)

Operating System

Support for Windows 10 64-bit

Form Factor

E-ATX Form Factor; 30.5 cm x 27.0 cm
