for GIGABYTE GA-B75M-D3V LGA 1155 Intel B75 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard
REFURBISHED Product Type
- This motherboard model is GA-B75M-D3V
- The quality is original second-hand goods.(Used product 90%-80% new)

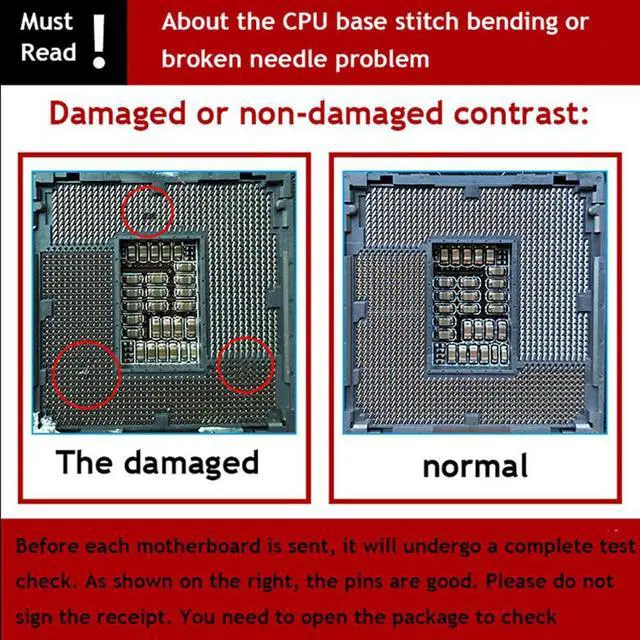

- But it is working well,we will finish100% testedbefore shipping.
- Packing include one motherboard and one metal bafflewithout CMOS battery, did not have other part.
- Please make sure you buy the right board to ensure 100% compatibility your other hardware.
- This Product is 100%Not repaired.
- This Product is 100% Original GIGABYTE
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

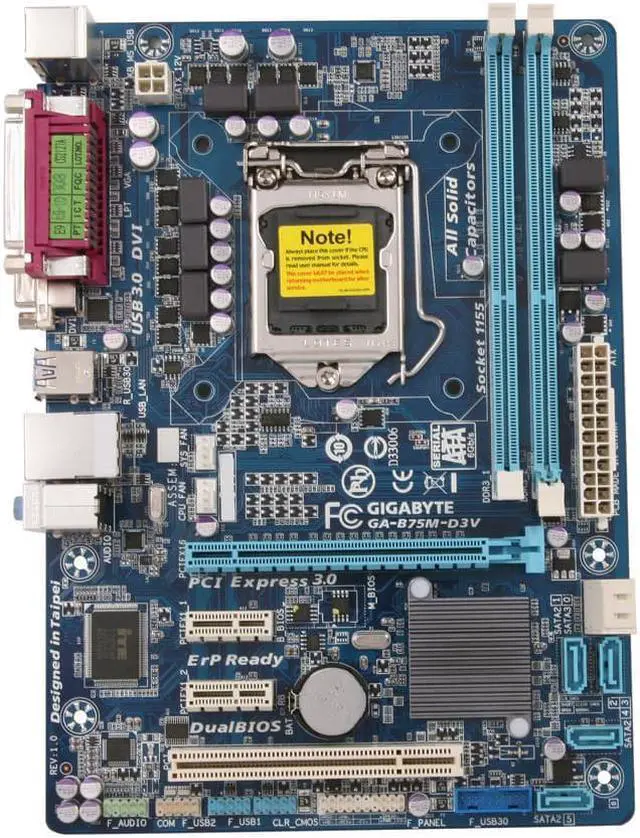

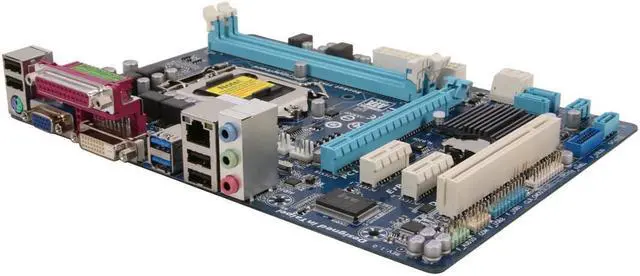

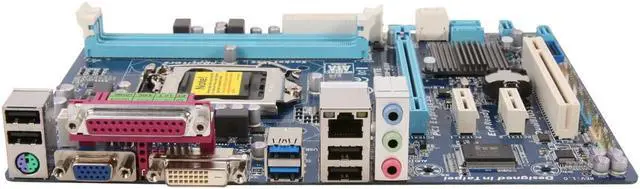

GIGABYTE GA-B75M-D3V
Main chipset Intel B75
Chipset Description Intel B75 chipset is used
Display chip CPU Built-in display chip (requires CPU support)
Audio chip integrated with Realtek ALC887 8-channel sound chip
Nic Atheros Gigabit NIC on chip
Processor
CPU type Core i7/Core i5/Core i3/Pentium/Celeron/Xeon E3
CPU slot LGA 1155
CPU Description Intel 22 - and 32-nm processors are supported
Memory
Memory Type 2 x DDR3 DIMMs
The maximum memory capacity is 16GB
Memory Description Supports dual-channel DDR3 memory of 2200 MHZ (overclocked), 1600 MHZ, 1333 MHZ, and 1066MHz
Storage expansion
PCI-E Standard PCI-E 3.0 standard
PCI-E slot 1 x PCI-E X16 video card slot, 2 x PCI-E X1 slot
PCI slot 1 x PCI slot
Storage ports 5 x SATA II ports. 1 x SATA III port
I/O interface
USB port 8 x USB 2.0 port (4 built-in +4 backplane); 4 x USB 3.0 port (2 built-in +2 backplane)
Video port 1 x DVI port
1 x VGA port
One 4-pin power port and one 24-pin power port

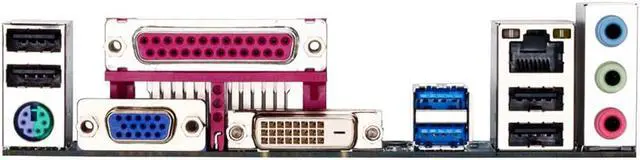

Other ports 1 x RJ45 network port, audio port, PS/2 key and mouse port
The plate type
Main board type Micro ATX board type
The overall dimension is 24.4 × 17.4 cm
Software Management
BIOS performance Two 64Mbit flash
Use the authorized AMI EFI BIOS
Support for DualBIOS
PnP 1.0 a, DMI 2.0, SM BIOS 2.6, ACPI 2.0A
Other parameters
Power supply mode 3+1+1 phase
Hardware monitoring system voltage detection
CPU/ system temperature detection
CPU/ system fan speed detection
CPU overtemperature warning
CPU/ system fan fault warning
CPU/ System intelligent fan control
The operating system supports Microsoft Windows 8/7/XP/SERVER 2003
Other features super durable 4 generation, moisture proof fiberboard design
Motherboard accessories
Packing List Guo-jia motherboard x1+ baffle board x1
Main chipset Intel B75
Chipset Description Intel B75 chipset is used
Display chip CPU Built-in display chip (requires CPU support)
Audio chip integrated with Realtek ALC887 8-channel sound chip
Nic Atheros Gigabit NIC on chip
Processor
Specifications
CPU type Core i7/Core i5/Core i3/Pentium/Celeron/Xeon E3
CPU slot LGA 1155
CPU Description Intel 22 - and 32-nm processors are supported
Memory
Specifications
Memory Type 2 x DDR3 DIMMs
The maximum memory capacity is 16GB
Memory Description Supports dual-channel DDR3 memory of 2200 MHZ (overclocked), 1600 MHZ, 1333 MHZ, and 1066MHz
Storage expansion
PCI-E Standard PCI-E 3.0 standard
PCI-E slot 1 x PCI-E X16 video card slot, 2 x PCI-E X1 slot
PCI slot 1 x PCI slot
Storage ports 5 x SATA II ports. 1 x SATA III port
I/O interface
USB port 8 x USB 2.0 port (4 built-in +4 backplane); 4 x USB 3.0 port (2 built-in +2 backplane)
Video port 1 x DVI port
1 x VGA port
One 4-pin power port and one 24-pin power port
Other ports 1 x RJ45 network port, audio port, PS/2 key and mouse port
The plate type
Main board type Micro ATX board type
The overall dimension is 24.4 × 17.4 cm
Software Management
BIOS performance Two 64Mbit flash
Use the authorized AMI EFI BIOS
Support for DualBIOS
PnP 1.0 a, DMI 2.0, SM BIOS 2.6, ACPI 2.0A
Other parameters
Power supply mode 3+1+1 phase
Hardware monitoring system voltage detection
CPU/ system temperature detection
CPU/ system fan speed detection
CPU overtemperature warning
CPU/ system fan fault warning
CPU/ System intelligent fan control
The operating system supports Microsoft Windows 8/7/XP/SERVER 2003
Other features super durable 4 generation, moisture proof fiberboard design
Motherboard accessories
Packing List Guo-jia motherboard x1+ baffle board x1
