Pre-installed Windows 11 Pro, powered by AMD Ryzen 7 PRO 6850U with Radeon 680M graphics, close to GTX 1050 Ti performance and supports FSR 3.0 for gaming & daily tasks.
Equipped with HDMI 2.1 and dual USB4 Type-C ports, supports 8K@60Hz & 4K@144Hz output and simultaneous quad-screen display.
Built-in OCuLink port with PCIe x4 high bandwidth, lower latency and better frame rate for eGPU external graphics expansion.
Hyper Ice Chamber 2.0 dual cooling fans with 360° airflow and copper base, running quietly at only 35dB in silent mode.
Updated UEFI BIOS with three performance modes: Quiet 35W, Balance 50W and Performance 65-70W, supports auto power on and wake-on-LAN.
Dual 2.5GbE LAN ports paired with WiFi 6E and Bluetooth 5.2, ideal for soft routing, file storage and smooth wireless connection.
Comes with 32GB DDR5 RAM and 512GB PCIe SSD, max expandable to 128GB RAM and 4TB dual SSD storage.
Premium metal matte chassis with easy-to-open cover for DIY upgrade, backed by 1-year official warranty and professional after-sales service.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

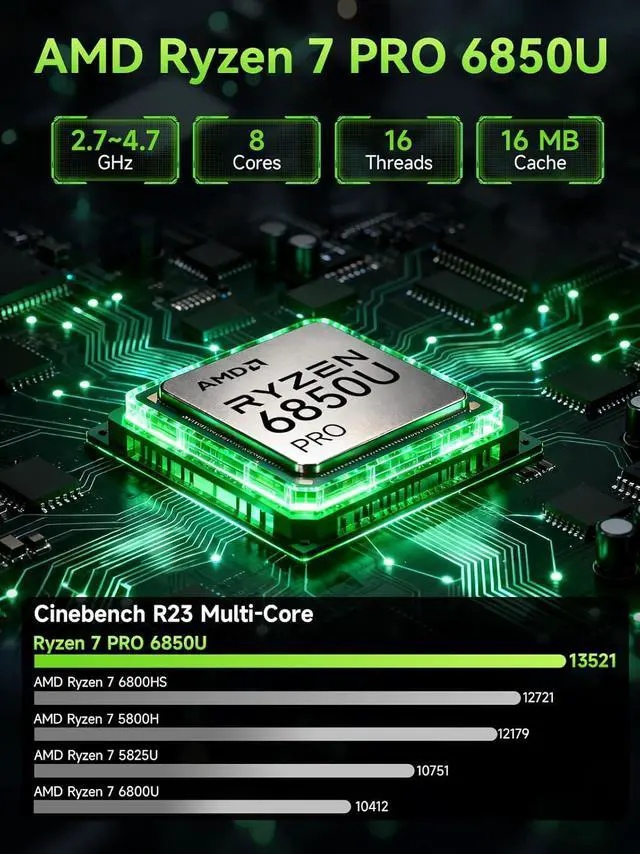

PREMIUM GAMING PC MINI COMPUTER - The Nucbox M7 Ultra Mini PC is a small form factor Desktop Micro Mini Computer with an AMD Ryzen 7 PRO 6850U (8C/16T 2.70Ghz Base speed with Turbo speed up to 4.7Ghz) processor. The GPU is integrated with a powerful AMD Radeon 680M 12 Cores Graphics Card; performance is almost close to that of a full NVIDIA GTX 1050 Ti. Coupled with the support of FSR 3.0+ technology, the computer can handle heavy computing tasks and AAA gaming

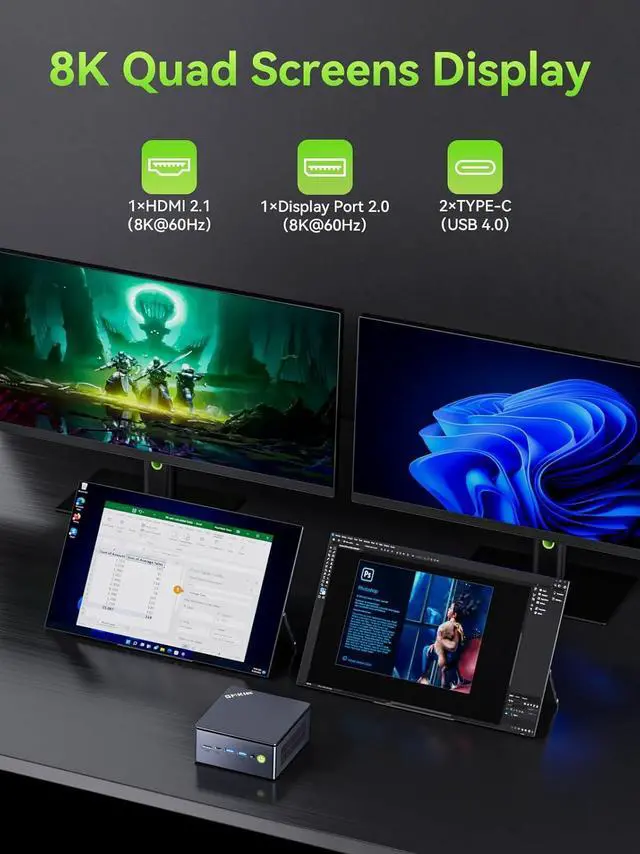

MINI PC COMPUTER SUPPORTS QUAD SCREEN 8K DISPLAY - Nucbox M7 Ultra gaming pc is equipped with Dual USB4 USB-C Video output. The latest HDMI 2.1 port can connect to large screen TV and Display Monitors and output up to 8K@60Hz resolution. The Type-C DisplayPort Video output can connect to the latest monitor displays utilizing 4K@144Hz. Features simultaneous four screen display

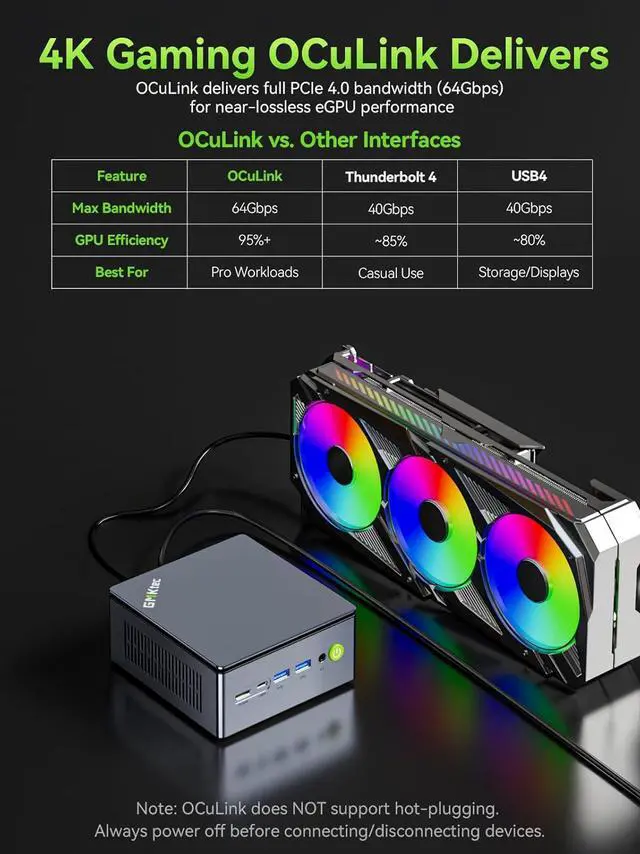

OCULINK PORT - The M7 Ultra Oculink port enables higher bandwidth capabilities, better frame rates and lower lag. The standard also operates at PCIe x4 speeds, compared to Thunderbolt's x3. Gamers and content creators can benefit from OCuLink's higher bandwidth, resulting in better performance and lower lag for eGPU setups
UPGRADED DUAL COOLING FANS - Our new Hyper Ice Chamber 2.0 design uses larger top and bottom cooling fans with 360 degrees in and out air flow. The copper base keeps the fan cool and we have lowered the fan noise down to 35dB in Quiet mode
THREE PERFORMANCE MODES UPDATED UEFI - The M7 Ultra mini computer features an all new BIOS update with three performance modes (Quiet 35W, Balance 50W, or Performance 65W-70W). VRAM Allocation is also possible with Auto Power On, Wake-on-LAN options available
DUAL NIC 2.5GbE + WiFi 6E + BT 5.2 - Dual Intel NIC 2.5GbE LAN port design provides more applications, such as firewall, multichannel aggregation, soft routing, file storage server, etc. WiFi 6E provides a faster internet experience for browsing, streaming and gaming. Built-in Bluetooth 5.2 is more stable and efficient to connect multiple wireless devices such as projector, printer, monitor, speakers and etc

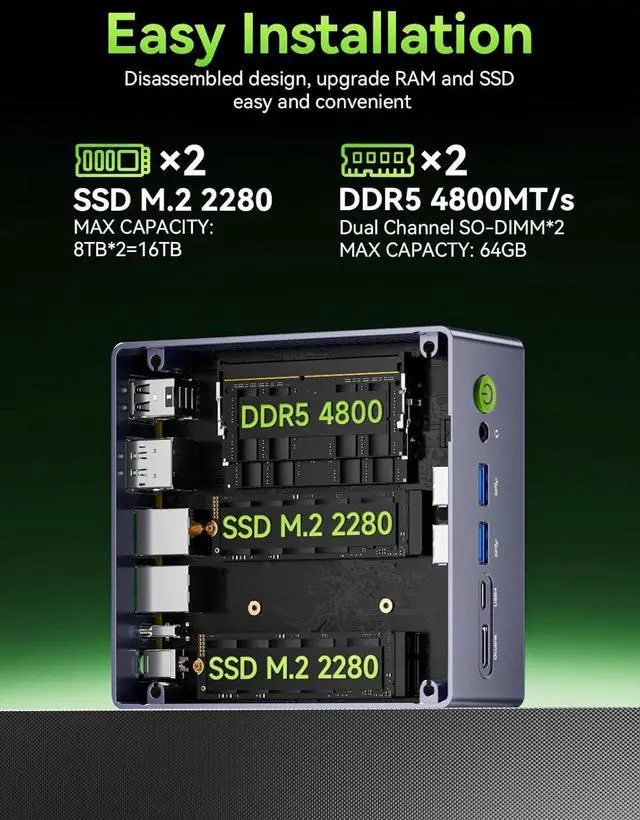

32GB DDR5 DUAL CHANNEL RAM & 512GB PCIE SSD DUAL SLOT EXPANSION - Installed with DDR5 32GB RAM 4800MHz (Dual Channel 2x16B), the Nucbox M7 Ultra mini pc support expansion to 128GB RAM. Featured with 512GB M.2 2280 PCIe 3.0 SSD, supports dual slot expansion to 2*PCIe 4.0 2TB SSD up to 4TB. (Upgrades not included)

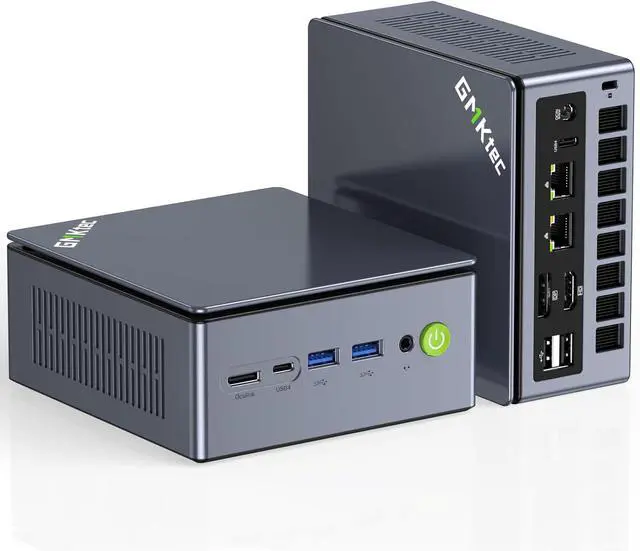

PREMIUM PC BUILD DESIGN - The M7 Ultra mini gaming pc has a beautiful metal chassis and matte top cover. Easy to remove cover lid, simply rotate the cover counter clockwise and remove. The top cooling fan is custom built and the bottom cooling fan has been upgraded with a copper base
GMKTEC WARRANTY - GMKtec offers a 1-year limited warranty for each mini PC, starting from the date of the purchase. All defects due to design and workmanship are covered. With a professional after sales team always ready to attend to your needs, you can simply relax and enjoy your mini PC
Learn more about the GMKtec M7 Ultra 32+512
General
Brand
GMKtec
Series
M7 Ultra
Model
M7 Ultra 32+512
Color
Black
CPU Supported
CPU Type
AMD Ryzen 7
CPU Socket
TSMC 6nm FinFET
CPU Cores
8 Cores / 16 Threads
Chipset
North Bridge
Integrated with CPU
South Bridge
Integrated with CPU
Memory Supported
Memory installed
32GB DDR5 (2 x 16GB)
Memory slot
2 x SODIMM DDR5 slots
Memory Type Supported
DDR5-4800MHz
Dual Channel Memory Supported
Yes
Expansion Slots
Other
1 x OCuLink (PCIe Gen4 x4)
Graphics
Integrated Graphics
AMD Radeon 680M
Audio
Onboard Audio
HD Audio
Channel
3.5mm Audio Jack
Communications
LAN
Dual 2.5GbE (Intel I226V) x2
Max LAN Speed
2.5Gbps
Wireless LAN
WiFi 6E (802.11 a/b/g/n/ac/ax, up to 2.4Gbps)
Bluetooth
Bluetooth 5.2

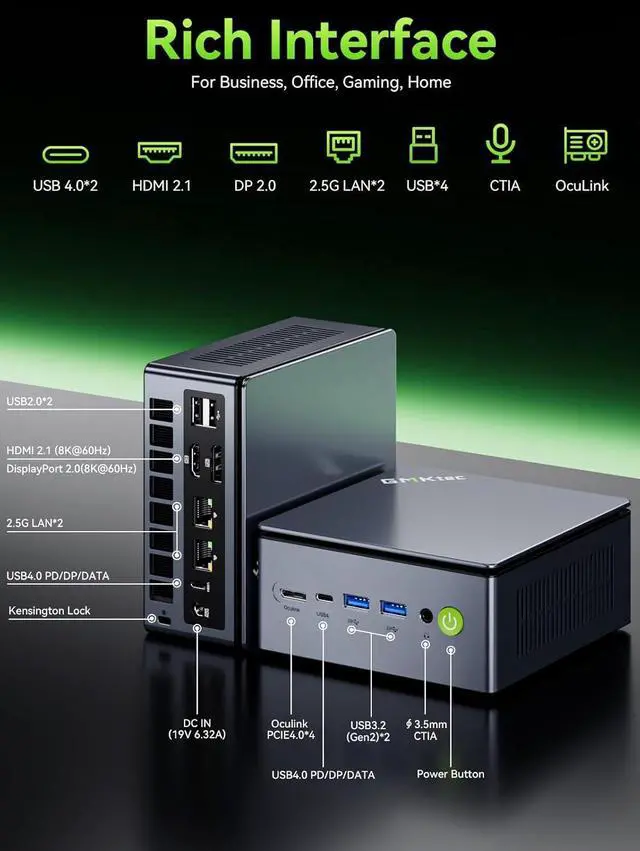

Front Panel Ports
Front USB
2 x USB3.2 Gen2 10Gbps, 1 x USB4 Type-C
Front Audio Ports
1 x 3.5mm CTIA Audio Jack (Headphone + Mic)
Back Panel Ports
HDMI
1 x HDMI 2.1 (8K@60Hz)
DisplayPort
1 x DisplayPort 2.0 (8K@60Hz)
Rear USB
1 x USB4 Type-C, 2 x USB 2.0
RJ45
2 x 2.5GbE LAN (Intel I226V)
Other Rear Ports
1 x DC IN, 1 x Kensington Lock
Power Supply
Input
DC 19V 6.32A (DC-IN)
Power Supply
External AC Adapter Included
Physical SPEC
Dimensions
132 x 125 x 58 mm
Weight
0.604 kg
Material
Metal Chassis with Matte Top Cover
Features
Remote Control
Not supported
Packaging
Packaging
Retail box
Additional Information
First Listed on Newegg
April 29, 2026
