GoHz DC to DC Step Up Converter/Step Down Converter
 12V to 24V Converter 3A |  12V to 24V Converter 4A |  12V to 24V Converter 5A |  12V to 24V Converter 8A | 12V to 24V Converter 10A |  48V to 12V Converter | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
Input Rated voltage | 12V | 12V | 12V | 12 | 12 | 48V |
Input Voltage range | 9-23V | 9-23V | 9-23V | 9-23V | 9-23V | 35-60V |
Efficiency (type) | 95% @ 12V input | 94 %@ 12V input | 94 %@ 12V input | 95% @ 12V input | 94% @ 12V input | 94%-95% @ 48V input |
Output Voltage | 24V | 24V | 24V | 24V | 24V | 12V |
Output Max. rated current | 3A | 4A | 5A | 8A | 10A | 5A-60A(optional) |
Output Max. rated power | 72W | 96W | 120W | 192W | 240W | 60W-720W(optional) |
Working temperature | -40°c ~ +80°c | -40 °c~ +80°c | -40 °c~ +80°c | -40°c ~ +80°c | -40°c ~ +80°c | -40 ~ +80? |
Over current protection | ? | ? | ? | ? | ? | ? |
Over temperature protection | ? | ? | ? | ? | ? | ? |
Over voltage protection | ? | ? | ? | ? | ? | ? |
Short circuit protection | ? | ? | ? | ? | ? | ? |
Waterproof | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
12V to 24V DC to DC Converter Other Common Specifications
12V to 24V DC to DC Converter | DC Step Up Converte

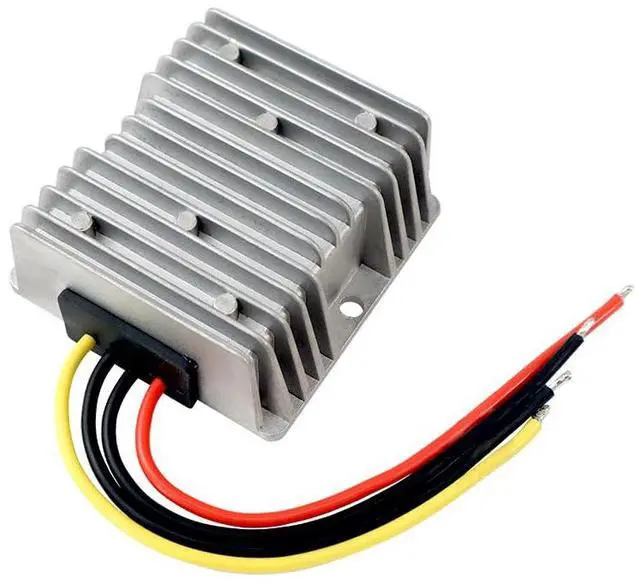

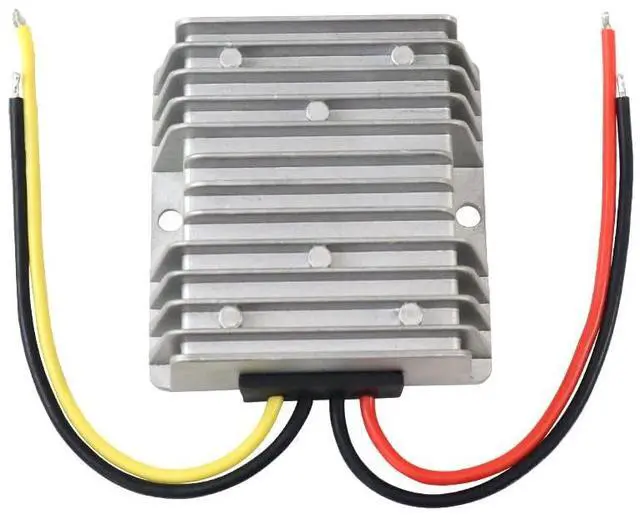

This DC to DC boost converter steps up 12V DC to 24V DC, offering a wide input voltage range of 10V to 23V. Ideal for automotive, security systems, and more, this 12 to 24 volt step up converter provides efficient power conversion with a 95% maximum transfer efficiency.

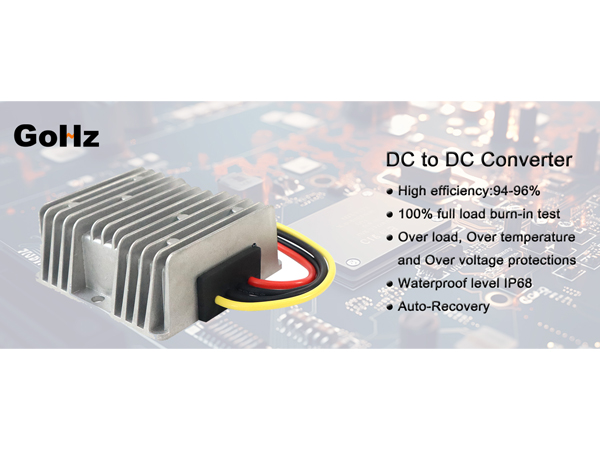

Key Features:
- Wide Input Voltage Range: Supports DC 12V step up to 24V with input from 10V to 23V.
- High-Quality Build: Constructed with a durable, die-cast aluminum shell, ensuring long-term use and stability.

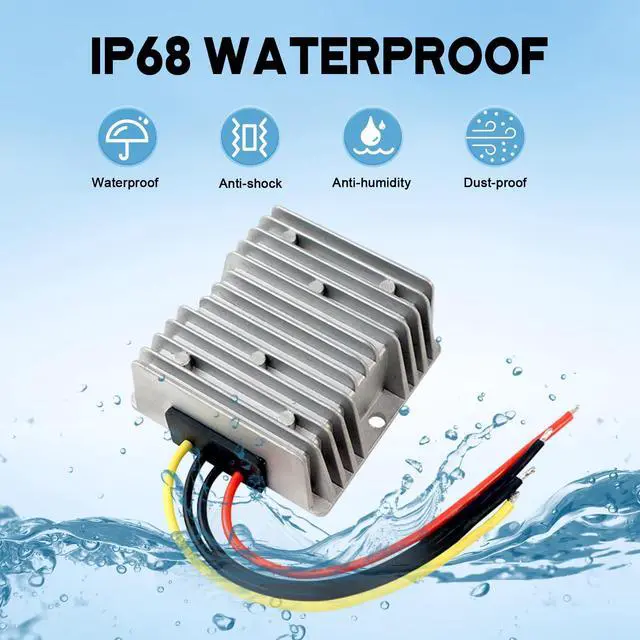

- 100% Waterproof and Anti-Shock: Rated at IP68, providing full moisture-proof and shock protection, ideal for harsh environments.
- Advanced Protection: Built-in safeguards against over/under voltage, over-current, overload, over-temperature.
- Auto-Recovery: Automatically resumes normal operation after resolving issues.
- Applications: Commonly used in automotive, solar power systems, railway signals, telecommunications, and more.
This 12V to 24V DC step up converter delivers reliable performance and comprehensive protection, making it suitable for demanding applications in various industries like transportation, electricity, and medical equipment.
At GoHz, we are dedicated to powering innovation. Specializing in frequency converters, isolation transformers, and DC-DC converters, etc. we deliver reliable solutions for diverse industrial applications. Our journey began with a commitment to quality and customer needs, backed by a team with deep industry expertise. With GoHz, trust in technology that enhances efficiency and safety, making us your ideal partner for power solutions.
What is a DC to DC converter?
A DC to DC converter is an electronic device that changes the voltage level of a direct current (DC) power source, allowing for efficient power management in various applications.
What are the common applications of DC to DC converters?
They are widely used in battery-powered devices, renewable energy systems, automotive electronics, and telecommunications equipment to ensure stable and regulated power supply.
How do I choose the right DC to DC converter for my project?
Consider factors such as input and output voltage requirements, current rating, efficiency, size, and specific application needs.
What types of DC to DC converters are available?
Common types include buck converters (step-down), boost converters (step-up), and buck-boost converters (both step-up and step-down), each serving different voltage regulation needs.
DC Buck Converter 48-12V/12-24
DC Buck Converter 12-5V/48-12V
48/36/34/18 to 12V 20A
DC Step Down Converter 48-12
48V to 12V Step Down Converter
How efficient are DC to DC converter?
Efficiency varies by design and application but typically ranges from 80% to over 95%. Higher efficiency reduces energy loss and heat generation.
Are GoHz DC to DC converters safe to use?
When used according to manufacturer guidelines and specifications, GoHz DC to DC converter are safe. Ensure proper heat dissipation and follow all electrical safety practices.
Important Notes-01
1. The DC-DC converter must not be used for charging batteries.
2. Our DC-DC converters are constant voltage modules and should not be used for constant current loads.
3. Do not connect outputs of the same model converters in parallel or series, as this may damage the product.
4. For inductive loads (such as motors and speakers), ensure that the selected converter has a power rating at least 3 to 5 times greater than the load power.
Important Notes-02
5. Never reverse the positive and negative terminals at the input. Always verify the polarity at the connection point before connecting the power supply.
6. It is recommended to operate continuously at no more than 80% of the rated power. Operating at full load for extended periods can cause excessive heat and damage the converter.
7. To ensure safe operation of the load and prevent equipment damage from short circuits, a fuse should be used. To prevent backflow of current and reverse connection, a diode should be added.
1 Phase 120V to 220V Converter
1-Phase 240V to 480V Converter
Three Phase Frequency Converte
GoHz DC to DC Step Up Converter/Step Down Converter
12V to 24V Converter 3A | 12V to 24V Converter 4A | 12V to 24V Converter 5A | 12V to 24V Converter 8A | 12V to 24V Converter 10A | 48V to 12V Converter |
|---|---|---|---|---|---|
| Customer Reviews | |||||
| — | — | — | — | — | — |
| Price | |||||
| — | — | — | — | — | — |
| Input Rated voltage | |||||
| 12V | 12V | 12V | 12 | 12 | 48V |
| Input Voltage range | |||||
| 9-23V | 9-23V | 9-23V | 9-23V | 9-23V | 35-60V |
| Efficiency (type) | |||||
| 95% @ 12V input | 94 %@ 12V input | 94 %@ 12V input | 95% @ 12V input | 94% @ 12V input | 94%-95% @ 48V input |
| Output Voltage | |||||
| 24V | 24V | 24V | 24V | 24V | 12V |
| Output Max. rated current | |||||
| 3A | 4A | 5A | 8A | 10A | 5A-60A(optional) |
| Output Max. rated power | |||||
| 72W | 96W | 120W | 192W | 240W | 60W-720W(optional) |
| Working temperature | |||||
| -40°c ~ +80°c | -40 °c~ +80°c | -40 °c~ +80°c | -40°c ~ +80°c | -40°c ~ +80°c | -40 ~ +80? |
| Over current protection | |||||
| ? | ? | ? | ? | ? | ? |
| Over temperature protection | |||||
| ? | ? | ? | ? | ? | ? |
| Over voltage protection | |||||
| ? | ? | ? | ? | ? | ? |
| Short circuit protection | |||||
| ? | ? | ? | ? | ? | ? |
| Waterproof | |||||
| IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
12V to 24V DC to DC Converter Other Common Specifications
| Input Positive cable (red) | 16 AWG @ 14.5cm lengt |
|---|---|
| Input Negative cable (black) | 16 AWG @ 14.5cm lengt |
| Output Positive cable -yellow | 16 AWG @ 14.5cm lengt |
| Output Negative cable (black) | 16 AWG @ 14.5cm lengt |
| Output Voltage regulation % | ±1% |
| Output Load regulation | 2% |
| No load loss | 50 mA@ 12V input |
| Ripple & noise | 200 mV (full load) |
| Working humidity | 10% ~ 90% RH |
| Storage temperature | -40°c ~ +100°c |
| Weight | 280g |

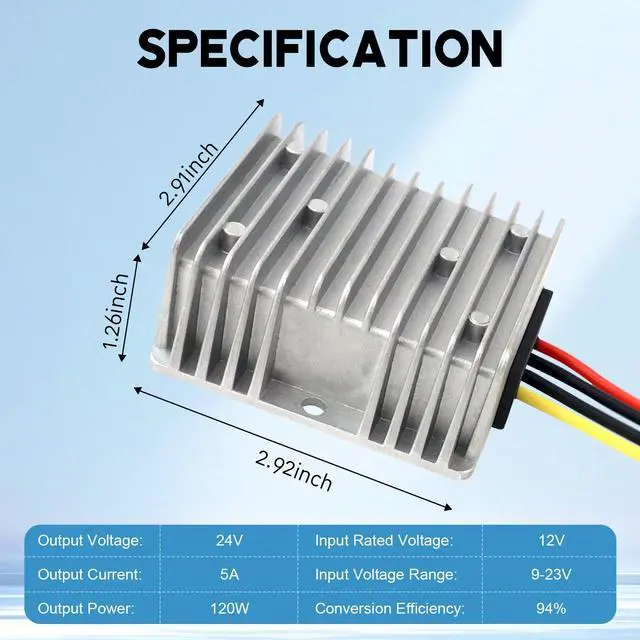

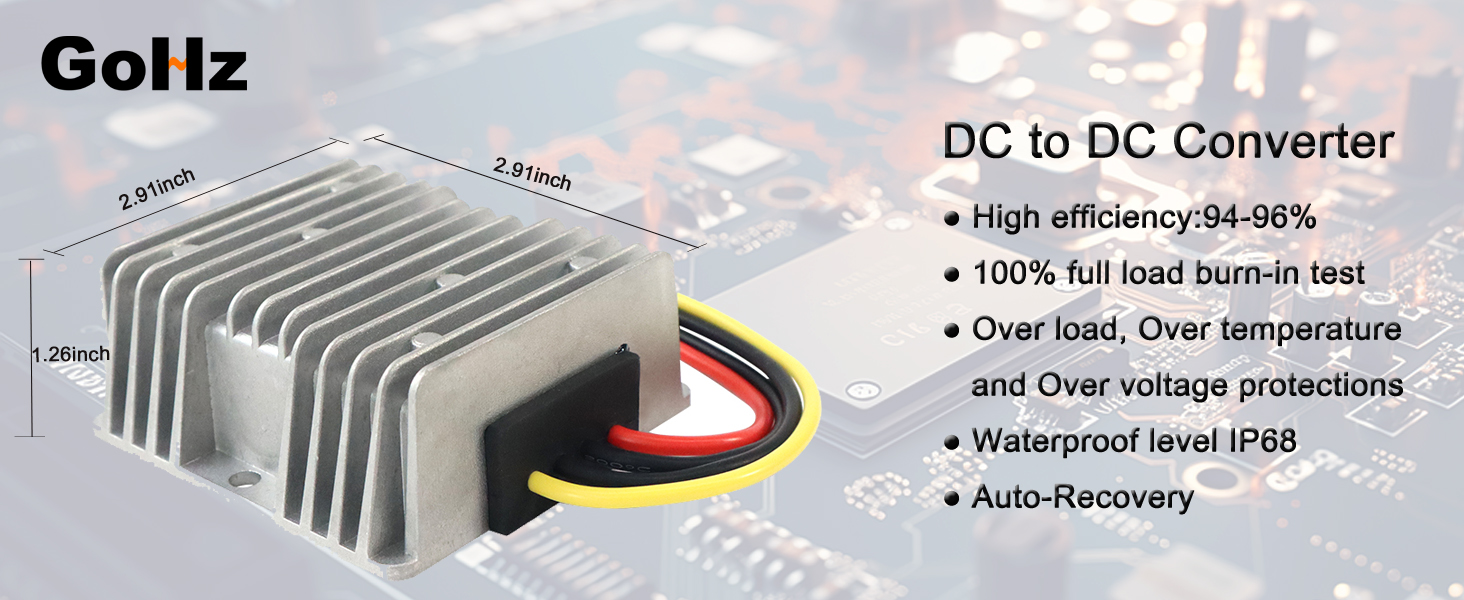

| Size | 74*74*32 mm/2.92*2.91*1.26 inch |
| Cooling | Free air convection |
12V to 24V DC to DC Converter | DC Step Up Converte
This DC to DC boost converter steps up 12V DC to 24V DC, offering a wide input voltage range of 10V to 23V. Ideal for automotive, security systems, and more, this 12 to 24 volt step up converter provides efficient power conversion with a 95% maximum transfer efficiency.
Key Features:
- Wide Input Voltage Range: Supports DC 12V step up to 24V with input from 10V to 23V.
- High-Quality Build: Constructed with a durable, die-cast aluminum shell, ensuring long-term use and stability.
- 100% Waterproof and Anti-Shock: Rated at IP68, providing full moisture-proof and shock protection, ideal for harsh environments.
- Advanced Protection: Built-in safeguards against over/under voltage, over-current, overload, over-temperature.
- Auto-Recovery: Automatically resumes normal operation after resolving issues.
- Applications: Commonly used in automotive, solar power systems, railway signals, telecommunications, and more.
This 12V to 24V DC step up converter delivers reliable performance and comprehensive protection, making it suitable for demanding applications in various industries like transportation, electricity, and medical equipment.
At GoHz, we are dedicated to powering innovation. Specializing in frequency converters, isolation transformers, and DC-DC converters, etc. we deliver reliable solutions for diverse industrial applications. Our journey began with a commitment to quality and customer needs, backed by a team with deep industry expertise. With GoHz, trust in technology that enhances efficiency and safety, making us your ideal partner for power solutions.
What is a DC to DC converter?
A DC to DC converter is an electronic device that changes the voltage level of a direct current (DC) power source, allowing for efficient power management in various applications.
What are the common applications of DC to DC converters?
They are widely used in battery-powered devices, renewable energy systems, automotive electronics, and telecommunications equipment to ensure stable and regulated power supply.
How do I choose the right DC to DC converter for my project?
Consider factors such as input and output voltage requirements, current rating, efficiency, size, and specific application needs.
What types of DC to DC converters are available?
Common types include buck converters (step-down), boost converters (step-up), and buck-boost converters (both step-up and step-down), each serving different voltage regulation needs.
DC Buck Converter 48-12V/12-24
DC Buck Converter 12-5V/48-12V
48/36/34/18 to 12V 20A
DC Step Down Converter 48-12
48V to 12V Step Down Converter
How efficient are DC to DC converter?
Efficiency varies by design and application but typically ranges from 80% to over 95%. Higher efficiency reduces energy loss and heat generation.
Are GoHz DC to DC converters safe to use?
When used according to manufacturer guidelines and specifications, GoHz DC to DC converter are safe. Ensure proper heat dissipation and follow all electrical safety practices.
Important Notes-01
1. The DC-DC converter must not be used for charging batteries.
2. Our DC-DC converters are constant voltage modules and should not be used for constant current loads.
3. Do not connect outputs of the same model converters in parallel or series, as this may damage the product.
4. For inductive loads (such as motors and speakers), ensure that the selected converter has a power rating at least 3 to 5 times greater than the load power.
Important Notes-02
5. Never reverse the positive and negative terminals at the input. Always verify the polarity at the connection point before connecting the power supply.
6. It is recommended to operate continuously at no more than 80% of the rated power. Operating at full load for extended periods can cause excessive heat and damage the converter.
7. To ensure safe operation of the load and prevent equipment damage from short circuits, a fuse should be used. To prevent backflow of current and reverse connection, a diode should be added.
