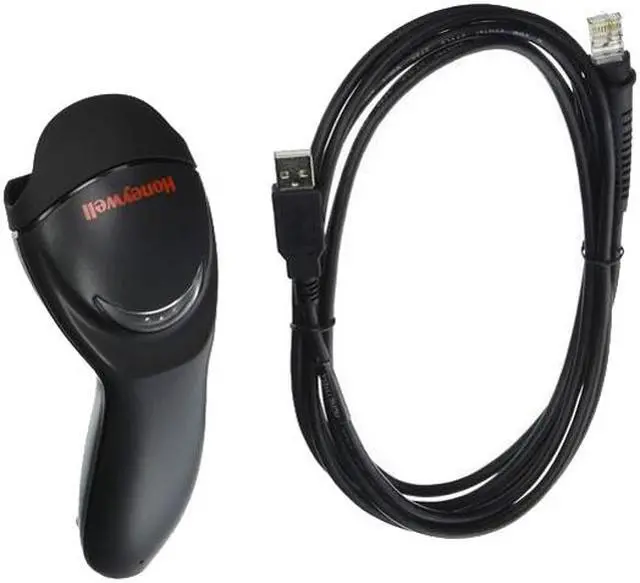

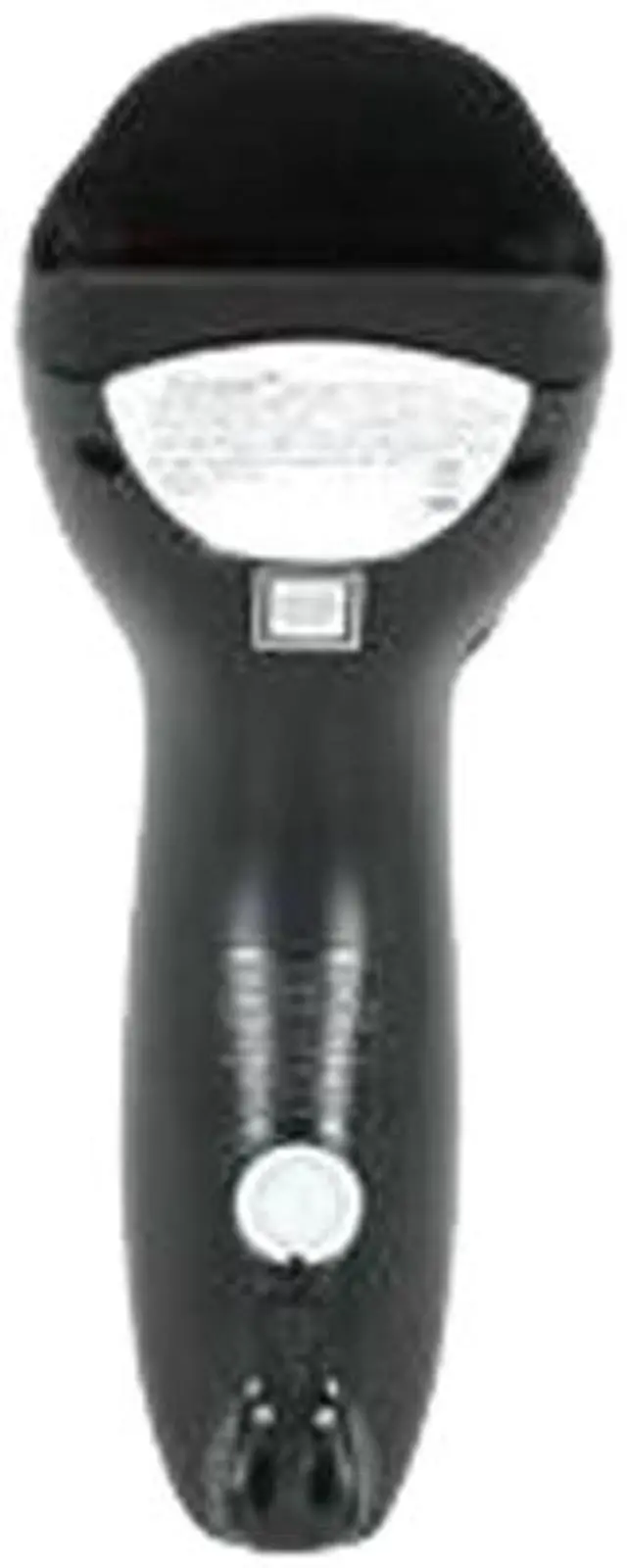

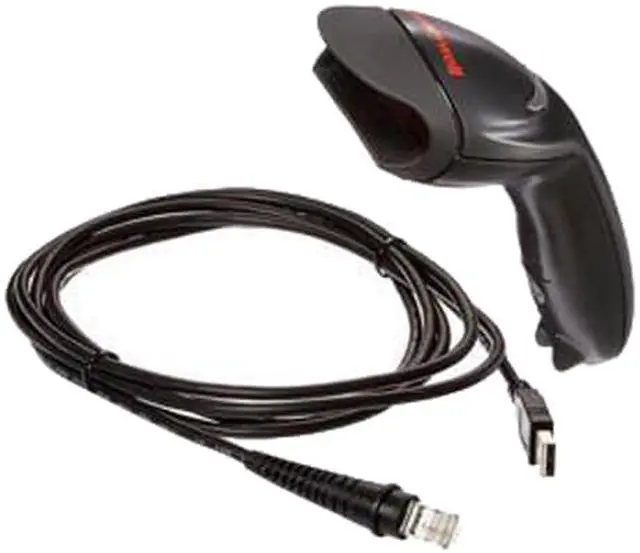

Honeywell / Metrologic MK5145-31A38 Eclipse MK5145 Barcode Scanner with USB Cable (Grey)

Honeywell’s EclipseTM 5145 is a low cost laser-based alternative to CCD scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button.

Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell’s patented CodeGate® technology, Eclipse can be used in a wide variety of applications. CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.

With Honeywell’s state-of-the-art scanning technology, the Eclipse 5145 has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes.

CodeSense® is a unique feature employed by Eclipse in the absence of infrared object detection. It provides the user with a pulsing laser line for bar code detection. When a bar code is detected, the laser line switches to a constant state to allow for scanning via CodeGate®.

Features
CodeGate:
Zero in on desired code and complete data transmission with the push of a single button - ideal for menu scanning applications
CodeSense:
Automatically wakes scanner from sleep mode when a bar code is detected
Powerlink Cables:
Uses the same user-replaceable cables and power supplies as Voyager® and Orbit®
Flash ROM:
Protects POS investment with free firmware updates via MetroSet2 software and standard PC
OPOS and JPOS System Compatible:
Easily adaptable to any end-user system environment

Technical Specifications
Mechanical
Dimensions (L x W x H) 6.7 x 2.5 2.0" (169 x 63 x 51mm)
Weight 3.5oz (100g)
Electrical
Input Voltage 5VDC ± 0.25V
Operating Power 675mW (125mA @ 5V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485)
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 140°F (-40 to 60°C)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 5' (1.5m) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern Single scan line
Scan Speed 72 scan lines per second
Scan Angle Horizontal: 50°
Print Contrast 35% minimum reflectance difference
Pitch, Skew 68 degrees, 52 degrees
Decode Capability Reads standard 1D and GS1 DataBar symbologies
Warranty Three-year factory warranty
