Honeywell's Voyager® 9500 series of hand-held, single-line laser scanners offer aggressive scanning of all standard 1D bar codes. The Voyager series of hand-held, single-line bar code scanners have united form with function in becoming the industry benchmark for value and performance.
These sleek scanners feature patented automatic infrared activation and decode all standard 1D bar codes, including GS1 DataBarTM (formerly known as RSS codes).

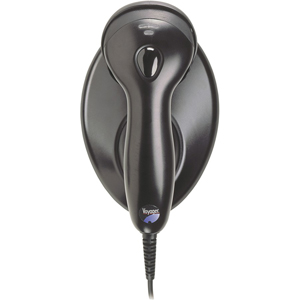

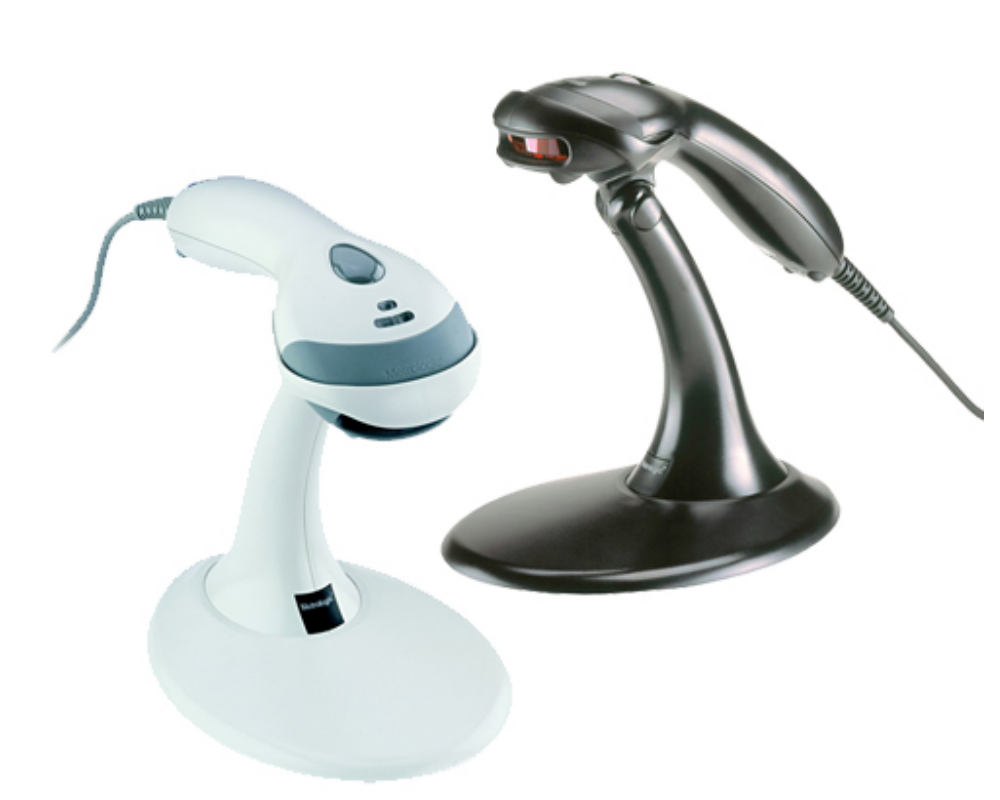

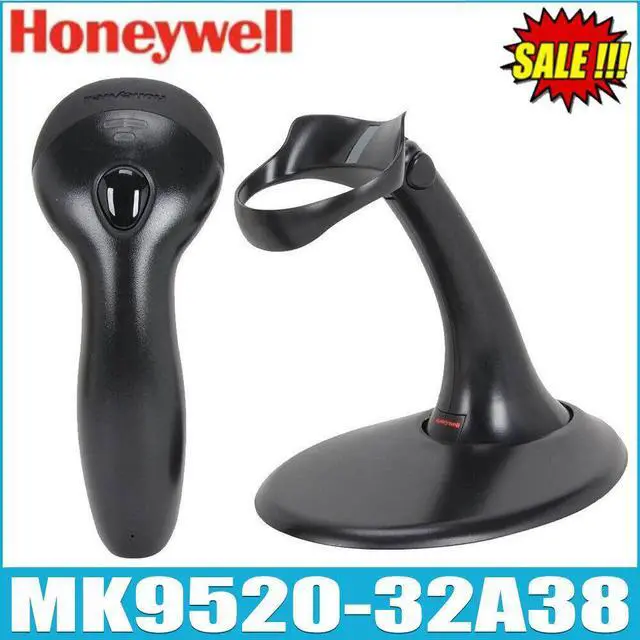

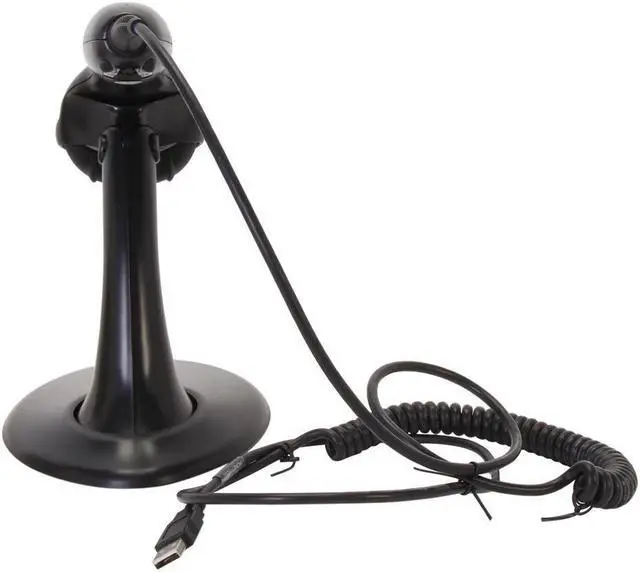

VoyagerCG 9520 also includes patented CodeGate® technology which allows the user to easily target the desired bar code and complete data transmission with the press of a single button. For presentation scanning, Honeywell offers a stand with automatic in-stand detection technology.
Automatic Trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand
650-Nanometer Laser: High-visibility laser allows user to place laser line on selected bar code
CodeGate Technology (VoyagerCG 9520 Only): Zero in on desired code and complete data transmission with the push of a single button - ideal for menu scanning applications
Flash ROM: Future proof POS system with free firmware updates via MetroSet®2 software and standard PC
Parsing (Data Editing): Format bar code data to meet host system's specific requirements
| Mechanical Dimensions (L x W x H) | 7.8 x 3.1 x 2.2 inches (198 x 78 x 56mm) |
|---|---|
| Weight | 5.3oz (149g) |
| Input Voltage | 5VDC + 0.25V |
| Operating Power | 825mW (165mA @ 5V) |
| Standby Power | 600mW (120mA @ 5V) |
| Host System Interfaces | USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation |
| Operating Temperature | 32 - 104°F (0 - 40°C) |
| Storage Temperature | -40 - 140°F (-40 - 60°C) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 5-foot (1.5m) drops |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Light Levels | 4842 Lux |
| Scan Pattern | Single scan line |
|---|---|
| Scan Speed (laser only) | 72 scan lines per second |
| Scan Angle | Horizontal: 50 degrees |
| Print Contrast | 35% minimum reflectance difference |
| Pitch, Skew | 68 degrees, 52 degrees |
| Decode Capabilities | Reads standard 1D and GS1 DataBar symbologies |
