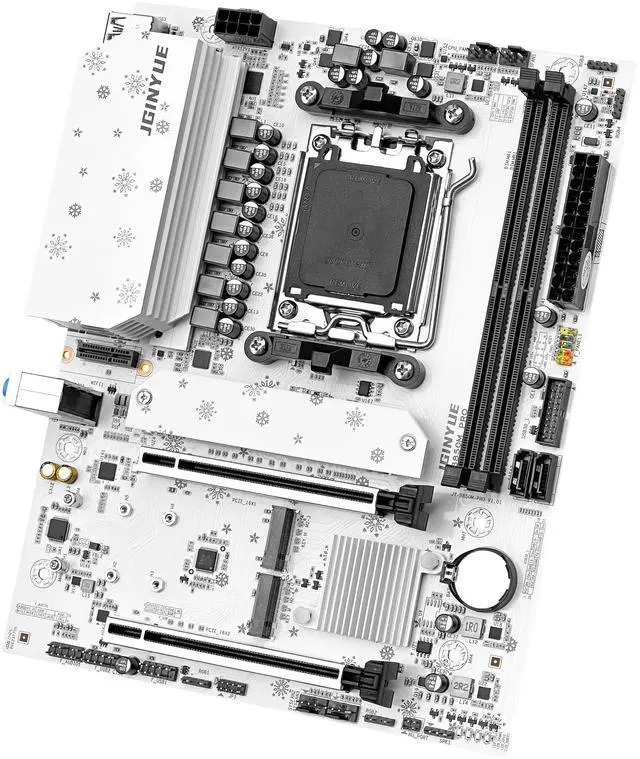

JGINYUE B850M PRO AMD Motherboard AM5 Ryzen 9000/8000/7000 Series DDR5 7200 (OC) MHz Gaming Mainboard M.2 SATA3 Micro ATX
- Supports AMD AM5 7000/8000/9000 series processors
- AMD B850 chipset
- 2xDDR5 dual channel 4800~7200+(O.C) MHz
- 1xHDMI 1xDP
- WIFI interface compatible with PCIE protocol module

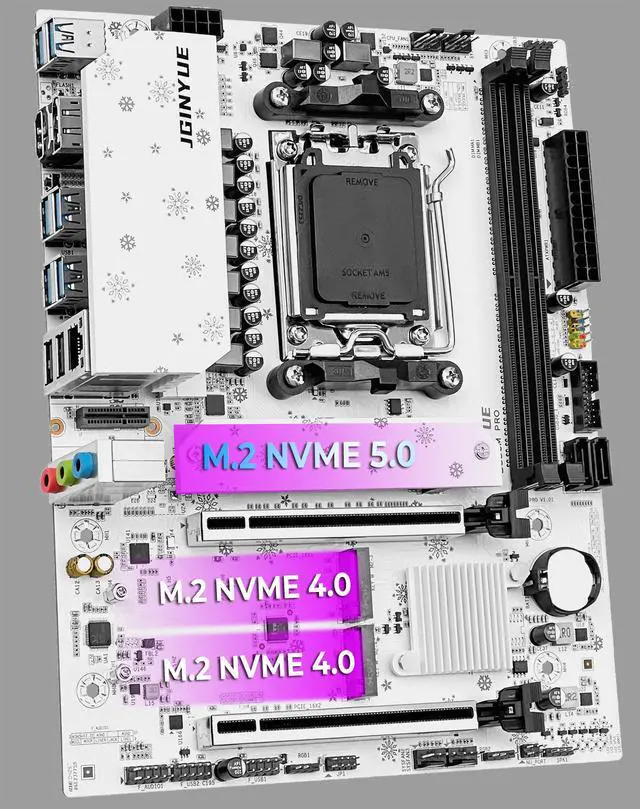

- 1xM.2 NVME 5.0/2xM.2 NVME4.0
- 4xARGB 5V3Pin MCU Control Chip
- Cost-Effective Performance-
- Combines affordability with robust functionality, ideal for budget-conscious users seeking reliable performance for daily tasks, multitasking, and light gaming.
- Optimized Power Design-

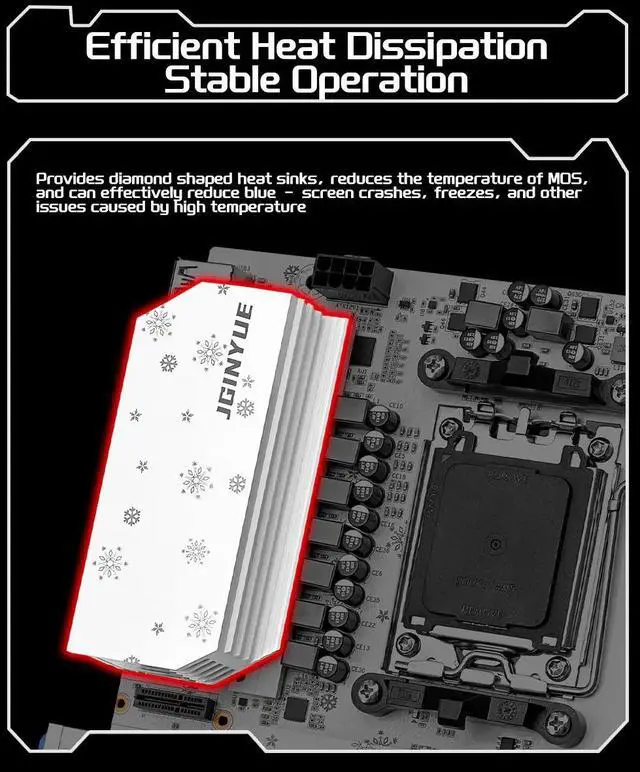

- Features an 8+2 phase VRM layout with Dr.MOS technology, ensuring stable power delivery for mid-to-high-tier CPUs like Intel Core i5 or AMD Ryzen 5 processors under sustained loads.
- Future-Ready Expandability-
- Equipped with multiple M.2 slots and DDR5 memory support (via XMP/EXPO profiles), offering flexible storage upgrades and enhanced bandwidth for gaming and productivity workflows.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

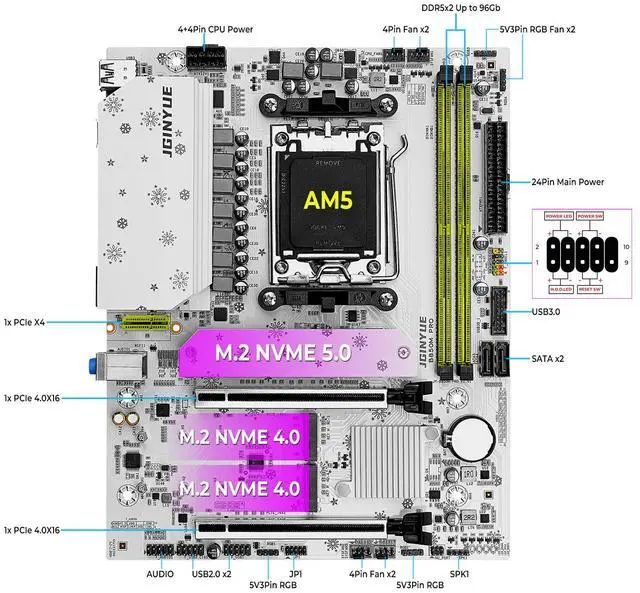

Motherboard model: B850M PRO
Chipset: AMD 850 chipset
CPU socket: Supports AMD AM5 Ryzen 7000/8000/9000 series processors

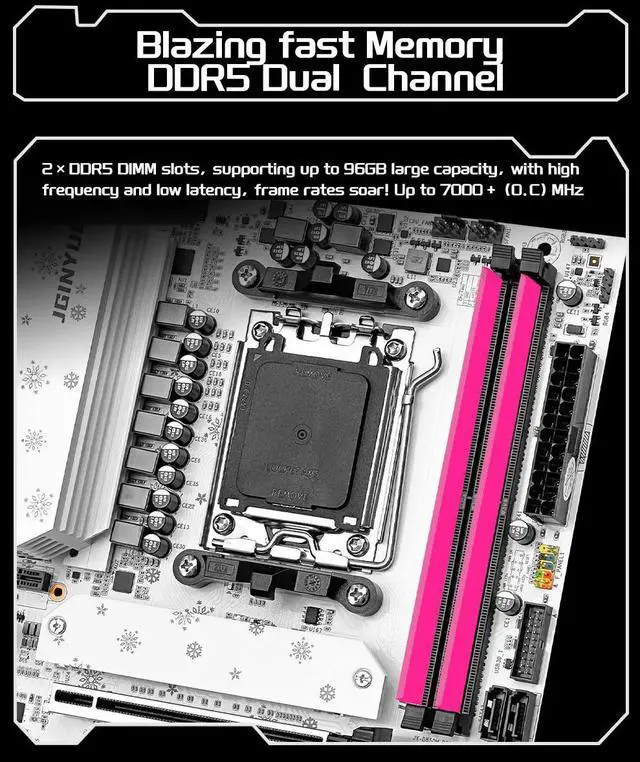

Memory slot: 2xDDR5
Memory capacity: 96GB
Memory frequency: Dual channel DDR5 4800~7200+(O.C) MHz
USB interface: 6xUSB3.2 2xUSB2.0
USB pin: 2xUSB2.0 pin bank 1xUSB3.2 pin bank
Ethernet interface: 1x2.5G(RTL8125BG)
Audio chip: ALC897

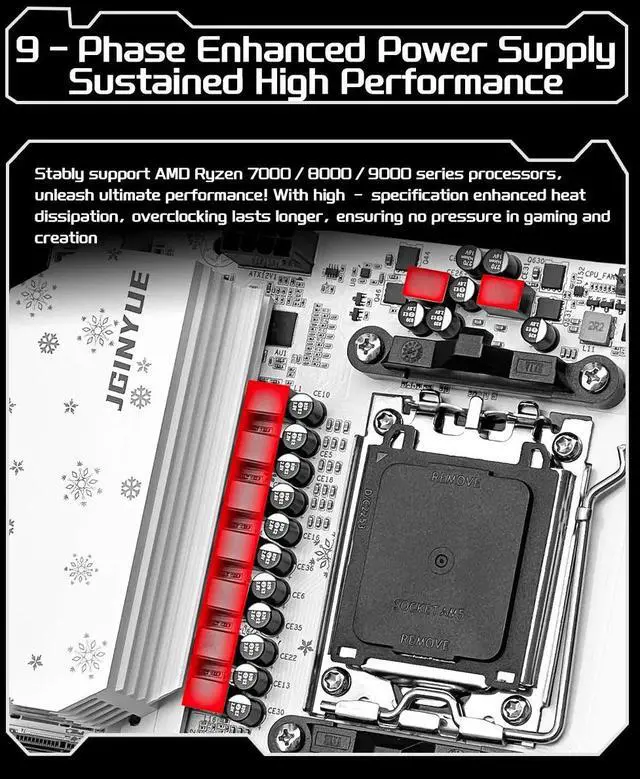

Number of power supply phases: 9 phases
video interface: 1xHDMI 1xDP
Storage interface: 1xM.2 NVME5.0/2xM.2 NVME 4.0 2xSATA3.0
Expansion Slots: 1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed
ARGB needle arrangement: 4xARGB 5V3 pin (MCU independent control chip)
Fan pin: 4x4 needle arrangement
WiFi interface: 1xWiFi interface supports PCIE protocol module
Specification: 24x19cm M-ATX
Power supply interface: 24PIN+8PIN
Other interfaces: SPK1 buzzer pin, diagnostic light, CMOS button
