LINKSTYLE® AFRA Soil Moisture Sensor, Plant Soil Humidity and Temperature Tester Tracker with App Control [Requires Hub]

KEY FEATURES

Funtionalities: our soil moisture controlled watering system consists of our AFRA soil sensor, Linkstyle sprinkler timer and Nexohub Zigbee wireless gateway. The soil sensor monitors and collects data of the temperature and humidity of your soil area and communicates this data though our Linkstyle app using Zigbee technology (wireless hub) at an airport rate of 250kbps. This data can then be used to set pre-set watering conditions for your farm or garden, which then triggers the sprinkler timer system.

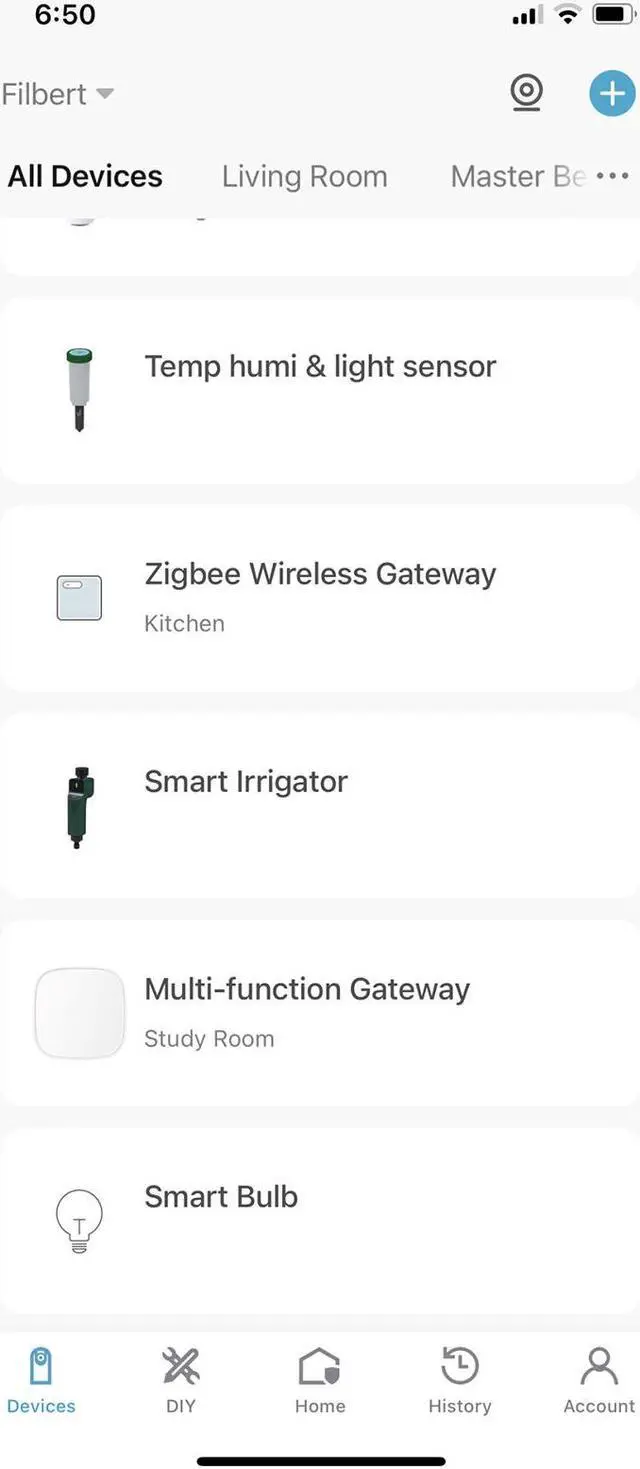

How it works: Setup all the devices following the installation guide instructions. After pairing the gateway (first), add the soil sensor and water sprinkler devices. The soil sensor tracks the light density, temperature and humidity in the soil and updates that information in our Linkstyle app every hour. You can now set pre-set conditions (like humidity or temperature levels, time schedules etc) that will trigger the sprinkler timer when these conditions are met.

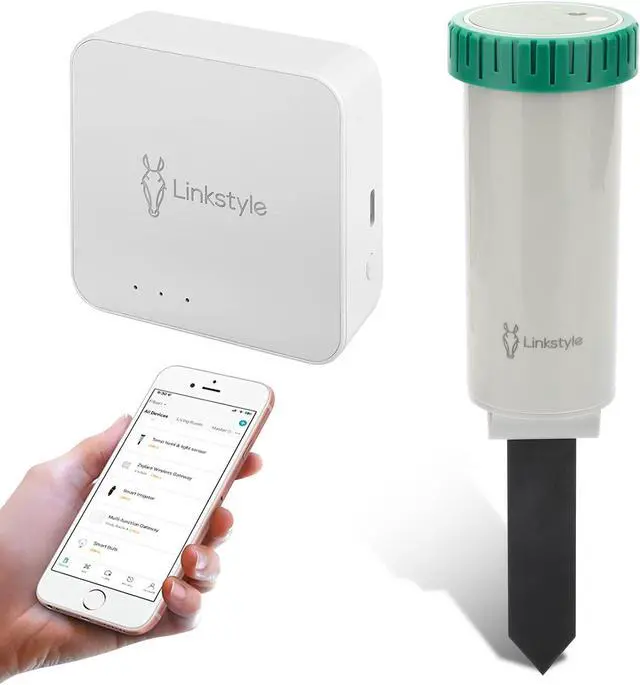

Other features: The soil sensor precisely collects and updates soil moisture data periodically. The smart sprinkler timer can be used independently with or without the soil sensor and also has several smart features such as auto scheduling, Alexa voice control, weather triggers etc. The wireless hub allows you to connect all 3 devices (also allows connection of up to 128 zigbee devices) with remote access and control from your mobile phone in our Linkstyle app anywhere you are at anytime.

Applications: Our soil moisture controlled watering system items can be used individually (for indoor plants) or as a combined kit for small or large gardens, farms etc


PRODUCT SPECIFICATIONS
Soil Sensor
Wireless protocol: Zigbee
Power Source: 2 or 4 x AA batteries
Temperature measurement range: -20 to 80
Temperature measurement resolution: 0.1
Temperature measurement accuracy: ± 0.5
Soil moisture detection range: 50m - 150m square garden
Humidity measurement range: 0 to 100% RH
Humidity measurement resolution: 1%
Humidity measurement accuracy: ± 1%
Protection grade rating: IP67
Product Dimensions: Length 8.66 x Diameter 2.16 inches


PACKAGE INCLUDES
1 x Soil Moisture Sensor
1 x User Guide
