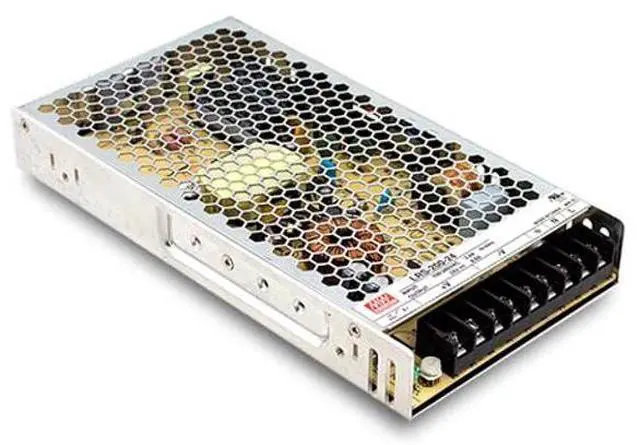

Mean Well LRS-200-5 200W 5V 40A Power Supply
- - Switching Supply
- - Enclosed frame
- -200 W Output power
- - Input voltage: 85 VAC to 264 VAC, 120 VDC to 373 VDC
- - 3 Outputs
- - Commercial use
- - Panel mounting style
- - 47 Hz to 63 Hz Input Freq.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
200W 5V 40A Single Output Switchable Power Supply
5 Volts @ 40 Amps
Features
AC input range selectable by a switch
Withstand 300 VAC surge input for 5 seconds
No load power consumption <0.75W
1U low profile
High operating temperature, up to 70°C
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Compliance to UL 60950-1
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
100% full load burn-in test
3 year warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment or apparatus
LRS-200-5, LRS Family AC/DC Power Supplies are single-output enclosed type power supplies with 30mm of low profile design. The entire series provides an output voltage of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V. The LRS Family delivers an extremely low no load power consumption and allows the end system to easily meet the worldwide energy requirement. They have a range of protection functions and 5G anti-vibration capability and complies with international safety regulations and serve as a high price-to-performance power supply solution for various industrial applications.
5 Volts @ 40 Amps
Features
AC input range selectable by a switch
Withstand 300 VAC surge input for 5 seconds
No load power consumption <0.75W
1U low profile
High operating temperature, up to 70°C
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Compliance to UL 60950-1
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
100% full load burn-in test
3 year warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment or apparatus
LRS-200-5, LRS Family AC/DC Power Supplies are single-output enclosed type power supplies with 30mm of low profile design. The entire series provides an output voltage of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V. The LRS Family delivers an extremely low no load power consumption and allows the end system to easily meet the worldwide energy requirement. They have a range of protection functions and 5G anti-vibration capability and complies with international safety regulations and serve as a high price-to-performance power supply solution for various industrial applications.
