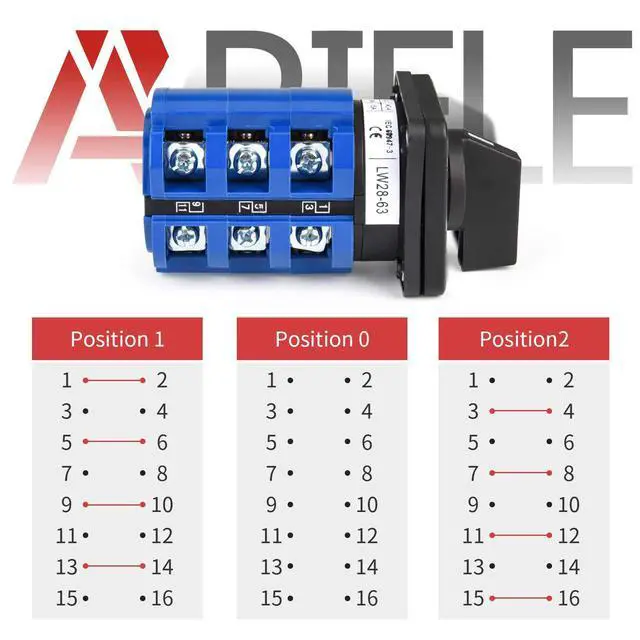

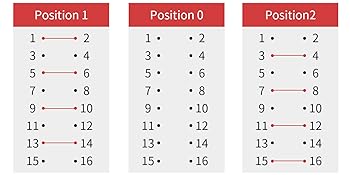

Image4 has shown which terminal will be connected in different position , please read the wiring diagram as a reference.
Position 1 : 1-2 , 5-6
Position 0 : All terminal disconnected
Position 2 : 3-4 , 7-8

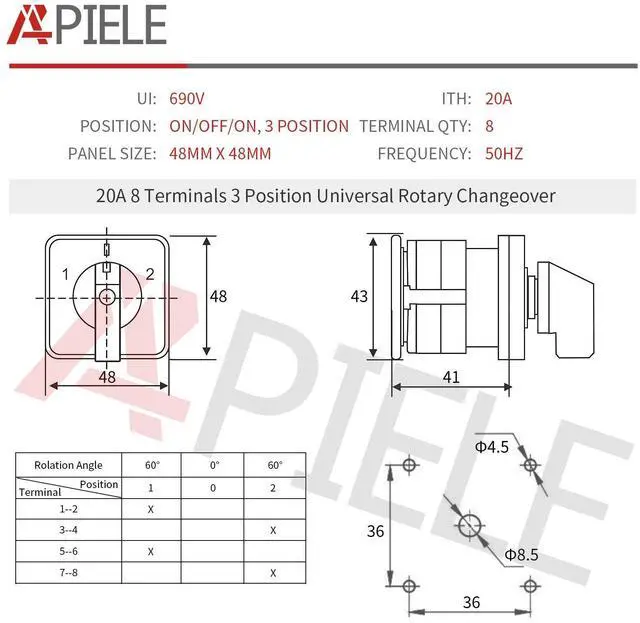

- Model No.: LW28-20/2
- Rated Volatge: 690V; ITH: 20A
- Position: 3, ON-OFF-ON
- Terminal Quantity: 8
- Frequency: 50HZ
- Action Type: Latching
- Positioning angle: 60-0-60 Degree
- Panel size: 48mm x 48mm

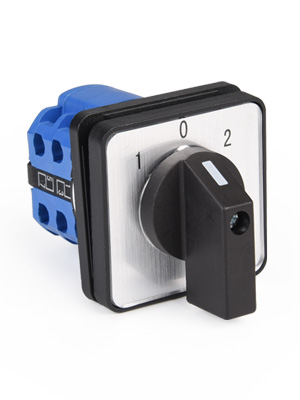

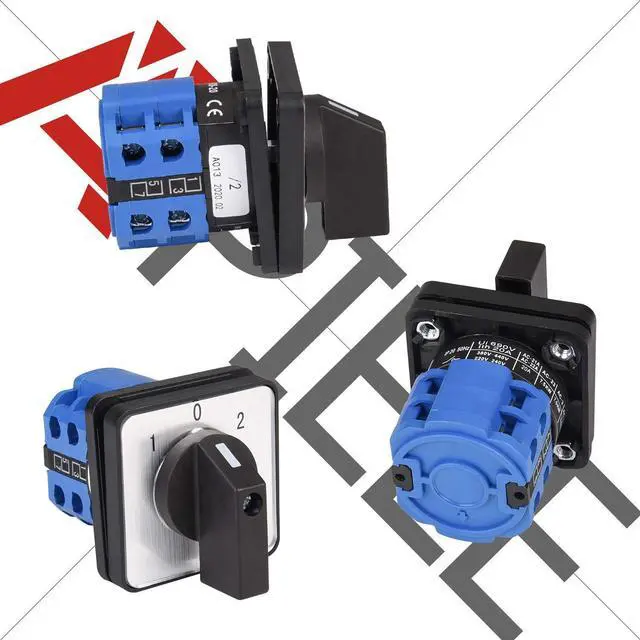

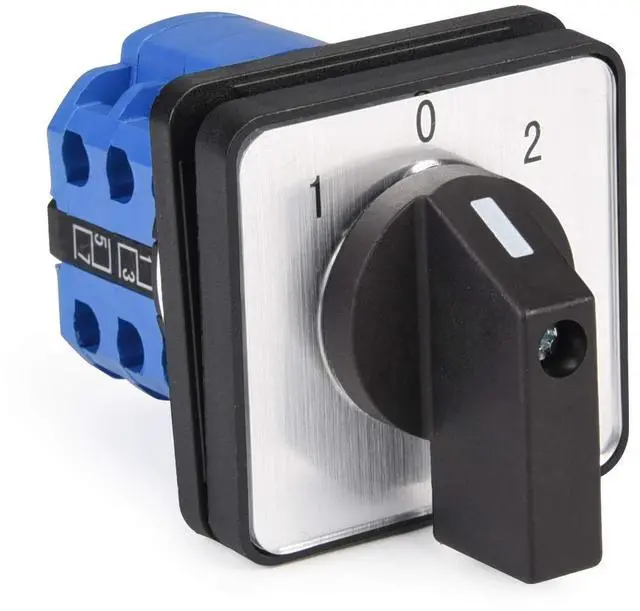

3 Position Universal Rotary Switch ( 20A 8 Terminals)
- Suitable for the thickness between 1mm to 5mm of the mounting board.
- Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.
- Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.
- What you get:
- 1 x Changeover Switch
- 4 x Mounting Screws

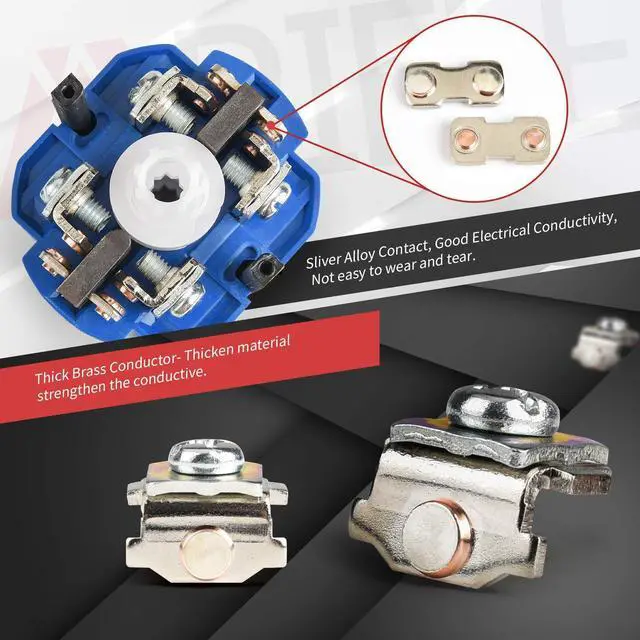

Silver Contacts
Sliver contacts, good electrical conductivity, not easy to wear and tear.
Thick Brass Conductors
Thicken material strengthen the conductive.

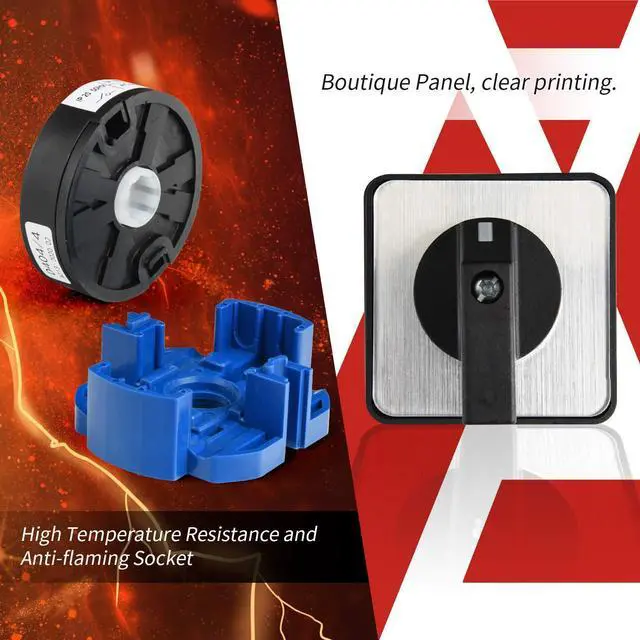

Anti-flaming Material
High temperature resistance and anti-flaming socket
Panel
Boutique panel, clear printing.
Why Choose APIELE
Dedicated to communicate with our customers, we provide the superior-quality products and best service for each customer.
Quick Reply
Your email will be reply in 12 hours.
Quality
The goods are made by new plastic material, sliver contact and brass contact. Each product has a ex-works quality inspection.
3 Years
Get a new one if not man made broken in 3 years.
APIELE
Professional modification switch solution supplier.
APIELE is founded in 2017 as a switch modification brand. More than 300 styles of our switch parts and accessories have been introducing to USA.
We provides metal push button switches, toggle switches, rocker switch and switch panel to help our consumer solve all kinds of swith problem.
Our switch functions manually as a replacement of auto refit, boat refit, enter guard, household appliance with high quality and excellent.
