THOUGHTFUL DESIGN
TV Mounts recommended from Mounting Dream
 MD2418-MX |  MD2617 |  MD2380 |  MD2298 |  MD2285-XL | |
|---|---|---|---|---|---|
TV Szie Range | 26"-55" | 42"-84" | 32"-65" | 42"-90" | 42"-90" |
Max Load | 77 LBS | 100 LBS | 99 LBS | 132 LBS | 150 LBS |
Max VESA | 400x400mm | 600x400mm | 400x400mm | 600x400mm | 800x400mm |

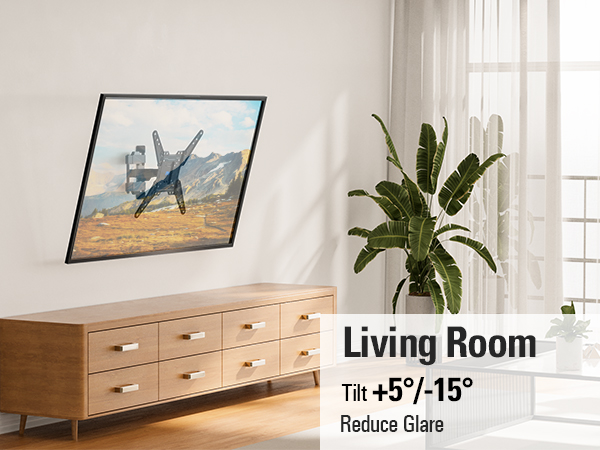

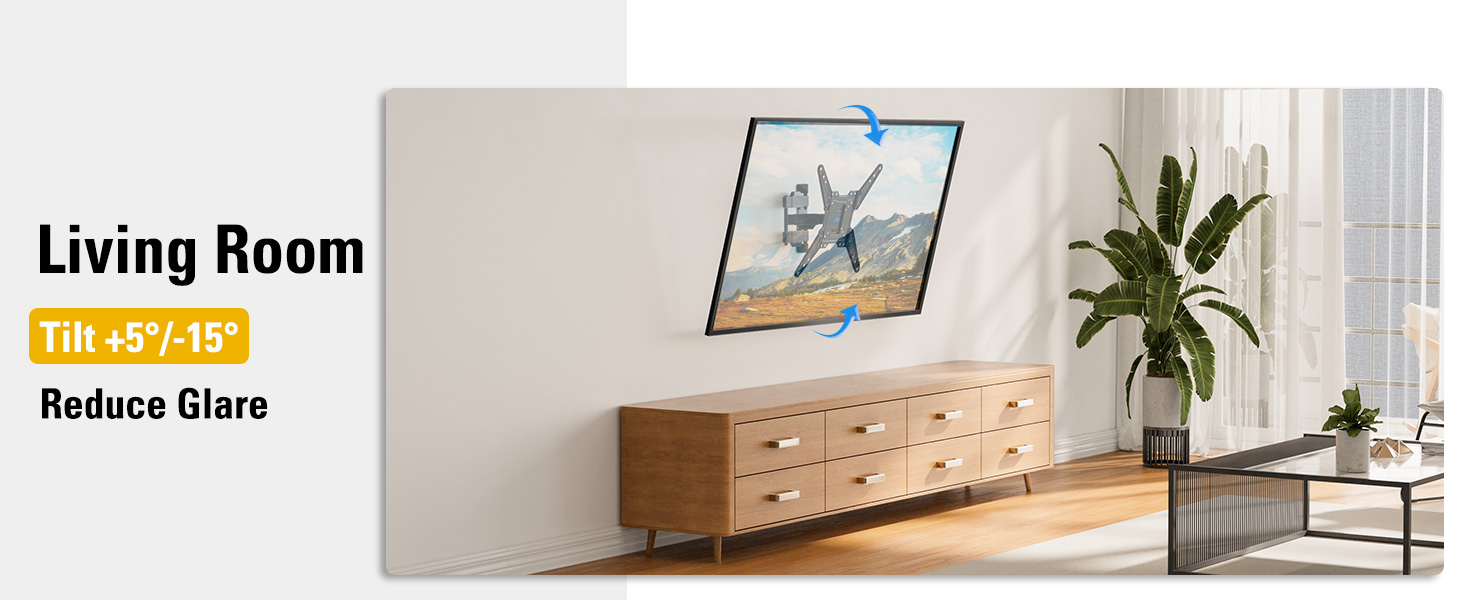

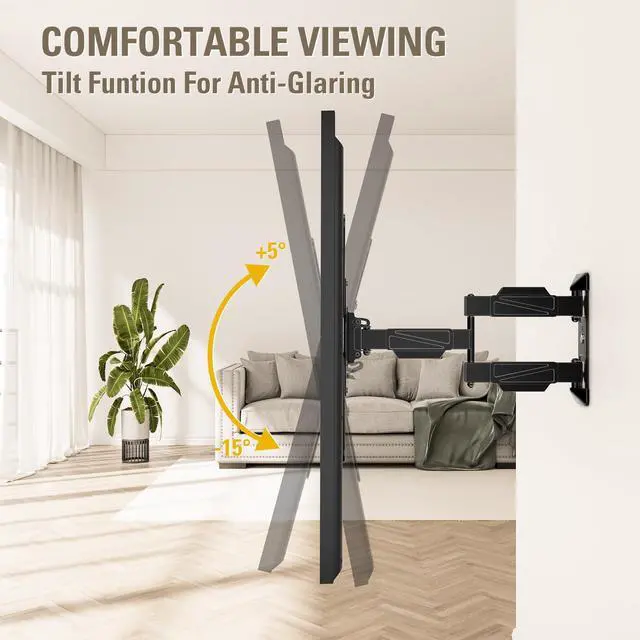

Tilting Angle | +5°/-15° | +5°/-15° | +5°/-15° | +5°/-15° | +5°/-12° |

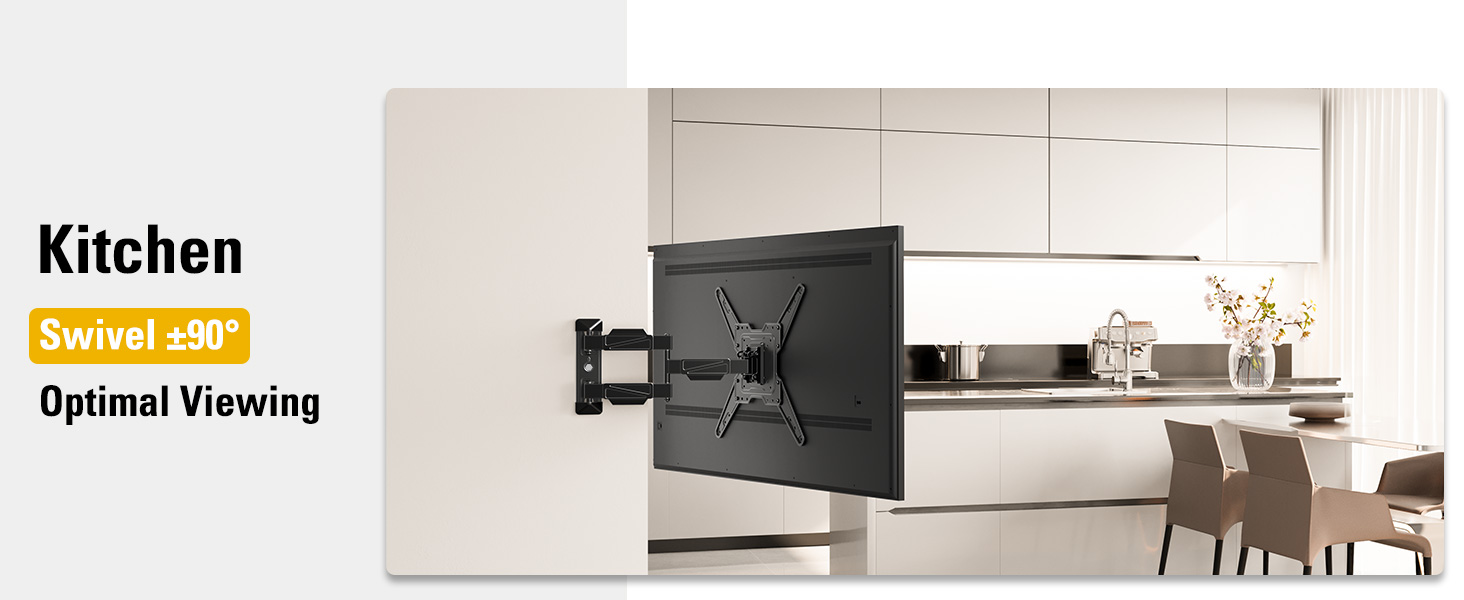

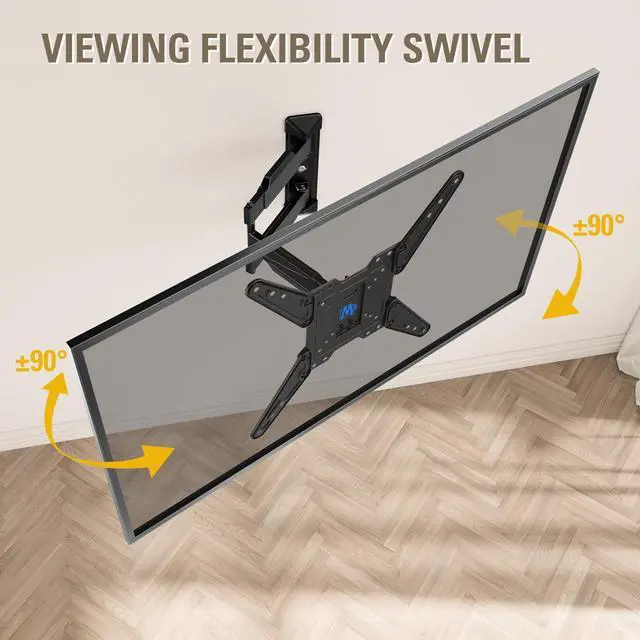

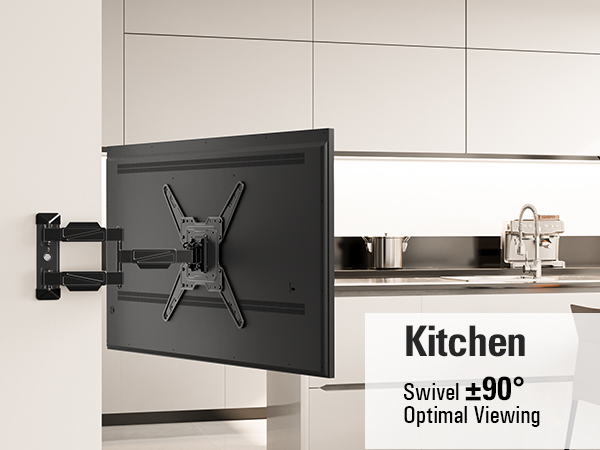

Swivel Angle | ±90° | ±45° | ±45° | ±45° | ±90° |
Fitting Studs Spacing | Single Stud | Up to 16" | Up to 16" | Up to 24" | Up to 24" |
Wall Type | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick | Wood Stud & Concrete/Brick |

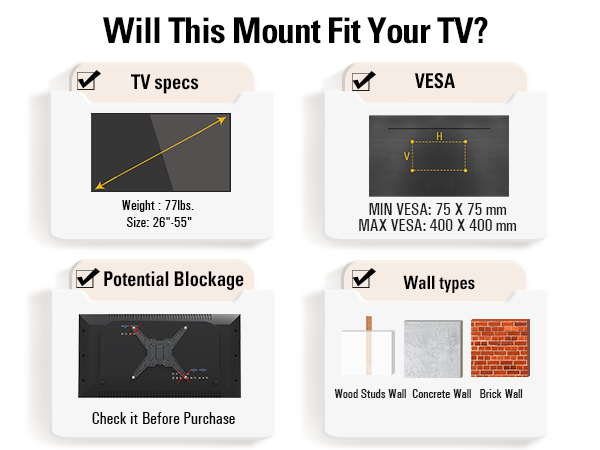

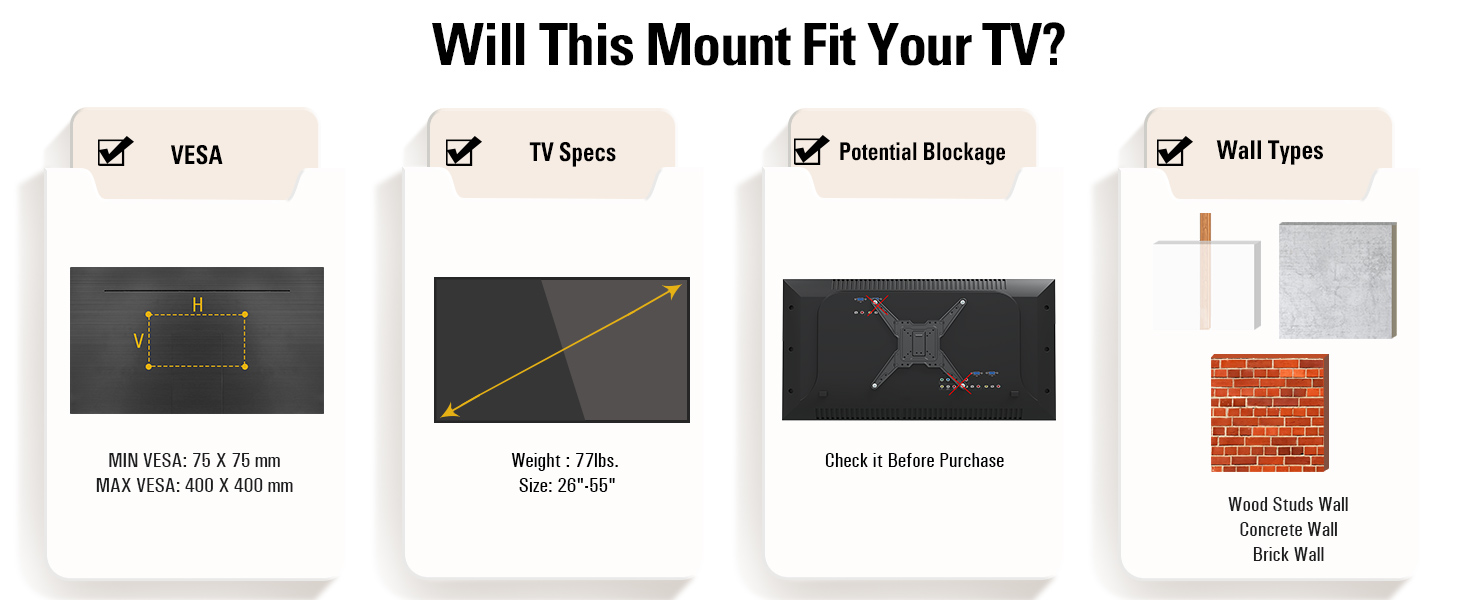

Will this mount fit our TV?
Please check the specs below:
1 TV size and weight
2 TV VESA pattern and cable outlet

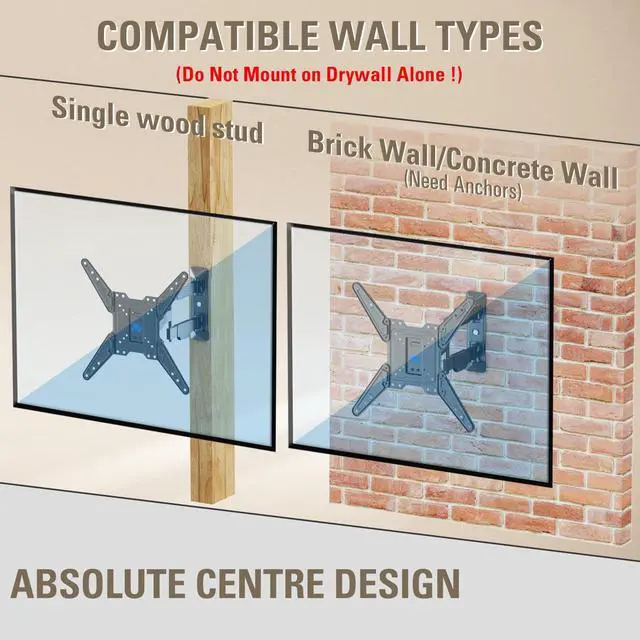

3 The wall type of Mounting Location (wood stud spacing/solid concrete wall)

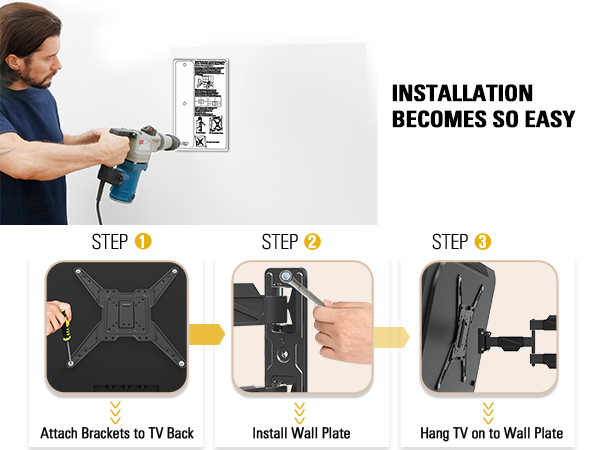

Does it come with necessary parts and instruction to mount?
Mounting Dream packages are included with TV bolts and wall installation hardware to complete the installation.
What are the dimensions of the plate that mounts to the wall?

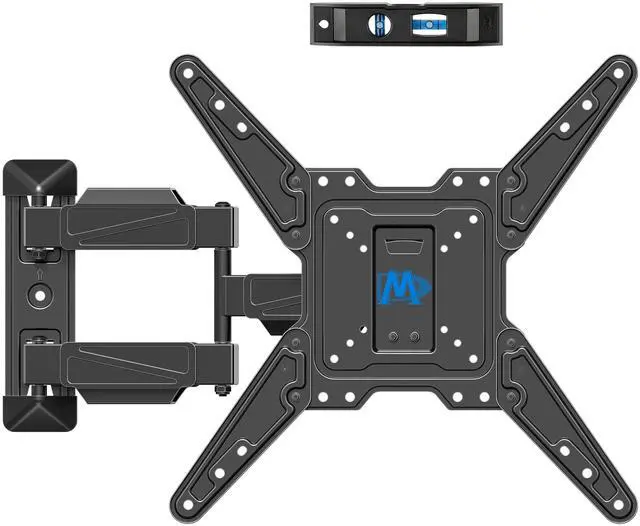

The MD2418-MX wall plate dimension is 72mm horizontal and 262mm vertical.
26-90" FULL MOTION TV MOUNT
How to choose the right mount for 65 inch TV?
1.TV VESA Pattern
Firstly, get acknowledged of the available VESA Patterns of the TV Mount. Kindly noted that: VESA=HORIZONTALXVERTICAL.
2.TV Weight
Secondly, double check the weight of TV (without stand) through the TV manual, and make sure not to exceed the max loading weight of the TV wall mount
3.Possible Blocked Inputs
Then, check the inputs location and ensure TV mount won't block ports.
4.Wood Stud Spacing
Finally, please check the wood stud location and spacing for centering the TV.
