Is this compatible for my Dell Inspiron Notebook 15 5577 open bay size 2.5?

The DELL Inspiron 5577 has an M.2 NVMe/PCIe slot (for the eSPORTS M.2 SSD) it's compatible, and (as you mentioned) a 2.5" bay for (the existing) 2.5" hard-drive, or 2.5" SSD (to replacing the existing HDD). Please go to this link : www. d e l l . c o m /community/Inspiron/INSTALL-M-2-DELL-INSPIRON-5577/td-p/7193657 for info on upgrading SSDs in your 5577. Cheers.

Does it get hot enough to need a cooler for it?

Hi, All PCIe 3.0 M2 drives do not run hot such that a cooler is needed. Hope it helps!

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

Get Educated

Make informed decisions with expert advice. Learn More

Main image of Neo Forza eSPORTS 3400MB/s 512GB M.2 NMVe 3-bit MLC Internal Solid State Drive (SSD) with built-in DRAM cache (NFP075PCI51-3400200)

Alt view image 2 of 5 - Neo Forza eSPORTS 3400MB/s 512GB M.2 NMVe 3-bit MLC Internal Solid State Drive (SSD) with built-in DRAM cache (NFP075PCI51-3400200)

Alt view image 3 of 5 - Neo Forza eSPORTS 3400MB/s 512GB M.2 NMVe 3-bit MLC Internal Solid State Drive (SSD) with built-in DRAM cache (NFP075PCI51-3400200)

Alt view image 4 of 5 - Neo Forza eSPORTS 3400MB/s 512GB M.2 NMVe 3-bit MLC Internal Solid State Drive (SSD) with built-in DRAM cache (NFP075PCI51-3400200)

Alt view image 5 of 5 - Neo Forza eSPORTS 3400MB/s 512GB M.2 NMVe 3-bit MLC Internal Solid State Drive (SSD) with built-in DRAM cache (NFP075PCI51-3400200)

Customer images

Shop All Neo Forza Products

Neo Forza eSPORTS 3400MB/s 512GB M.2 NMVe 3-bit MLC Internal Solid State Drive (SSD) with built-in DRAM cache (NFP075PCI51-3400200)

(38)(2) Write a Review

Specially selected chips for intensive rigorous performance throughput
Sequential R/W : 3400 / 2400 MB per second
4KB Read : up to 300,000 IOPS
4KB Write : up to 600,000 IOPS
Endurance : 890 Terabytes (TBW)
NFP075's onboard DRAM Caching & SLC Caching
PCIe Gen3.1 x4 NVMe 1.3
M.2 2280 form factor
3 Year Replacement Warranty (Purchase on NewEgg)
Note : A small portion of rated capacity will be used by the SSD for necessary functionalities

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (38)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Outstanding Throughput: PCIe Gen 3.1 x4 with ideal 32Gbps bandwidth, large capacity DRAM and very high read-write speeds
Superior Durability: LDPC error correction for drive longevity and reliability
World-Class Quality: Designed specifically for eSports machines, state-of-the-art home-theater system libraries, content-creation PCs, 24/7 storage appliances, workstations, DIY family-cloud servers. Certification & Compliance - RoHS - WHQL - PCI Express Base 3.1 - UNH-IOL NVM Express - NVMe 1.3 PCIe Gen 3 x 4 lanes & backward compatible to PCIe Gen 2 and Gen 1 8 IO queues supported (1 admin queue and 8 IO queue). Each IO queue support 256 entries. Supports power management Top Performance for the Most Demanding Neo Forza NFP075 series
PS: Performance is as high as the weakest link. Do make sure to have commensurately high performance components to reap maximum practical thresholds.

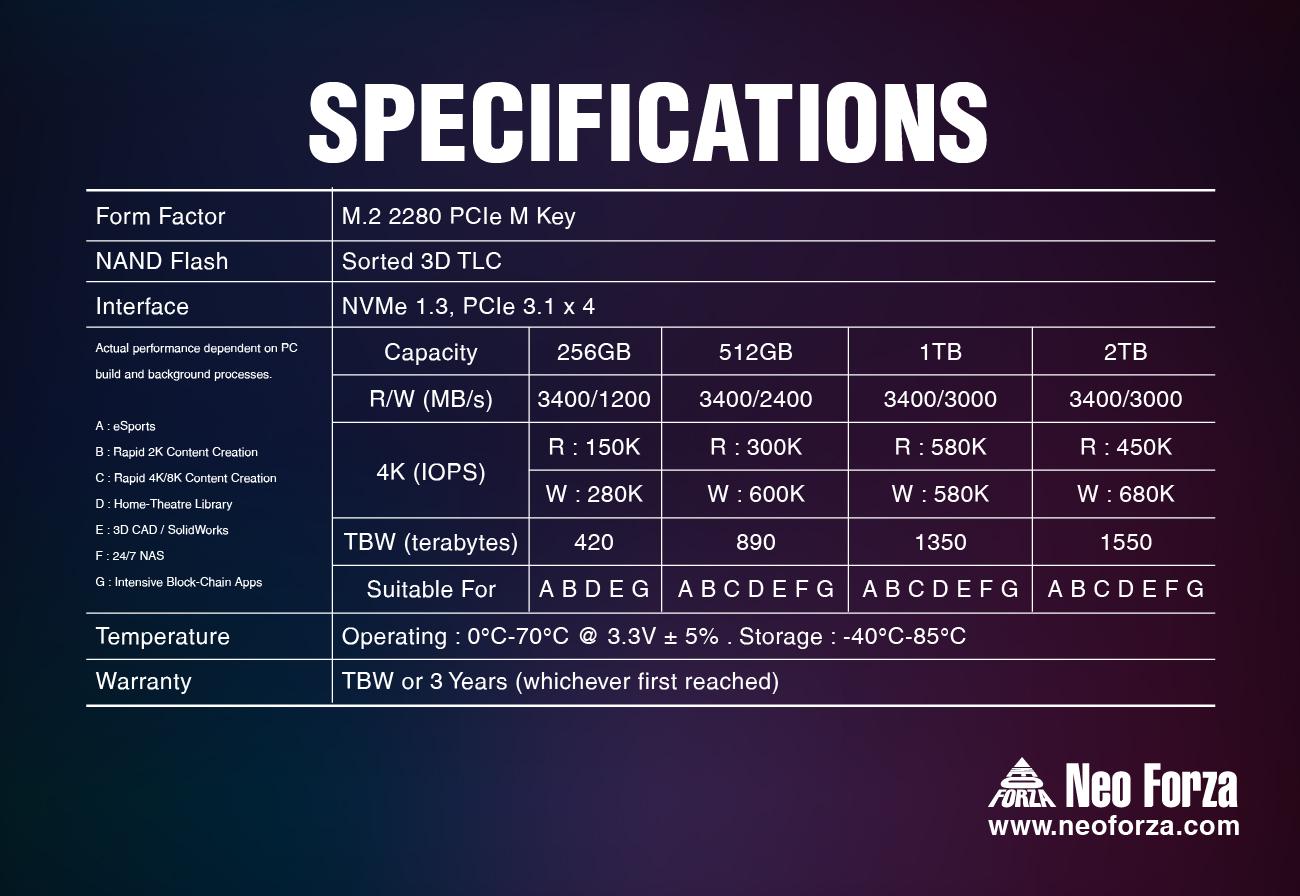

Brand	Neo Forza
Series	NFP075
Model	NFP075PCI51-3400200
Part Number	NFP075PCI51-3400200
Device Type	Internal Solid State Drive (SSD)
Used For	eSports . rapid 4K/8K content-creation . home-theatre libraries . 24/7 storage appliances . 3D CAD/SolidWorks

Form Factor	M.2 2280
Capacity	512GB
Memory Components	3D NAND
Interface	PCIe Gen3.1 x4, NVMe 1.3
Cache	NVMe DRAM Cache and SLC Cache

Max Sequential Read	Up to 3400 MBps
Max Sequential Write	Up to 2400 MBps
4KB Random Read	Up to 300,000 IOPS
4KB Random Write	Up to 600,000 IOPS
MTBF	2,000,000 hours
HeatSink	without HeatSink

Power Consumption (Idle)	15 mW nominal
Power Consumption (Active)	5.6W nominal
Operating Temperature	0°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Max Shock Resistance	1500G
Max Vibration Resistance	20G

Height	0.0937in , 2.38mm
Width	0.8661in , 22.00mm
Depth	3.1496in , 80.00mm
Weight	0.0948oz , 7.5g
