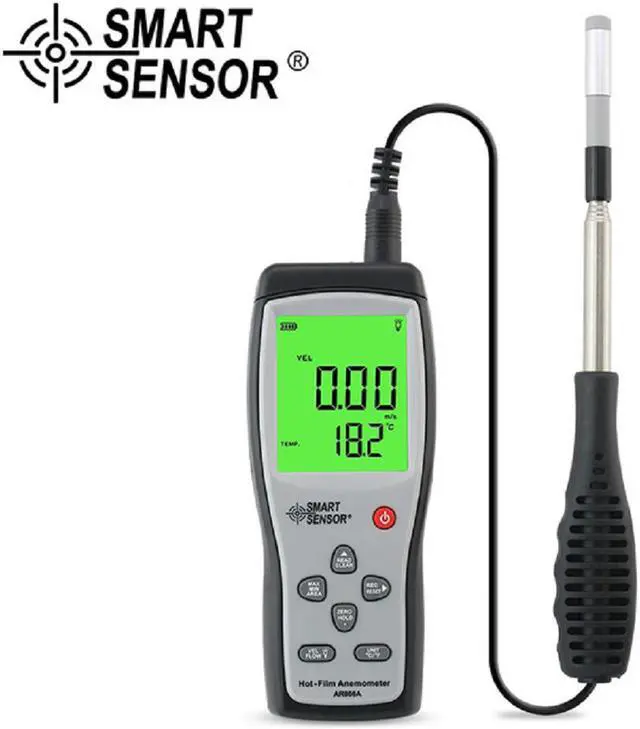

AR866A Digital Hot-film Anemometer Wind Speed meter Air Velocity Temperature measurement 40M/S Data Hold to PC via USB diagnostic-tool
- AR866A Digital Hot Wire Thermo Anemometer Air Flow Velocity Meter with Hot-Wire Probe and Data Logger 0 to 30m/s Velocity 0 to 45? Temperature USB Interface
+
+
Overview
Specs
Reviews
An anemometer is a device used for measuring wind speed, and is a common weather station instrument. "Anemos", meaning wind, and is used to describe any air speed measurement instrument used in meteorology or aerodynamics. Anemometers are widely used in different fields, such as heating, ventilation, air conditioning, environmental protection, energy conservation monitoring, meteorology, agriculture, refrigerating, drying, labor health survey, clean workshop, chemical fiber and textile, various aspects of wind laboratory, wide range of purposes.
Features:
1. Slender sensor suitable for small space measurement
2. Hot wire sensor applied in high precision speed measurement
3. Wind velocity / wind temperature / air flow measurement
4. Wind velocity / wind temperature / air flow unit conversion
5. Measurement of maximum and minimum wind velocity / air flow
6. Data holding, storing and deleting function
7. Low battery indicating function
8. Auto power off function (Power off automatically if no any operation for 5 Minutes )
9. Memory of 500 records and Backlight function
10. Connecting to PC by USB cable., Audio key pressing alert
11. Large LCD display, Wind handle can elongate
12.
Application: environment measurement, air transport, air conditioning monitoring system and measurement
Specification: Wind Speed Range 0.0 ~40m/s Wind Volume Range 0~999900m3/min Wind Speed Accuracy 1% 0.1 Wind Speed Units m/s, ft/min, Knots, km/h, mph Wind Volume Units CMM / CFM Wind Speed Resolution 0.01 m/s Max & Min Measuring yes Current/Average Measuring yes Range Bar Graph yes Operating Current =18Ma Temp. Measuring Range 0~45? Temp. Resolution 0.1 C? /? Selection yes Backlight Display yes Auto/Manual Power Off yes Range Bar Graph yes Data Storage 500 groups USB Data Connection yes Power 9V Battery (not include )
Low battery indicating: 4.4 v 0.2V Stand by current =2uA
Dimensions:
Meter: 149.89 * 80.38 * 38.92 mm
Vane: 251*72*30mm
Packing Contents: 1pc Hot Film Anemometer 1pc Sensor side machine 1pc Power adapter 1pc Software disc 1pc USB computer connecting cable 1pc packing box
Features:
1. Slender sensor suitable for small space measurement
2. Hot wire sensor applied in high precision speed measurement
3. Wind velocity / wind temperature / air flow measurement
4. Wind velocity / wind temperature / air flow unit conversion
5. Measurement of maximum and minimum wind velocity / air flow
6. Data holding, storing and deleting function
7. Low battery indicating function
8. Auto power off function (Power off automatically if no any operation for 5 Minutes )
9. Memory of 500 records and Backlight function
10. Connecting to PC by USB cable., Audio key pressing alert
11. Large LCD display, Wind handle can elongate
12.
Application: environment measurement, air transport, air conditioning monitoring system and measurement
Specification: Wind Speed Range 0.0 ~40m/s Wind Volume Range 0~999900m3/min Wind Speed Accuracy 1% 0.1 Wind Speed Units m/s, ft/min, Knots, km/h, mph Wind Volume Units CMM / CFM Wind Speed Resolution 0.01 m/s Max & Min Measuring yes Current/Average Measuring yes Range Bar Graph yes Operating Current =18Ma Temp. Measuring Range 0~45? Temp. Resolution 0.1 C? /? Selection yes Backlight Display yes Auto/Manual Power Off yes Range Bar Graph yes Data Storage 500 groups USB Data Connection yes Power 9V Battery (not include )
Low battery indicating: 4.4 v 0.2V Stand by current =2uA
Dimensions:
Meter: 149.89 * 80.38 * 38.92 mm
Vane: 251*72*30mm
Packing Contents: 1pc Hot Film Anemometer 1pc Sensor side machine 1pc Power adapter 1pc Software disc 1pc USB computer connecting cable 1pc packing box
