Multi-functional LCD Network Cable Tester PoE Checker Inline PoE Voltage and Current Tester with Cable Tester

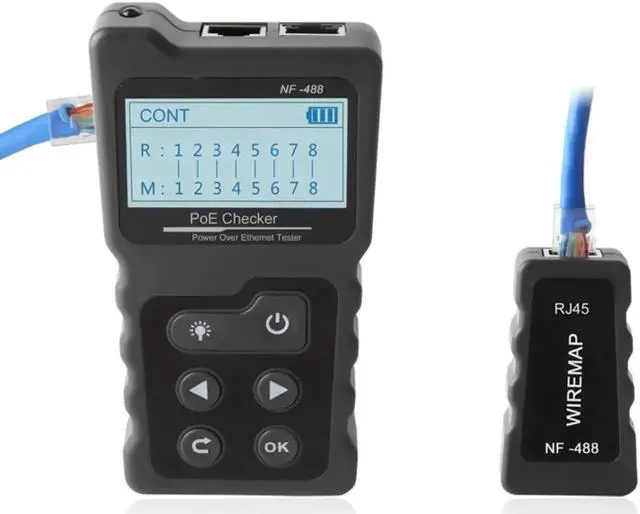

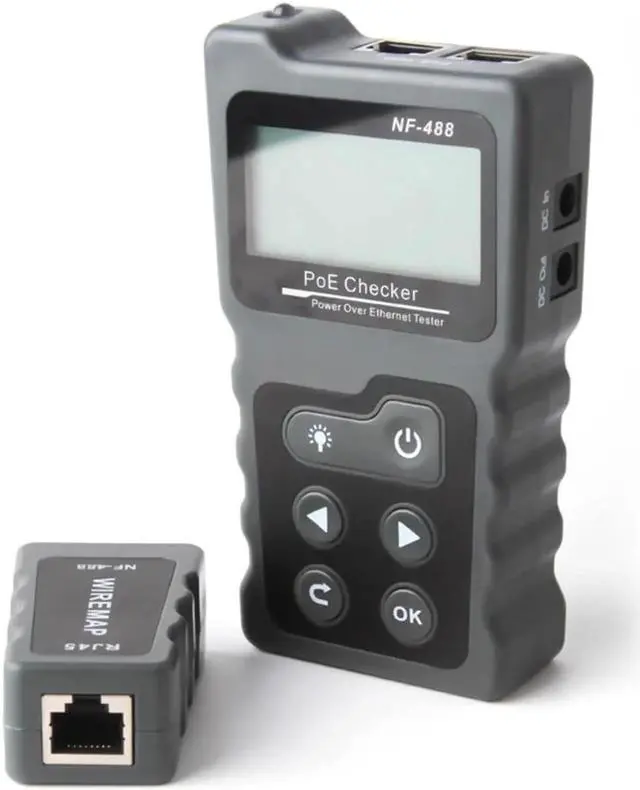

The NF-488 PoE checker is consists of two parts: an Emitter and a remote. It has functions such as standard and non-standard PoE equipment detection, PoE power online test, network cable continuity test, DC power test, switch loop-back test and other functions. Therefore, it is a perfect for security monitoring, communication wires, integrated wiring and other weak current systems.

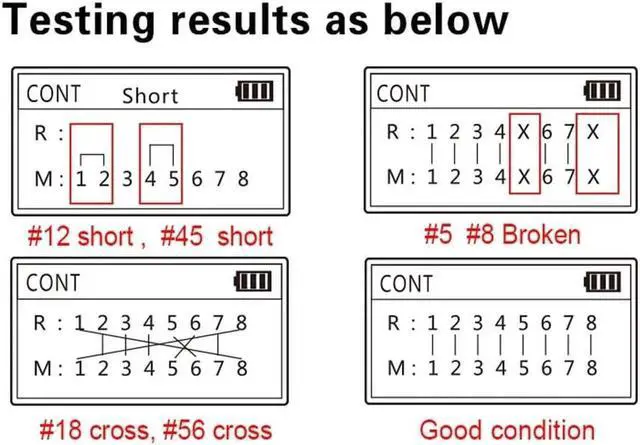

Features: Test the information of the standard/non-standard PoE device, such as voltage, polarity, midspan or endspan. Identify the type of PSE, it is af or at standard. Test of real-time power consumed by PD devices in PoE power supply systems. Test the open, short, cross status in the network cable. Test the power consumed by DC appliances. The loop test function of the switch.

Specifications:

Material: ABS

Transmitter Specification: CONTINUITY

FUNCTION: Cable

Types: STP/UTP

Max Testing Range: 600m

Wire Mapping: Emitter + remote, emitter + switch/routor

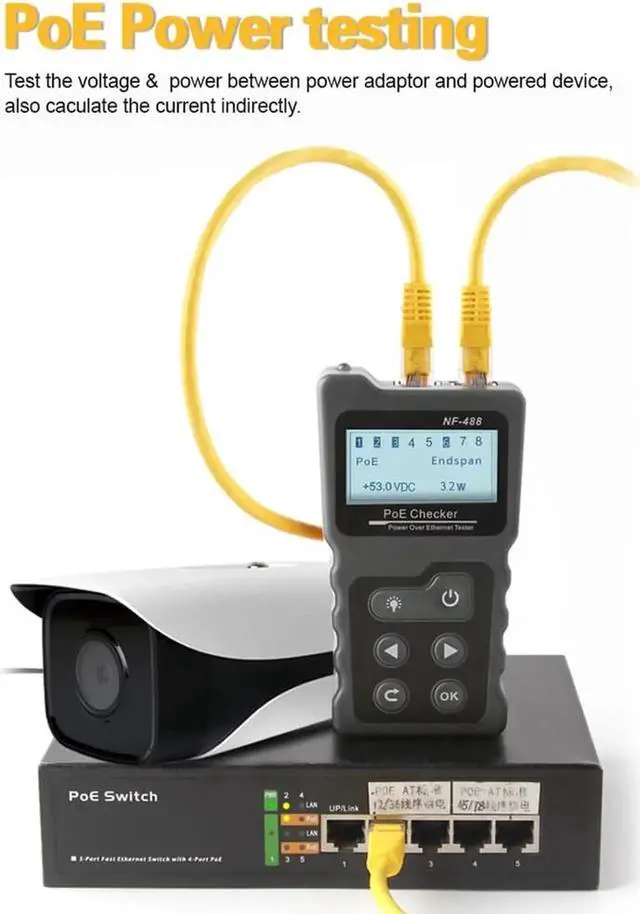

POE FUNCTION: Test

Range: DC5-60V PoE switch

Standard Identify: 802.3 af/at(standard/non-standard) Test

Range Power: 0-18W

POWER FUNCTION: Voltage

Test Range: DC0-60V

Current Test Range: 0-3A

Power Test Range: 0-180W

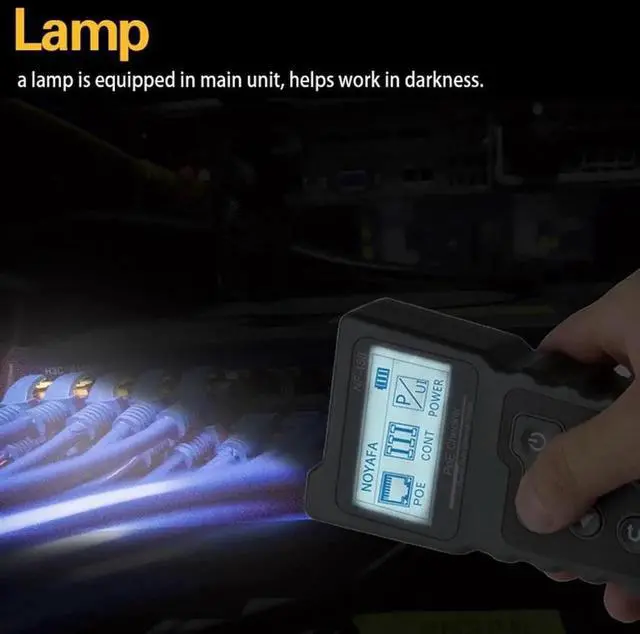

Display: LCD 128*64mm, with back light

Input Voltage Protection: DC48V, 5mA

Max Working Current: 80mA

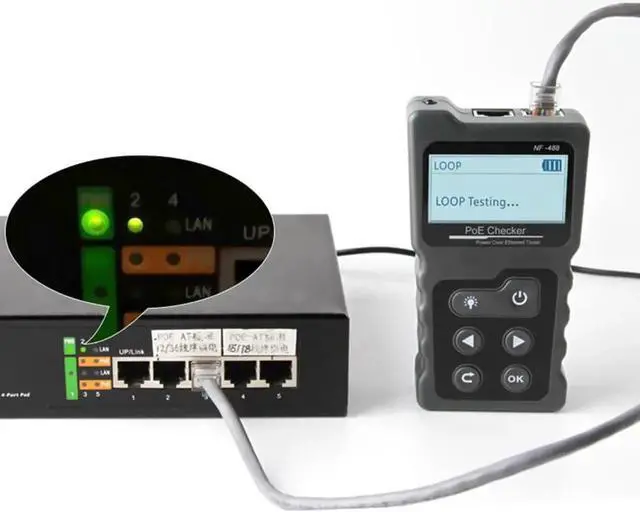

Loopback: Compatible with 10M, 100M, 1000M switch

Power Supply: 3 * 1.5V AAA battery (Not included)

Remote Specification:

Ports: RJ45

Function: Wire mapping for network cable

Input Voltage Protection: DC48V, 5mA

Emitter Size: Approx. 12.5 * 7 * 2.8 cm / 4.92 * 2.76 * 1.1 in

Remote Size: Approx. 6.5 * 3.7 * 2.3 cm / 2.56 * 1.46 * 0.91 in

Emitter Weight: Approx. 123g / 4.33 oz

Remote Weight: Approx. 24g / 0.86 oz

Package Weight: Approx. 301g / 10.64 oz

Package Size: Approx. 22.5 * 11 * 4cm / 8.86 * 4.33 * 1.58 in

Package List: 1 * Emitter 1 * Remote 1 * Crocodile Clip Test Line 2 * Cable Lead 1 * Carry Bag 1 * User Manual (English)
