  6. Item#: 0E6-01WT-00287

Out of stock
This item is currently out of stock and it may or may not be restocked.
Out of Stock
Sold by Newegg

Shipped by Newegg

Add to Wish List
Shop it at NeweggBusiness.
Shop All NaSR Products

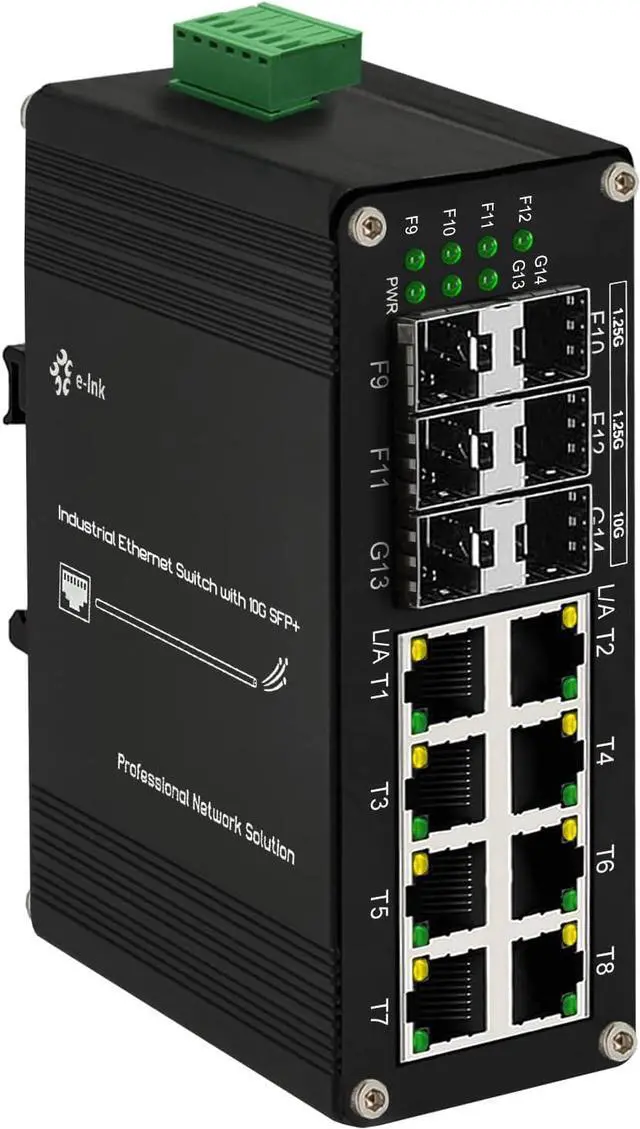

Industrial 8-Port Gigabit Ethernet Plus Switch with 2x10G SFP+ and 4X 1G/2.5G/10G/Multi-gig SFP, 70Gbps Bandwidth, DIN Rail Mount Unmanaged Ethernet Fiber Switch

Be the first to review this product...

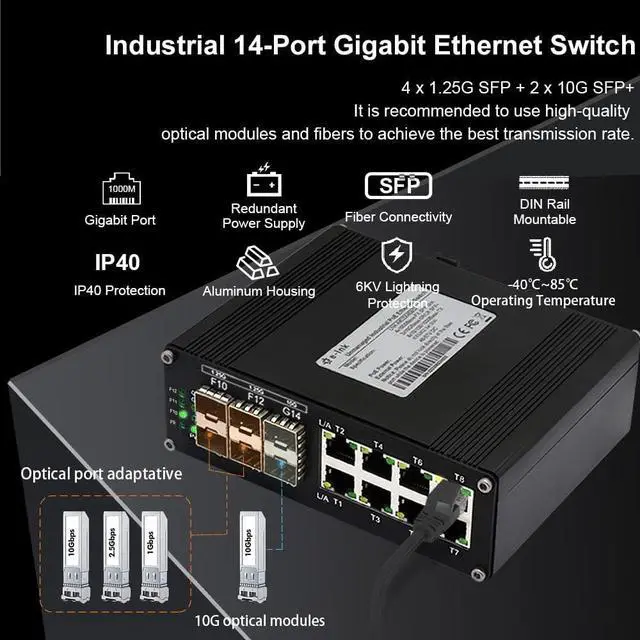

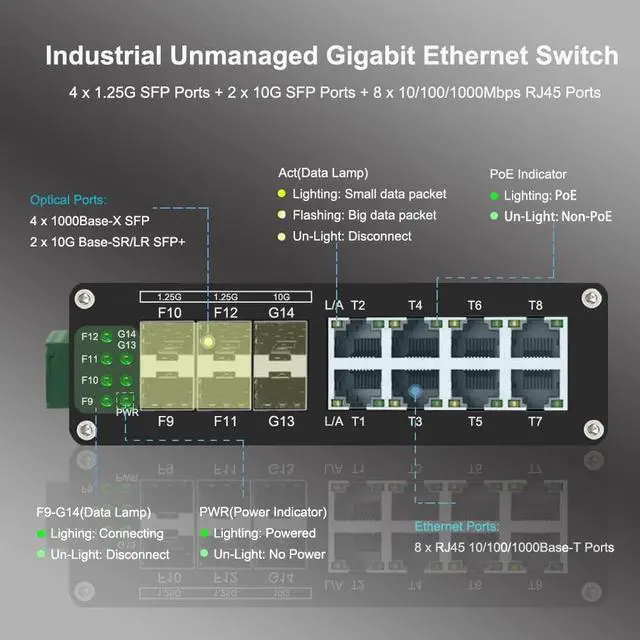

  • 4 x 1.25G SFP + 2 x 10G SFP+: This Gigabit Ethernet Switch has 4 x 1.25G SFP ports and 2 x 10G SFP+ ports, Higher switching capacity, can achieve non-blocking high-speed forwarding, enable high-bandwidth connected, auto-adaptive 1G/2.5G/10G fiber optic module, wider rate range.
  • 10/100/1000Mbps Ethernet RJ45 Ports: This Gigabit Ethernet Switch has 8 x 1.25Gigabit Ethernet Ports, support 10/100/1000Base-T(X) full/half-duplex mode, auto-negotiation, auto MDI/MDI-X connection.
  • Open SFP: Open 1000Base-X SFP slots support standard SFP interface optical modules without encryption, such single-mode or multi-mode module. 10G Base-SR/LR ports supports SFP+ module.
  • Use industrial grade components and aluminum housing, fiber switch can work at wide range temperature -40°C to 80°C (-40°F to 176°F). You can use it in outdoor harsh environment.
  • Easy to Use and maintain: Unmanaged Plug and Play, just plug in the power cord, connect the ethernet cable directly to the device, without any configurat
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

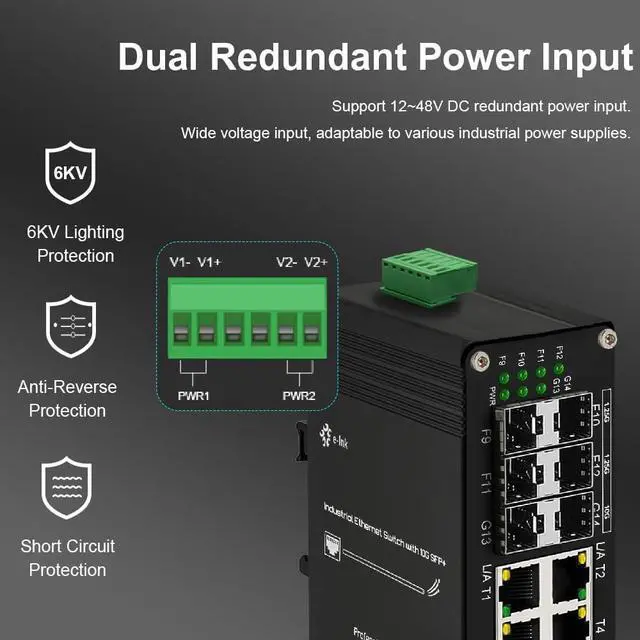

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3ab 1000BASE-T, IEEE802.3z 1000BASE-X, IEEE802.3ae 10GBase-R, IEEE802.3p QoS, IEEE802.1d Spanning TreeBForward & FilteringRate:14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps), 1,488,000,000pps (10000Mbps)Packet Buffer Memory:2.75M bitsProcessing Type:Store-and-ForwardMax Packet Length:9K Bytes Jumbo FrameAddress Table Size:8K MAC AddressesInterface:8 x 10/100/1000Mbps RJ45 + 4 x 1000Base-X SFP + 2 x 10G Base-SR/LR SFP+Power Pin Assignment:4/5(+), 7/8(-)Operating Temperature:-40°C to 80°C (-40°F to 176°F)Storage Temperature:-40°C to 85°C (-40°F to 185°F)Input Power:12~57VDC, Redundant Power (6-pin Terminal Block)Power Consumption:<16WInstallation:Din RailPower Input Overload:Automatic Resettable LNK-IMC2X4S8G
