Industrial Grade USB HUB with 4X USB 2.0 Ports, Switchable Dual Hosts, Support Multi System Multi Protections ESD Protection TVS Diode Compatible with Linux, Windows 11/10 / 8.1/8 / 7 / XP

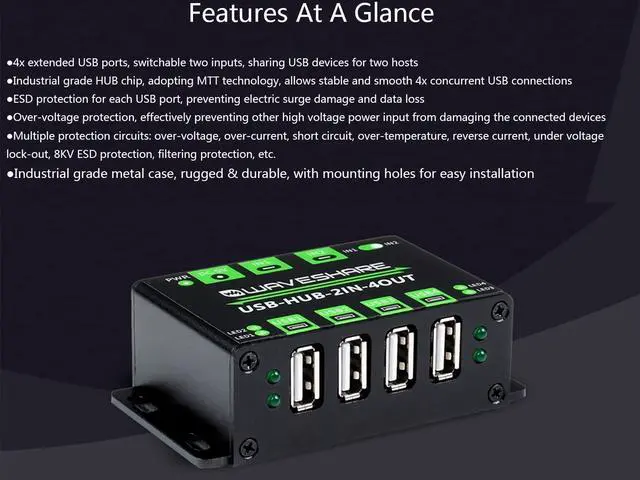

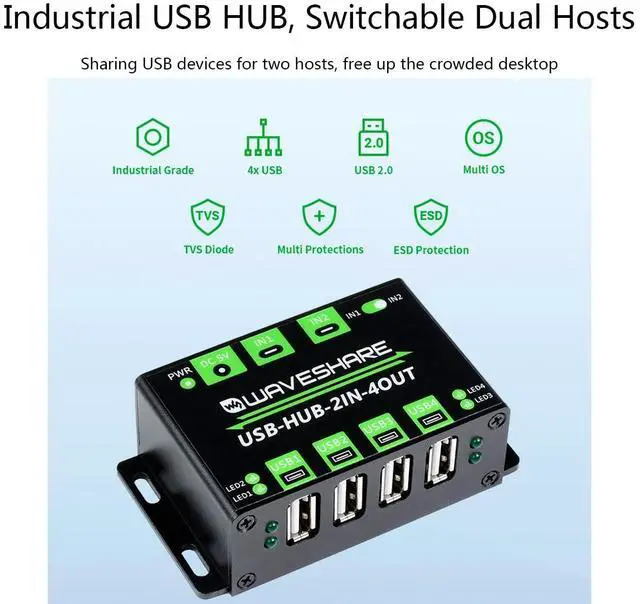

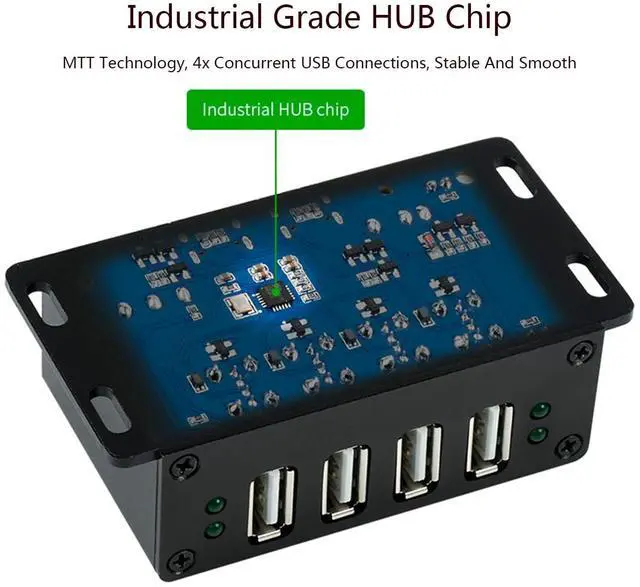

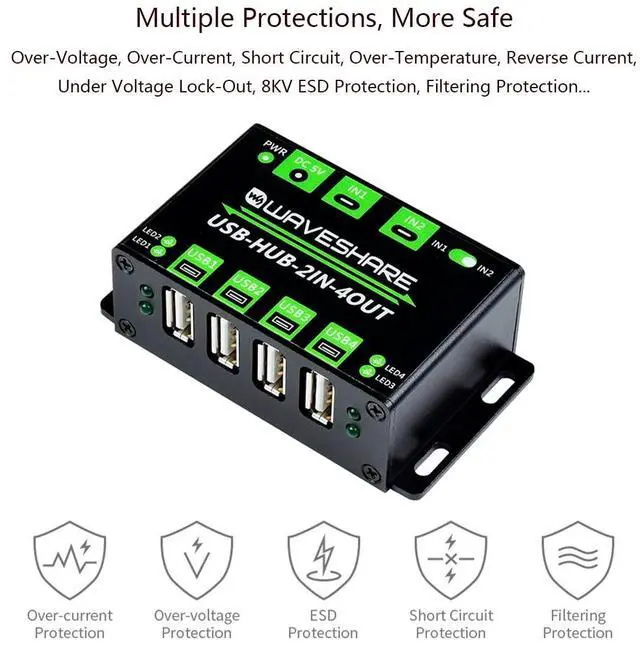

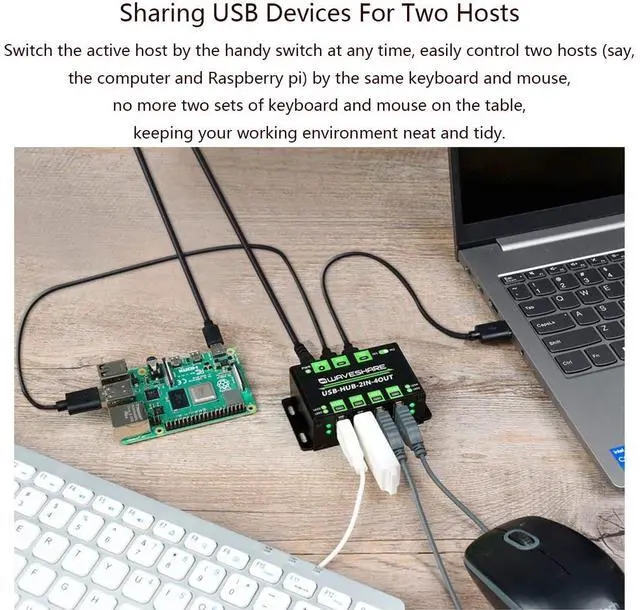

- Industrial Grade USB HUB with Industrial grade metal case, rugged & durable, with mounting holes for easy installation. 4x extended USB ports, switchable two inputs, sharing USB devices for two hosts. Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and mouse, no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.; Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections.ESD protection for each USB port, preventing electric surge damage and data loss.; Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices.Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.; Support Multiple OS , Plug & Play Compatible With OS : Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP,etc.; DATA RATE: up to 480Mbps. USB OUTPUT: 5V@Imax:1.2A, USB-A connector. USB HUB INPUT: 5V, switchable dual USB-C connector (standalone power supply, no crossed power). EXTERNAL POWER: DC 5V, DC jack/USB-C power input.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware Connection 1) The power supply only allows 5V voltage power supply. If the voltage is too high, it will be protected internally and the power supply will be cut off directly. 2) 4 USB output ports, the maximum output current is 1.2A, exceeding this upper limit will trigger short-circuit protection, and the device needs to be removed to restore 3)

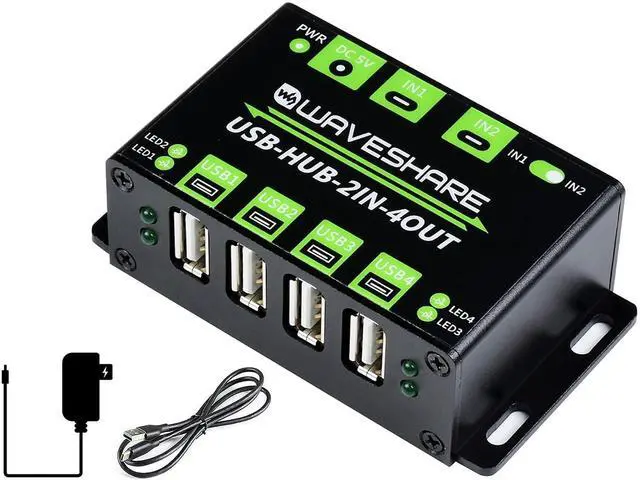

Operating temperature range: -40 ~85, no condensation, this module is not waterproof 4) LED1~LED4 indicate the enumeration of each USB, if there is a USB device connected and the enumeration is successful, the LED lights up 5) Red PWR light indicates power supply PACKAGE CONTENT USB-HUB-2IN-4OUT x1 USB-A to USB-C cable ~1m x2 5V 2A power adapter x1
Operating temperature range: -40 ~85, no condensation, this module is not waterproof 4) LED1~LED4 indicate the enumeration of each USB, if there is a USB device connected and the enumeration is successful, the LED lights up 5) Red PWR light indicates power supply PACKAGE CONTENT USB-HUB-2IN-4OUT x1 USB-A to USB-C cable ~1m x2 5V 2A power adapter x1
