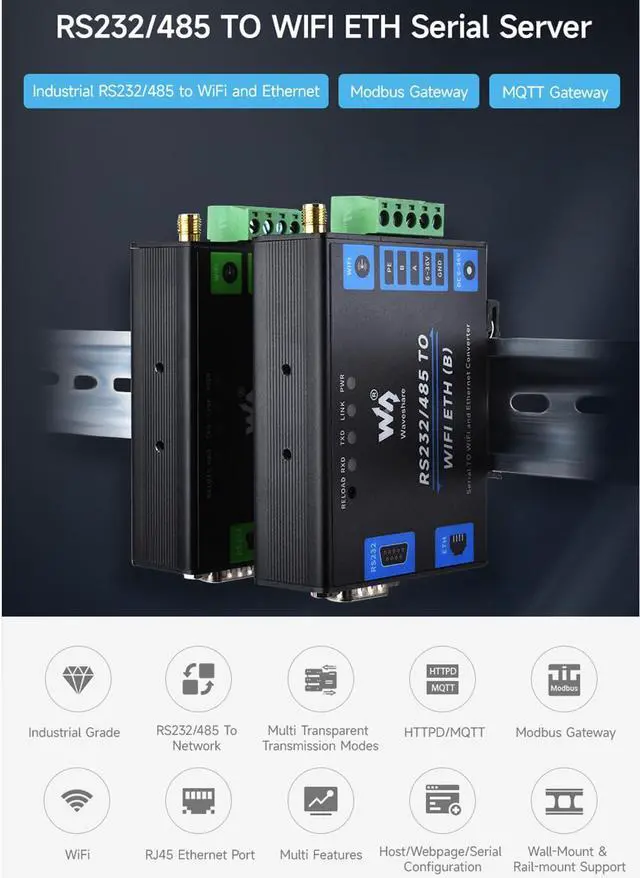

    waveshare RS232/485 to WiFi and Ethernet Converter Serial Server, Modbus Gateway, MQTT Gateway,Serial Port to HTTPD Client, Allow Serial Port to WiFi, Serial Port to Ethernet, Ethernet to WiFi

    Be the first to review this product...
    • This is an RS232/485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc; With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port to WIFI, serial port to Ethernet, Ethernet to WIFI and so on. Support Screw Terminal and DC 5.5 Power Port for Power Supply, DC 6~36V Wide Voltage Range Input; Support transparent transmission mode: Support TCP Server, TCP Client, UDP Server, UDP Client; Support multi wireless networking methods: Support AP mode, STA mode, and AP+STA mode. Support multi wired networking methods: Support APLAN, APWAN, Router, and Bridge mode; Multi Configuration Methods: Supports muliti configuration methods such as hosts, Web Browser and serial port Configuration. AT Command Mode: The user can query the current status of the module or set related parameters by sending AT commands
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    RS232/485 to WiFi and Ethernet Converter combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. Supports serial port to WIFI, serial port to Ethernet, Ethernet to WIFI.

    Specifications


    1.

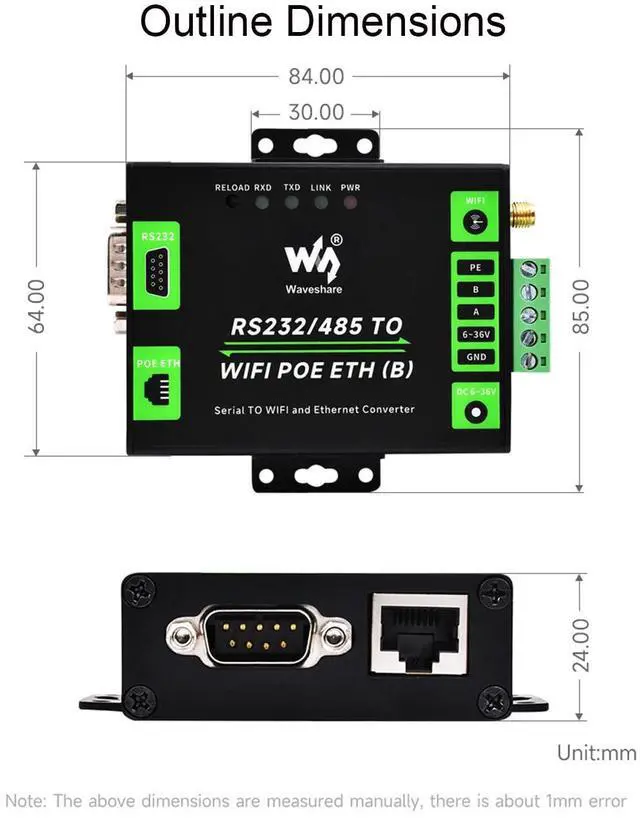

    Outline Power supply: DC 6~36V

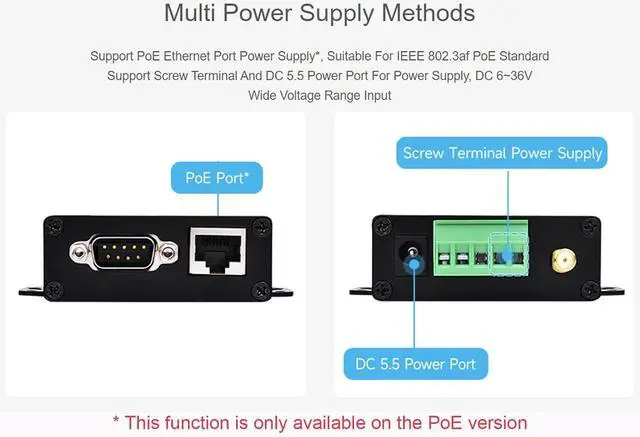

    Power supply method: DC 5.5 power port, screw terminal Dimensions (L × W ×
    H): 84.00 × 64.00 × 24.00 mm
    2.
    Communication Ethernet: 10 / 100M auto-negotiation
    RJ45 connector WIFI: 802.11 b/g/n compliant

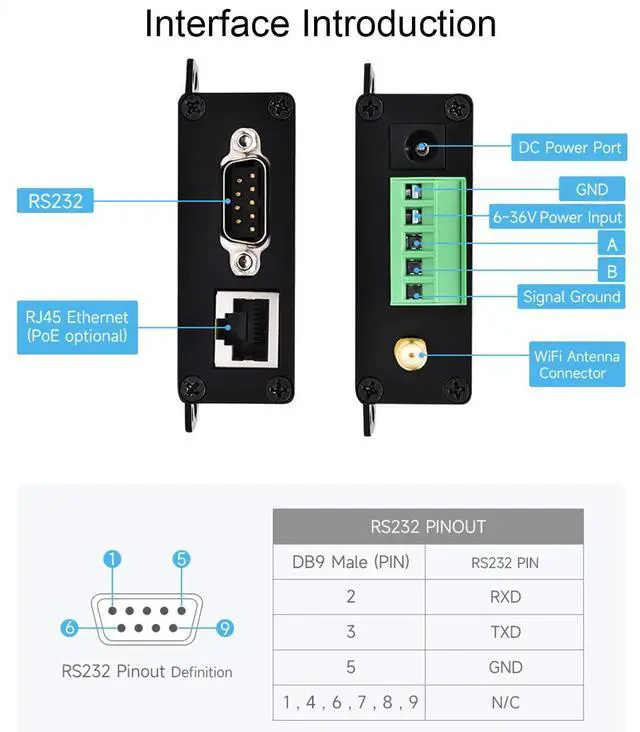

    Serial port: RS232 (ESD/EFT)RS485 (ESD/EFT/surge protection)
    3.
    Wireless specification Frequency Band: 2.412 ~ 2.484 GHz

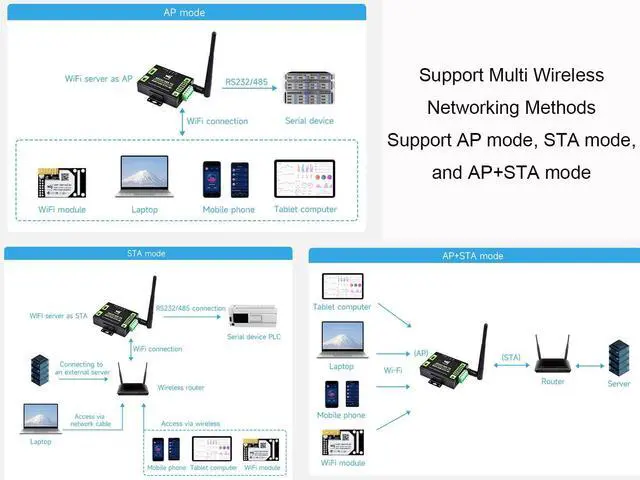

    Wireless network: Station / AP / AP+Station Mode
    Security mechanism: WPA-PSK / WPA2-PSK
    Encryption type: TKIP /
    AES Transmitting power: 802.11
    b: +19dBm (Max.
    @11Mbps) 802.11 g: +18dBm (Max.
    @54Mbps) 802.11 n: +17dBm (Max. @HT20, MCS7); +17dBm (Max. @HT40, MCS7)
    Receiving sensitivity: 802.11
    b: -89dBm
    (@11Mbps) 802.11 g: -81dBm
    (@54Mbps) 802.11 n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
    4.
    Serial specification Baudrate: 300 ~ 460800 bps
    Parity bit: none, odd, even, mark, space
    Data bit: 5 ~ 9 bits 5.
    Software Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP /
    MQTT Configuration: host, web browser, serial AT command
    Communication method: TCP/IP direct communication, VCOM
    Operating mode: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU 6.
    Environment requirement Operating temperature: -40 ~ 85
    Humidity range: 5% ~ 95% relative humidity

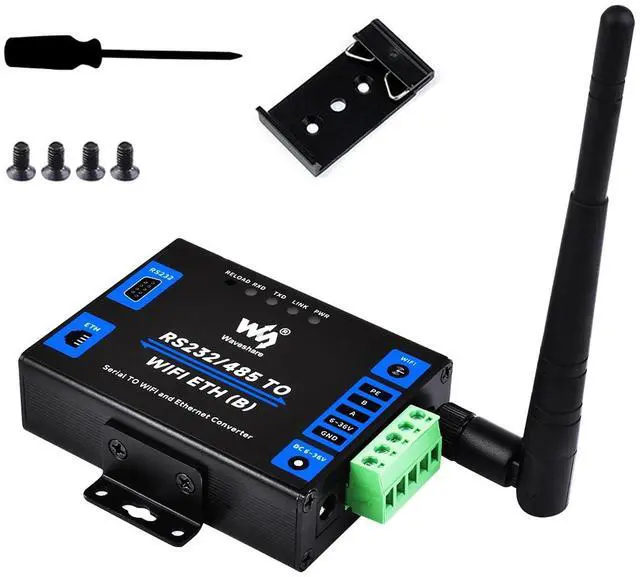

    Online Development Resources: //bit. ly/3L6Bk6m Package Content RS232/485 TO WIFI ETH (B) x1 2.4G WiFi antenna x1 Rail-mount buckle x1 Screwdriver x1 Screws pack x1
