Industrial ESP32-S3 Control Board with 8-Channel Digital Input & Output, with Multiple Isolation Protection Circuits, Supports WiFi/Bluetooth/ RS485/CAN/Ethernet Port, etc.

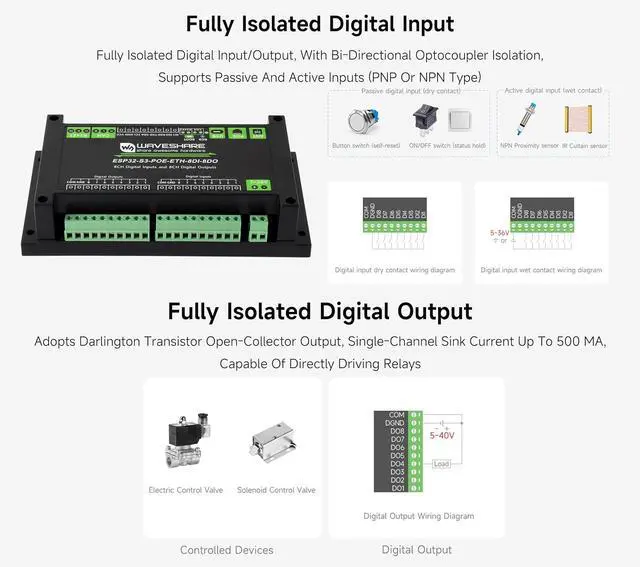

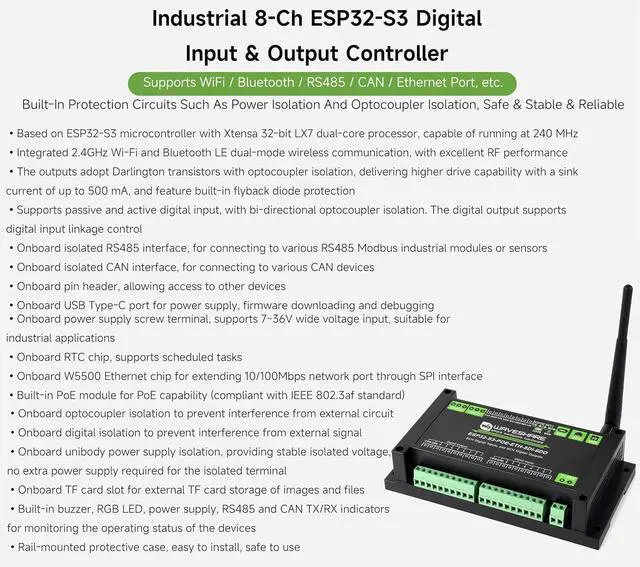

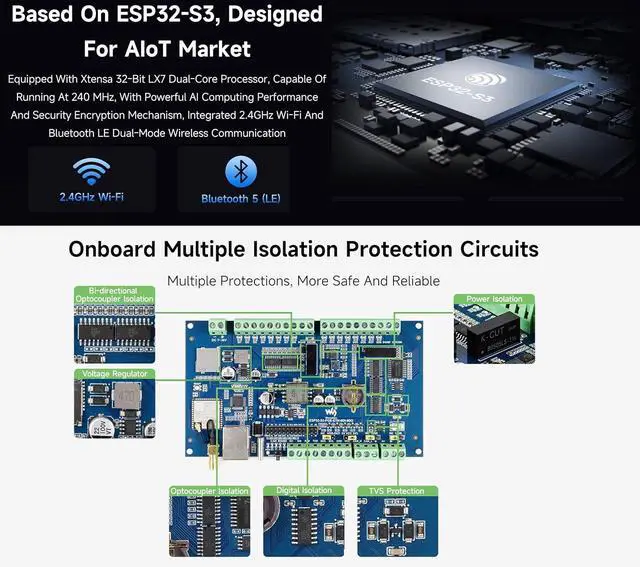

- Industrial 8-Ch ESP32-S3 Digital Input & Output Controller, Based on ESP32-S3, Designed for AIoT market. Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism, Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication.; Fully Isolated Digital Input: Fully Isolated Digital Input/Output, with Bi-directional Optocoupler isolation, supports Passive and Active Inputs (PNP or NPN Type). Fully Isolated Digital Output: Adopts Darlington transistor open-collector output, single-channel sink current up to 500 mA, capable of directly driving relays.; The outputs adopt Darlington transistors with optocoupler isolation, delivering higher drive capability with a sink current of up to 500 mA, and feature built-in flyback diode protection. Supports passive and active digital input, with bi-directional optocoupler isolation. The digital output supports digital input linkage control.; Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard isolated CAN interface, for connecting to various CAN devices. Onboard pin header, allowing access to other devices. Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard TF card slot for external TF card storage of images and files.; Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications. Onboard RTC
+
+
