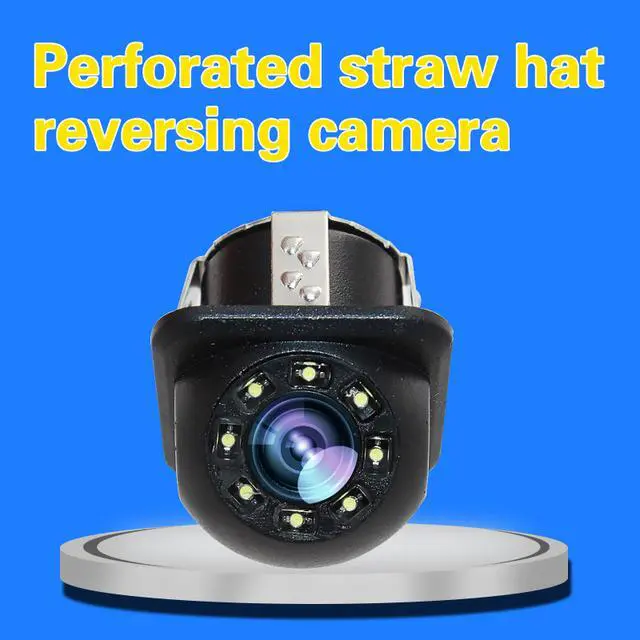

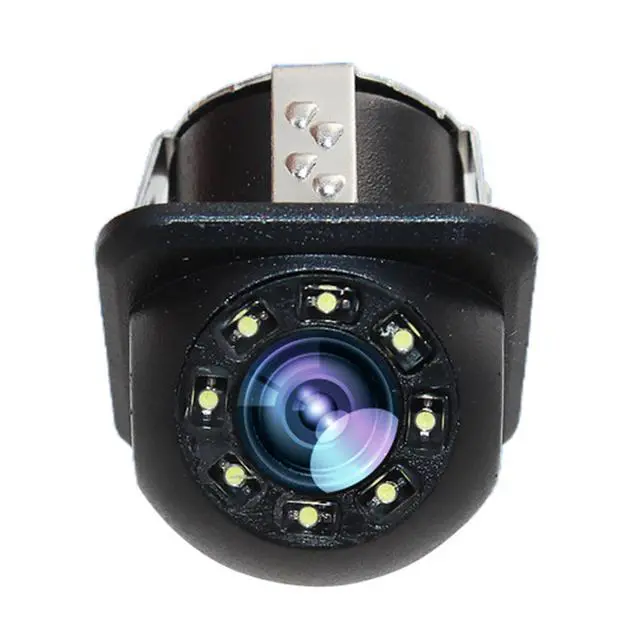

SANUME Car Rear View Backup Camera Reverse HD color CCD Night Vision Waterproof LED Punch Car Rear View Image Camera

Name:SANUME Car Rear View Backup Camera Reverse HD color CCD Night Vision Waterproof LED Punch Car Rear View Image Camera
Material: Plastic
Product Size:1.06*0.94*0.98 Inches
Product Weight:0.44 pounds
Package:Bag
Package Size:13.5*7.5*7.5cm
Package List:
1 x Car Rear View Camera

Photosensitive chip: 7440 chip
Photosensitive area 4.08mm 3.12mm
Definition: 480TV lines 6. minimum illumination 0.01Lux
Scale: optional [still] with the default hair scale
Video output 1.0vp-p, 75Ohm 9, power consumption 1W 10, white balance automatically. SNR is greater than 48dB
Electronic shutter (N) 160-1100000 (P) 150-1100000
Working voltage DC 12V (actual chip voltage is 3.3V)
Work temperature -20, to, +80, RH95%Max waterproof treatment, 100% waterproof (water gun against Chong are nothing, never fog)

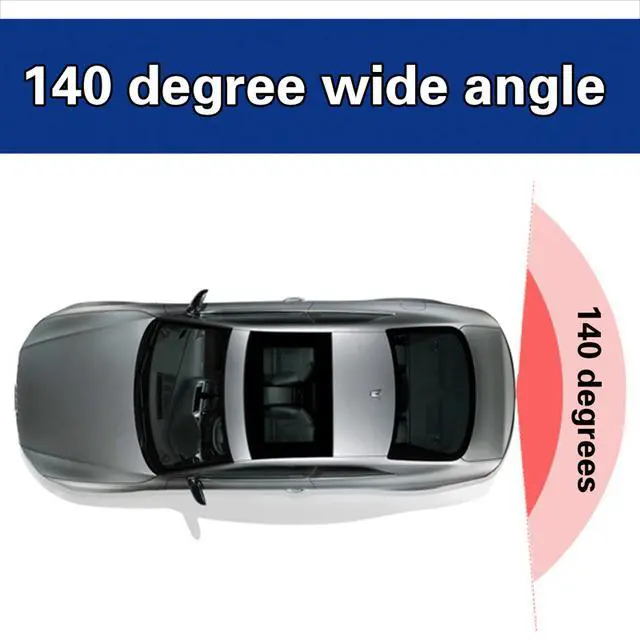

Horizontal diagonal 140 degrees [actual viewing angle is 120 degrees]
Low illumination professional video processing technology

Using digital fill image sensor designed for automotive rear view mirror development design, using digital fill and software technology, the image clear during the day and lower at night.
-20 to +80 RH95%Max application temperature range, fully in line with the application of automotive environment.
The factory after the high pressure water immersion test and 12 hours on the electric aging test, multi-layer waterproof design, washing and really high pressure immersion.

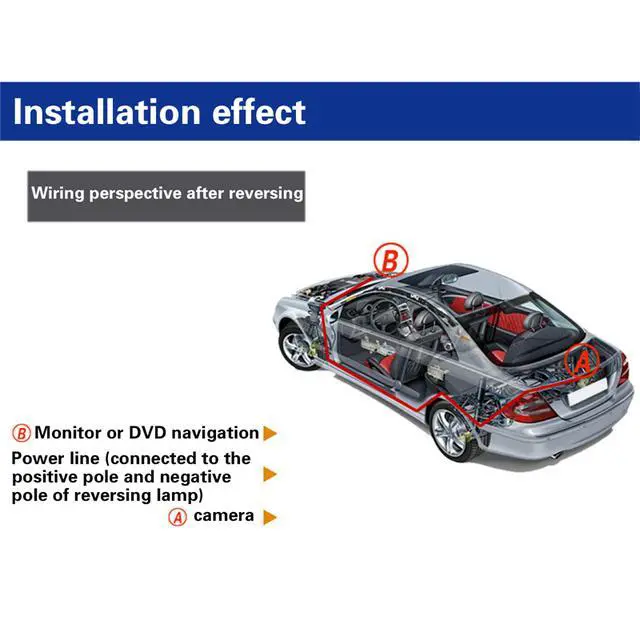

Installed in the rear handle and the lights license plate, equipped with self-tapping screws.
Car tail light power supply power cable connection, reversing and reversing monitoring system automatically starts to work, you can clearly see the car after the situation.
