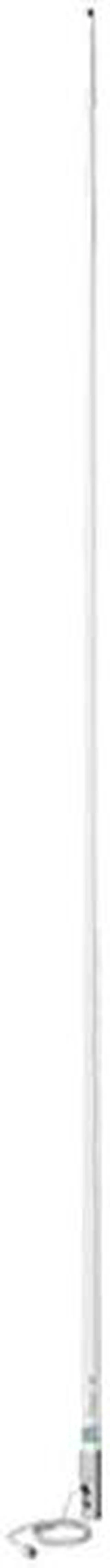

Shakespeare Vhf 8Ft 5101 6Db

Features:

A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in a 8ft antenna with a brass element and a smooth, high gloss, polyurethane finish that wont turn yellow in the sun. This antenna delivers not only performance, but superb value.

Brass and copper elements
Chrome-plated brass ferrule with standard 1"-14 thread
Includes 15ft RG-58 cable and a PL-259 connector
Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system
One section
Shakespeare Limited Warranty: 2 years

Technical

Specifications

:

Frequency: VHF Marine Band
Bandwidth: (within 2.0 1 SWR): 5 MHz
SWR: 1.5: 1 at 156.8 MHz
Impedance: (Ohms): 50
Gain: 6 dB
Max.
Input (Watts): 50
DC Ground: YES - however, the antenna will read "open circuit" when tested with ohmeter.
Termination: 15ft RG-58 cable
Height (feet): 8ft
Polarization: Vertical
Radiation pattern: Omni - directional
