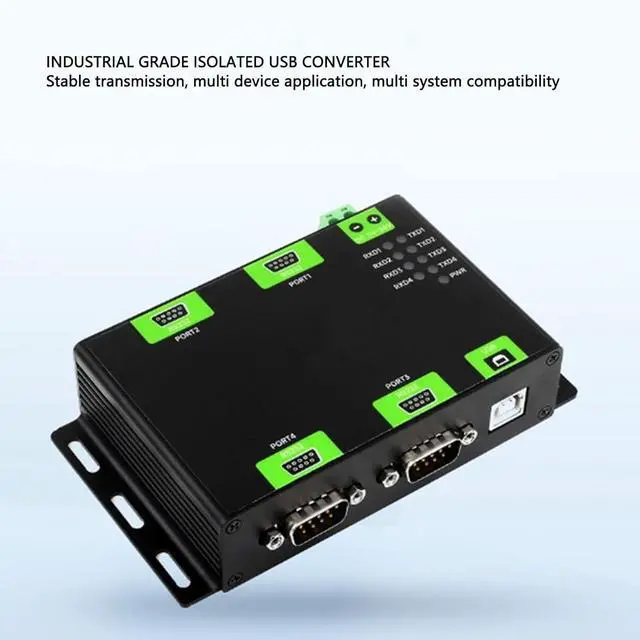

USB to RS232 Converter, 4 Channel Isolated Industrial Serial Adapter with Original FT4232HL Chip, Wide Compatibility for OS X

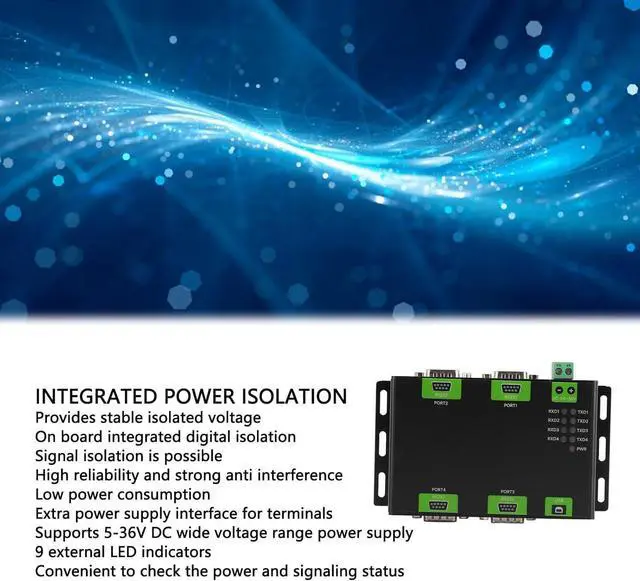

- [Flexible Power Options] Features an extra power supply terminal supporting 5 36v dc wide voltage range for enhanced stability in various applications. the rugged aluminum alloy housing provides excellent heat dissipation and mechanical protection while the wall mountable design saves valuable workspace in industrial settings.
- [Superior Protection Circuitry] Designed with tvs transient voltage suppression tube technology to effectively suppress surge voltage and transient spikes in the circuit. the converter includes thunder and static protection along with self recovery fuse and guard diode to prevent damage from over current over voltage and electrical shocks ensuring long term durability.
- [High Speed Stable Communication] This industrial grade usb to rs232 converter features the original ft4232hl chip for stable high speed communication with wide compatibility. the converter extends 4 isolated rs232 interfaces via usb allowing connection to multiple industrial serial devices simu
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Spec:
Item Type: USB to for RS232 Converter
Material: Aluminum Alloy
Host Interface: USB
Device Interface: for RS232
Communicating Range: 300bps-921600bps
USB Interface:
Operating Level: 5V
Interface Format: USB B Type Interface
Interface Guard: 200mA Self Recovery Fuse, Isolated Output
Transmission Distance: About 5m/16.4ft
Power Supply Interface:
Power Supply Voltage: 5-36V DC Power Supply Terminal
Interface Guard: Anti Reverse Connection
For RS232 Interface:
Interface Form: For DB9 Male
Interface Guard: TVS Tube Guard, Surge and Static Guard
Transmission Distance: Approx. 15m/49.2ft
Transmission Mode: Point to Point
Indicator Light:
PWR: Power indicator, access to the USB, the detection of voltage will light up red
TXD: Transmit indicator, green lamp when data is sent from the for RS232 interface
RXD: Receive indicator, blue lamp when there is data sent back from the for RS232 interface
Use Environment:
Temperature Range: -40 to 85
Humidity Range: 5% to 95%RH
Operating System: For OS X, for , for , etc
Package List:
1 x USB to for RS232 Converter
1 x Adapter
1 x USB Cable
Notice:
Manual measurement, please allow some errors.
Item Type: USB to for RS232 Converter
Material: Aluminum Alloy
Host Interface: USB
Device Interface: for RS232
Communicating Range: 300bps-921600bps
USB Interface:
Operating Level: 5V
Interface Format: USB B Type Interface
Interface Guard: 200mA Self Recovery Fuse, Isolated Output
Transmission Distance: About 5m/16.4ft
Power Supply Interface:
Power Supply Voltage: 5-36V DC Power Supply Terminal
Interface Guard: Anti Reverse Connection
For RS232 Interface:
Interface Form: For DB9 Male
Interface Guard: TVS Tube Guard, Surge and Static Guard
Transmission Distance: Approx. 15m/49.2ft
Transmission Mode: Point to Point
Indicator Light:
PWR: Power indicator, access to the USB, the detection of voltage will light up red
TXD: Transmit indicator, green lamp when data is sent from the for RS232 interface
RXD: Receive indicator, blue lamp when there is data sent back from the for RS232 interface
Use Environment:
Temperature Range: -40 to 85
Humidity Range: 5% to 95%RH
Operating System: For OS X, for , for , etc
Package List:
1 x USB to for RS232 Converter
1 x Adapter
1 x USB Cable
Notice:
Manual measurement, please allow some errors.
