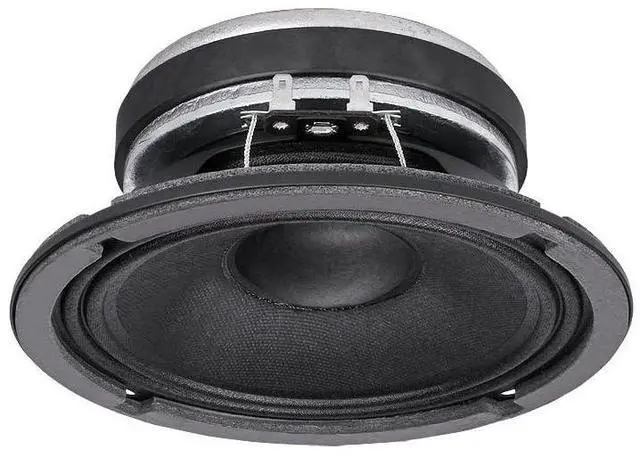

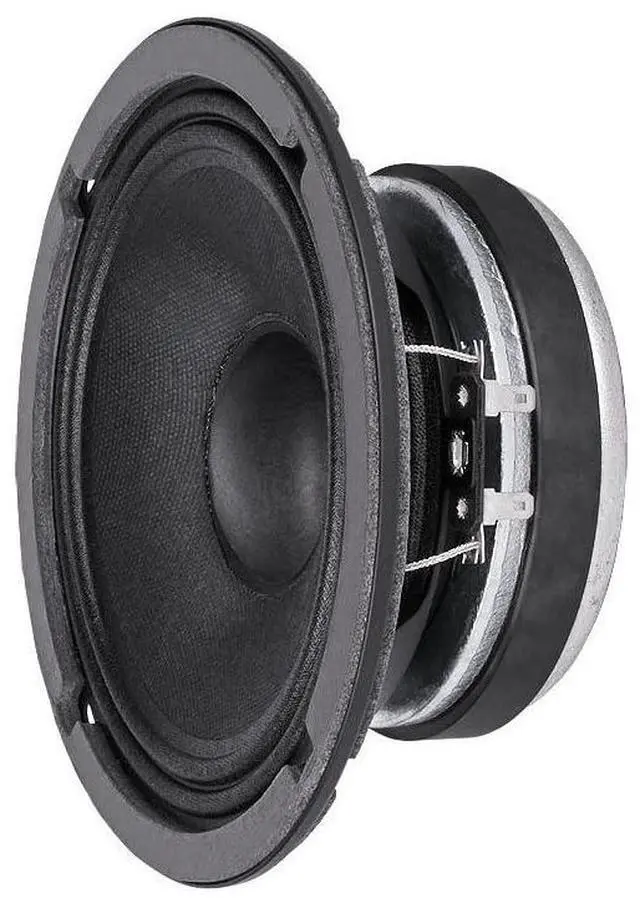

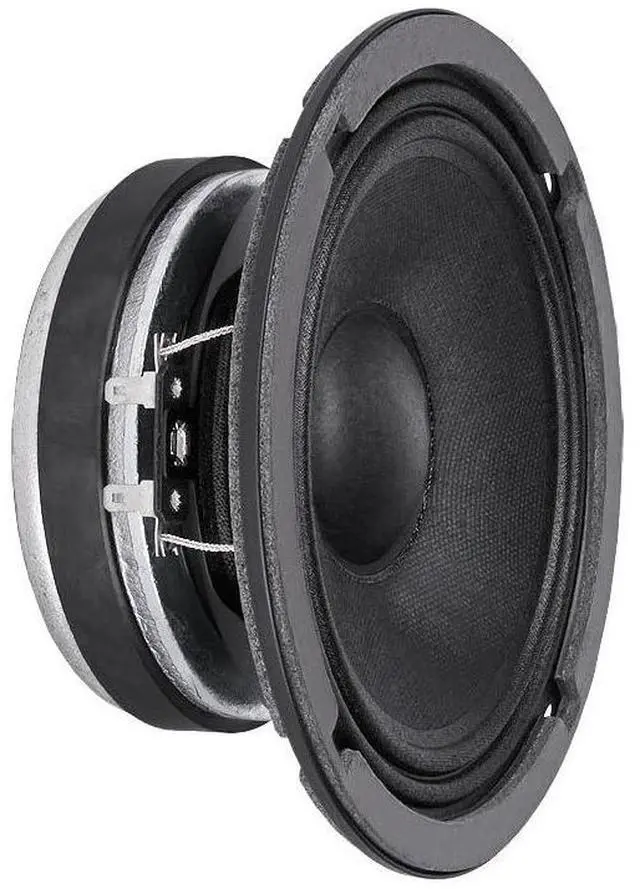

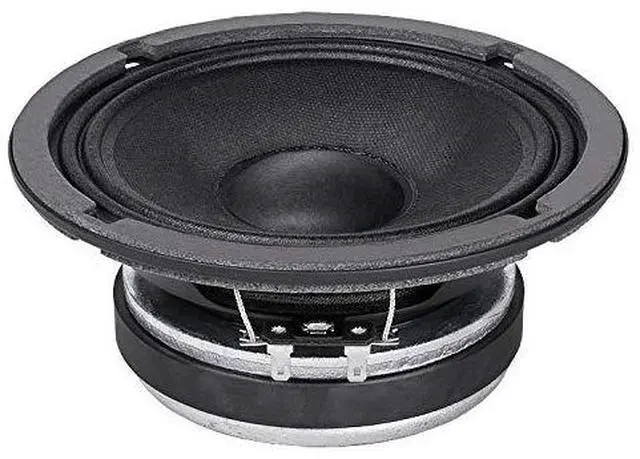

6FE200-8 6-inch Professional Midrange Loudspeaker 8 OHM Mid Bass Home Car Audio Waterproof Cone 130 Watts Rms 260 Watts Max

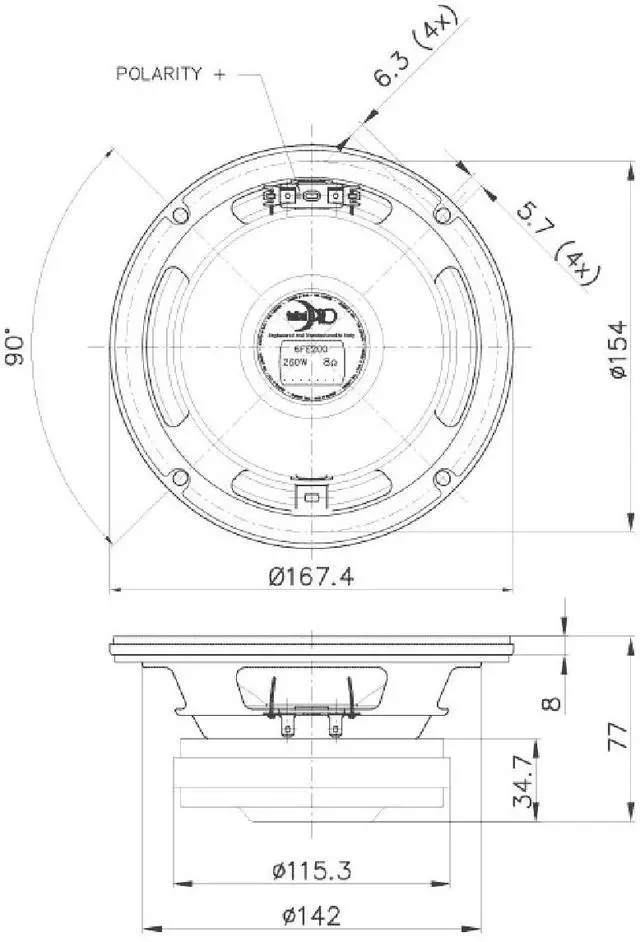

- Nominal Specifications Nominal Diameter: 160 mm (6 in) Overall Diameter: 167.4 mm (6.59 in) Bolt Circle Diameter: 154 mm (6.06 in) Baffle Cutout Diameter: 144 mm (5.67 in) Depth: 77 mm (3.03 in) Flange and Gasket Thickness: 8 mm (0.31 in) Net Weight: 2 kg (4.4 lb) Shipping Box (Single Carton Box): 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in) Shipping Weight: 2.2 kg (4.9 lb) Technical Parameters Nominal Impedance: 8 Ohm Minimum Impedance: 6.8 Ohm AES Power Handling (1): 130 W Maximum Power Handling (2): 260 W Sensitivity (1W/1m): 95 dB Frequency Range: 85÷6000 Hz Voice Coil Diameter: 37 mm (1.46 in) Winding Material: Al Former Material: Kapton Winding Depth: 12 mm (0.47 in) Magnetic Gap Depth: 8 mm (0.31 in) Flux Density: 1 T Magnet: Ferrite Ring Basket Material: Steel Demodulation: No Cone Surround (3): M-Roll NET Air Volume filled by Loudspeaker: 0.45 dm^3 (0.016 ft^3) Spider Profile: 1x constant height waves Thiele and Small Parameters Fs: 120 Hz Re: 5.9 Ohm Qes: 0.75 Qms: 6.2 Qts: 0.67 Vas: 3.6 dm^3 (0.13 ft^3) Sd: 131 cm^2 (20.23 in^2) Xmax (4): 4.67 mm Xdamage (5): 10.4 mm Mms: 11.5 g Bl: 8.2 N/A Le: 0.4 mH Mmd: 9.8 g Cms: 0.15 mm/N Rms: 1.4 kg/s Eta Zero: 0.80 % EBP: 160 Hz Model Number: 6FE200-8 | 6FE200 Part Number (P/N) Faston Terminals - 8 Ohm Version: 01604017 UPC: 810130951345 Notes (1) 2 Hours Test According to AES 2-1984 Rev. 2003 (2) Maximum power is defined as 3dB greater than nominal power (3) Treated Polycotton (4) Xmax= [(winding depth - magnetic gap depth)/2] +
+
+
