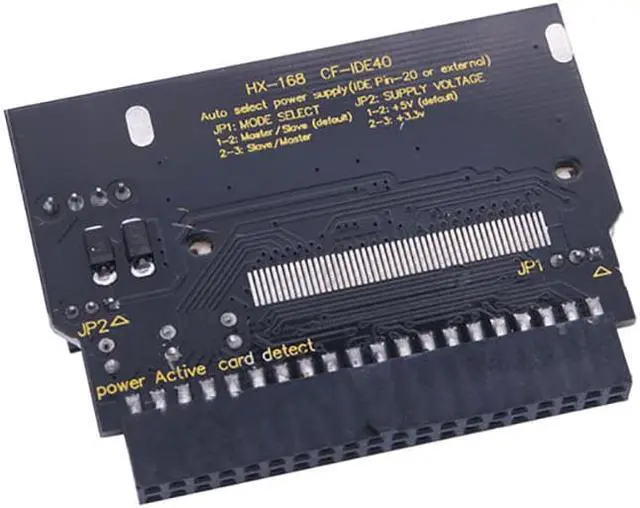

CF IDE40 Converter Card Module-Compact Flash CF to IDE 40 Pin Adapter
- Top quality products: The quality of the products can be guaranteed to the greatest extent, because we have our own production warehouse. Products can be tested for quality before they leave the factory.
- High-quality distribution logistics: Our delivery warehouse is in the United States. The logistics method used is a local first-level logistics service provider in the United States. From the moment you place the order, it will be collected within 24 hours. You can receive your package within 3-5 working days.
- Timely after-sales service: Whether you have any questions about the logistics provider or product quality, you can contact me at any time. As long as the product is unused, you can return it to our warehouse in New Jersey. We serve you wholeheartedly 173 hours a day.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
Compact Flash (CF) card is a removable solid-state electronic disk with a standard IDE interface. It is an electronic disk with small volume and large capacity. We have developed a series of CF
to IDE adapter to facilitate the use of CF cards on a standard IDE.
CF card is a kind of low price electronic disk card, which is widely used in notebook computers, personal digital assistants (PDA), portable instruments, or industrial equipment. In the electronics factory, people use CF cards as hard disks to store test software, because it is easy to damage traditional mechanical hard disks by frequently turning on/off the computer power.
Feature:
*ConForming standards: CF specification Ver2.0, IDE/ATA-33 specification.
*Standard IDE interface: true IDE mode, and supports DMA-33 transmission mode.
*CF-I and CF-II cards are supported: IBM micro hard disk that also supports CF-II interface.
*IDE interface is a 40 pin/2.54mm female connector: this card can be directly inserted into the IDE socket.
*CF card holder can be placed flexibly: single-sided/double-sided CF can be selected at will.
*Three LED indicators: power LED, CF active LED, and card detect LED
*Use CF card as DOM: automatically supply power from the 20 pin or external floppy drive power socket of IDE.
*5.0V or 3.3V power supply: select the appropriate power supply voltage according to your CF card.
Include: 1PC
Main purpose:
-Computer peripheral equipment manufacturers use CF - IDE cards together with CF cards to test motherboards, sound cards, video cards and other products. In these situations, the power needs to be turned on/off frequently. Traditional mechanical hard drives are easily damaged. CF is an electronic hard disk, which is different from mechanical hard disk in principle and is not easy to be damaged in these occasions.Portable instruments using embedded X86 or RISC kernel usually have IDE interfaces. If the CF card cannot be directly connected to these instruments, you can use this adapter to complete the transfer.
-Personal computers (PC): These computers are usually X86 or RISC kernel, which is the main platForm For this card. Some digital cameras have CF card interface, and you can access your picture data on the desktop through this card.
-The industrial PC uses this card together with the CF card to store the embedded operating system, such as the embedded For LINUX or For WIN CE. You can also use the CF card as a portable hard drive, data can be moved at will.
Compact Flash (CF) card is a removable solid-state electronic disk with a standard IDE interface. It is an electronic disk with small volume and large capacity. We have developed a series of CF
to IDE adapter to facilitate the use of CF cards on a standard IDE.
CF card is a kind of low price electronic disk card, which is widely used in notebook computers, personal digital assistants (PDA), portable instruments, or industrial equipment. In the electronics factory, people use CF cards as hard disks to store test software, because it is easy to damage traditional mechanical hard disks by frequently turning on/off the computer power.
Feature:
*ConForming standards: CF specification Ver2.0, IDE/ATA-33 specification.
*Standard IDE interface: true IDE mode, and supports DMA-33 transmission mode.
*CF-I and CF-II cards are supported: IBM micro hard disk that also supports CF-II interface.
*IDE interface is a 40 pin/2.54mm female connector: this card can be directly inserted into the IDE socket.
*CF card holder can be placed flexibly: single-sided/double-sided CF can be selected at will.
*Three LED indicators: power LED, CF active LED, and card detect LED
*Use CF card as DOM: automatically supply power from the 20 pin or external floppy drive power socket of IDE.
*5.0V or 3.3V power supply: select the appropriate power supply voltage according to your CF card.
Include: 1PC
Main purpose:
-Computer peripheral equipment manufacturers use CF - IDE cards together with CF cards to test motherboards, sound cards, video cards and other products. In these situations, the power needs to be turned on/off frequently. Traditional mechanical hard drives are easily damaged. CF is an electronic hard disk, which is different from mechanical hard disk in principle and is not easy to be damaged in these occasions.Portable instruments using embedded X86 or RISC kernel usually have IDE interfaces. If the CF card cannot be directly connected to these instruments, you can use this adapter to complete the transfer.
-Personal computers (PC): These computers are usually X86 or RISC kernel, which is the main platForm For this card. Some digital cameras have CF card interface, and you can access your picture data on the desktop through this card.
-The industrial PC uses this card together with the CF card to store the embedded operating system, such as the embedded For LINUX or For WIN CE. You can also use the CF card as a portable hard drive, data can be moved at will.
