SANUME Adjustable Magnetic Gauge Tool Camber Castor Strut Wheel Alignment Tool for Truck Car RV Tire Repair, New Top Strong Magnetic Absorb, Positioning Tool

Name:SANUME Adjustable Magnetic Gauge Tool Camber Castor Strut Wheel Alignment Tool for Truck Car RV Tire Repair, New Top Strong Magnetic Absorb, Positioning Tool
Material: Iron

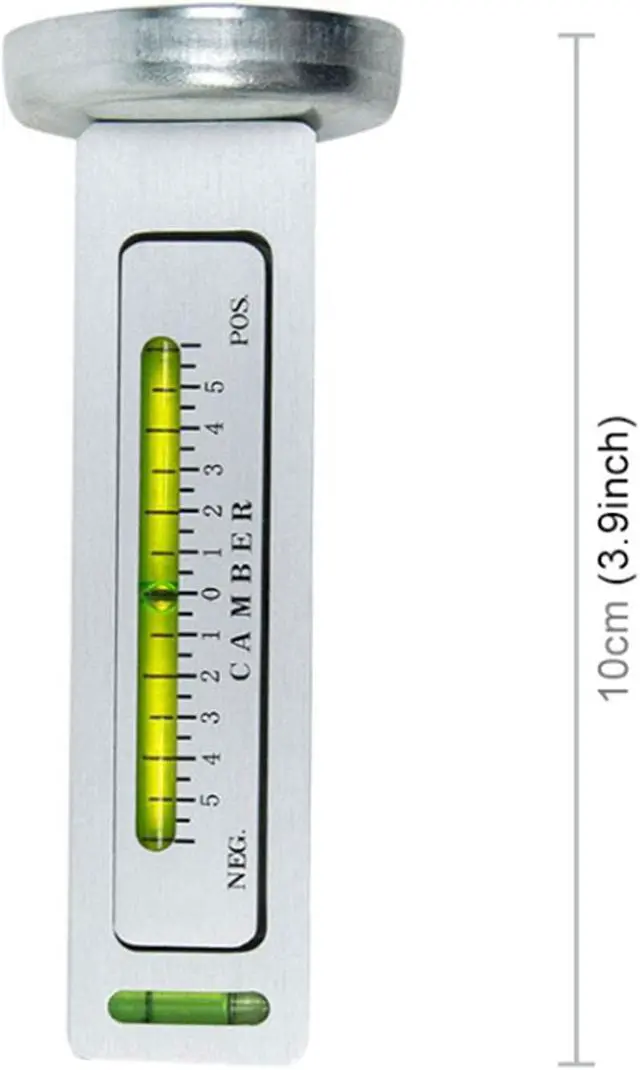

Product Size:3.90*0.79*1.18 Inches
Product Weight:0.63 pounds

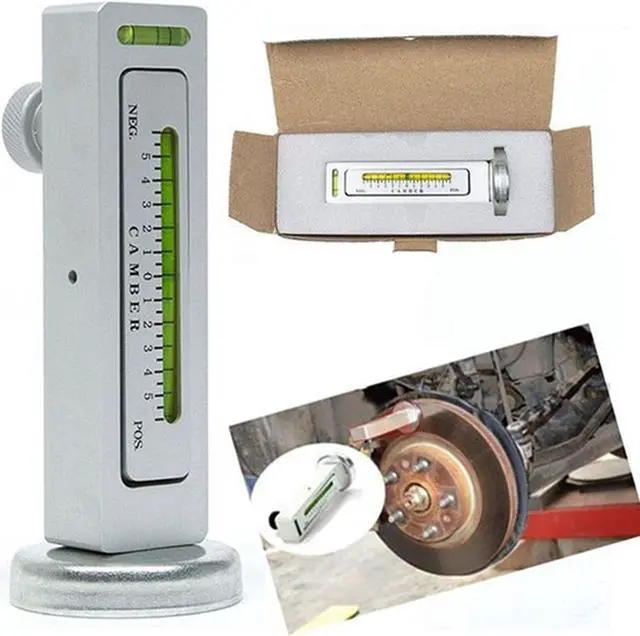

Package:Box
Package Size:19*7*5.5cm

Instructions for use:
Remove the four-wheel alignment sensor (fixture) and remove the tire.

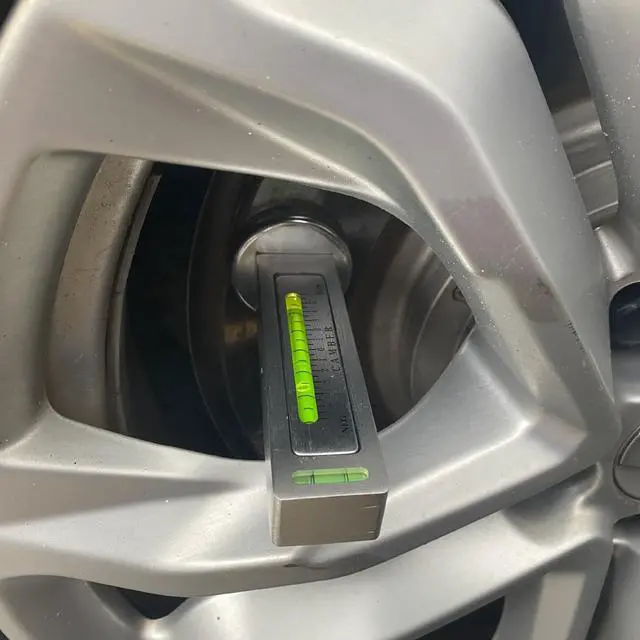

Attach the magnetic level carefully to the side of the brake wheel.
Adjust the level to the zero position.
Install the required positioning parts.
Use tools to adjust the positioning parts to the required measurement angle with the help of the degree indication of the magnetic level.
If there is a slight deviation in re-testing with the locator, just fine-tune it under the car. (Generally a slight deviation will not cause positioning faults).

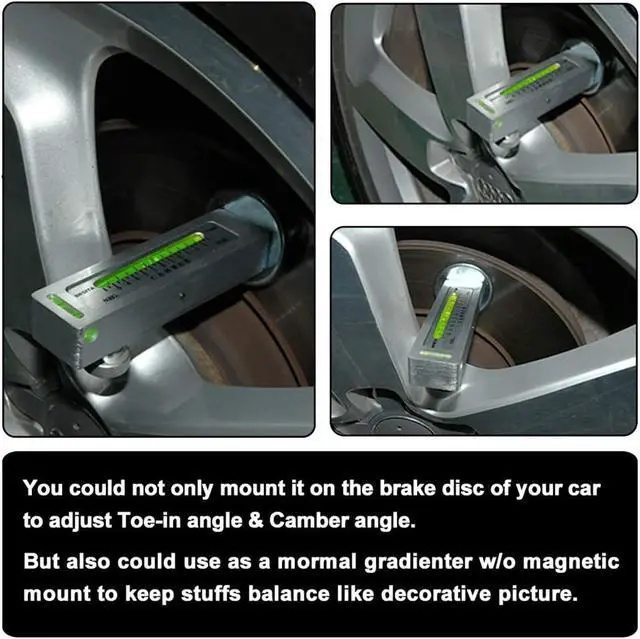

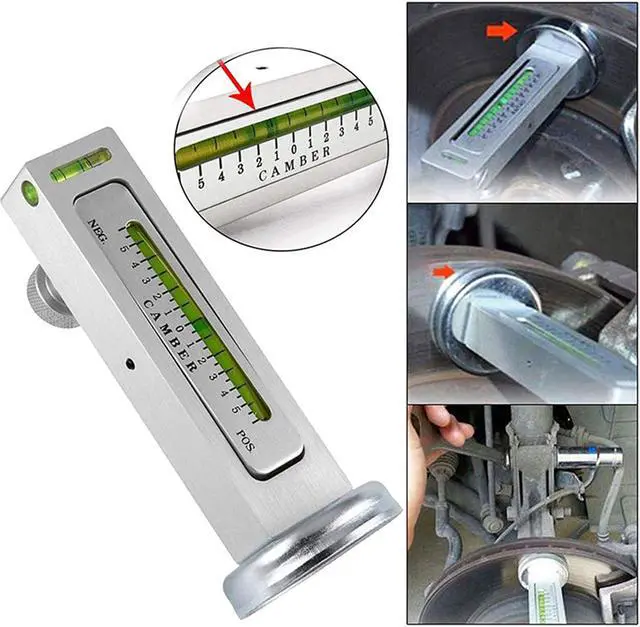

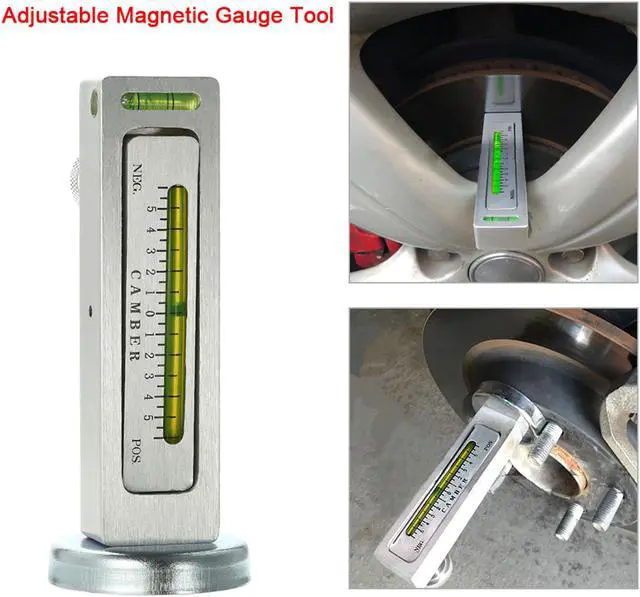

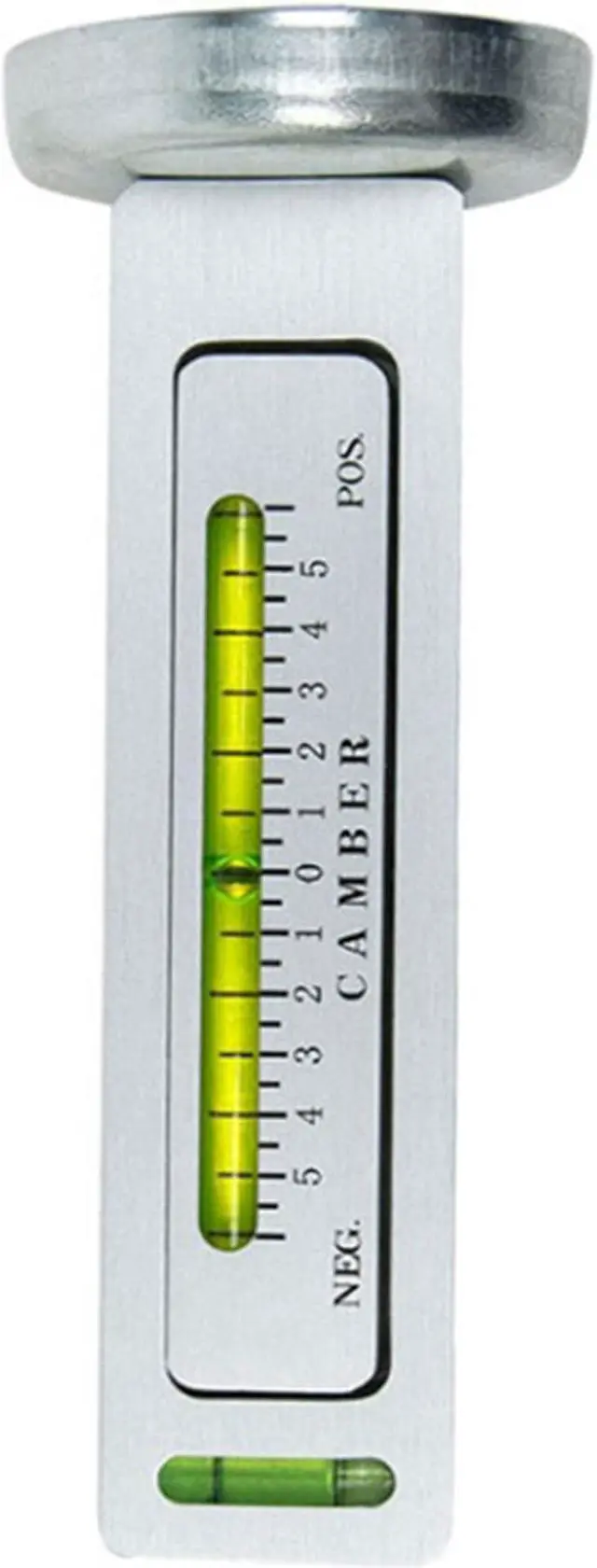

Adjustable Magnetic Gauge Tool: 1 Pcs Magnetic Alignment Camber Castor Gauge.Adjustable car magnetic gauge tool, attach the magnetic gauge to the hub or disc brake, it can measures the camber and caster angle on the wheel hub or brake disc.
High Quality Steel Material: Use of high quality steel material, the strong magnetic gauge tool has high strength plasticity, good toughness, high safety and reliability. Highly optimized for general use, ensure maximum strength and durability for long lasting usage.
Accurate Measurement: Allows you to return the strut to the original camber position after dismantling and re-assembling the suspension or to check the amount of camber change before re-installing. (Note:Please double check and make sure the panel is balance before using.You could screw the button behind the gauge to adjust panel level).
Powerful Function: Suitable for accurate checking of the castor and camber angle. Has a simple leveling adjustment from -5 degrees to 5 degrees. This adjustable magnetic gauge tool also it could be used as a normal gradienter.It has a powerful magnet could be easily mounted on all kinds of metal surface.
