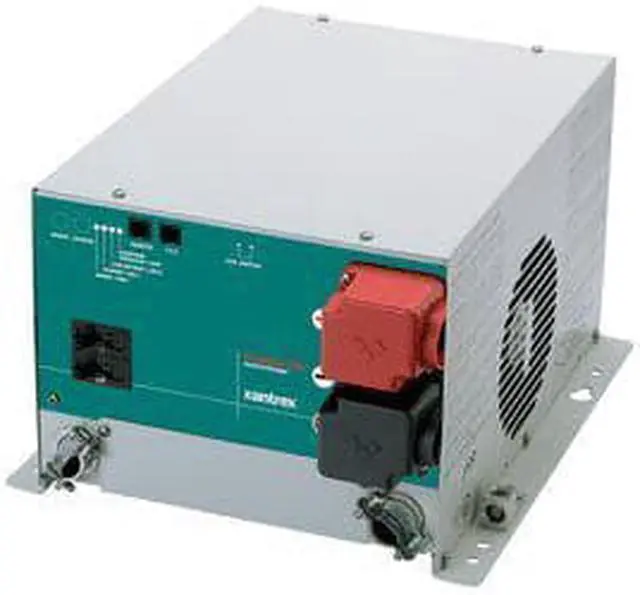

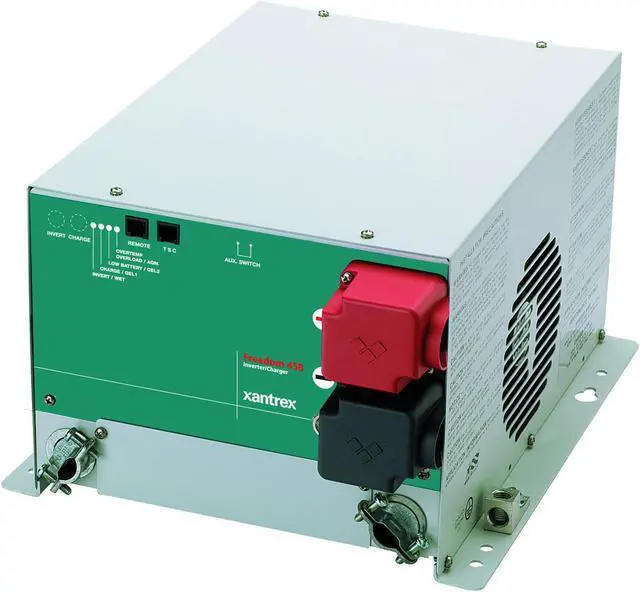

XANTREX FREEDOM 458 20 12V INVERTER CHARGER SINGLE INPUT 81-2022-12

Freedom 458 Inverter/ChargerAC Power Inverter with High Surge Capability, 3-Stage ChargerWith filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion. For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation. Product FeaturesMSW AC power inverter with high surge capabilityAutomatic 3-stage battery chargerTemperature compensation with equalization stage provides optimal charging of deep cycle batteriesBuilt-in transfer switch automatically transfers between inverter power and incoming AC powerPower sharing prevents source AC input circuit breaker from tripping Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panelsIncludes battery temperature sensor30 month warrantyProtection FeaturesOver voltage and under voltage protectionOver-temperature protectionOverload protectionShort circuit protectionElectrical Specifications -
InverterOutput power (continuous): 2000W
Surge power (AC amps): 50AOutput
frequency regulation: 60HzInverter
voltage regulation: 120V +/-5% true RMS
Output wave form: Modified
sine waveEfficiency (full load): 85%
Peak efficiency: 92%
No load current draw (idle mode): 0.12AAC
output connections: Dual - 20/15
Circuit BreakersAC input connections: Single
AC transfer switch: 30AElectrical Specifications -
ChargerCharge rate: 100A
DCAC input voltage range: 90 130 VAC
Battery voltage (nominal): 12 VDC
Battery voltage range: 10.0 15.5 VDC
Low battery cut-out: 10.0 VDCAC input (max.
charge mode): 21A
AC Bulk charge voltage: 14.3
VDC*** Float charge voltage: 13.4
VDC*** Equalize charge voltage: 16.3 VDC
Charge control: 3-stageBattery
type settings: Wet / Gel 1 / Gel 2 /
AGM Equalization: YesTemperature
sensitive charging: Yes***Default value varies with battery type and temperatureWARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings. ca. gov.
