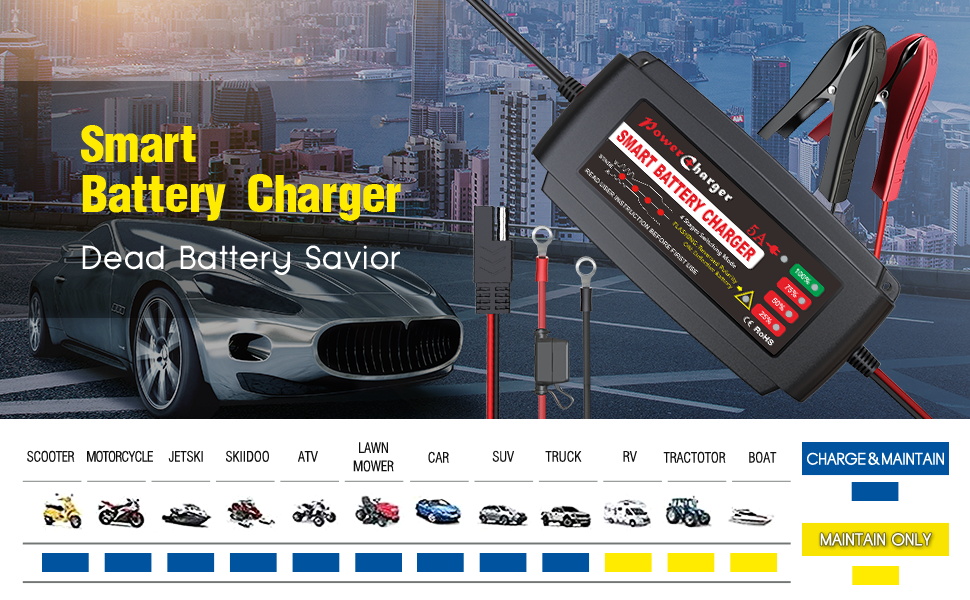

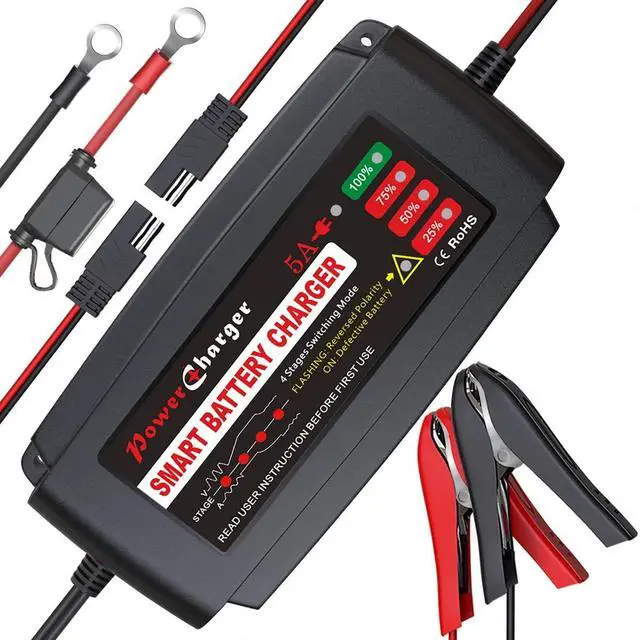

BMK 5A SMART BATTERY CHARGER IN HAND, ALL BATTERY TROUBLES GO AWAY.

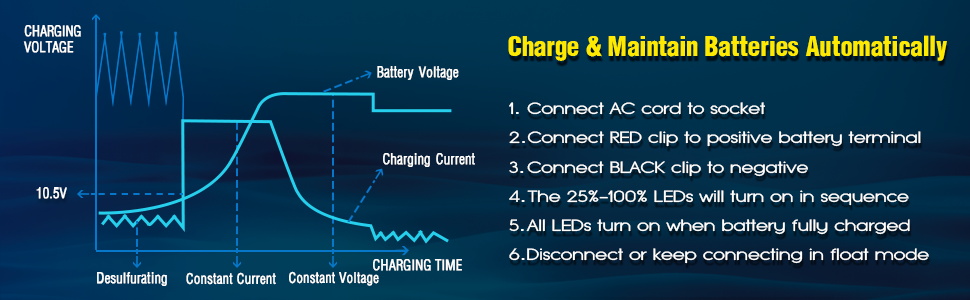

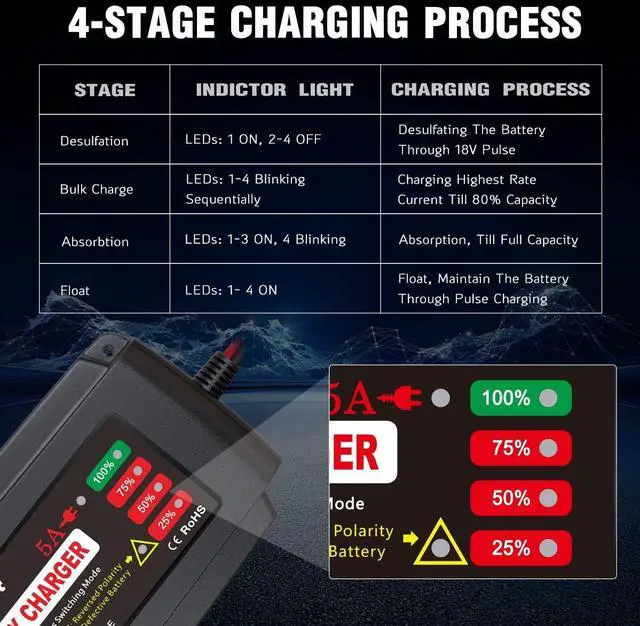

STAGE 1 - DIAGNOSTIC
Desulfating the Battery Through 18V Pulse
The Charger can be used with 12-100Ah, however 12-60Ah is highly recommended for higher efficiency and battery protection.
STAGE 2 - BULK CHARGE
Charging Highest Rate Current Till 80% Capacity
Featured with LED for indicating different charging modes
Alter the charging process based on organic battery feedback.
STAGE 3 - ABSORPTION
Absorption, Till Full Capacity
Output voltage is limited to 14.7V while current declines as the battery to be fully charged.
Stabilize internal battery chemistry to increased performance and longevity.
STAGE 4 - MAINTAIN
Float, Maintain the Battery Through Pulse Charging
Battery is fully charged at this stage.
Minimize energy consumption when full power is not needed.

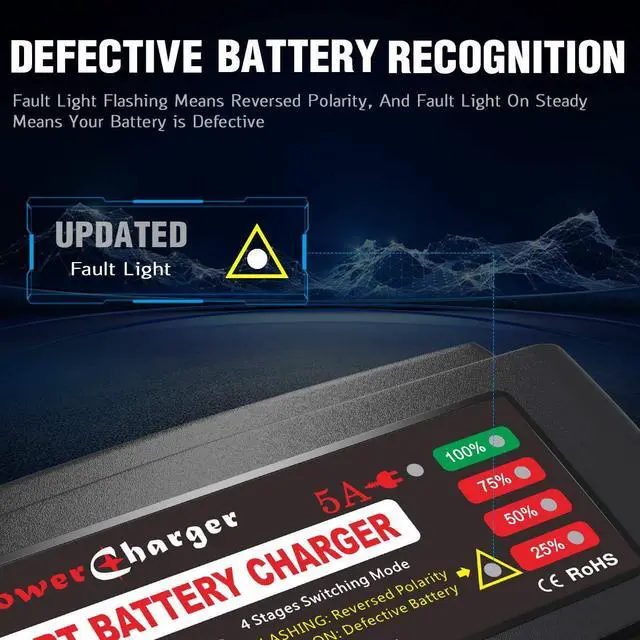

DEFECTIVE BATTERIES DETECT
- The Fault Light Flashing: Reversed Polarity
- The Fault Light ON: Defective Battery
SPARKPROOF
- Prevent sparks
- Automatically check whether the connection is correct or not before powering up
QUICK DISCONNECT HARNESS
- Connect and disconnect with the battery in seconds

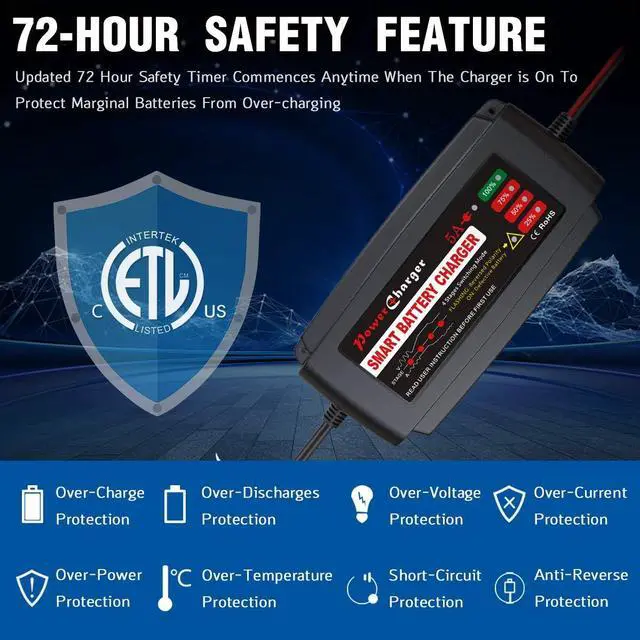

72-HOUR SAFETY FEATURE
- Upgraded 72 Hour Safety Timer to commence anytime the charger is onto protect marginal batteries from over charging
Technical Specifications
BMK 5A SMART BATTERY CHARGER IN HAND, ALL BATTERY TROUBLES GO AWAY.
STAGE 1 - DIAGNOSTIC
Desulfating the Battery Through 18V Pulse
The Charger can be used with 12-100Ah, however 12-60Ah is highly recommended for higher efficiency and battery protection.
STAGE 2 - BULK CHARGE
Charging Highest Rate Current Till 80% Capacity
Featured with LED for indicating different charging modes
Alter the charging process based on organic battery feedback.
STAGE 3 - ABSORPTION
Absorption, Till Full Capacity
Output voltage is limited to 14.7V while current declines as the battery to be fully charged.
Stabilize internal battery chemistry to increased performance and longevity.
STAGE 4 - MAINTAIN
Float, Maintain the Battery Through Pulse Charging
Battery is fully charged at this stage.
Minimize energy consumption when full power is not needed.
DEFECTIVE BATTERIES DETECT
- The Fault Light Flashing: Reversed Polarity
- The Fault Light ON: Defective Battery
SPARKPROOF
- Prevent sparks
- Automatically check whether the connection is correct or not before powering up
QUICK DISCONNECT HARNESS
- Connect and disconnect with the battery in seconds
72-HOUR SAFETY FEATURE
- Upgraded 72 Hour Safety Timer to commence anytime the charger is onto protect marginal batteries from over charging
Technical Specifications
| Input Voltage | 100~240 Volts AC 50/60Hz |
| Input Current | 0.5Amp (RMS) @ 220 Volts AC |
| Back Current Drain | 1.3mA |
| Ripple Current | <=0.12Amp (RMS) |
| Bulk Charge Current | 5.0 Amps |
| Starting Volatge | 4.5 Volts |
| Charge Voltage | Rating: 12 Volts; Bulk Limited Voltage: 14.7 Volts |
| Operate Temperature | -5~120°F |
| Package Size | 5.90 x 2.78 x 2.20 inches |

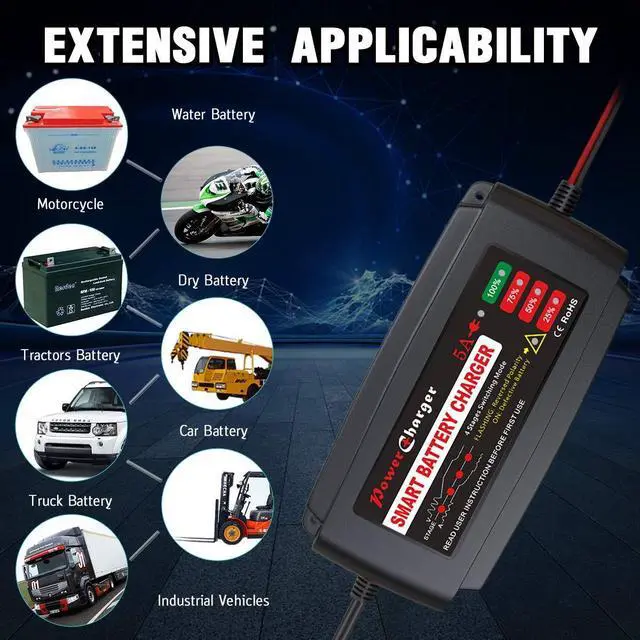

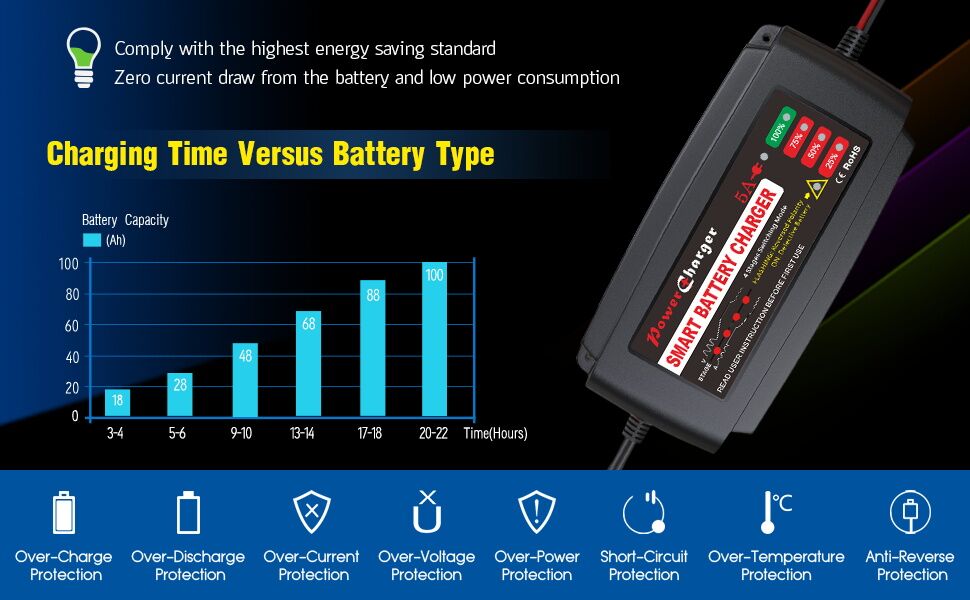

| Battery Capacity | 12~100Ah batteries |
| Battery Type | All type of 12 Volts AGM, GEL, Flooded(Wet), Calium type deep cycle, VRLA maintenance free lead acid batteries |

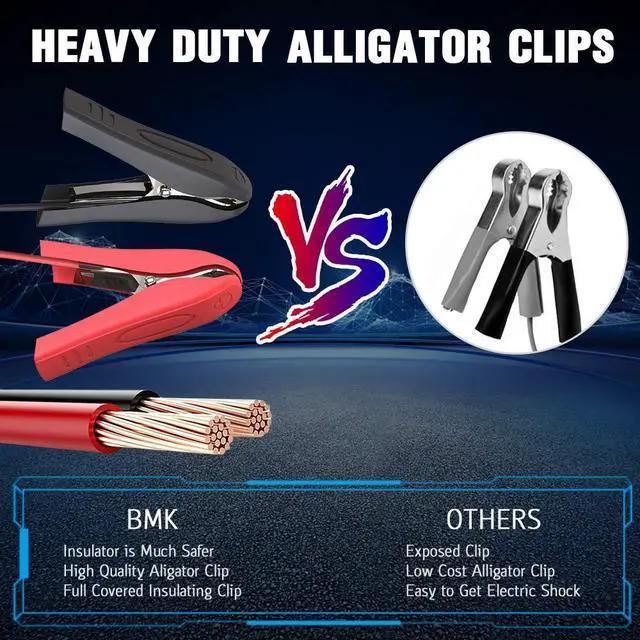

| Package List | 1 x Charger (Power Cord: 5.57ft.), 1 x Clip Connector (2ft.), 1 x O-Ring Connector (2ft) with 10 Amps fuse, 1 x User Manual |
