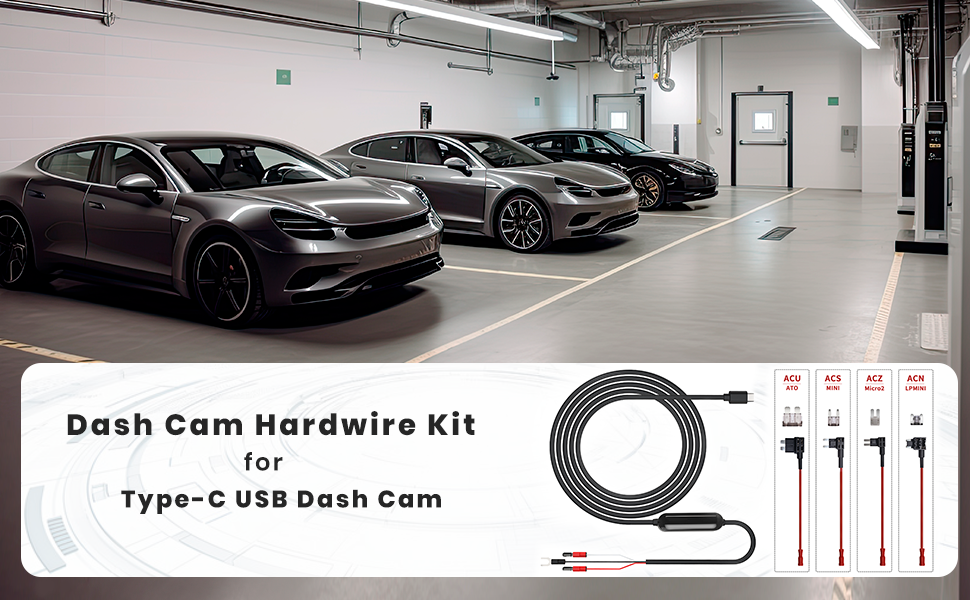

The hardwire kit SUPPORTS ALL THE YEECORE DASH CAM (as H22, D11, D21, D22, D31, D32, D53 etc).
Warm Tips:
1)To utilize a 24-HR parking monitor, you need to provide power to your dash cam while away from your car. Hardwiring your dash cam to your car's fuse box is necessary to give power to the dash cam.
2)The hardwire kit specifically for our dash cam to use parking mode feature, easy to install, and designed to recognize when your car's engine is turned ON or OFF. It automatically switches the camera to Parking Mode when you turn OFF your vehicle and go to normal video recording when turning ON the car. so it can work automatically without draining the car's battery.
24/7 Parking Surveillance
Directly to the battery for constant 24hrs/7days power to protect against theft when your car is in the parking lot.
Directly to the ignition wire for power only so it can turn on and off with the ignition.

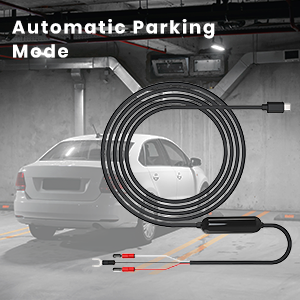

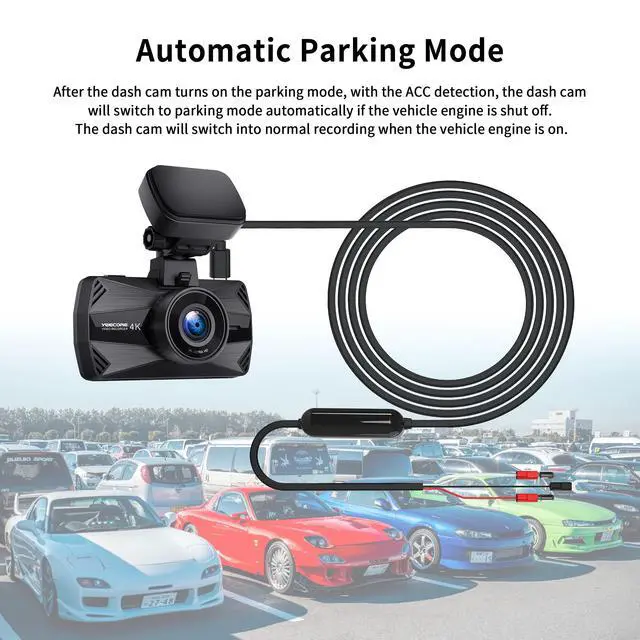

Automatic Parking Mode
The dash cam hard wire kits connects the camera directly to the fuse box under the dashboard for continuous power from the vehicle’s battery, which makes the parking monitor of your dash cam working 24 Hour Surveillance.
Low Voltage Protection
YEECORE hardwire kit with a sensitive voltage sensing switch, it will monitor the car battery voltage in real time. Once the input voltage is lower than 11.4V or higher than 23.2V, the hardwire kit for dash camera will cut the power supply automatically, leaving enough power to star the car. Never damage your battery!

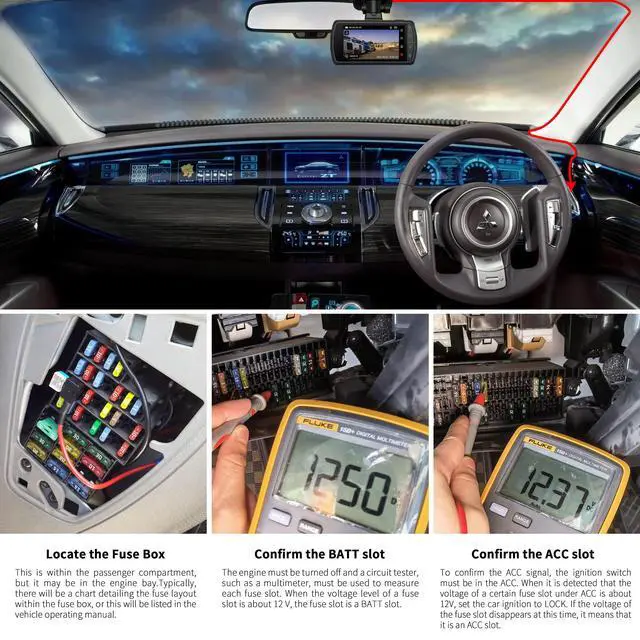

Find the Correct Fuse Slot
- Turn your car off and remove the key
- Find your fuse box (Location of the fuse box is different in different cars)

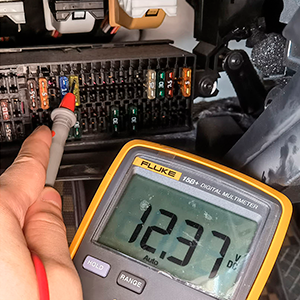

- Use circuit tester to test our constant fuse (A circuit that is live or hot all the time means that it constantly receives power, even when your car is parked and the engine is turned off)

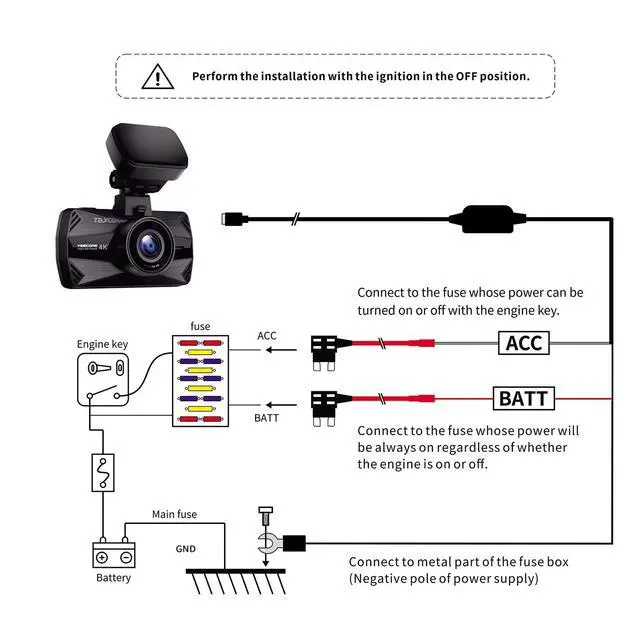

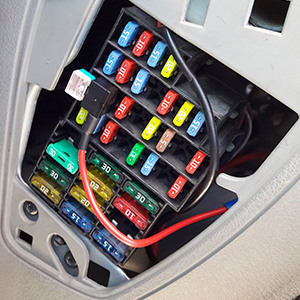

Connect this kit to Fuse Box
Once you've determined which fuse slots you need to use for your hardwiring kit you can crimp the red wire of your hardwire kit onto the Add-A-Fuse. Gently remove the fuse you identified. Install the fuse you just removed into the installation kit add-a-fuse circuit. Plug the Add-A-circuit into the fuse box in the correct orientation. And the white should be connect to the ACC.

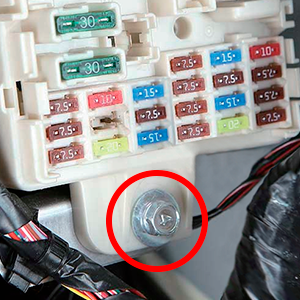

Connect Ground Wire
Connect the black ground wire to the metal of the car frame, just attached to the screw like the picture shows. You will typically need a socket wrench to loosen the nut or bolt that you choose to ground with. To attach the grounding terminal, loosen the nut or bolt enough to slip it in and tighten it back up afterwards.
Specification:
Connector: USB Type-C Connector
Input Voltage: 12V-40V
Output Voltage: 5V
Output Current: 5V/1.5A
Working Temperature: -4? - 158?
Length: 16.4ft (5 meters)
Low Voltage Protection: When lower than 12 V automatic cut off
Perfect for 24H parking surveillance

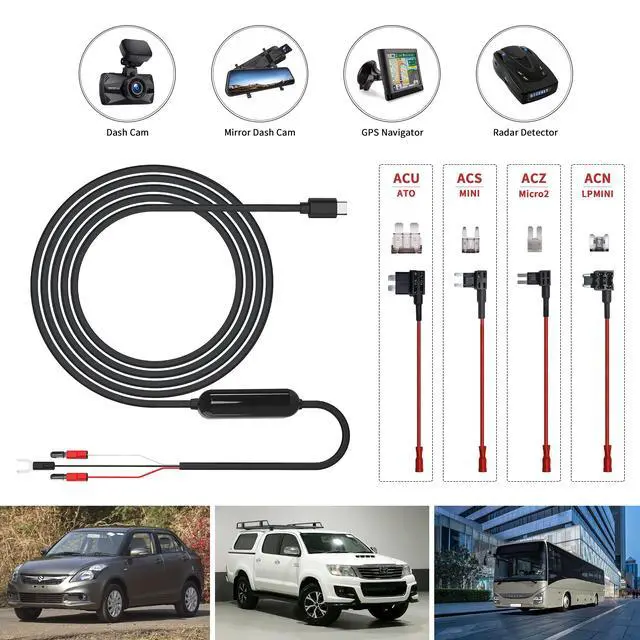

Power adapter: Low-profile LPmini/ACN fuse, Mini/ACS fuse, Micro 2/ACZ fuse, ATO /ACU fuse
Used for: Used for: USB Type-C Dash cams, GPS Navigator, Radar Detector and other car electronic devices.

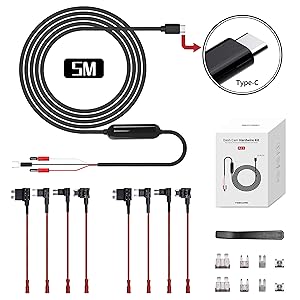

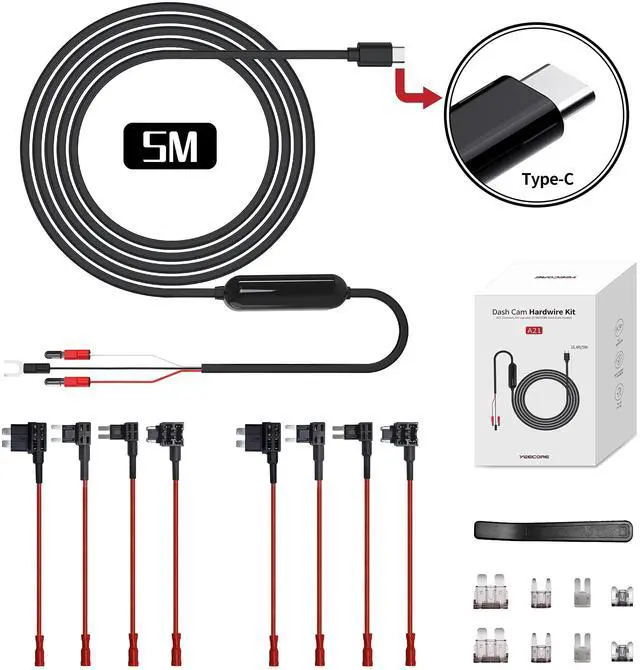

Package:
1* 16.4ft Type C USB Dash Cam Hardwire Kit
8* Fuse Tap/ Cable
1* crowbar
1*User Manual
Q: How to install the dash cam hardwire kit?
Connect the red wire to the add-a-circuit fuse holder and install it into the appropriate fuse slot in your vehicle's fuse box for constant power. Connect the white wire to the ACC wire in your vehicle's wiring harness for ignition power. Ground the black wire by attaching it under a metal bolt or screw in your vehicle.
Q: Does it have low voltage protection function?
Yes, the hardwire kit is designed with a smart low voltage protection system that will automatically shut off the power to your dash cam when the battery voltage drops to 11.4V for 12V vehicles or 23.2V for 24V vehicles, and reserves enough power so you can start your car for the next time. Thus preventing it from draining the battery.
