Dash Cam Hardwire Kit with Car Charger Socket USB-C Compatible, Low Voltage Protection, and Timer Settings Continuous Power for Parking Mode - Fits All Dash Cameras Using Car Chargers

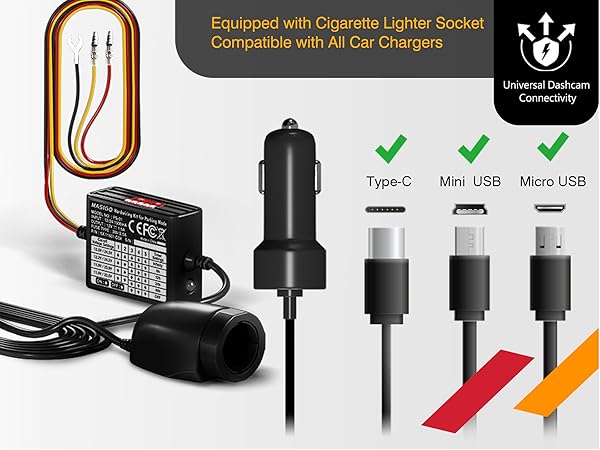

Universal Compatibility: Compatible with all dash cams using car chargers, the PS-01 hardwire kit connects to any vehicle's power source (12V-24V) for a reliable connection and continuous operation.
24/7 Parking Surveillance: Provides uninterrupted power to your dash cam, even when the car is off, ensuring complete protection against theft and damage while parked.
ACC Mode for Convenience: Automatically switches to ACC mode when the parking mode is off, enabling your dash cam to turn on and off with the ignition. No more worries about plugging or powering the dash cam manually.
Battery Protection: Built-in low voltage protection automatically cuts off power when the battery voltage falls below a safe level, preventing drain and ensuring reliable vehicle starts.
Adjustable Timer Settings: Set the desired power duration with integrated timer options, giving you control over how long your dash cam stays on after the engine is turned off.

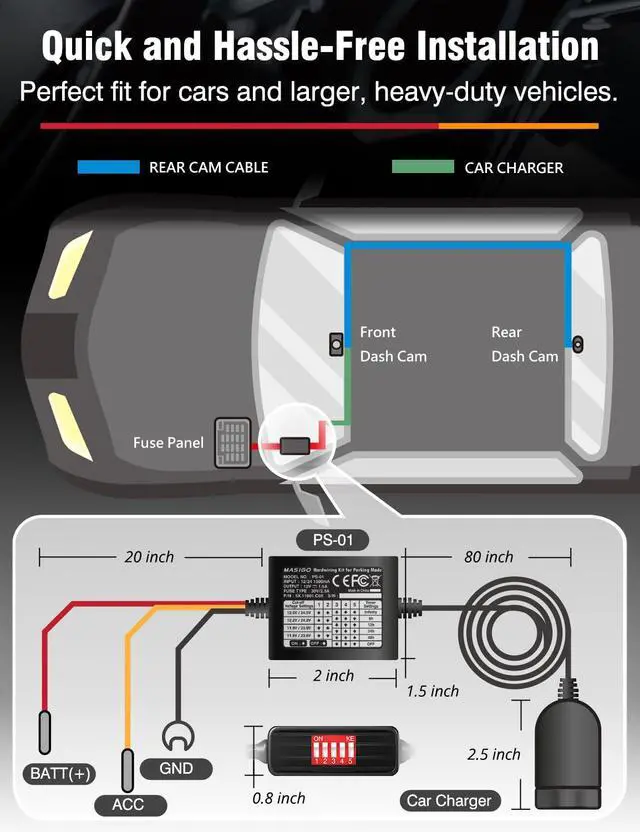

Simple Installation: Designed for straightforward installation with no need to use the cigarette lighter socket, enabling a discreet and permanent setup for continuous monitoring.

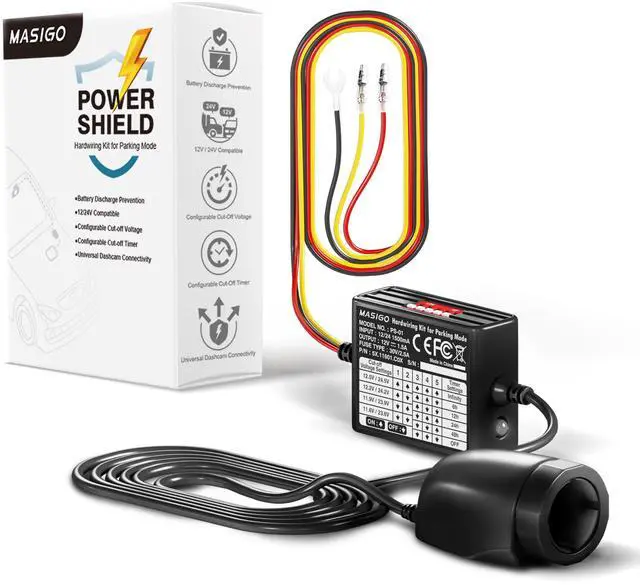

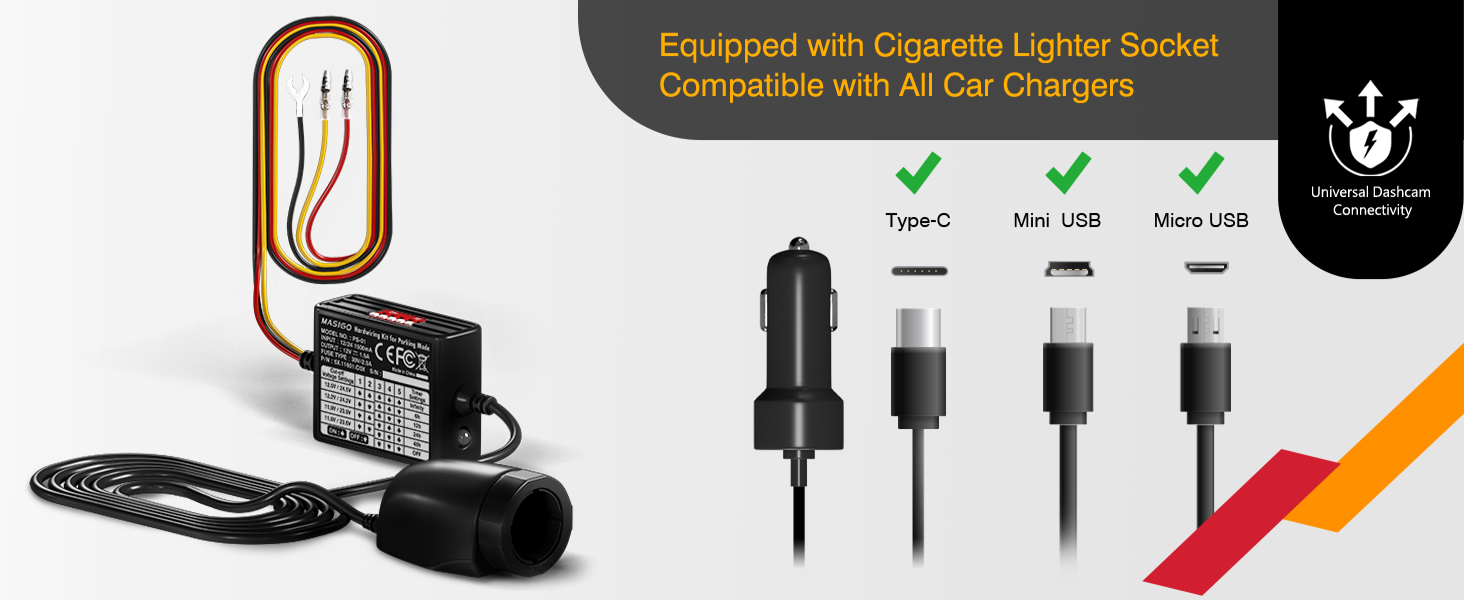

MASIGO Hardwire Kit for Parking Mode

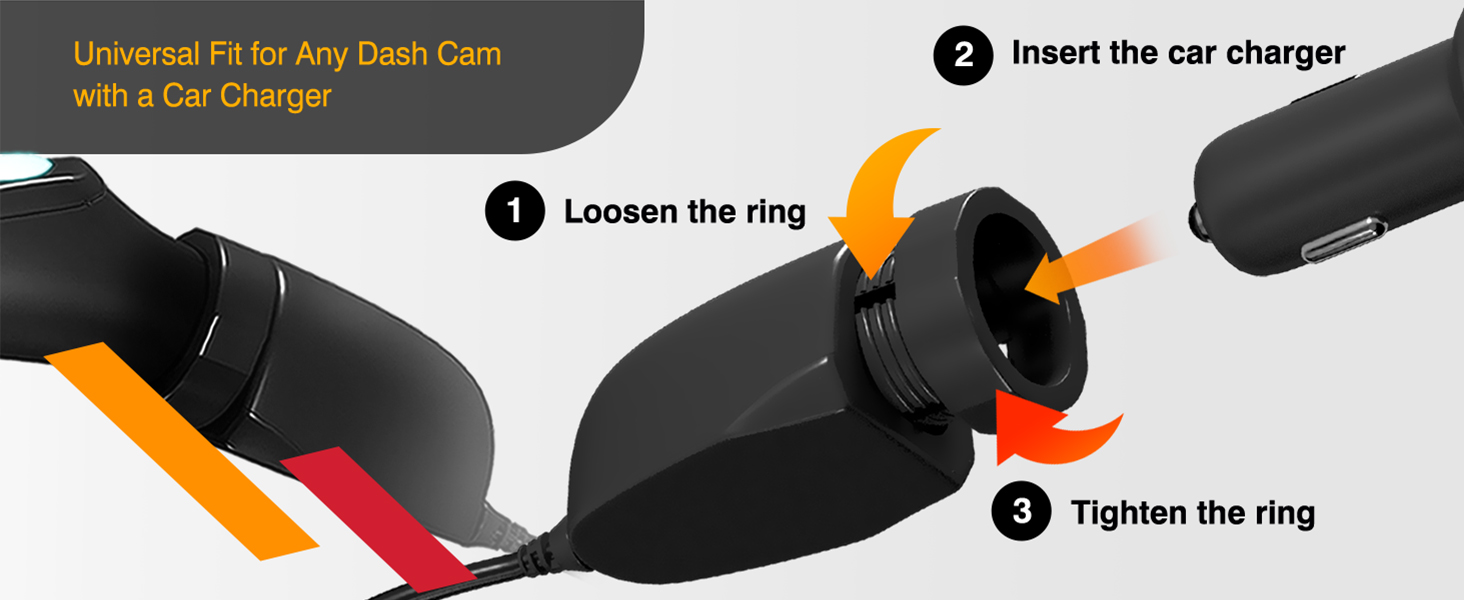

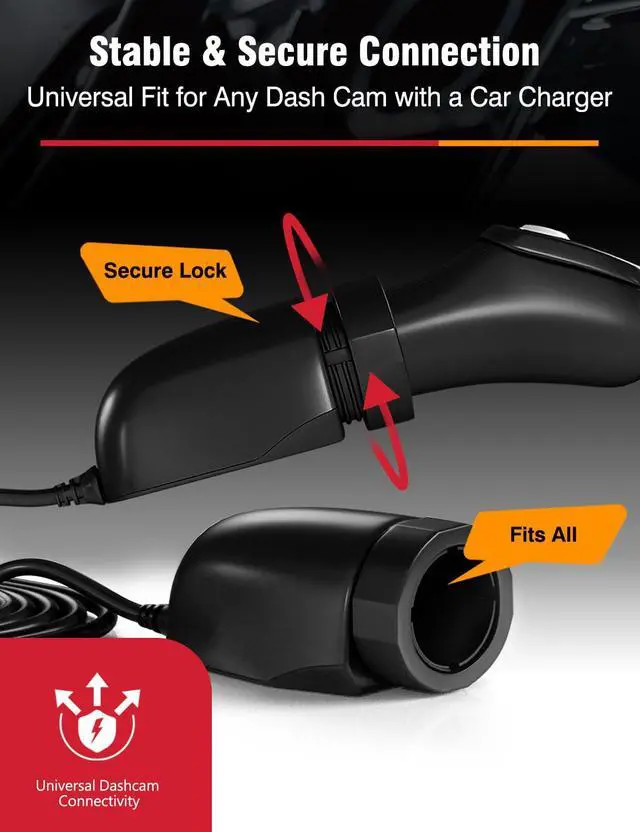

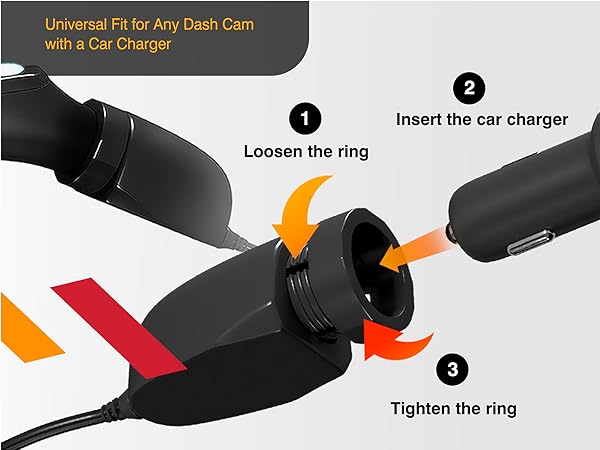

Hardwire Kit PS-01-Universal Fit for Any Dash Cam with a Car Charger

Advanced Parking Mode Features

Safeguards your vehicle's battery from excessive drain by automatically turning off power to the dash cam when voltage drops below a predefined level.

Suitable for both 12V and 24V vehicle systems, ensuring versatility across various vehicle types and setups.

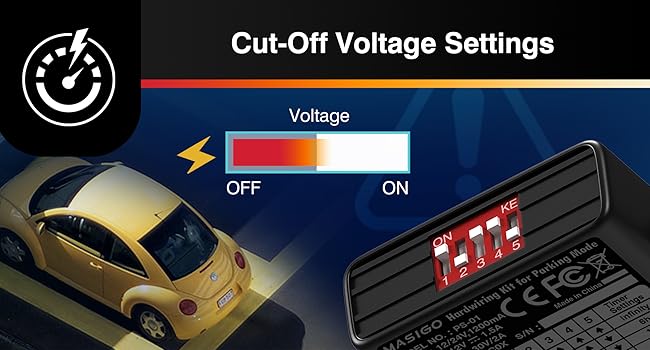

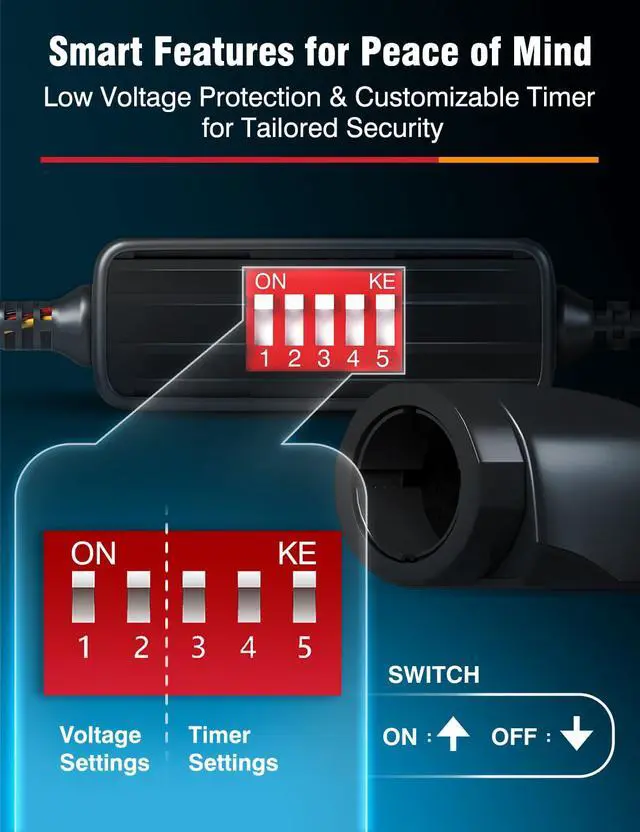

Watches your car's battery voltage and stops dash cam to safeguard the battery when voltage drops critically low. Choose 11.6-12.5V, 23.6-24.5V.

Customize the duration your dash cam operates in parking mode after ignition is off. Choose a time from 6 to 48 hours.

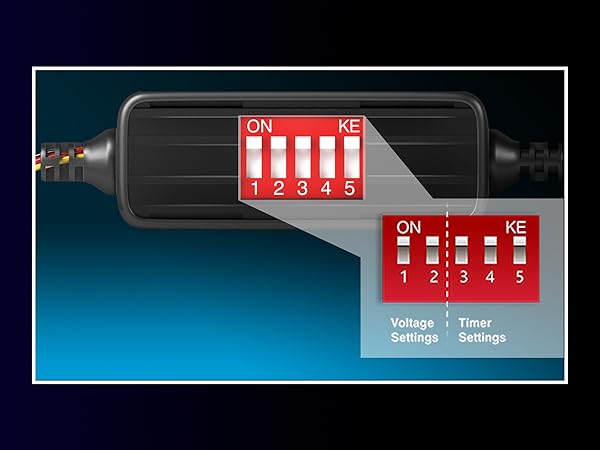

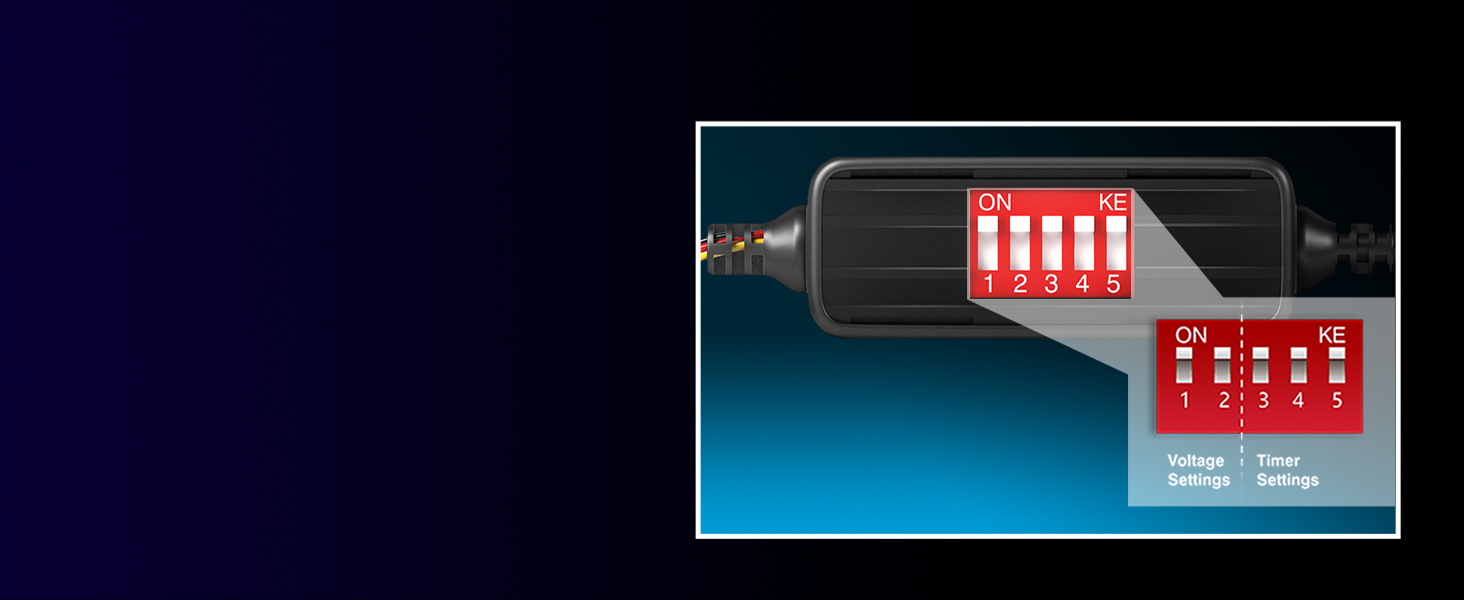

STEP 1
Set Voltage and Timer
Depending on your vehicle type, adjust the voltage and timer settings for optimal performance.
STEP 2

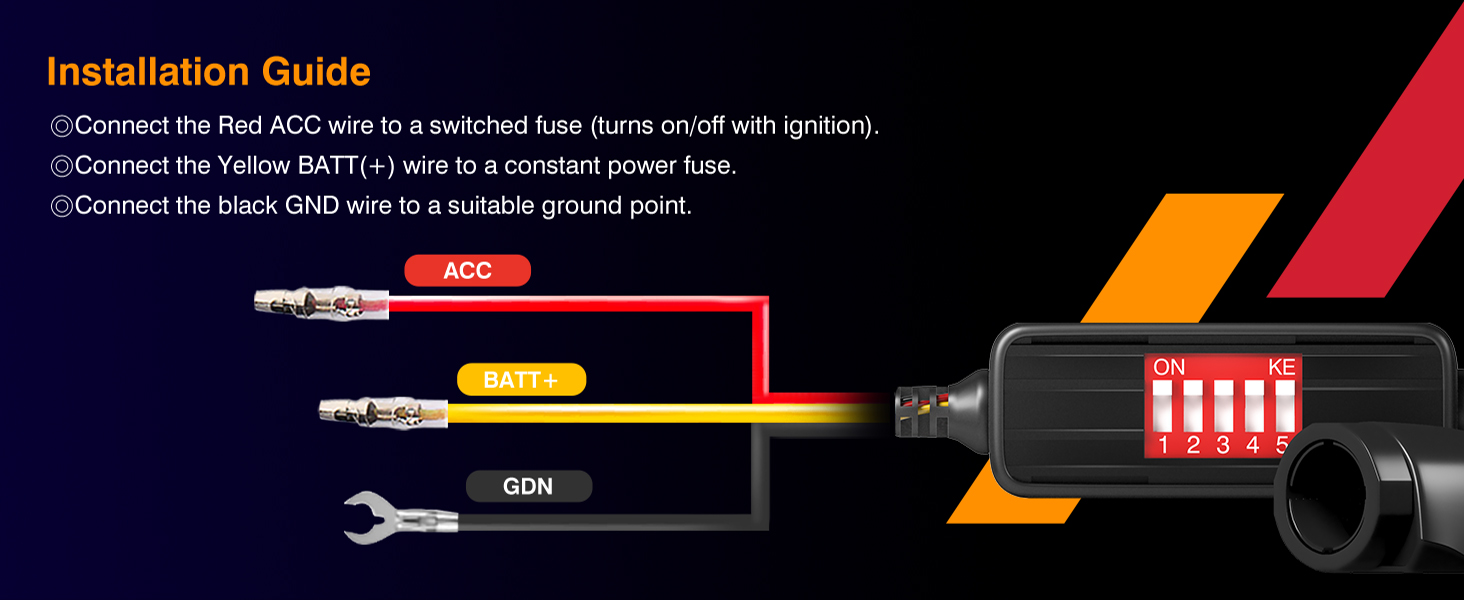

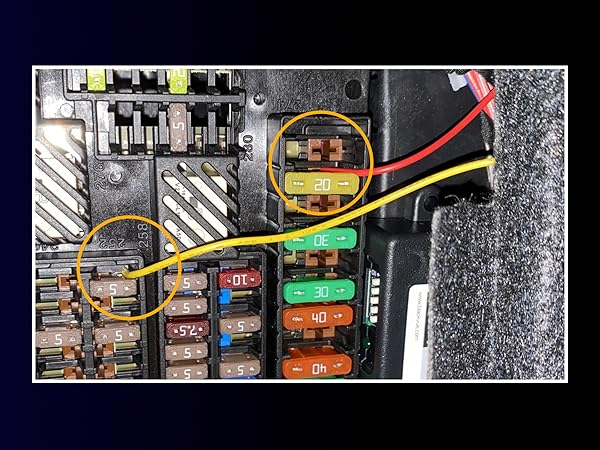

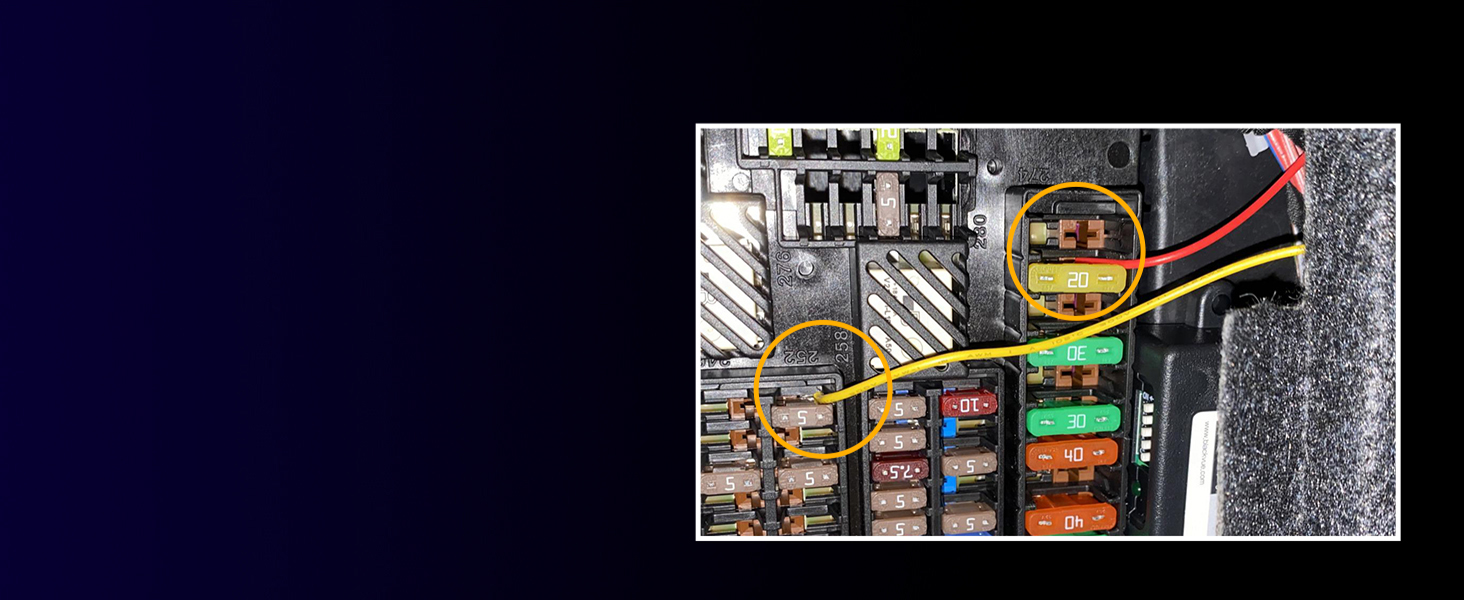

Locate a Suitable Fuse
Consult your car manual, locate switched and constant fuses in interior panel.

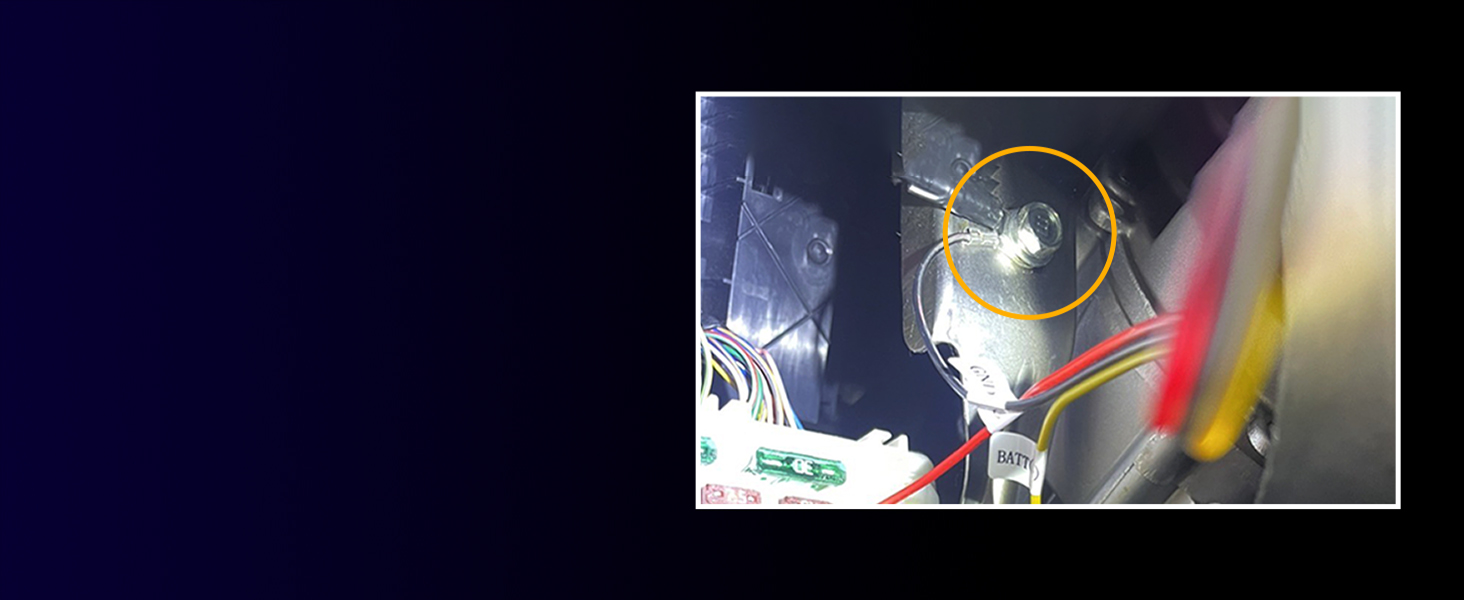

STEP 3

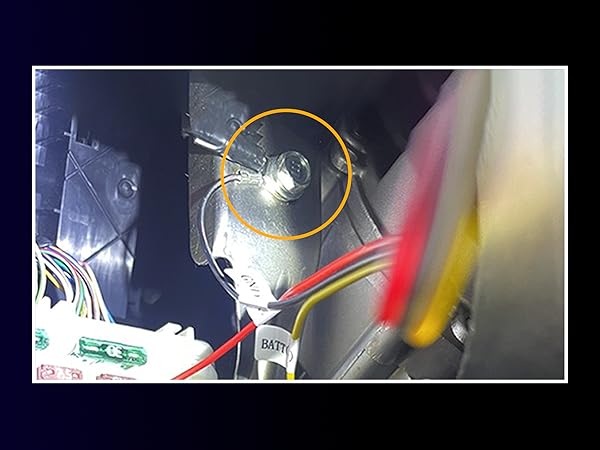

GND wire connected
Secure ground wire to bare metal frame.

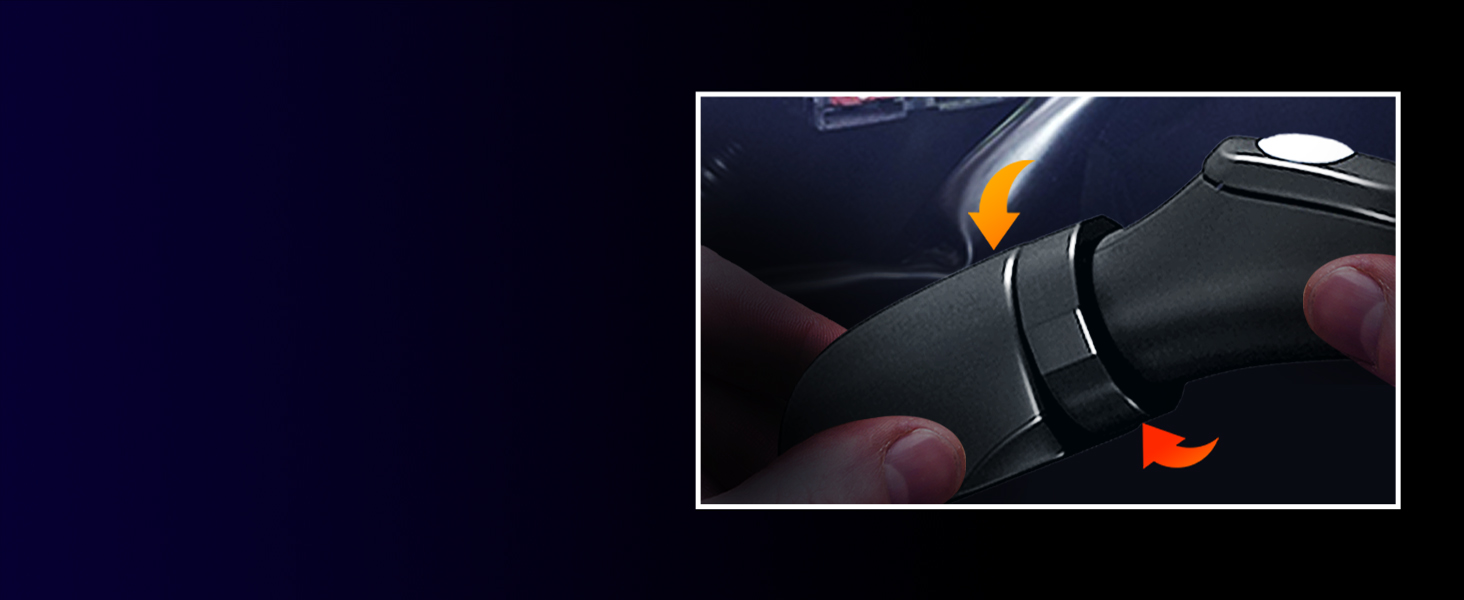

STEP 4

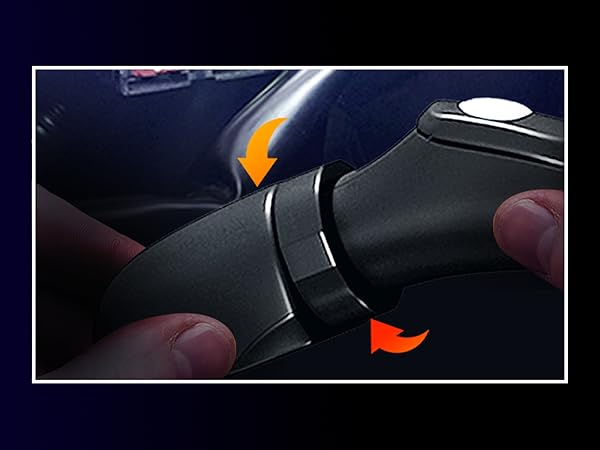

Plug in the Car Charger
Insert dashcam charger into harness socket. Usually included with dash cam package.

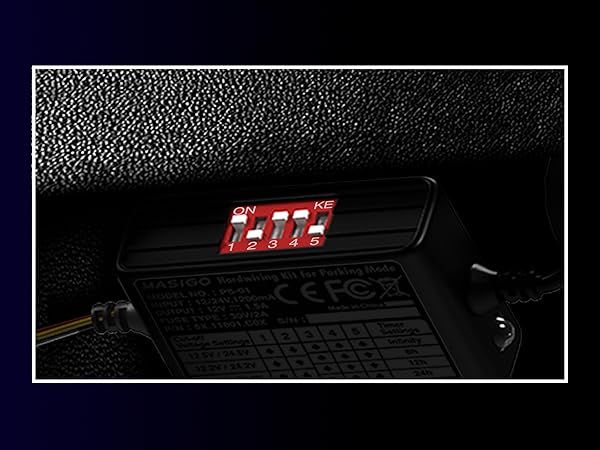

STEP 5

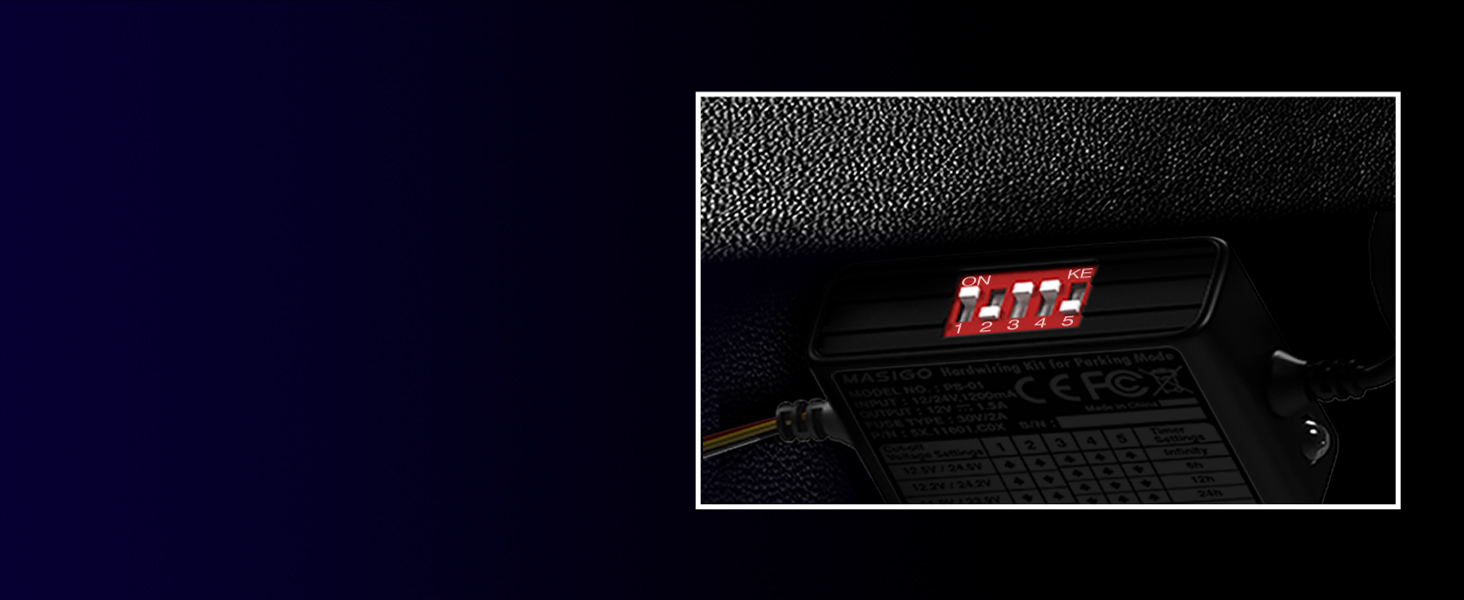

Mount Control Box
Accessible for voltage, timer adjustments, or turning off.

What is the power cut-off voltage of MASIGO Hardwire Kit PS-01?
You have four voltage cut-off options: 12.5V / 24.5V, 12.2V / 24.2V, 11.9V / 23.9V, and 11.6V / 23.6V, all with a +/- 0.1V tolerance. For pickup trucks, it's recommended to choose 12.2V or higher.
What are the available cut-off timer settings?
Cut-off timer options: 6h, 12h, 24h, 48h, Infinity.
Do I need to use a fuse tap?

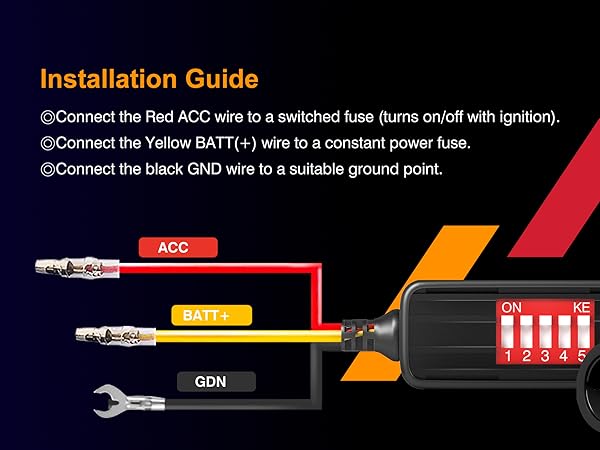

Yes, you'll require two add-a-fuse taps. One connects to a switched fuse for ignition-based power, and the other to a constant power fuse. This setup ensures proper dash cam function in driving and parking modes.
What is the operating temperature of MASIGO Hardwire Kit PS-01?
-4°F to 149°F (-20°C to 65°C)
