As a professional supplier of top-notch OEM&ODM vehicle backup Cameras , RAAYOO aims to only provide better backup cameras at a lower priice. We go to great lengths to research and improve our products all the time. And we believe that customer experience counts far more than short-term profits, so we make concerted efforts to design, manufacture, and improve our products and services in an innovative and responsible fashion.
RAAYOO L002 12V/24V back up camera is a universal backup camera for cars,trucks,RVs,pickups with RCA video input connector, it support flush mount installation or bracket mount installation, HD high clear no distortion image, starlight level night vision, reliable IP69 rating waterproof level and horizontal 170 degrees wide view angle.
If there is no image on the screen, please check the display settings firstly, it only support NTSC(CVBS N), please go to Car settings>>Factory settings>>Reverse(Picture)settings>>select NTSC(CVBS N), Selecting the wrong format will result in no image.
2 Important Wires/Loops Control Design:
RAAYOO L002 vehicle backup camera with 2 small wires/Loops.
*Default setting is rear view with guide lines
*Cut the Green loop: cancel the guide line; Cut the White loop: convert rear view to front view.
Important Notes: Please power off the vehicle and power on again after you cut the small loops, then the image should be converted successfully. Please feel free to let us know if your image cannot converted successfully.
If connect this RAAYOO L002 Reverse Camera to a Factory Radio, please separately order a suited Harness & Programmer to complete installation, because different Radio need different Harness & Programmer to work together.
As a professional supplier of top-notch OEM&ODM vehicle backup Cameras , RAAYOO aims to only provide better backup cameras at a lower priice. We go to great lengths to research and improve our products all the time.
We believe that customer experience counts far more than short-term profits, so we make concerted efforts to design, manufacture, and improve our products and services in an innovative and responsible fashion.
- 12 Hour Response
- 24 Month Replacement
- Lifetime Technology Support

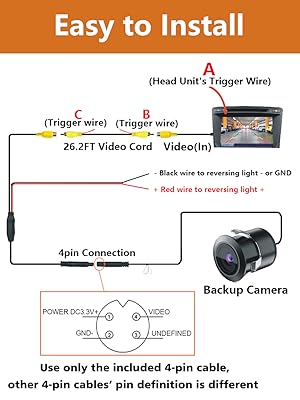

RAAYOO L002 Backup Cameras Installation
1.Find a proper location to mount this reverse camera.
2.Connect the power wire of camera to your reversing light, postive to reversing light +, negative to revesing light - or ground.
3.Connect the video cable to the head unit of your vehilce. Cable A connect with Cable B, Cable C connect to reversing light +.
- (1)Please test the backup camera before rounting the video cable;
- (2) Connect trigger A with B if your head unit with a trigger wire A, if not, no need connect them;
- (3) Wiring connection is the most important part of making the camera work, please make sure all of connection is tight to prevent the camera from not working or poor contact;
- 4.Start the vehicle and gear on reverse to test the camera.
- Note: Cut the green loop and white loop on the camera cable to flip the image and cancel the guide lines if you use it as a front/side view camera.
- 5. Please go to Car settings>>Factory settings>>Reverse(Picture)settings>>select NTSC(CVBS N)
Flush Mount Installation - Seems like it's always been a part of this car.
Using this method to install the camera is more invisible and beautiful, however, please make sure that finding out the accurate installation position to get better view angle before installation, because it is difficut to ajust the camera after finish flush mount installation.
Braceket Mount Installation - Suitable for Various Scenarios and Environments
Car bumpers is a good postion for flush mount installation, it is easy to drill a hole with drilling bit. Before drilling a hole, please seriously check and test to find where is the best position to mount this camera If you want to get a perfect view angle, please rotate the middle housing part of the camera (maximum 360 degrees) or move the bracket (maximum 90 degrees) to get the best view angle.

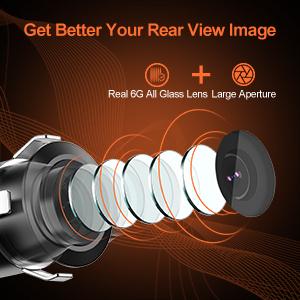

Get Better Your Image
RAAYOO L002 universal bind spot vehicle backup camera adopt 2025 latest 6pcs all-glass large aperture lens to provide HD resolution clear and true color image image for your vehicle without delay, No purple issue.

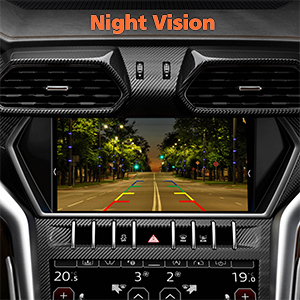

Super Night Vision
With advcanced night vision technology, it is easy to see things clearly in the dark, because its accurate recognition of lawns, stones, lakes, so it will be a reliable assitant at night. It also has clear and true color image at daytime, you can see the true color of the things you pass by.

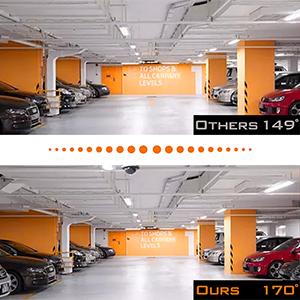

170 Degrees Wide Angle
RAAYOO L002 flush or bracket mount front/side/rear view camera adopt the 2025 latest 6pcs all-glass large aperture 170°wide viewing camera lens to provide hd resolution and larger view angle image, effectively help you see more area where your rear view mirror cannot reach, See wider,More safer.

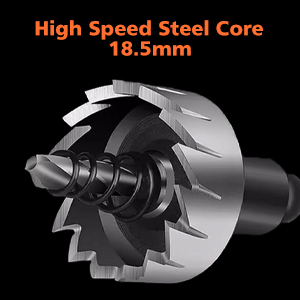

Drill Bit Included
Equipped with 18.5mm high speed steel drill bit, special grinding process and high strength matrix, strong piercing ability, sharp and durable, easy to drill a hole on the bumper.

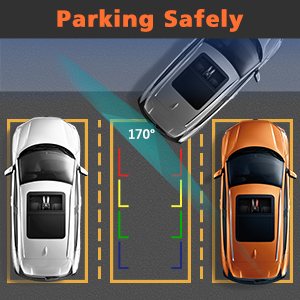

Parking Safely
It is difficult to park without a rear view camera even though you are an experienced driver, we cannot see all of the area behind of our vehicles. With this 170° large Viewing angle reverse camera, you can see clearly everything at the back of your car and quickly and safely park you car well.

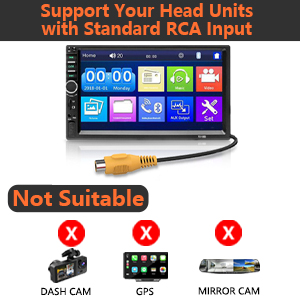

Support Any Car Stereo with RCA Video Input and NTSC(CVBS N) Mode
- Works with your head units or aftermarket LCD/TFT displays with standard RCA video input.
- Only support NTSC(CVBS N), please go to Car settings>>Factory settings>>Reverse settings>>select NTSC(CVBS N).
- Not compatible with Dash cams, GPS devices, or Mirror cams.
RAAYOO, an innovative brand dedicated to guarding driving safety, was born from the firm pursuit of traveling safety.
We continue to break through technical bottlenecks and carefully design car cameras with high definition, wide field of view and reliable performance.
We always adhere to the customer-centered, committed to providing excellent products and quality service, for countless car owners to bring peace of mind and protection.
CVBS 960x576 Backup Camera
CVBS 960x576 Backup Camera
AHD 1080P Backup Camera
