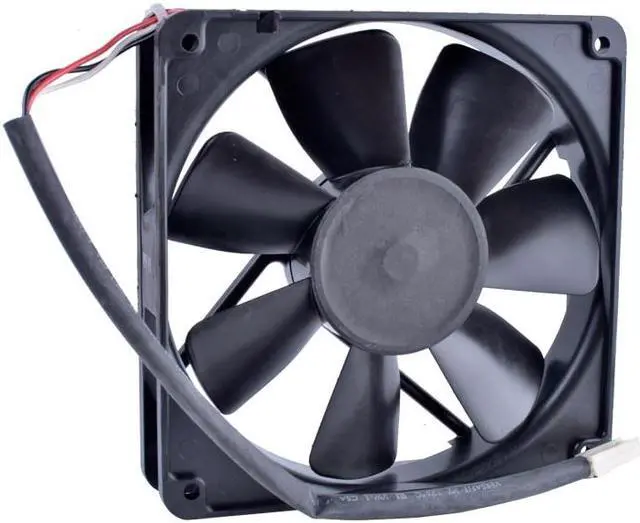

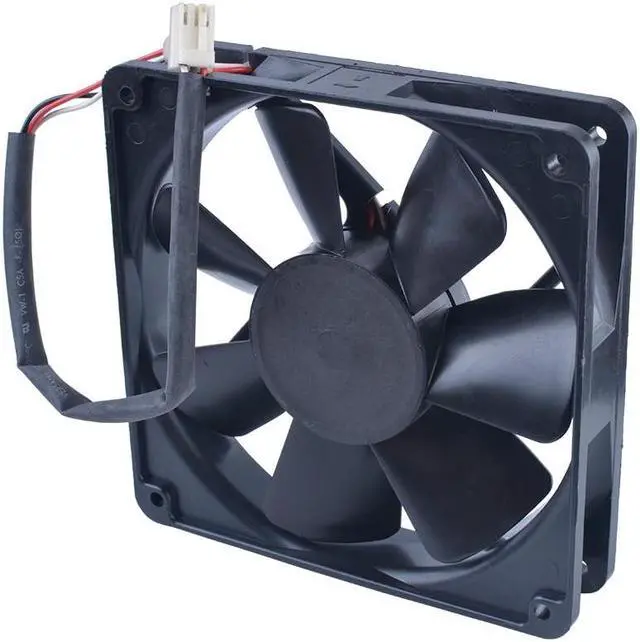

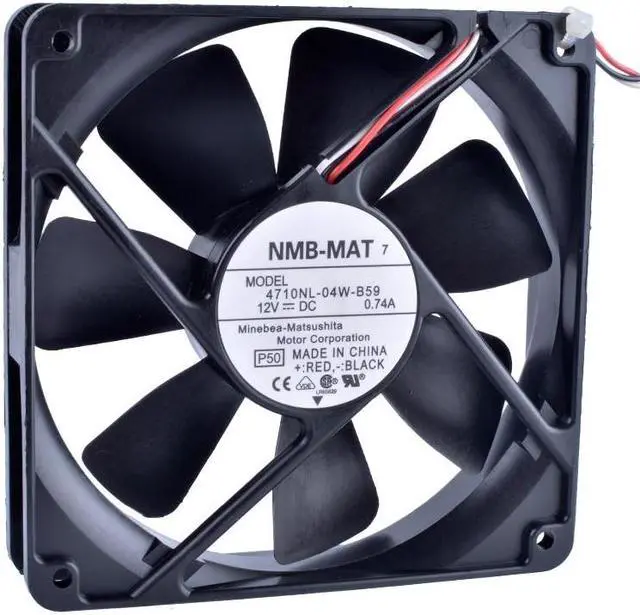

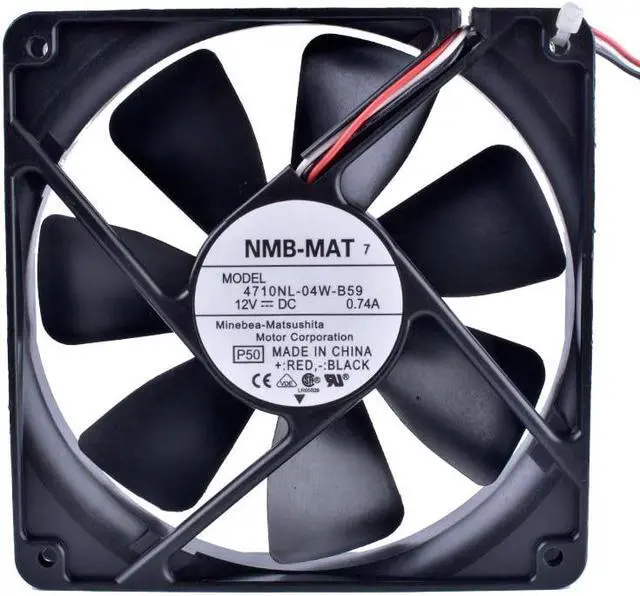

4710NL-04W-B59 12cm 120mm fan 120x120x25mm DC12V 0.74A 3pin High -speed axis flowers cooling for chassis power supply
- 4710NL-04W-B59 12cm 120mm fan 120x120x25mm DC12V 0.74A 3pin High -speed axis flowers cooling for chassis power supply
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Category
DC Axial Fans
Part Number
4710KL-04W-B59-E00
Frame Width [mm]
119
Frame Height [mm]
119
Frame Depth [mm]
25
Max. Air Flow [CFM]
114.7
Max. Air Flow [m3 per min]
3.25
Max. Static Pressure [In H2O]
0.2
Max. Static Pressure [Pa]
50.5
Fan Speed [RPM]
2800
Noise [dB]
41.5
Life Expectancy [L10]
25 degree C 100, 000 Hours (B00 / E00)
Bearing Type
Ball Bearing
Nominal Voltage [V]
12
Operating Voltage - Lower [V]
6
Operating Voltage - Upper [V]
13
Current [A]
0.55
Input Power [W]
6.6
Mass [g]
180
Rib/Flange
Flange
Tach / Locked Rotor Output
Locked Rotor
DC Axial Fans
Part Number
4710KL-04W-B59-E00
Frame Width [mm]
119
Frame Height [mm]
119
Frame Depth [mm]
25
Max. Air Flow [CFM]
114.7
Max. Air Flow [m3 per min]
3.25
Max. Static Pressure [In H2O]
0.2
Max. Static Pressure [Pa]
50.5
Fan Speed [RPM]
2800
Noise [dB]
41.5
Life Expectancy [L10]
25 degree C 100, 000 Hours (B00 / E00)
Bearing Type
Ball Bearing
Nominal Voltage [V]
12
Operating Voltage - Lower [V]
6
Operating Voltage - Upper [V]
13
Current [A]
0.55
Input Power [W]
6.6
Mass [g]
180
Rib/Flange
Flange
Tach / Locked Rotor Output
Locked Rotor
