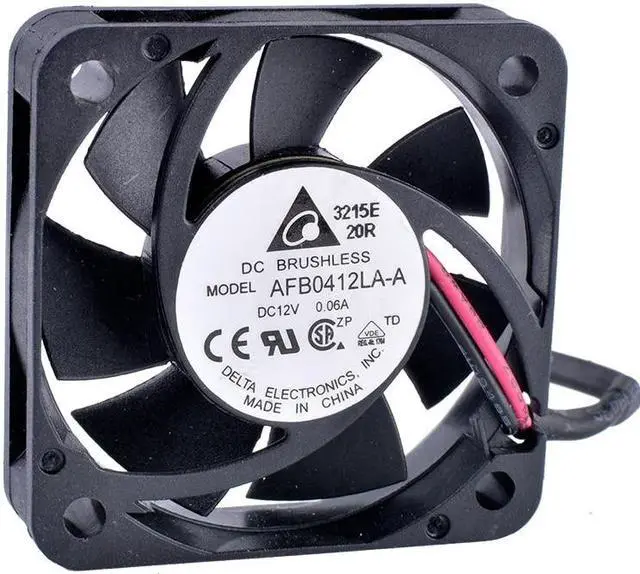

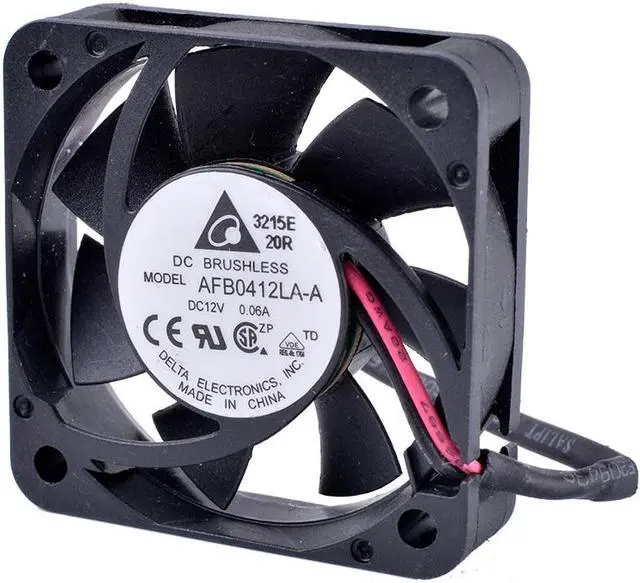

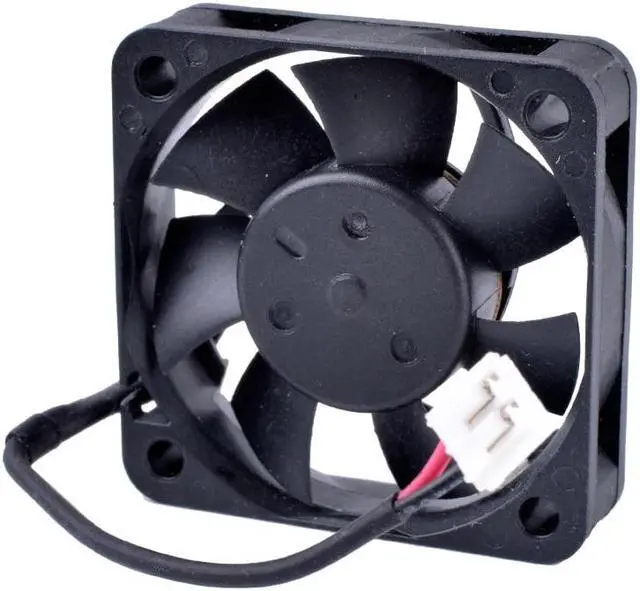

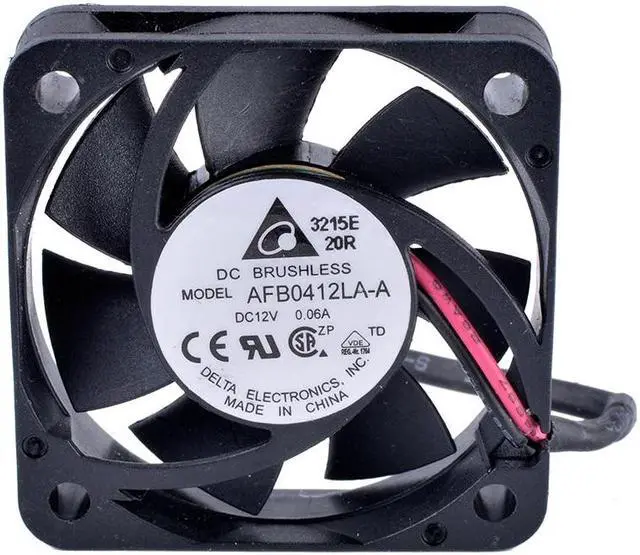

AFB0412LA-A 4cm 40mm fan 40x40x10mm DC12V 0.06A double ball bearing quiet micro axial fan cooling fan for power supply
- AFB0412LA-A 4cm 40mm fan 40x40x10mm DC12V 0.06A double ball bearing quiet micro axial fan cooling fan for power supply
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Series
AFB
Part Status
Enabled
Voltage Rated
12 VDC
Size / Dimension
Square-40mm L X 40mm H
Width
10.00 mm
Air Flow
4.39CFM ( 0.124 m3/min)
Static Pressure
0.068 inchH2O ( 1.737 mmH2O)
Bearing Type
Ball
Fan Type
Axial
Features
--
Noise
16.0 dB (A)
Power (Watts)
0.24 W
RPM
4000 RPM
Termination
2 wire leads
Ingress Protection
--
Operating Temperature
-10~+70C
Weight gram (g)
14.0 g
Current Rating
0.05 A
Voltage Rating
9.0 - 13.8 VDC
Material Frame
Plastic
Material Blade
Plastic
Lifetime @ Temp
70000 Hrs@40C
AFB
Part Status
Enabled
Voltage Rated
12 VDC
Size / Dimension
Square-40mm L X 40mm H
Width
10.00 mm
Air Flow
4.39CFM ( 0.124 m3/min)
Static Pressure
0.068 inchH2O ( 1.737 mmH2O)
Bearing Type
Ball
Fan Type
Axial
Features
--
Noise
16.0 dB (A)
Power (Watts)
0.24 W
RPM
4000 RPM
Termination
2 wire leads
Ingress Protection
--
Operating Temperature
-10~+70C
Weight gram (g)
14.0 g
Current Rating
0.05 A
Voltage Rating
9.0 - 13.8 VDC
Material Frame
Plastic
Material Blade
Plastic
Lifetime @ Temp
70000 Hrs@40C
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy.
- Read full return policy for details.
