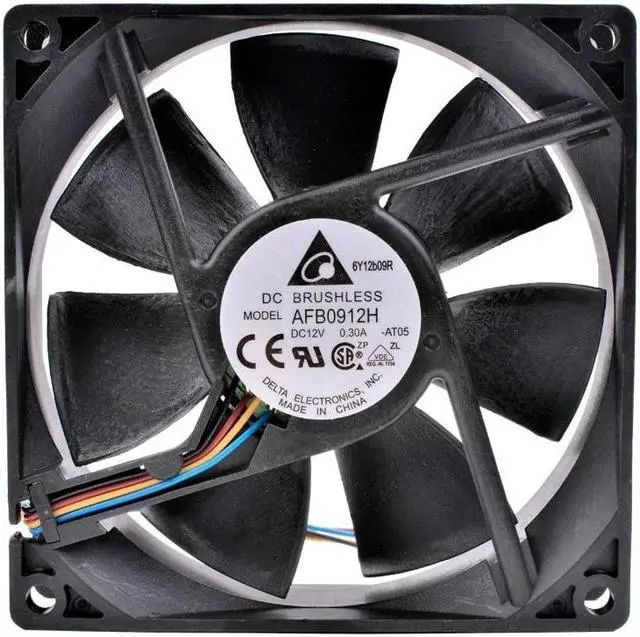

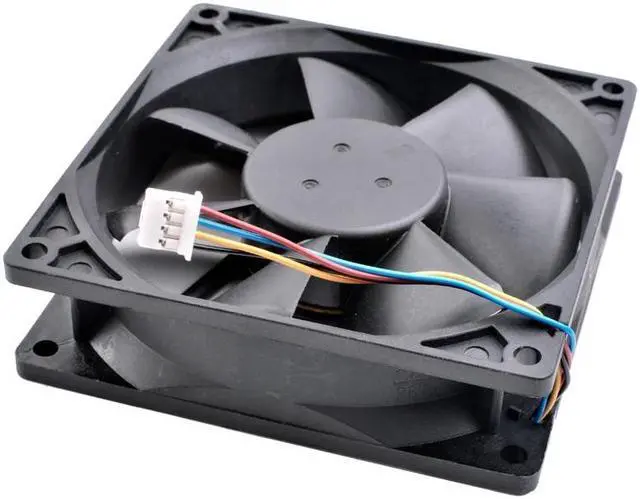

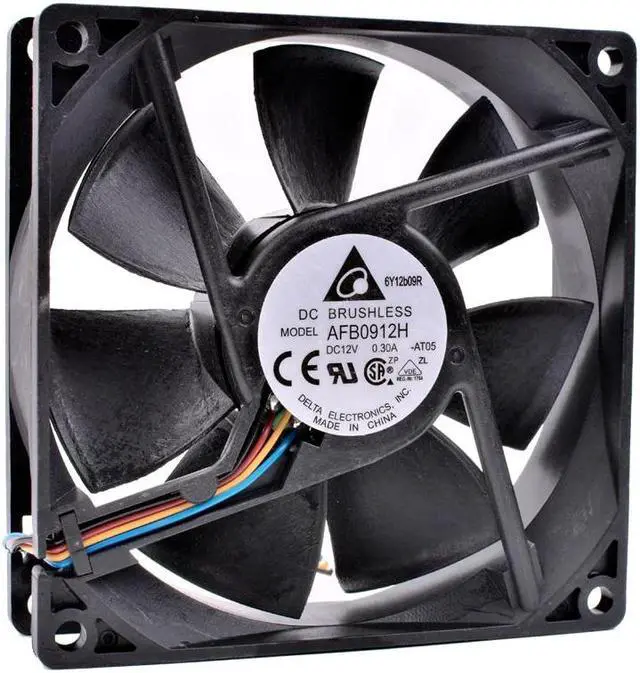

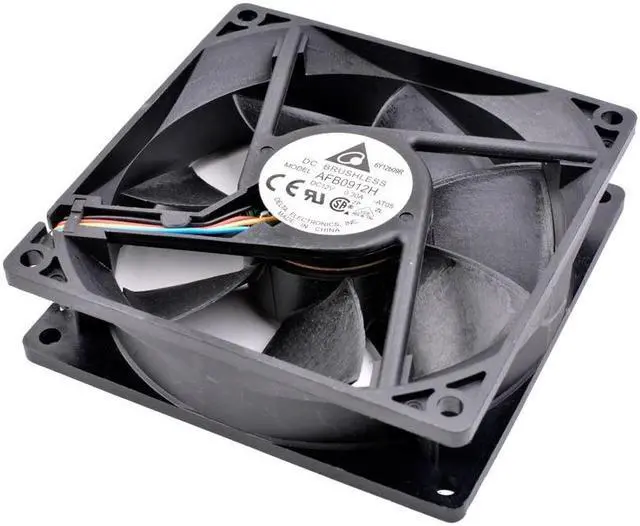

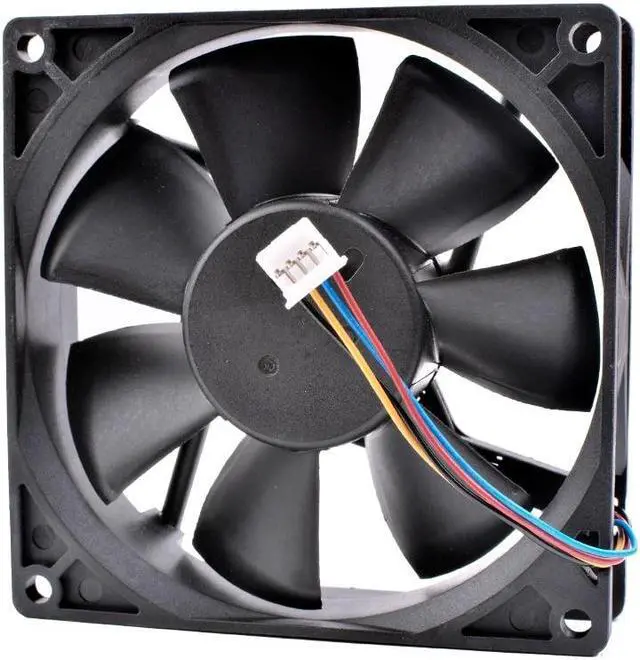

AFB0912H 9cm 92mm fan 92x92x25mm DC12V 0.30A 4pin dual ball bearings Quiet cooling fan for chassis CPU power supply(CPU 4pin connector)
- AFB0912H 9cm 92mm fan 92x92x25mm DC12V 0.30A 4pin dual ball bearings Quiet cooling fan for chassis CPU power supply(CPU 4pin connector)
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Series AFB
Part Status Enabled
Voltage Rated 12 VDC
Size / Dimension Square-92mm L X 92mm H
Width 25.40 mm
Air Flow 51.21 CFM ( 1.450 m3/min)
Static Pressure 0.177 inchH2O ( 4.50 mmH2O)
Bearing Type Ball
Fan Type Axial
Features --
Noise 34.0 dB (A)
Power (Watts) 1.92 W
RPM 2850 RPM
Termination 2 wire leads
Ingress Protection --
Operating Temperature -10~+70C
Weight gram (g) 99g
Current Rating 0.16 A
Voltage Rating 7.0 - 13.8 VDC
Material Frame Plastic
Material Blade Plastic
Lifetime @ Temp 70000 Hrs@40C
Part Status Enabled
Voltage Rated 12 VDC
Size / Dimension Square-92mm L X 92mm H
Width 25.40 mm
Air Flow 51.21 CFM ( 1.450 m3/min)
Static Pressure 0.177 inchH2O ( 4.50 mmH2O)
Bearing Type Ball
Fan Type Axial
Features --
Noise 34.0 dB (A)
Power (Watts) 1.92 W
RPM 2850 RPM
Termination 2 wire leads
Ingress Protection --
Operating Temperature -10~+70C
Weight gram (g) 99g
Current Rating 0.16 A
Voltage Rating 7.0 - 13.8 VDC
Material Frame Plastic
Material Blade Plastic
Lifetime @ Temp 70000 Hrs@40C
